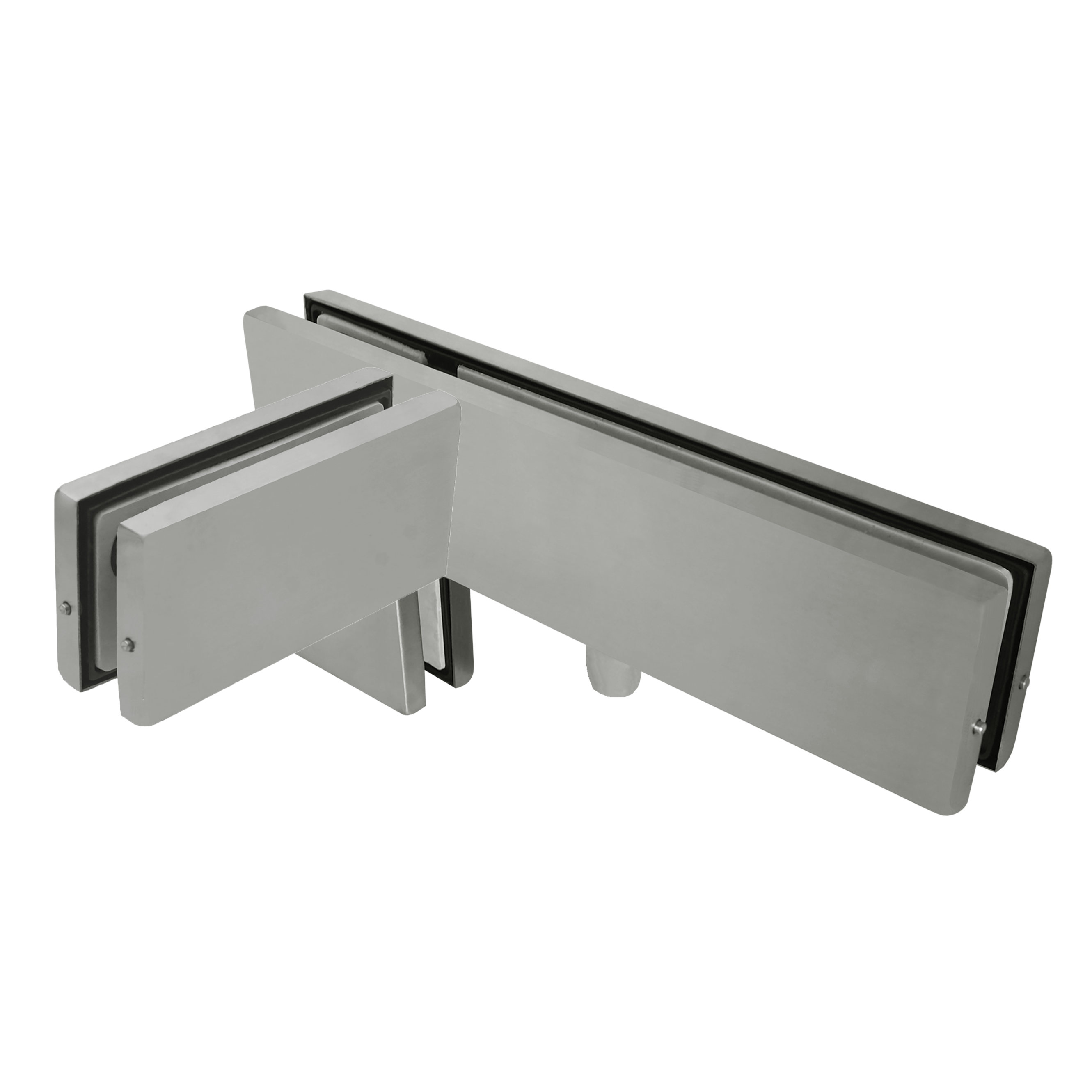

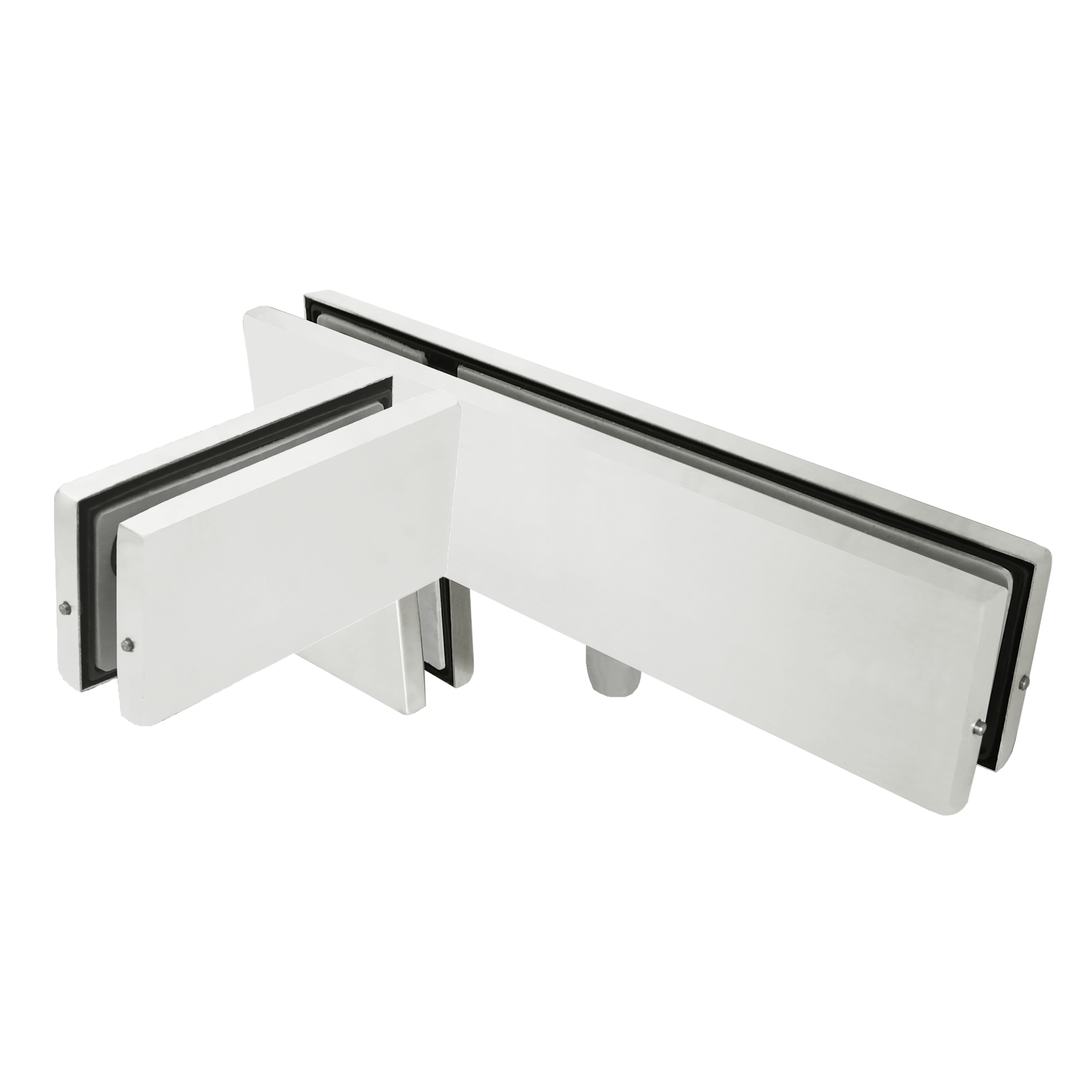

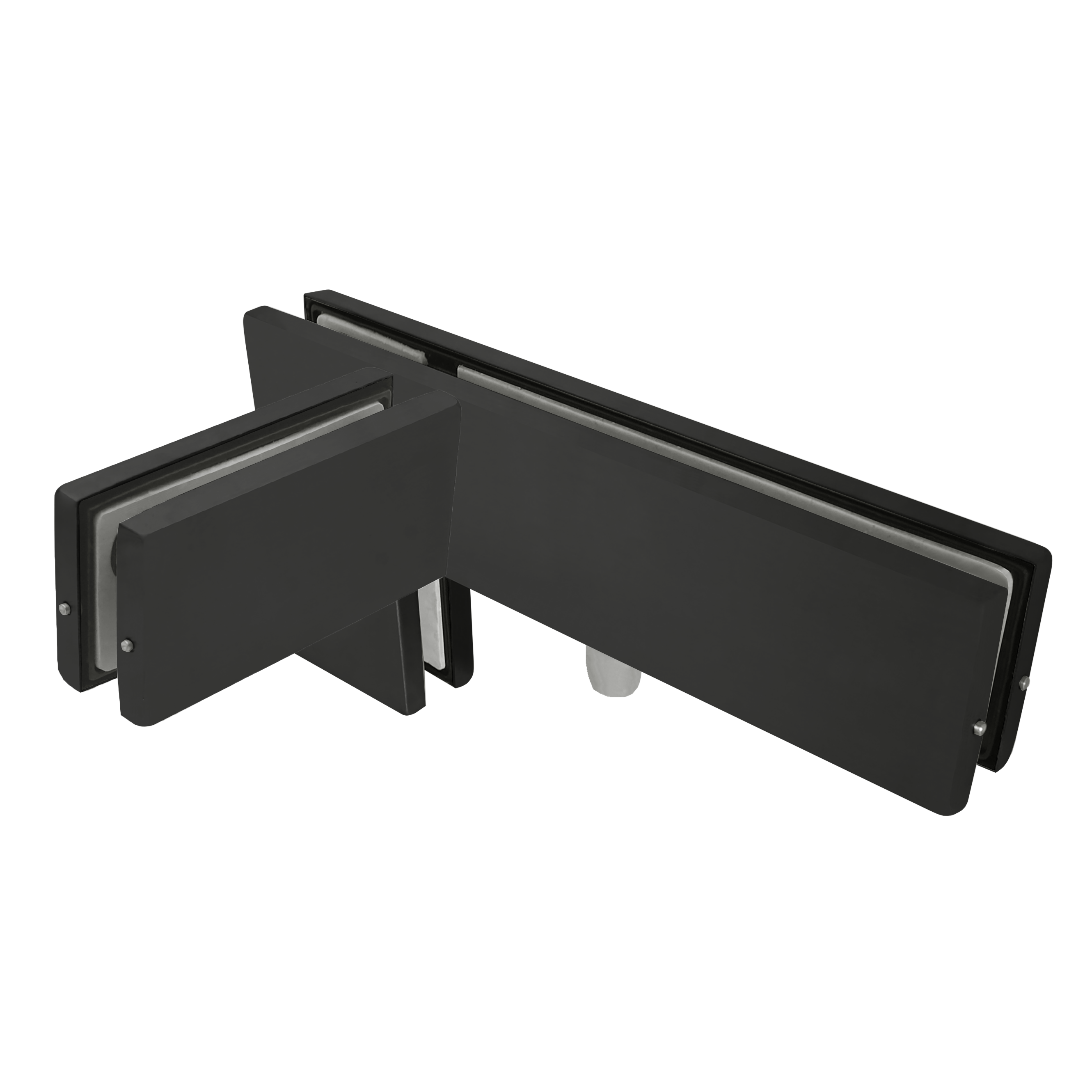

The GGH PFIT Series Transom with Right Fin Support Patch Fitting is designed for frameless glass door systems requiring transom support with a right-side fin connection. Featuring an aluminum body with a stainless steel 304 cover plate, this fitting supports multi-panel glass alignment while providing a secure pivot connection for commercial glass door applications. The included PFINTOPPIV insert allows integration with compatible PFIT Series top patch fittings, making it suitable for storefront entrances, office doors, and other high-traffic glass door systems.

More Product Information

Material: Aluminum Body with Stainless Steel 304 Cover Plate

Product Length: 8-1/2" (216mm)
Product Width: 4-1/8" (105mm)
Product Height: 5-5/8" (141.4mm)

Glass Specifications

Glass Thickness Range: 3/8" to 1/2" (10mm to 12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: 3/4" (19.05mm) Diameter Hole with Two Corner Notches

Mounting & Compatibility

Mounting Type: Glass Mount
Thread Size: M6 Threaded
Gasket Material: Grey Interior Gaskets
Gasket Thickness: 1/16" (2mm)

Includes: Gaskets, Allen Key, Template

Performance & Capacity

Maximum Width:
• 36" (914mm) for 3/8" glass
• 42" (1067mm) for 1/2" glass

Maximum Height:
• 84" (2134mm) for 3/8" glass
• 102" (2591mm) for 1/2" glass

Maximum Weight Capacity: 220 lbs. (100 kg)
Tested Cycles: 500,000 operations

Compare To: PH41R
