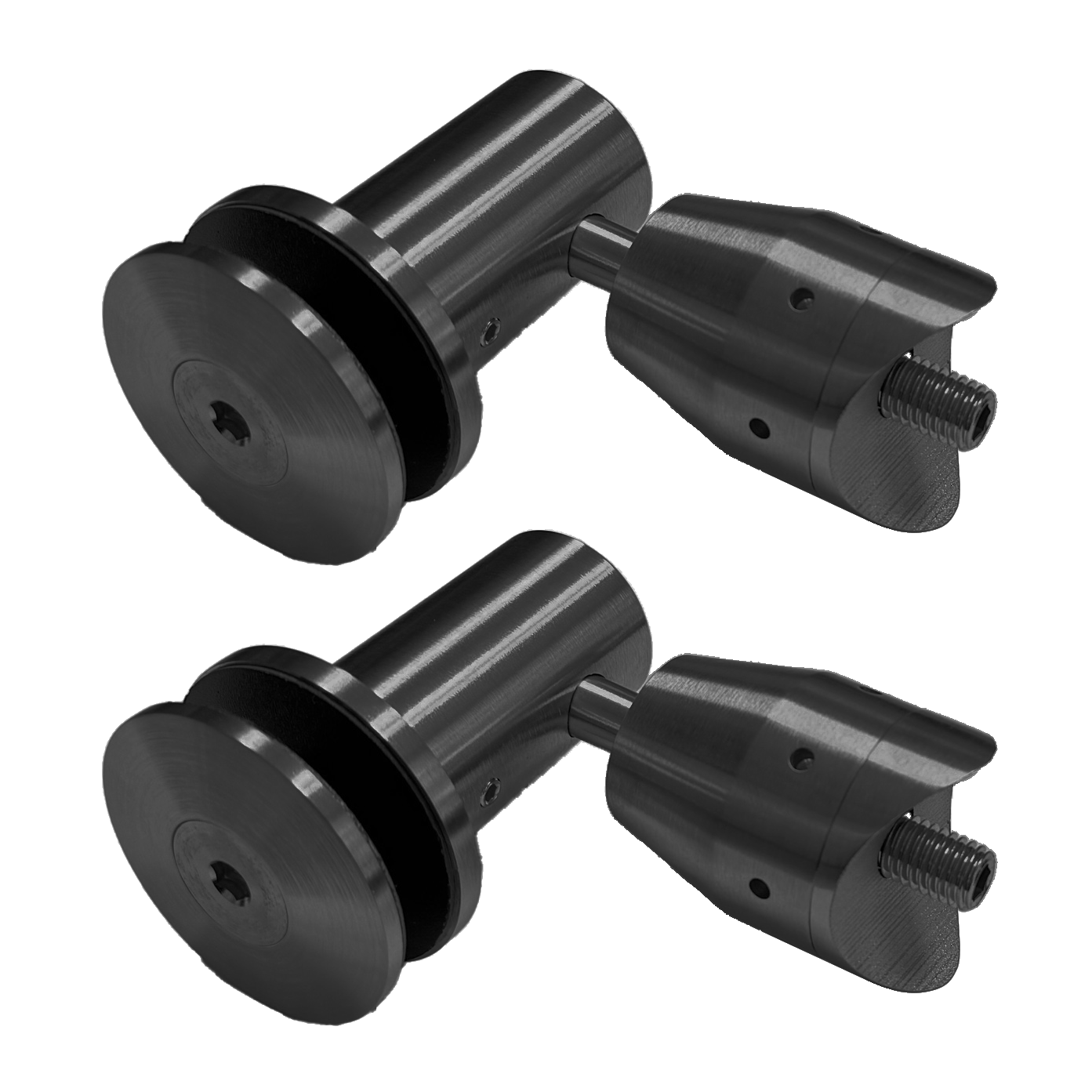

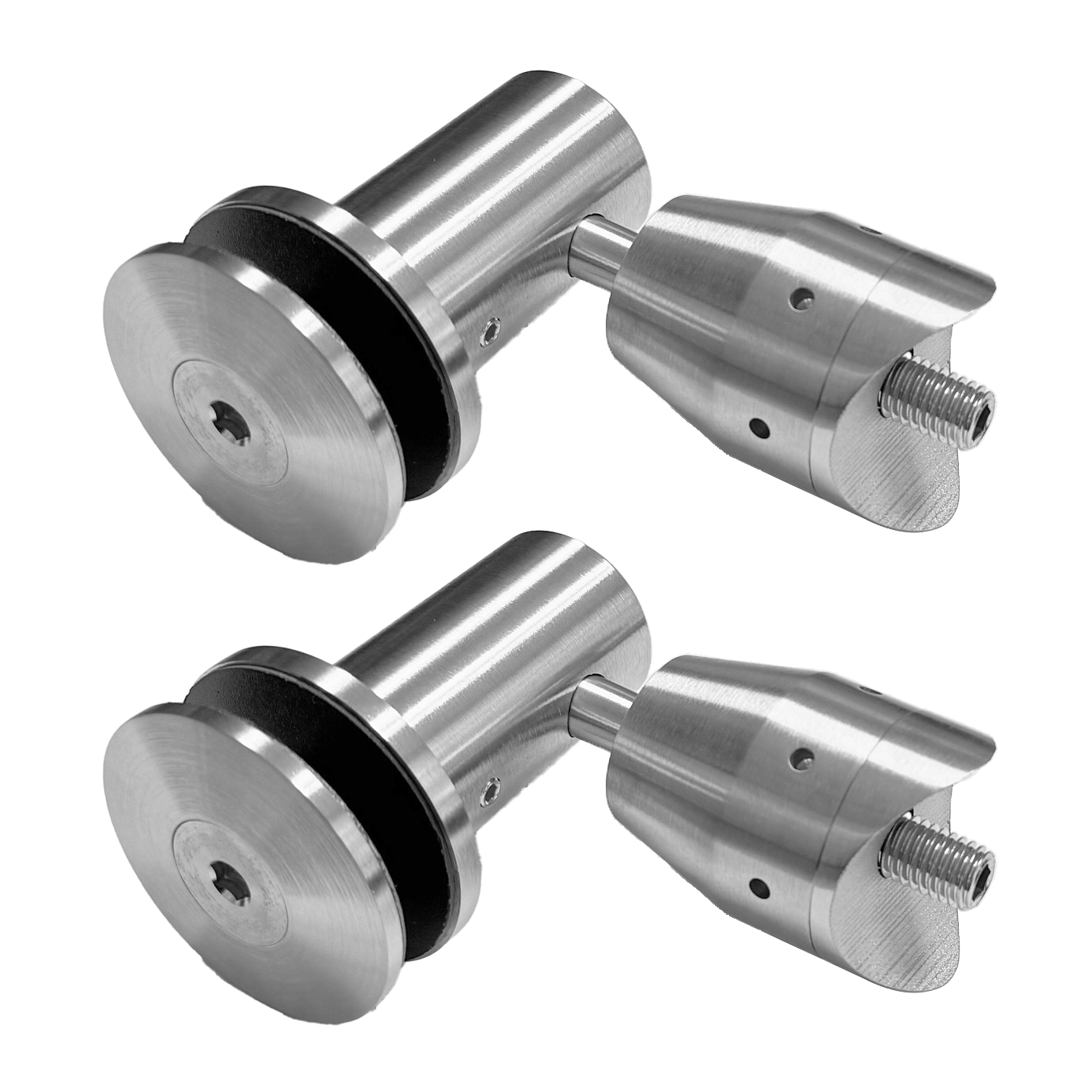

The Pro Series Double Arm Glass Connector is designed to securely mount 1/2" to 13/16" thick glass panels to round or flat posts. Featuring an adjustable design and a removable round adapter, this connector offers versatile installation options while maintaining a sleek, modern appearance. Ideal for architectural designs featuring curvy glass walls, glass curtains, and other marvelous glass structures.

More Product Information

Projection: 2-7/8" (73.72mm)
Product Width: 2" (50.80mm)
Product Height: 3-3/16" (80.50mm)
Material: 316 Stainless Steel

Includes: Two connectors (pair), removable round adapter, screws, gaskets
Gasket Material: EPDM
Gasket Thickness: 1.5mm
Thread Size: M10

Adjustability Type: Tilt (Angular)
Tilt Adjustment: ±5°

Glass Thickness Range: 1/2" (12mm)
Glass Type: Laminated Tempered Glass
Glass Fabrication: Requires 3/4" (19mm) diameter hole

Minimum Distance from Edge of Glass: 1-5/8" (41mm)
Edge of Glass to Center: 2-5/8" (67mm)

Compatible With: Double arm posts (square & round), railing glass panels, end caps

Application: Railing systems, glass canopy, awning glass infills
Installation: Outdoor

Compare To: SB50BS/RB50SBS

For technical inquiries: technical@ggh-usa.com

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
