The GGH MC90 Mall Front Clamp provides a secure and stylish solution for joining vertical glass panels at 90-degree angles, making it ideal for corner installations in mall environments. Designed for use with 3/8" to 3/4" (10 to 19 mm) thick monolithic tempered glass, this clamp offers robust support and enhanced rigidity to minimize flexing and ensure stability between glass panels.

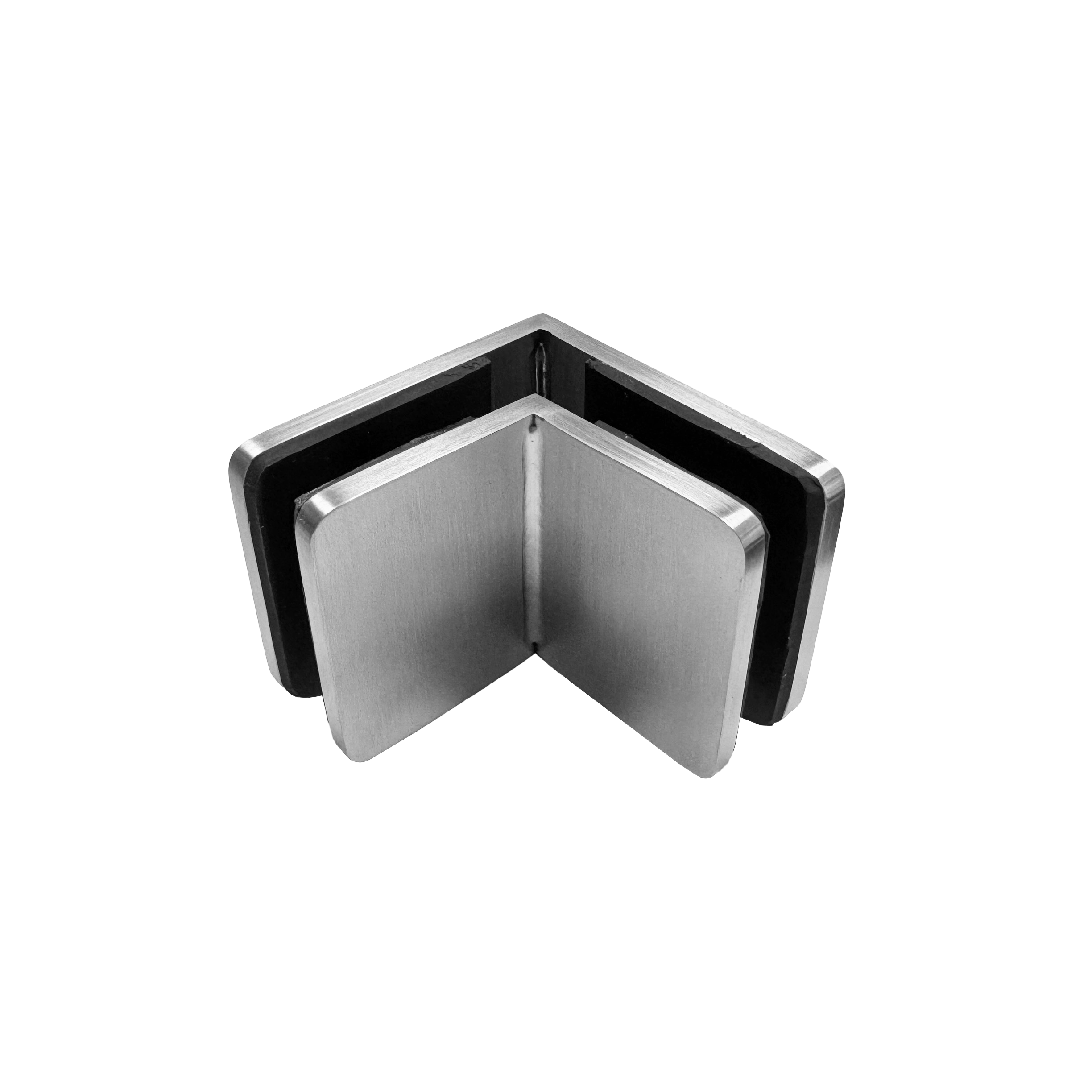

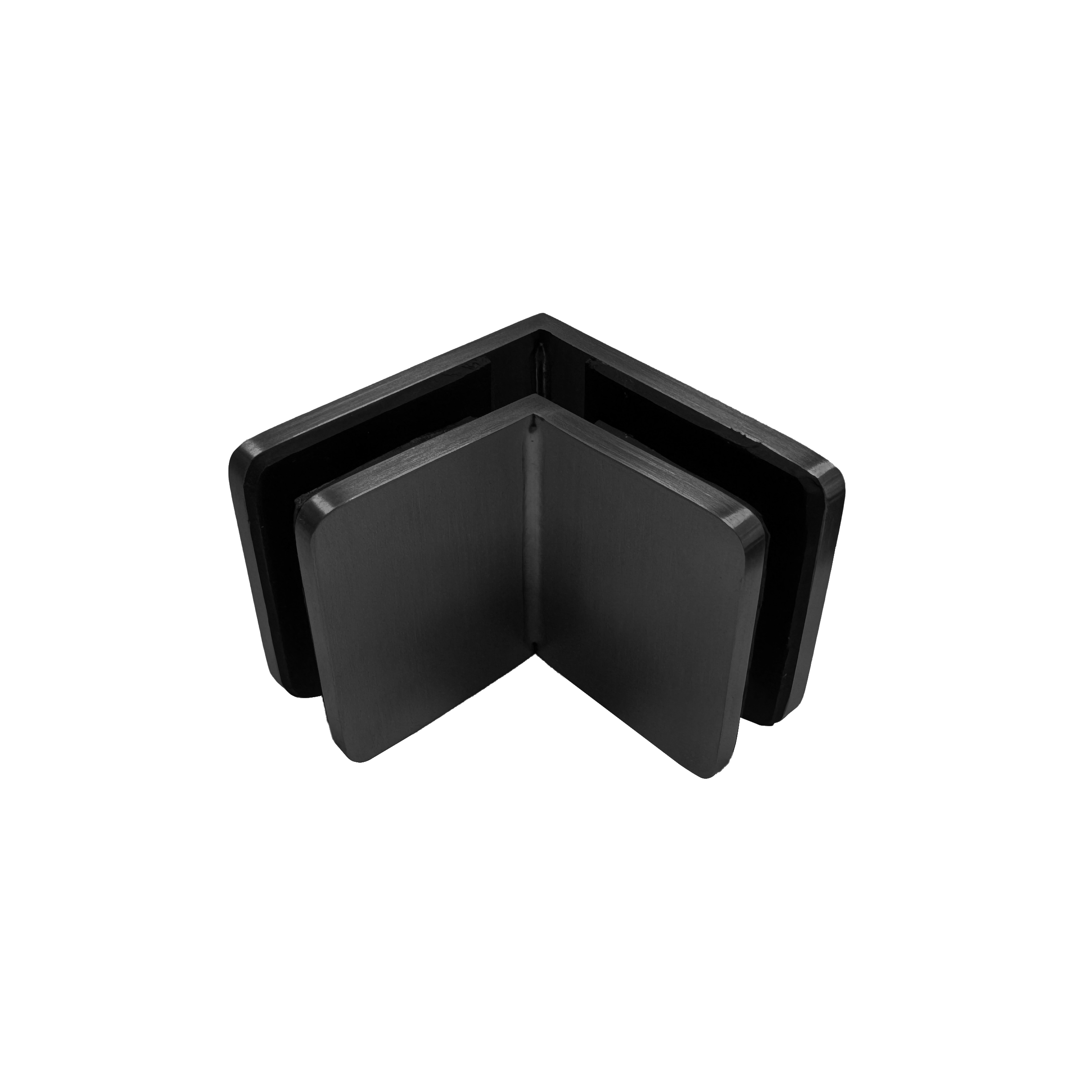

Crafted from high-quality Grade 304 Stainless Steel, the MC90 Mall Front Clamp is available in brushed stainless and matte black, complementing diverse architectural settings. Custom-order options are available for thicker glass applications up to 3/4" (19 mm), providing the perfect fit for your design needs.

More Product Information

Material: 304 Stainless Steel
Profile: Square

Product Length: 2-1/2" (63mm)

Product Width: 2-1/2" (63mm)

Product Height: 2" (51mm)

Glass Thickness Range: 3/8" and 3/4" (10mm and 19mm)

Glass Type: Monolithic Tempered Glass

Includes: Clamp with gaskets
Gasket: Black Interior Gaskets

Gasket Material: EPDM

Gasket Thickness: 1/16" (2mm)

Mounting Type: Glass Mount

For technical inquiries: technical@ggh-usa.com

Product Warning
 Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
