Overview

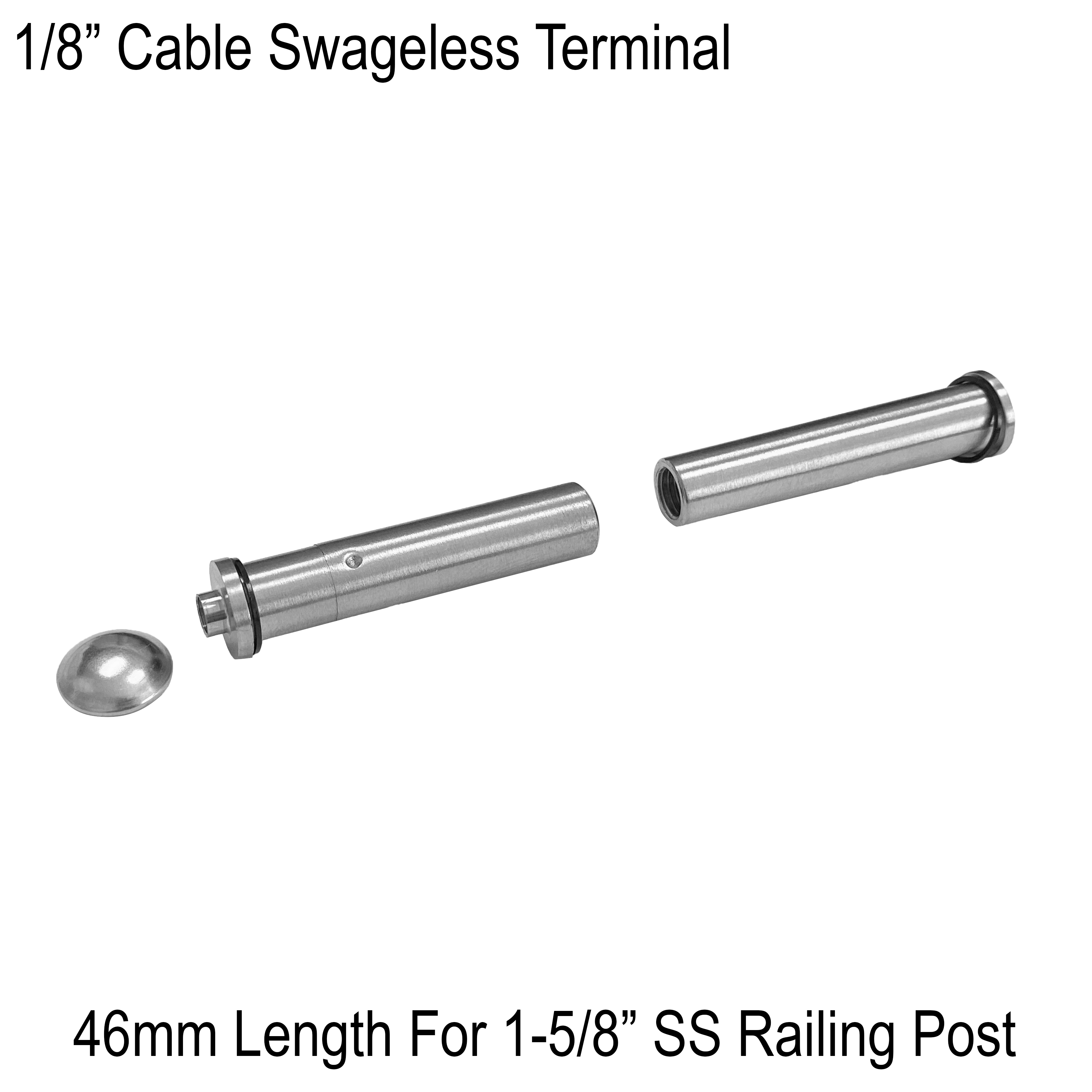

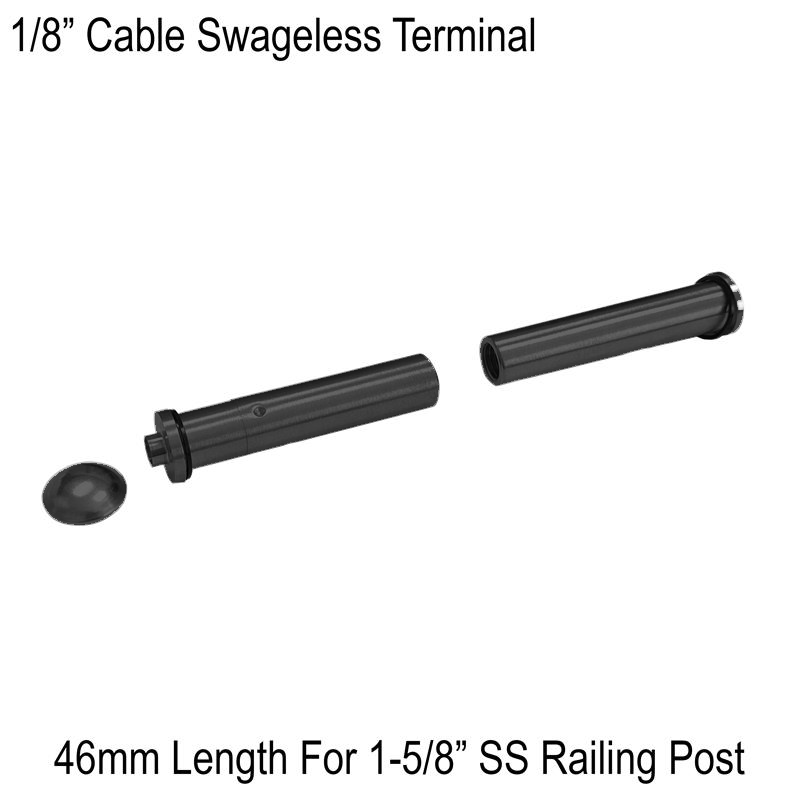

The GGH Cable Rail System - Fixed Cable End for 1-5/8" stainless steel posts is crafted for reliability and optimal performance in cable railing installations. Made from AISI 316 stainless steel, this fixed cable end provides secure and stable support for your railing system, suitable for both interior and exterior applications.
Material: 316 Stainless Steel
Cable Compatibility: 1/8" (3.2mm)
Dimensions:
L1 (Length 1): 1-13/16" (46mm)
L2 (Length 2): 1-25/32" (45.4mm)
D1 (Diameter 1): 7/16" (11mm)
D2 (Diameter 2): 13/32" (10.5mm)
Feature: Cable Railing System (Fixed End, Post Mount, SS316)
Function: Provides a fixed anchor point for cable termination in railing systems
Compatibility: Cable, Stud, Curved Washer, Tensioning Tools
Application: Deck railings, patios, terraces, landscape railings
| Length | 1-13/16 in. (46.00 mm) |
|---|---|
| Diameter | 7/16 in. (11.00 mm) |
| Weight | 0.06 lbs. (0.0268 kg) |
