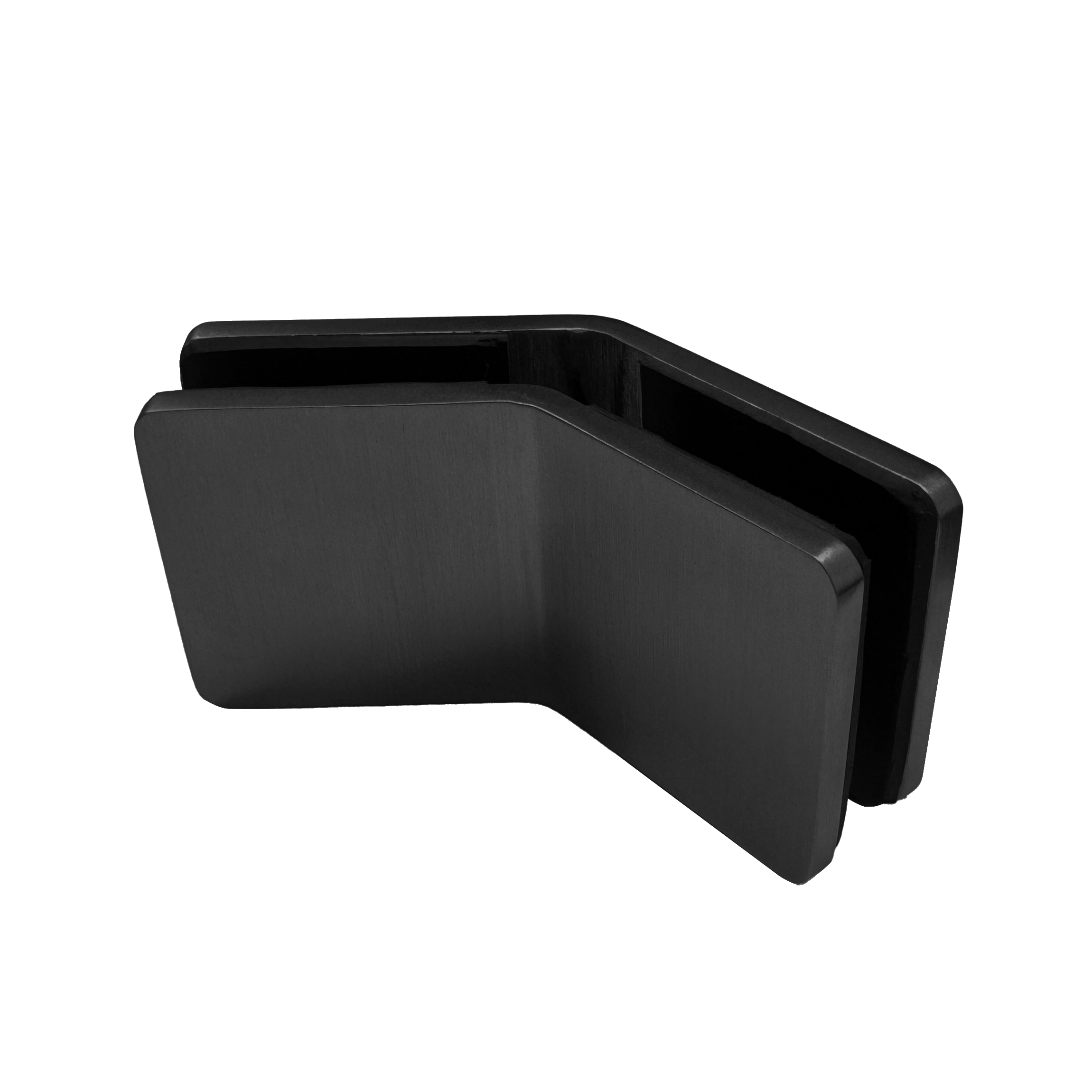

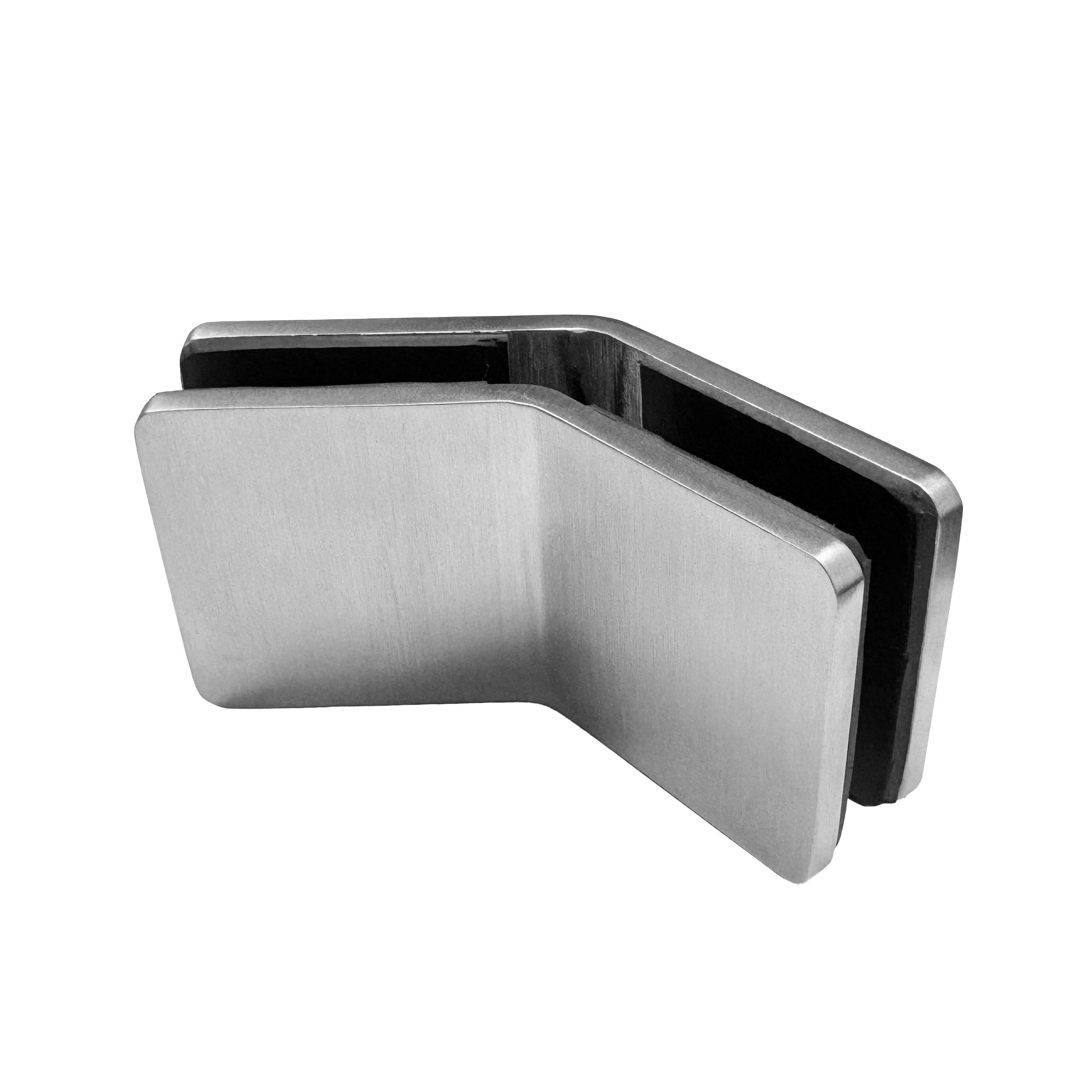

The GGH 135 Degree Outside Corner Mall Front Clamp offers a practical and stylish solution for joining vertical glass panels at 135-degree angles, designed for use with 3/8" to 1/2" (10 to 12 mm) thick monolithic tempered glass. This clamp ensures a secure, rigid connection between glass panels, minimizing flexing and improving structural stability.

Crafted from high-quality Grade 304 Stainless Steel, the 135 Degree Outside Corner Mall Front Clamp is available in brushed stainless and matte black, providing a sleek, modern look for various architectural designs. Custom-order options are available for thicker glass applications up to 1/2" (12 mm), providing the perfect fit for your design needs

More Product Information

Material: 304 Stainless Steel
Profile: Square

Product Length: 4-1/16" (102.4mm)

Product Width: 2" (51mm)

Product Height: 1" (25mm)

Glass Thickness Range: 3/8" and 3/4" (10mm and 19mm)

Glass Type: Monolithic Tempered Glass

Includes: Clamp with gaskets
Gasket: Black Interior Gaskets

Gasket Material: EPDM

Gasket Thickness: 1/16" (2mm)


Mounting Type: Glass Mount

For technical inquiries: technical@ggh-usa.com

Product Warning
Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
