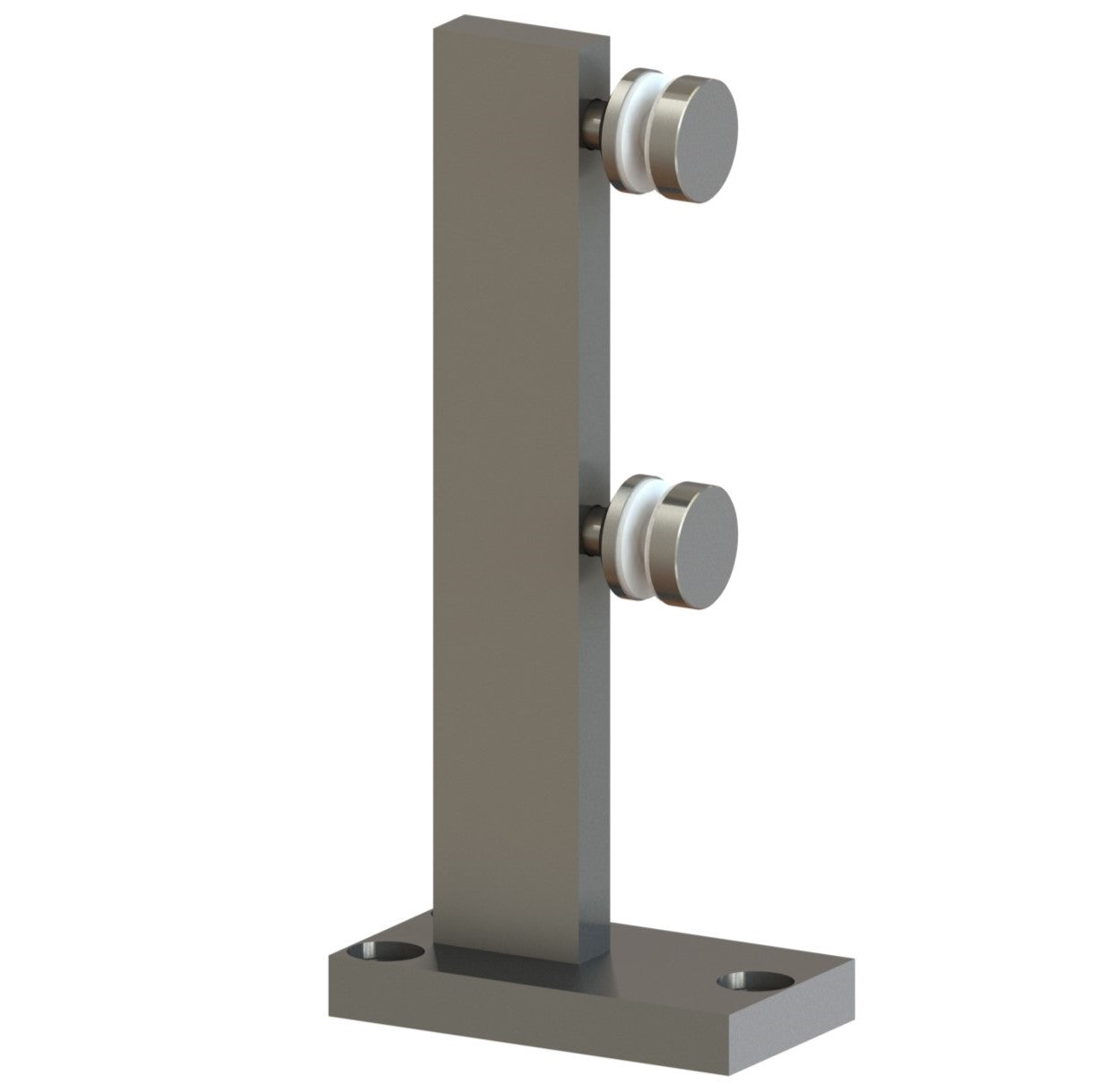

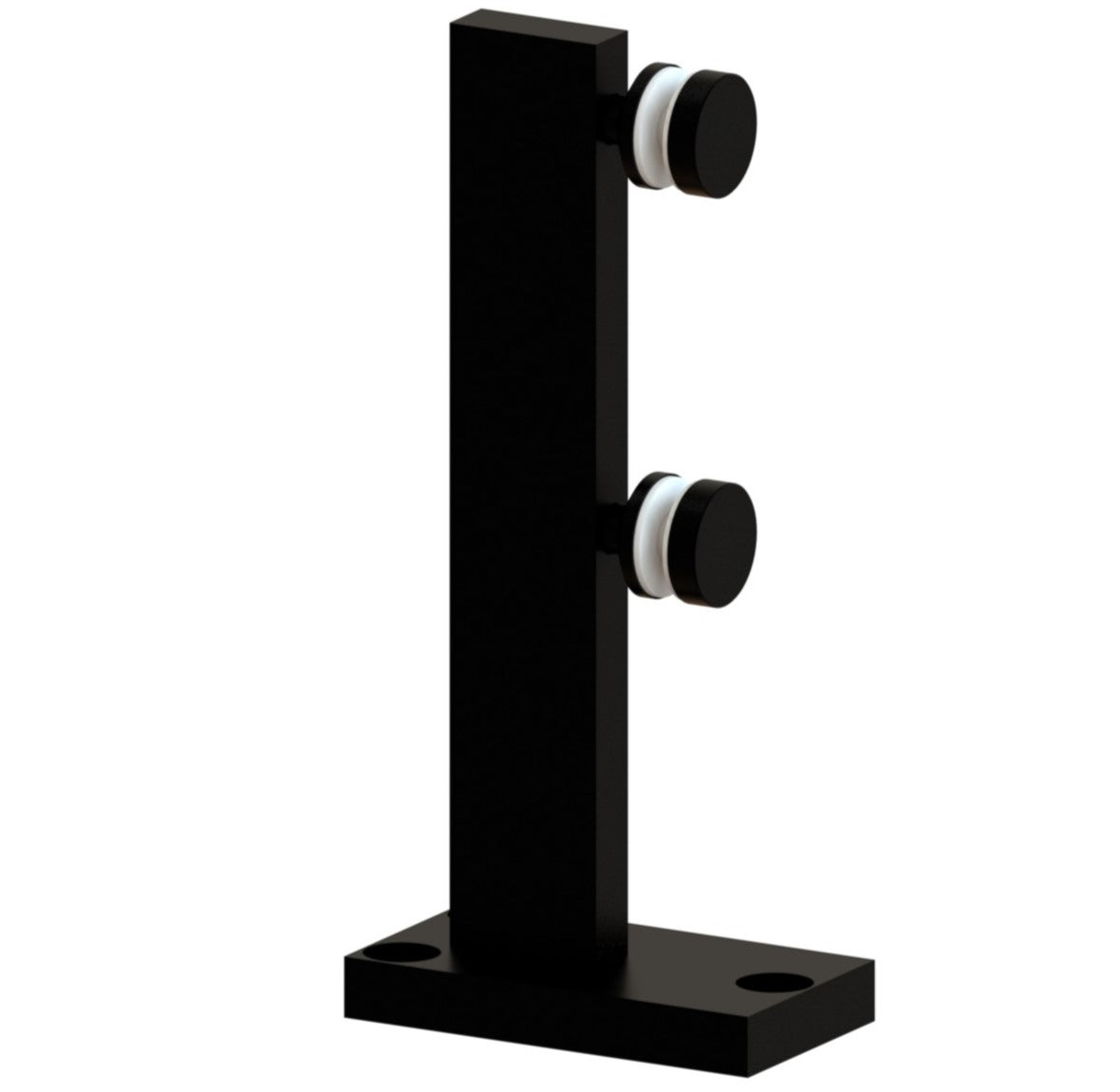

The Mini Pro Series Surface Mount offers a sleek and durable solution for glass railing installations. Designed for secure surface mounting, these mini posts provide a modern aesthetic while ensuring reliable support for 1/2" glass panels.

More Product Information

Product Length: 12" (304.8mm)
Product Width: 2" (50.8mm)
Product Height: 3/4" (19.05mm)
Material: 316 Stainless Steel
Thread Size: 1/2" (12mm) mounting

Includes: Mini post, surface mount plate, adjustable standoffs, gaskets, anchor cover caps
Gasket Material: EPDM
Gasket Thickness: 1.5mm

Glass Thickness Range: 1/2" (12mm)
Glass Fabrication: Requires 3/4" (19mm) diameter holes

Compatible With: Adjustable standoffs, railing connectors, caprail, and railing glass panels

For technical inquiries: technical@ggh-usa.com

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
