GGH’s Architectural U-Channels offer a robust and streamlined solution for securing glass panels in storefront applications. Designed with durability and ease of installation in mind, these channels provide exceptional support and aesthetics for 1/2" (12mm) and 3/8" (10mm) glass panels.

More Product Information

Material: 6063-T5 Aluminum Alloy

Glass Thickness Range: 3/8" (10mm) and 1/2" (12mm)
Glass Type: Tempered Glass

Product Length: 120" (10ft)

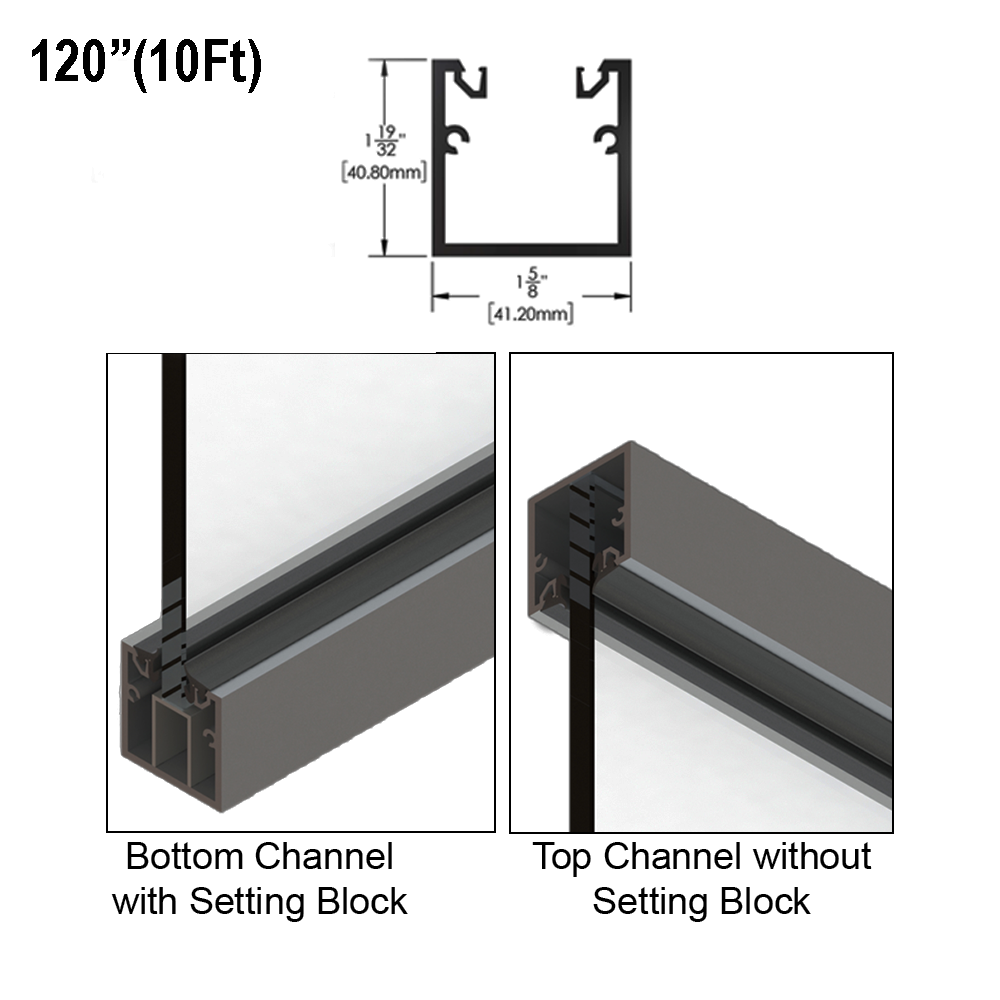

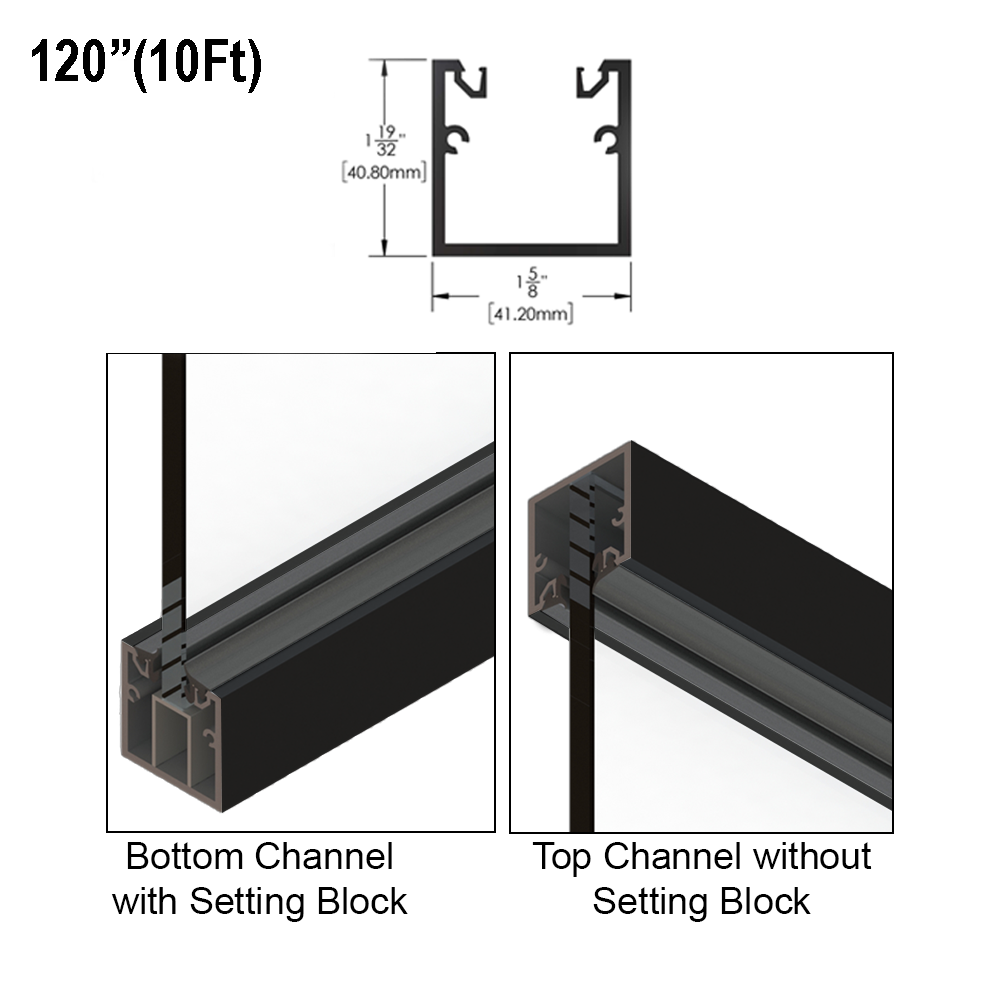

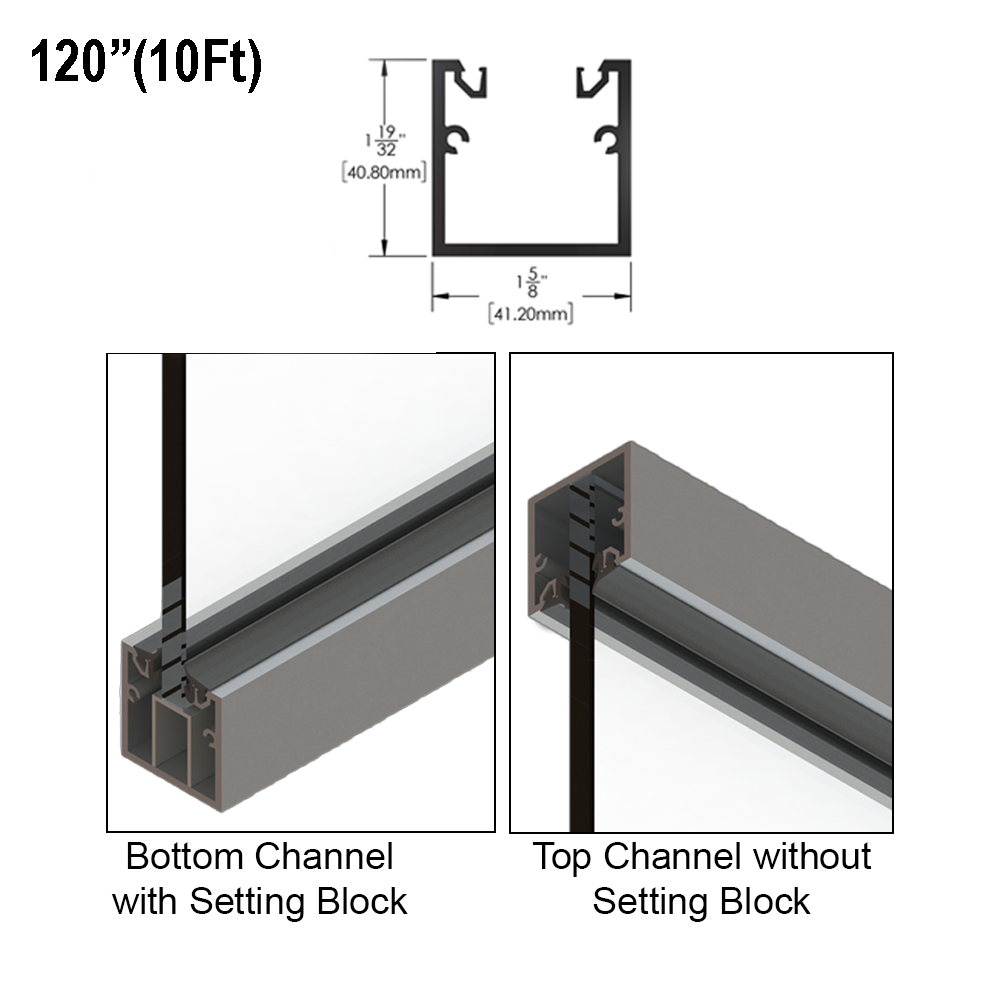

Product Width: 1-5/8" (41.20mm)
Product Height: 1-5/8" (40.80mm)

Mounting Type: Floor Mount / Ceiling Mount
Installed At: Floor / Ceiling

Includes: Architectural U-Channel and roll-in Gaskets for 1/2" Glass
Gasket Material: EPDM

Available Accessories (Sold Separately):
Neoprene Setting Blocks: [AUSB4] Recommended 4" blocks (x2 per glass panel) for stable and cushioned installations.
Endcaps: [AUEND] Sold separately for a clean and polished finish.
Additional Gaskets:
[ARUB12] 100' roll-in rubber gaskets for 1/2" glass.
[ARUB10] 100' roll-in rubber gaskets for 3/8" glass.

Advantages:
Provides a clean frameless appearance while securely supporting fixed glass panels. The aluminum profile allows for efficient installation and long-term durability in commercial glazing applications.
