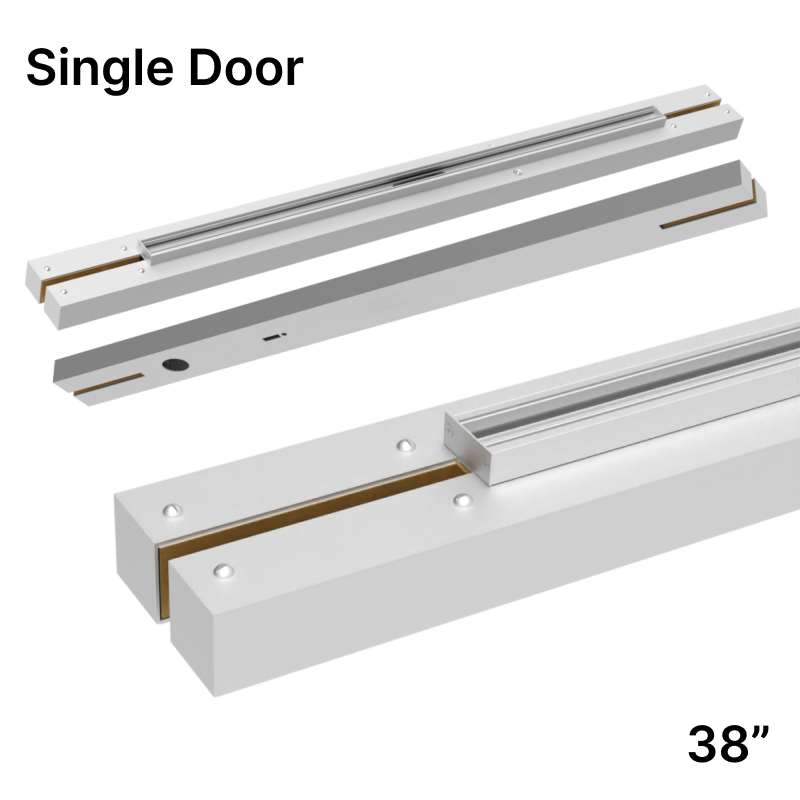

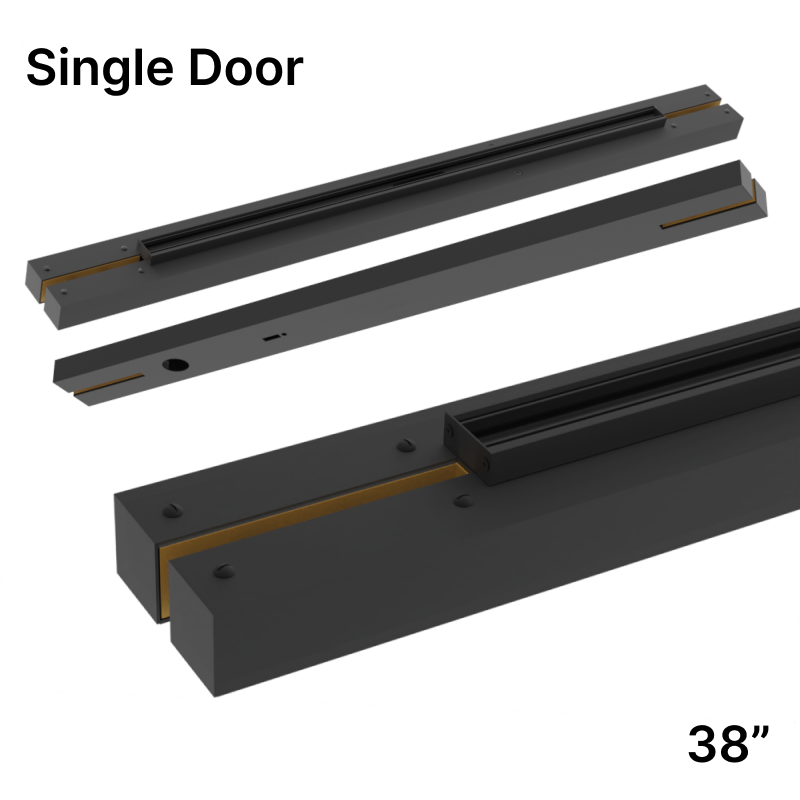

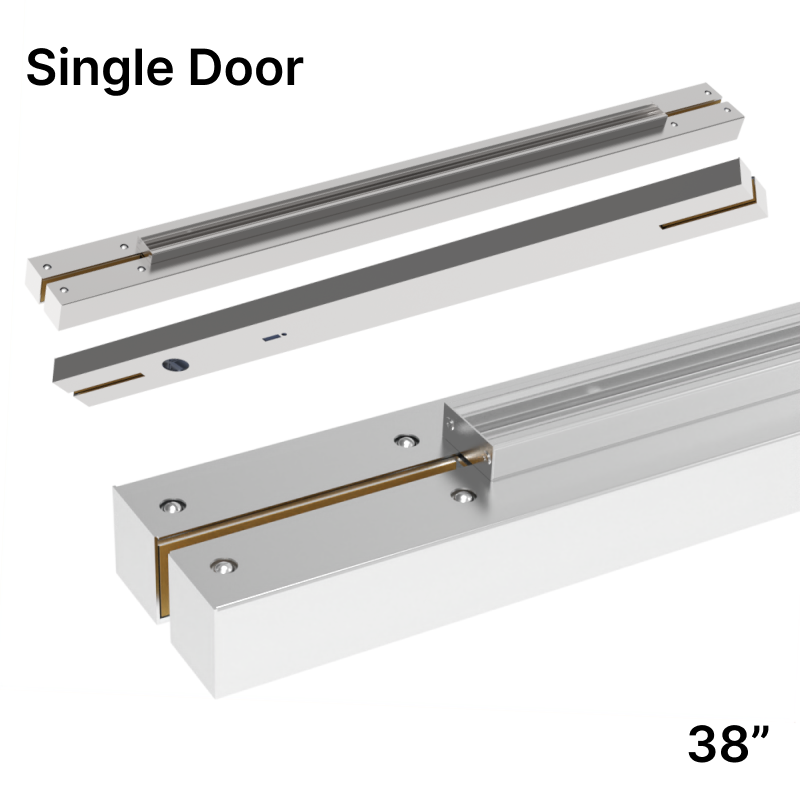

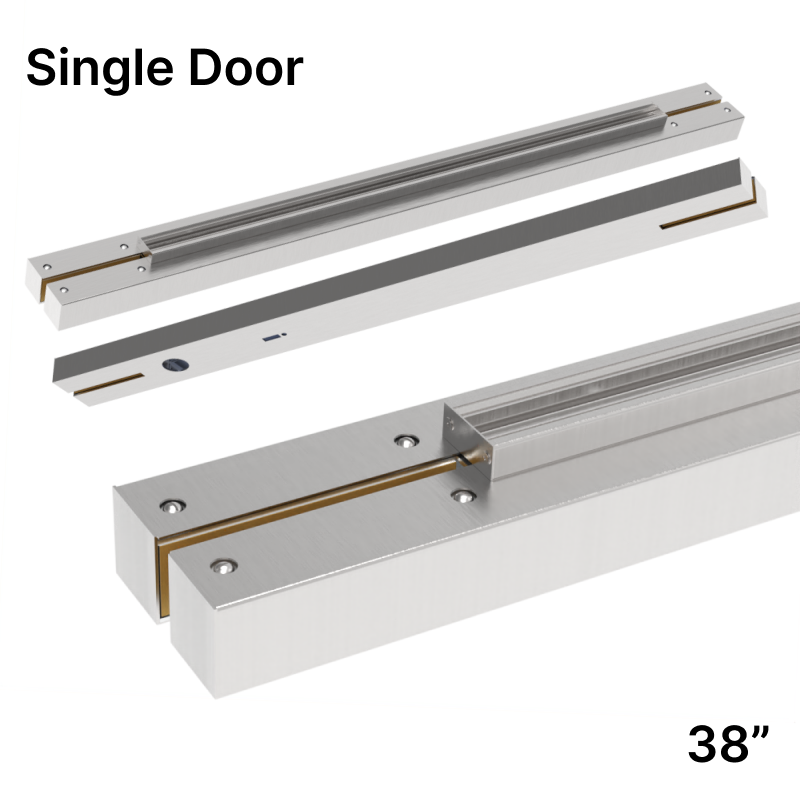

The DLUX Series Floating Header Systems are designed to support and frame frameless glass door openings in a clean floating configuration. Suitable for 1/2" (12mm) tempered glass, they provide a streamlined solution for both interior and exterior glass entry applications.

More Product Information

Material: Aluminum
Includes: Floating Header, Concealed Closer, Architectural U-Channel, Gaskets, Complete Mounting Hardware
Gasket Material: Fiber Gasket and EPDM Glazing Gasket
Thread Size: 1/4-20 Mounting Fastener with 3/4" washer

Glass Thickness Range: 1/2" (12mm) Glass Only
Glass Type: Tempered Glass
Glass Fabrication: Requires 3/4" (19mm) diameter holes in the glass

Product Length: 50-1/8" (1273.18mm)
Product Width: 4" (102.11mm)
Product Height: 1-7/8" (47.29mm)
Maximum Glass Width: 38" (965.20mm)
Mounting Type: Glass Mount
Application: Single glass door openings, architectural glass entries, commercial glass door systems, residential glass door systems

For technical inquiries: technical@ggh-usa.com

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
