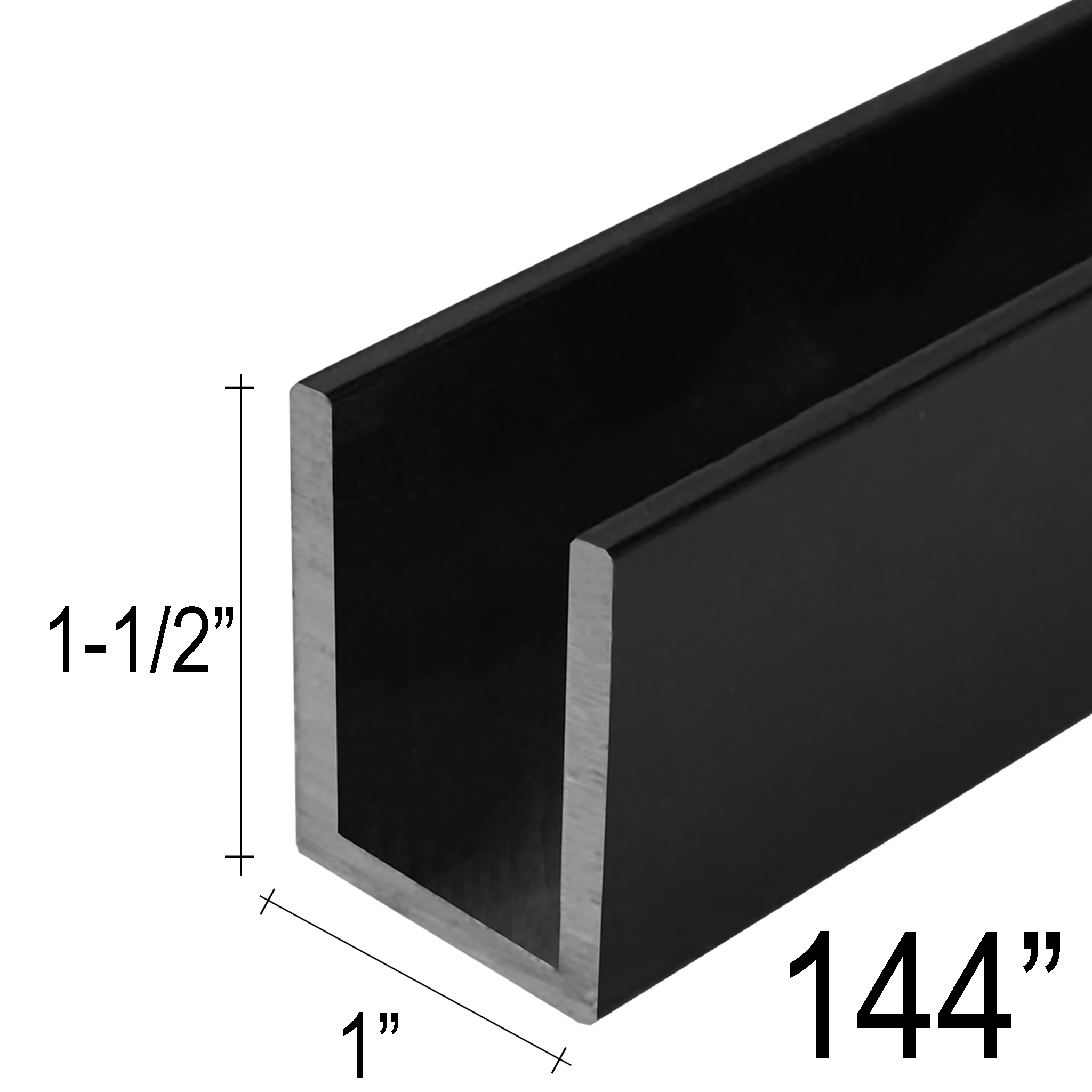

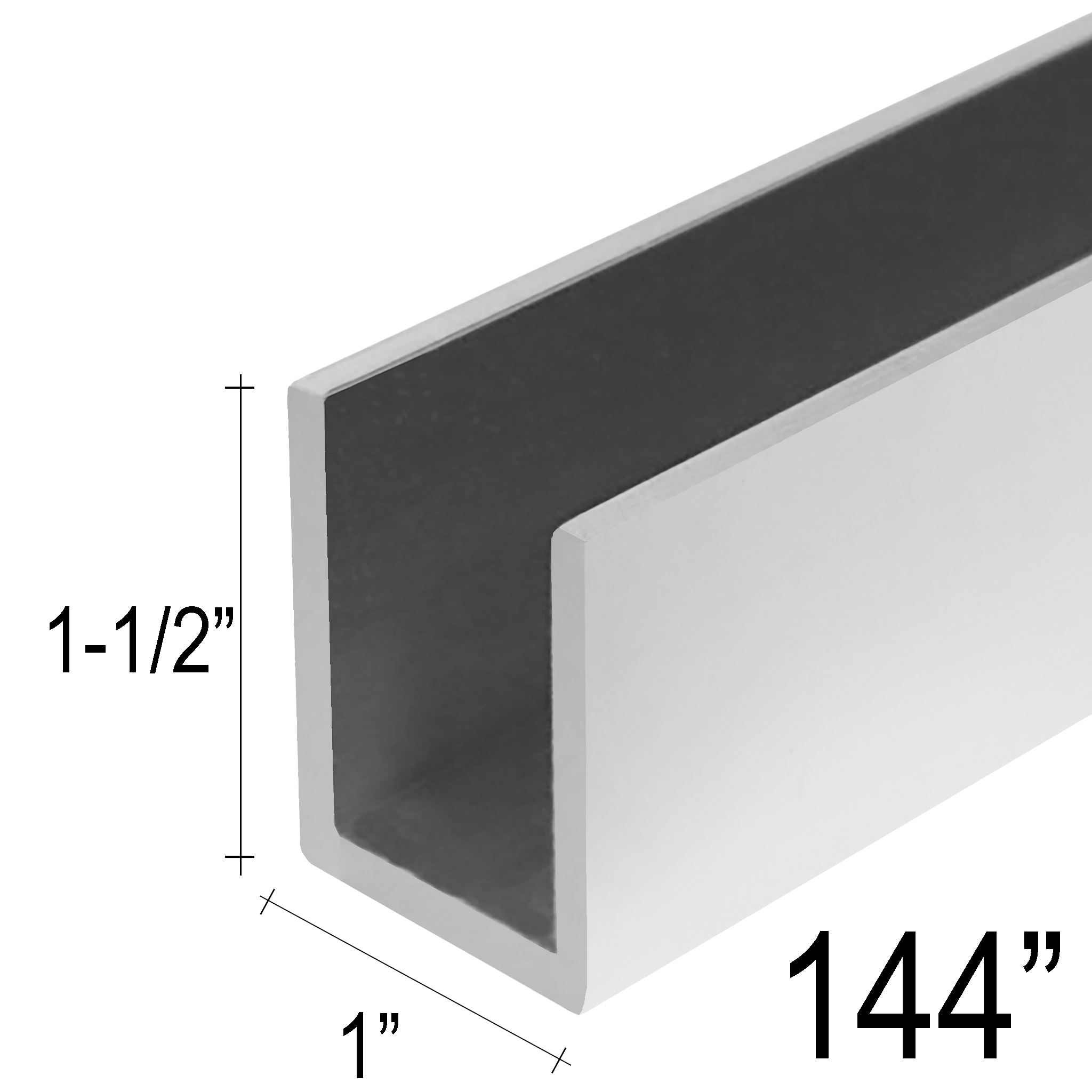

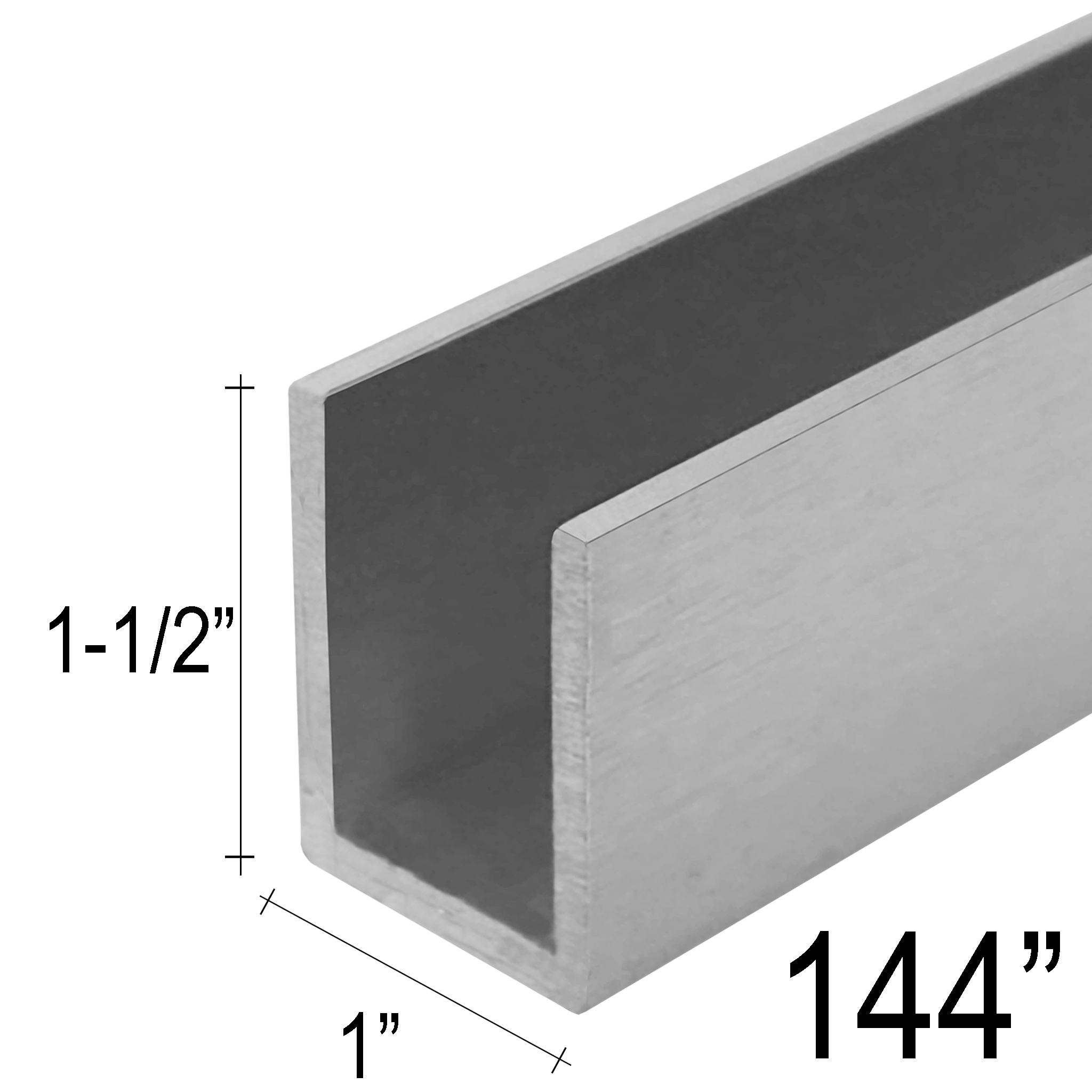

The GGH Commercial U-Channel is designed for securing and stabilizing fixed glass panels in storefront, entrance, and interior glass systems. Its shallow profile provides a clean appearance while supporting glass panels in commercial and residential glazing applications.

More Product Information

Material: 6063-T5 Aluminum Alloy

Product Length: 144" (3657.60mm)
Product Width: 1" (25mm)
Product Height: 1-1/2" (38mm)

Includes: U-channel

Mounting Type: Floor Mount / Ceiling Mount / Wall Mount
Glass Thickness Range: 3/8" (10mm) and 1/2" (12mm)
Glass Type: Monolithic Tempered Glass

Compatible With: Roll-in rubber gaskets, silicone sealant, glass panels, and matching end cap [CUEND1X1.5]
Application: Main entrances, office entry doors, retail storefront doors, interior passage doors, lobby areas, hallways, and corridors

Compare To: CUC15BA

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.
