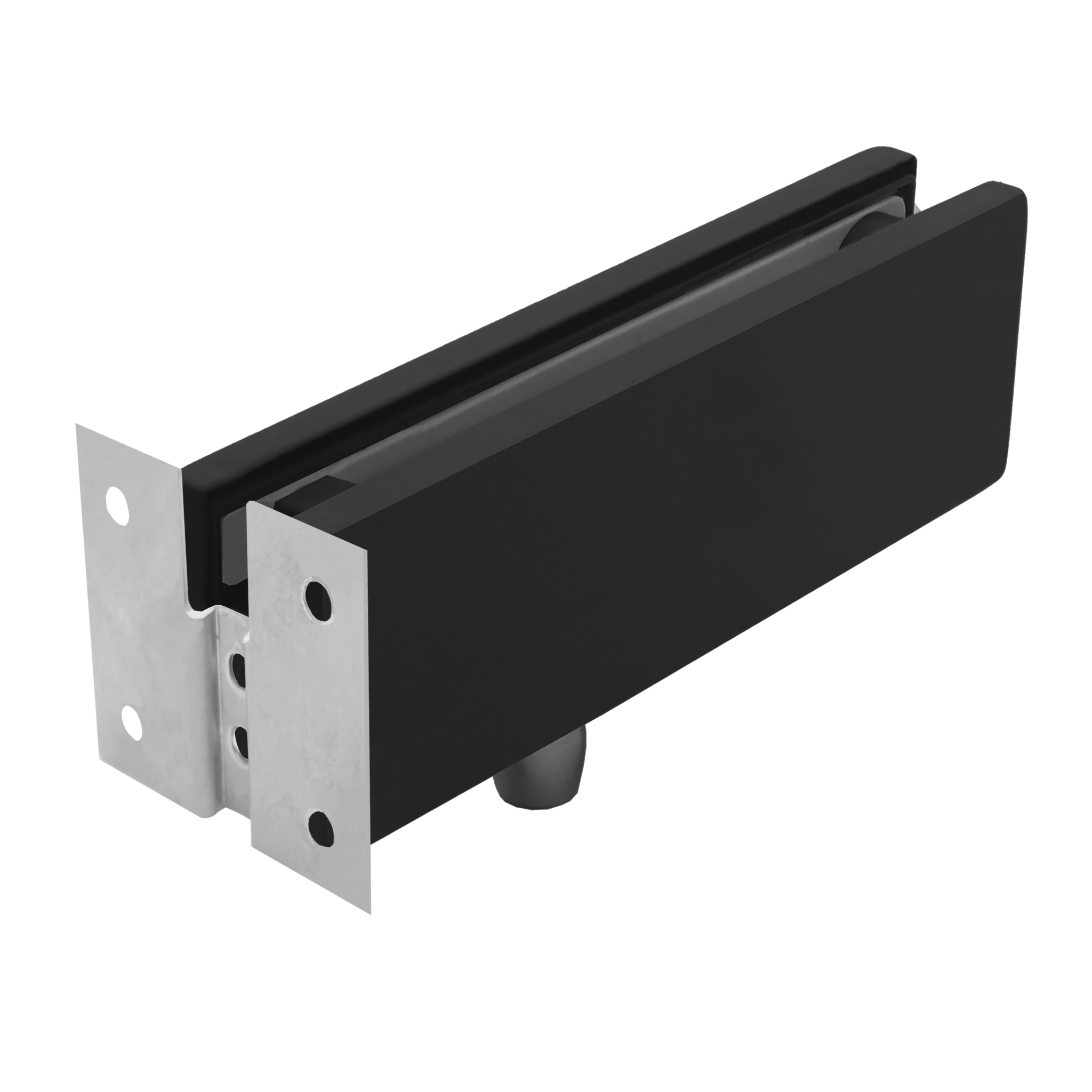

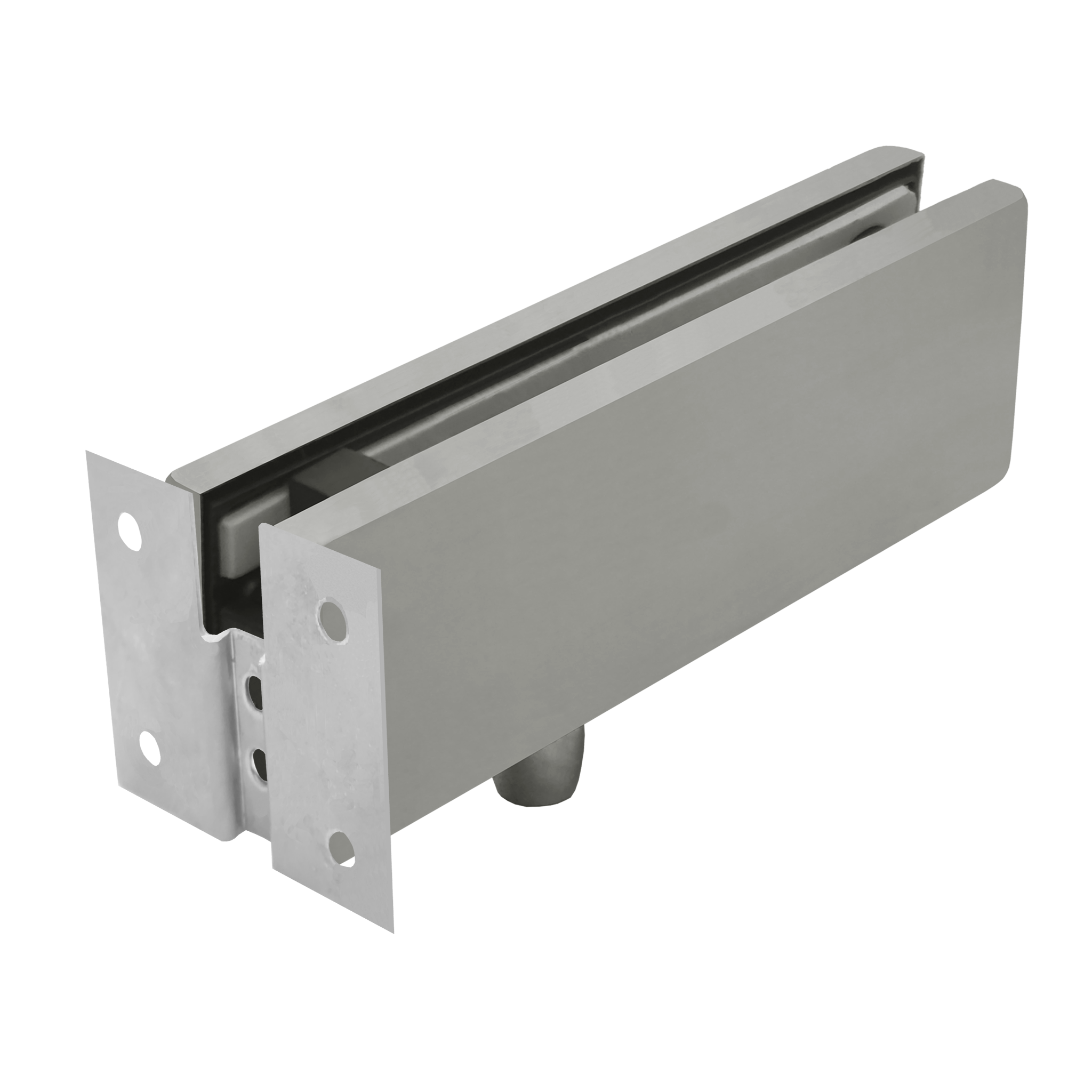

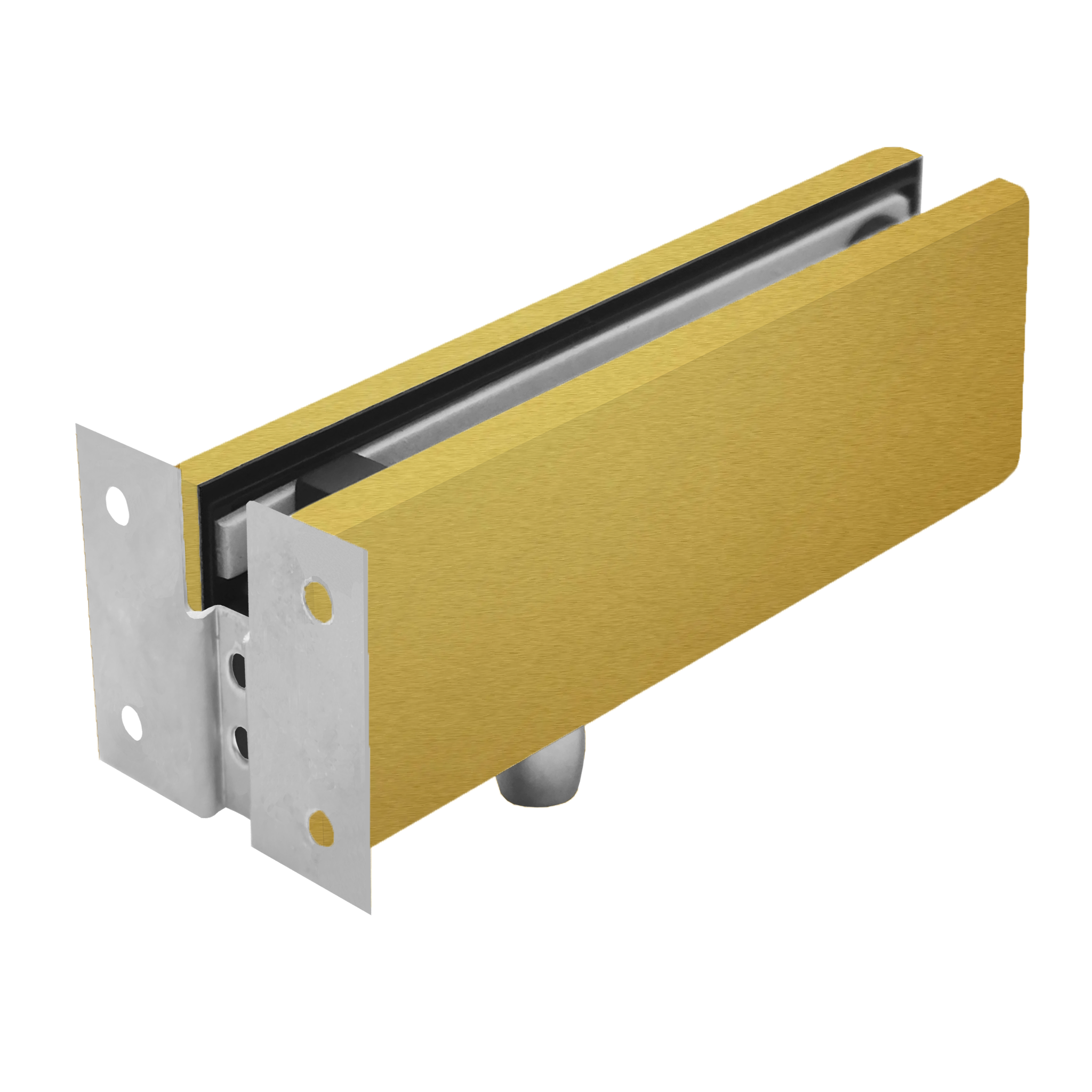

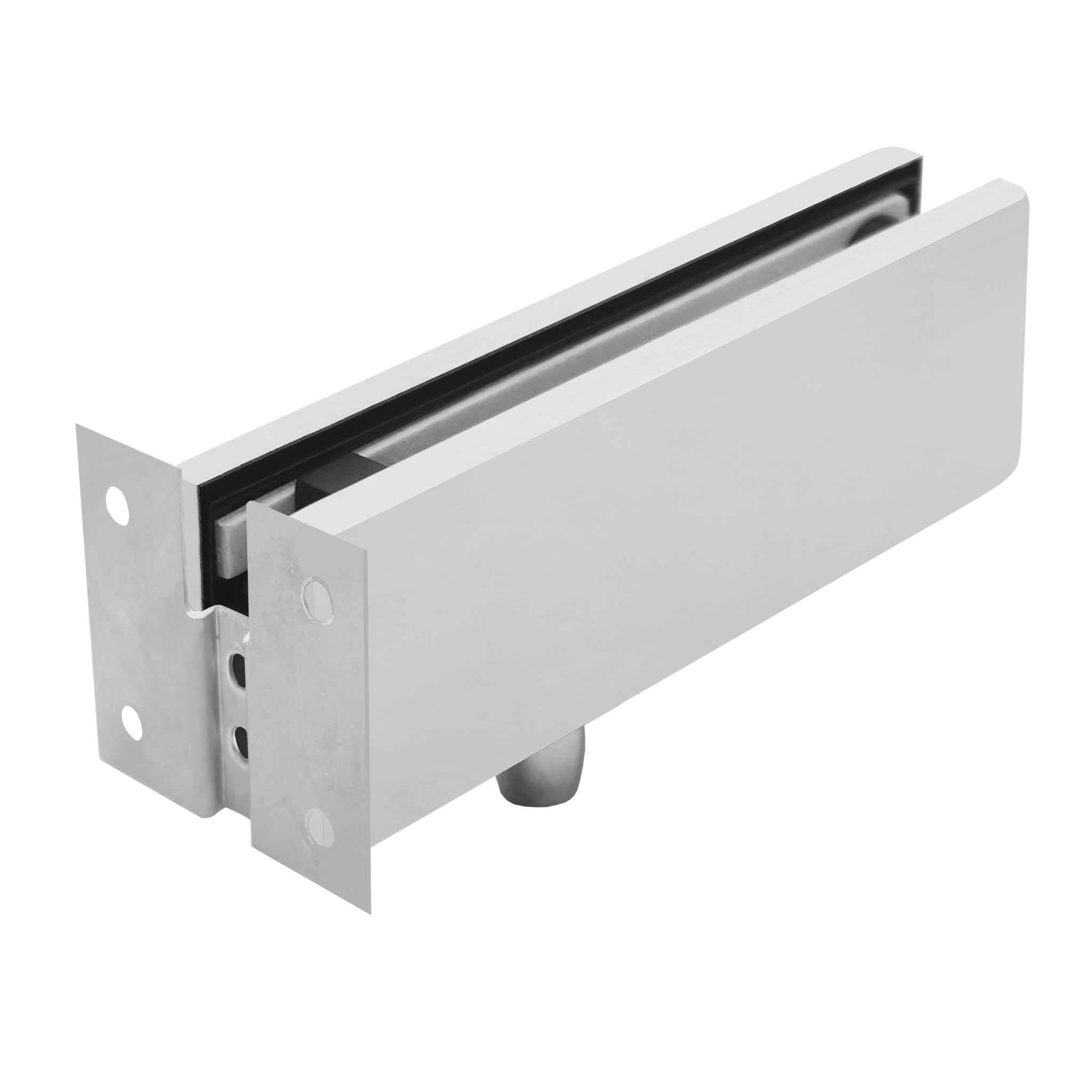

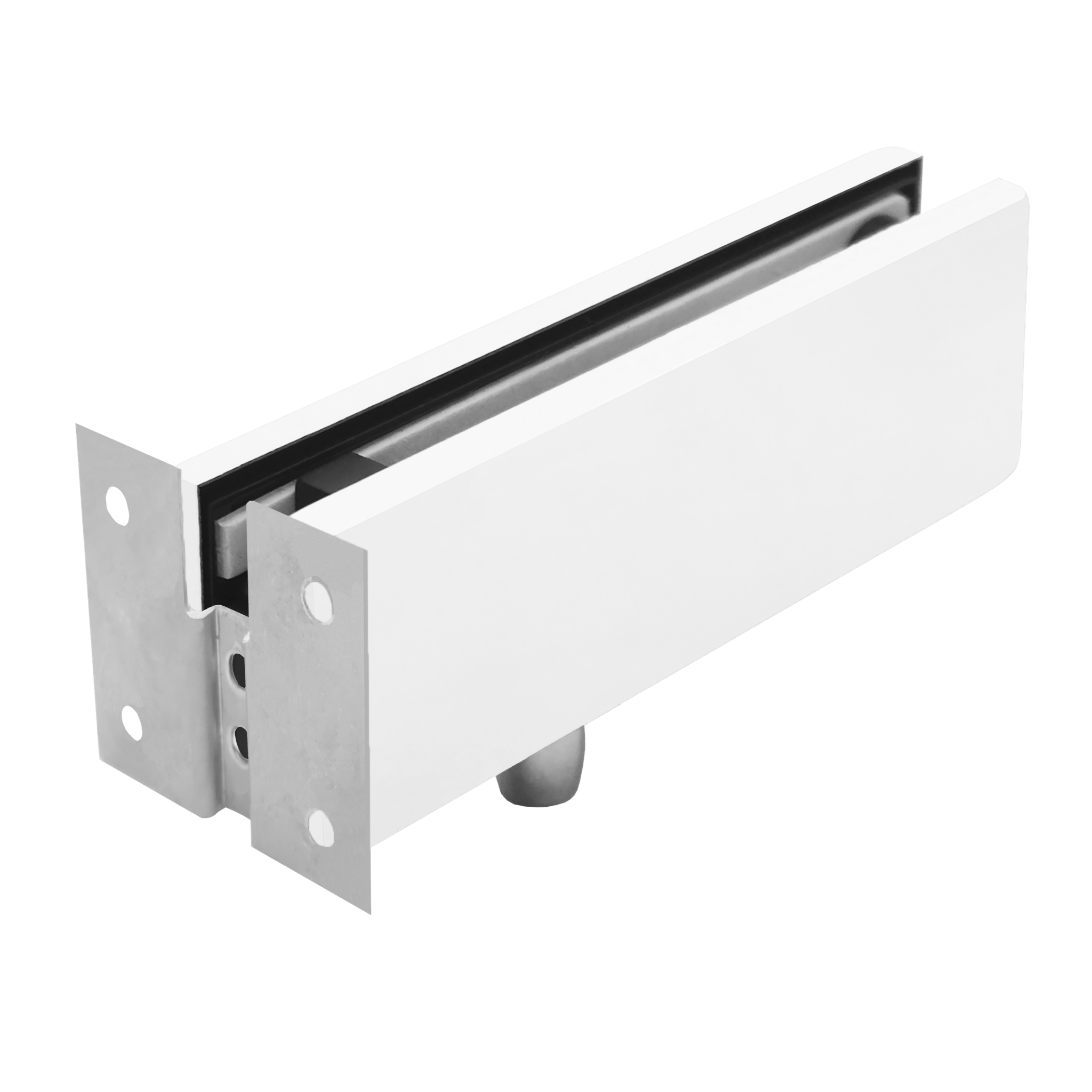

The GGH PFIT Series Transom Wall Mount Patch Fitting is designed for overhead pivot door systems requiring a secure connection between the transom and glass door assembly. Featuring an aluminum body with a stainless steel 304 cover plate, this fitting provides reliable performance in high-traffic commercial environments. The included PFINTOPPIV insert facilitates installation with compatible PFIT Series top patch fittings, making it ideal for storefront entrances, office doors, and other frameless glass door applications.

More Product Information

Material: Aluminum Body with Stainless Steel 304 Cover Plate

Product Length: 6-3/4" (170.5mm)
Product Width: 2-1/8" (55mm)
Product Height: 2-1/2" (65mm)

Glass Specifications

Glass Thickness Range: 3/8" to 1/2" (10mm to 12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: 3/4" (19.05mm) Diameter Hole with Corner Notch

Mounting & Compatibility

Mounting Type: Glass Mount
Thread Size: M6 Threaded
Gasket Material: Grey Interior Gaskets
Gasket Thickness: 1/16" (2mm)

Includes: Gaskets, Allen Key, Template, Screws

Performance & Capacity

Maximum Width:
• 36" (914mm) for 3/8" glass
• 42" (1067mm) for 1/2" glass

Maximum Height:
• 84" (2134mm) for 3/8" glass
• 102" (2591mm) for 1/2" glass

Maximum Weight Capacity: 88 kg (194 lbs)
Tested Cycles: 500,000 operations

Compare To: PH34A

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
