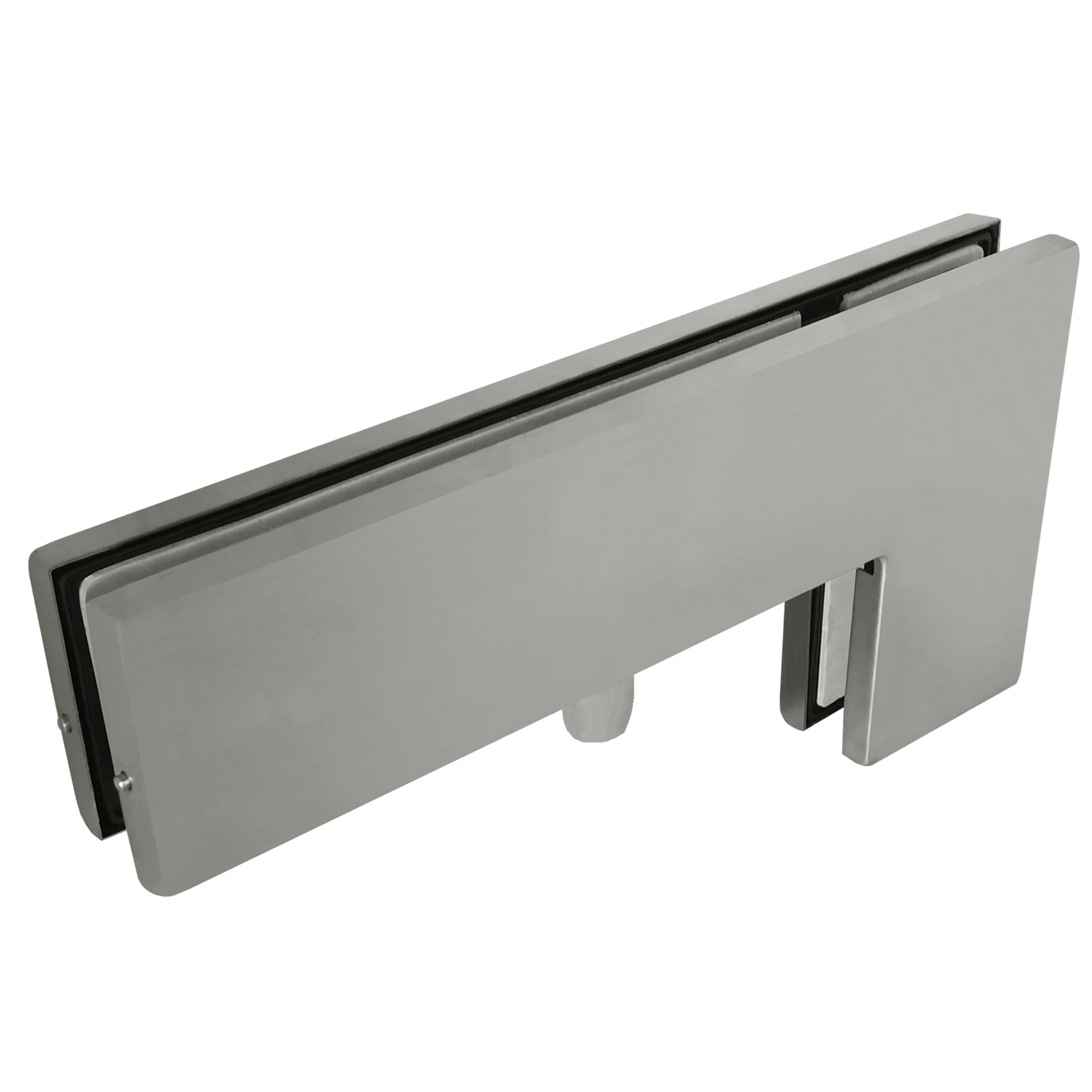

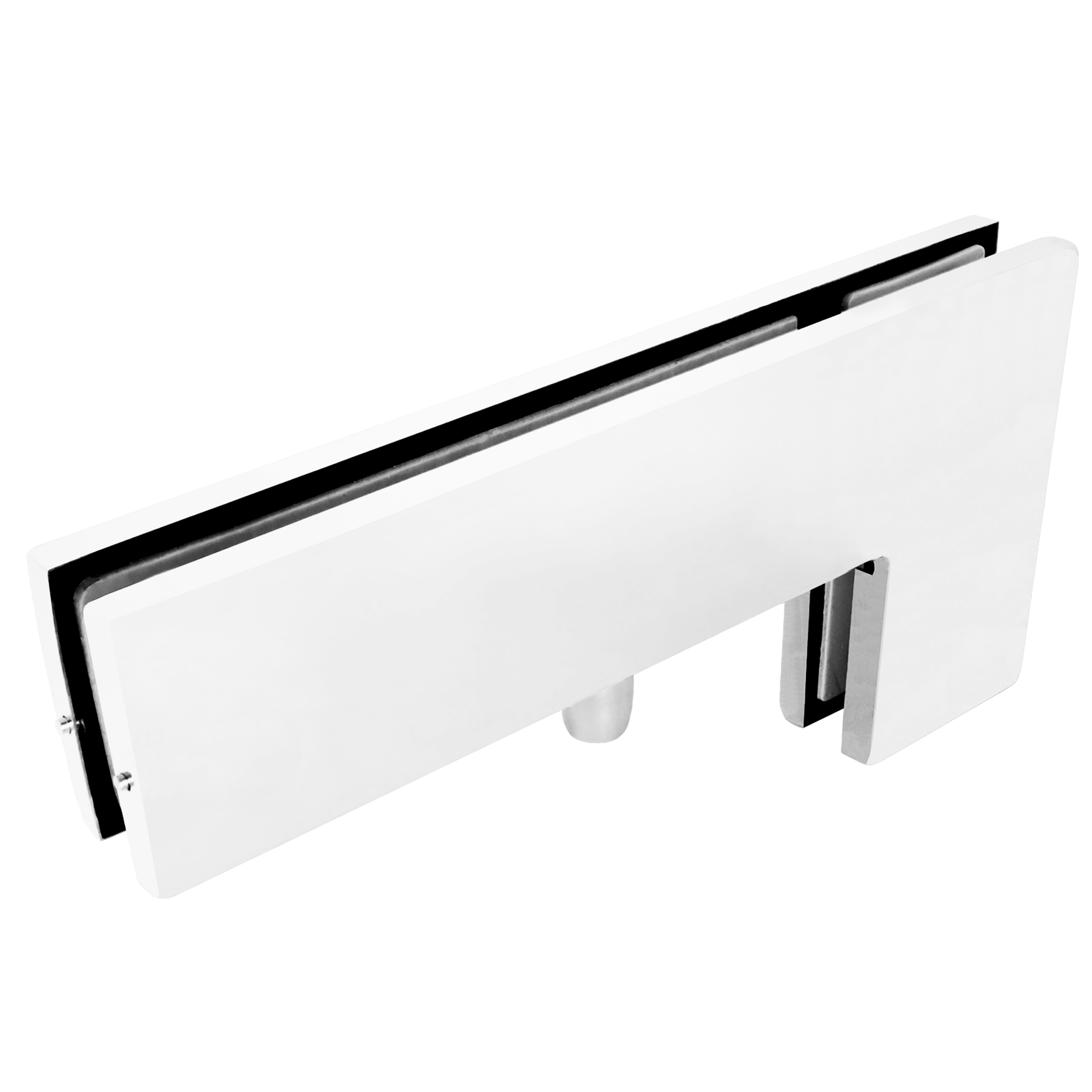

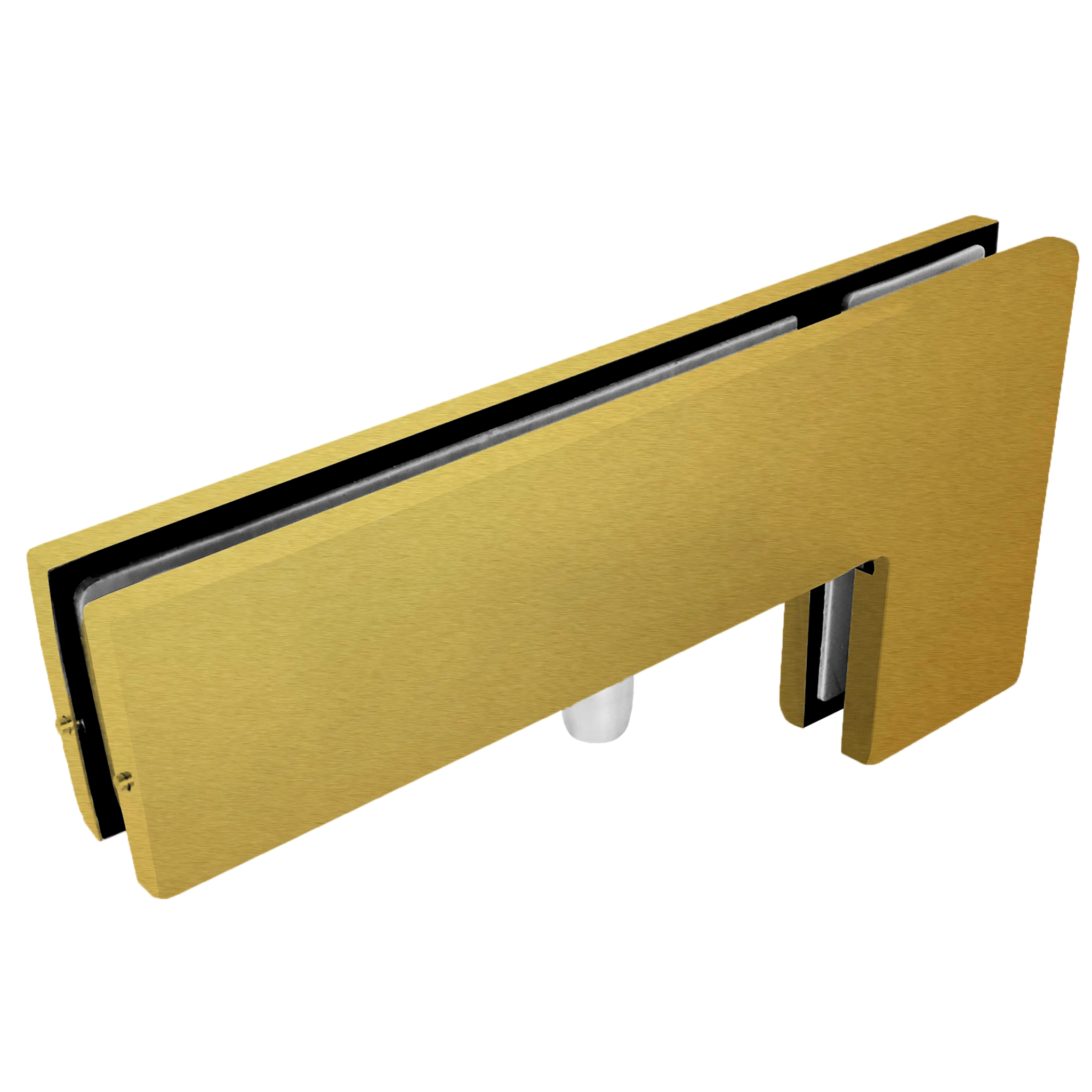

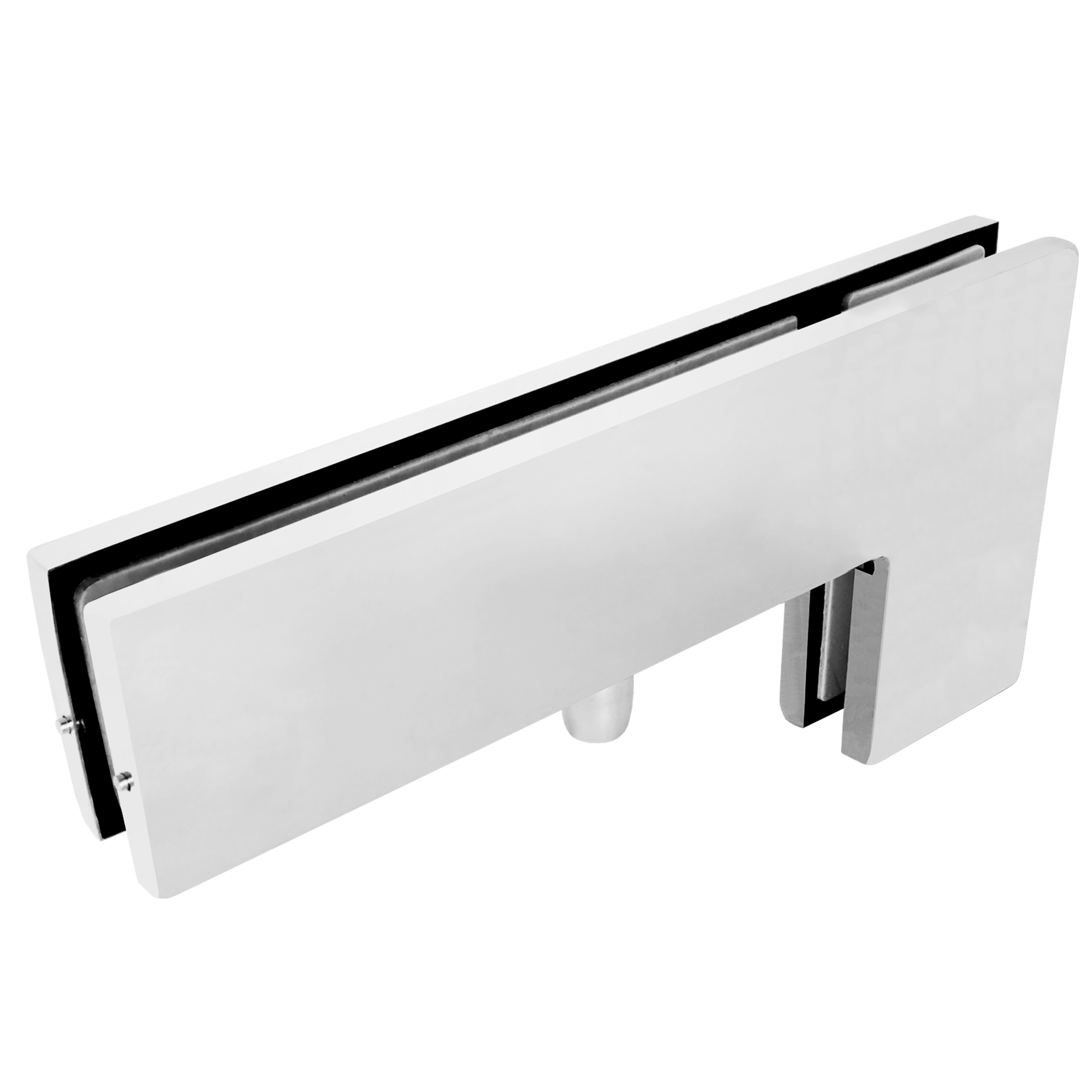

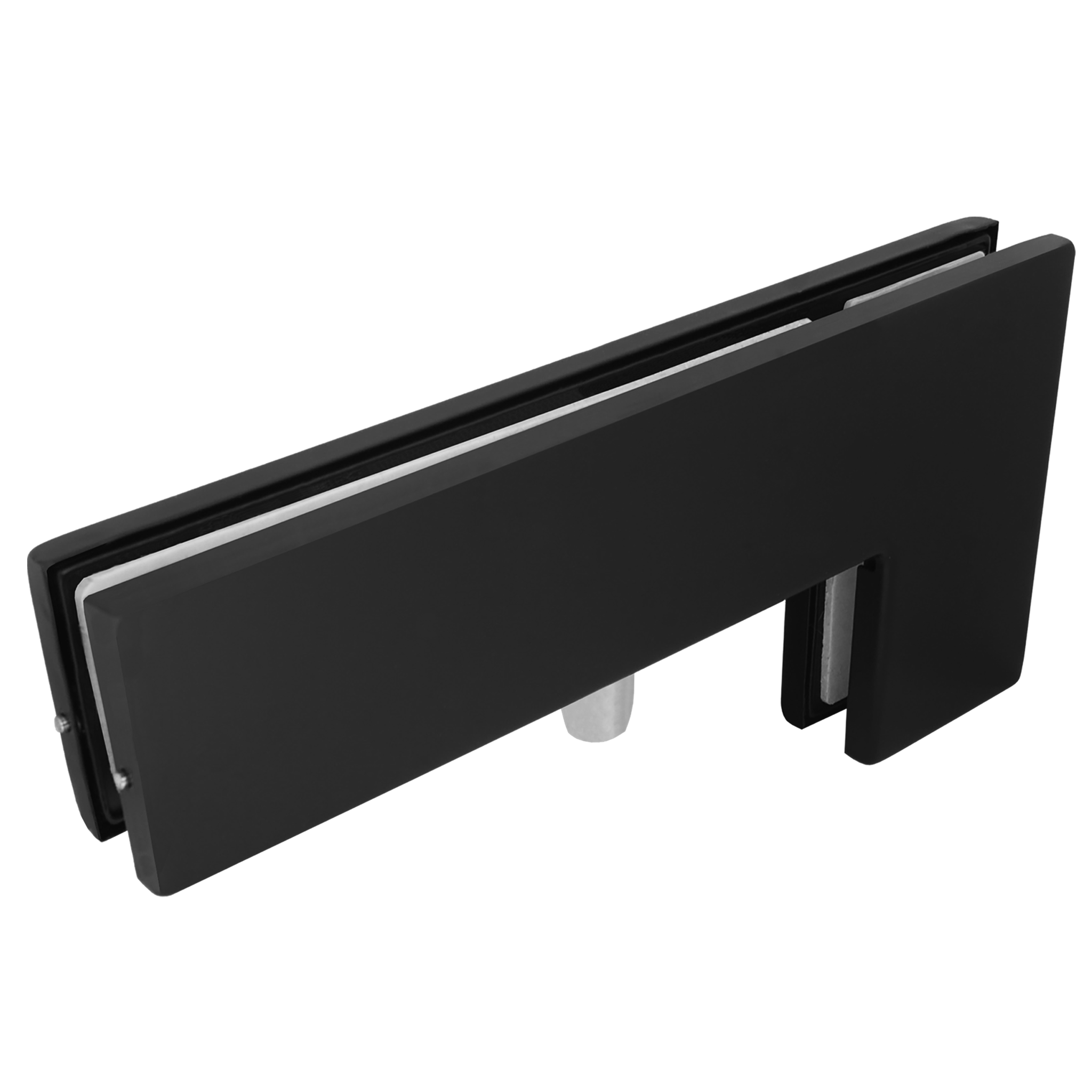

The GGH PFIT Series Transom Glass Mount Patch Fitting is designed for heavy-duty frameless glass door systems requiring a secure transom-mounted pivot connection. Featuring an aluminum body with a stainless steel 304 cover plate, this fitting is engineered for demanding commercial applications and increased load capacity. The included PFINTOPPIV insert facilitates installation with compatible PFIT Series top patch fittings, making it ideal for storefront entrances, office buildings, and other high-traffic glass door systems.

More Product Information

Material: Aluminum Body with Stainless Steel 304 Cover Plate

Product Length: 8-1/2" (216mm)
Product Width: 4-1/8" (106mm)
Product Height: 1-1/4" (31.4mm)

Glass Specifications

Glass Thickness Range: 3/8" to 1/2" (10mm to 12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: 3/4" (19.05mm) Diameter Hole with Corner Notch

Mounting & Compatibility

Mounting Type: Glass Mount
Thread Size: M6 Threaded
Gasket Material: Grey Interior Gaskets
Gasket Thickness: 1/16" (2mm)

Includes: Gaskets, Allen Key, Template

Performance & Capacity

Maximum Width:
• 36" (914mm) for 3/8" glass
• 42" (1067mm) for 1/2" glass

Maximum Height:
• 84" (2134mm) for 3/8" glass
• 102" (2591mm) for 1/2" glass

Maximum Weight Capacity: 220 lbs. (100 kg)
Tested Cycles: 500,000 operations

Compare To: PH40
