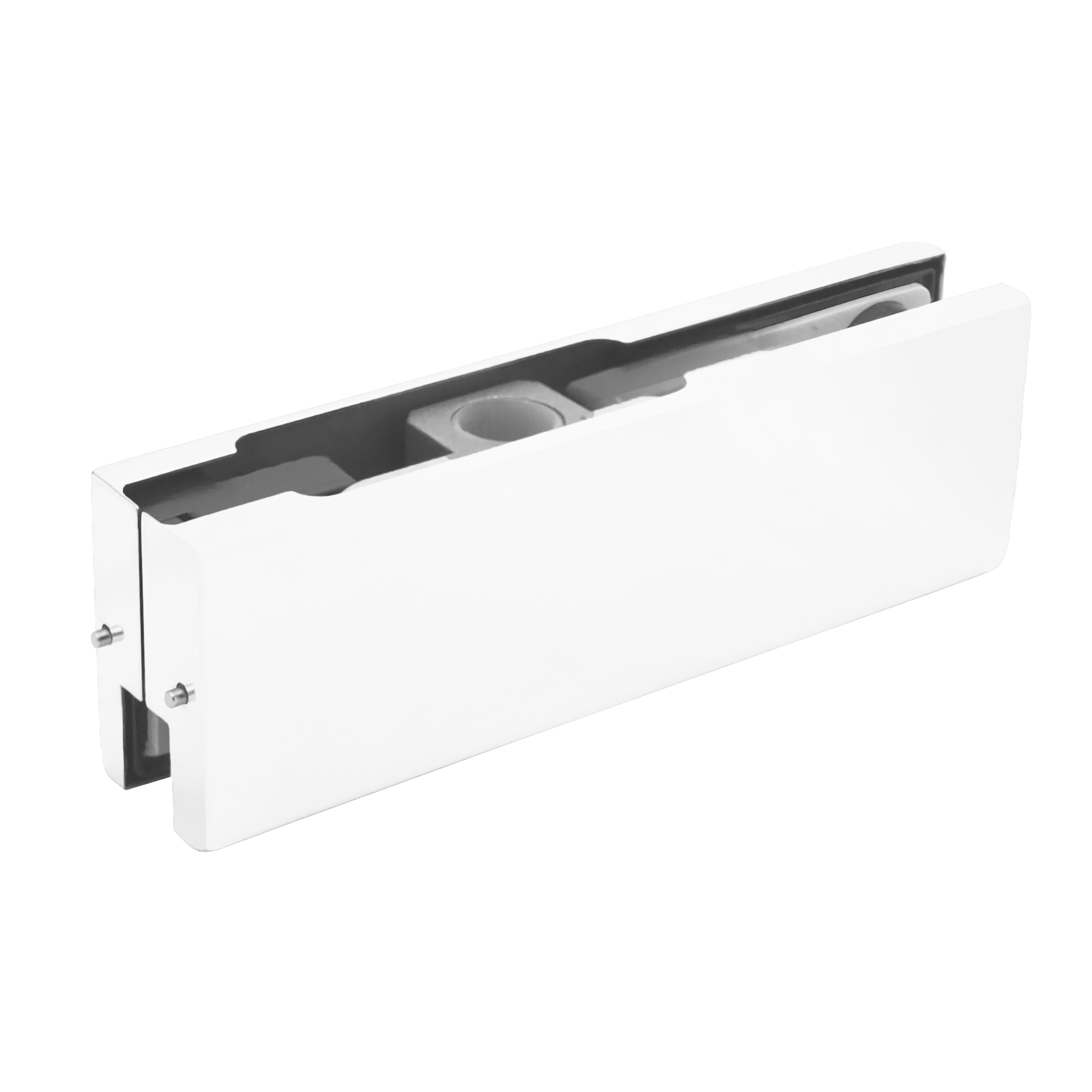

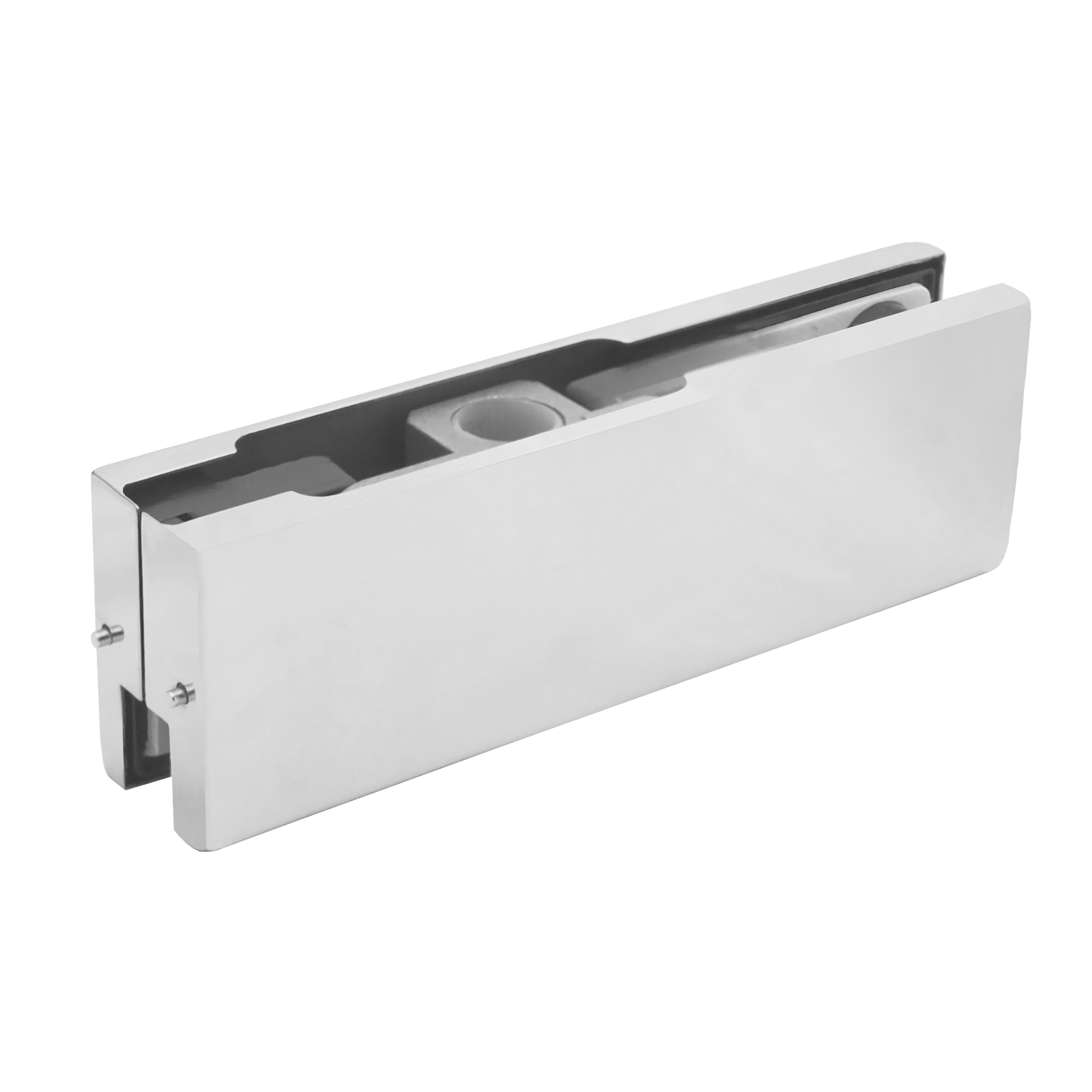

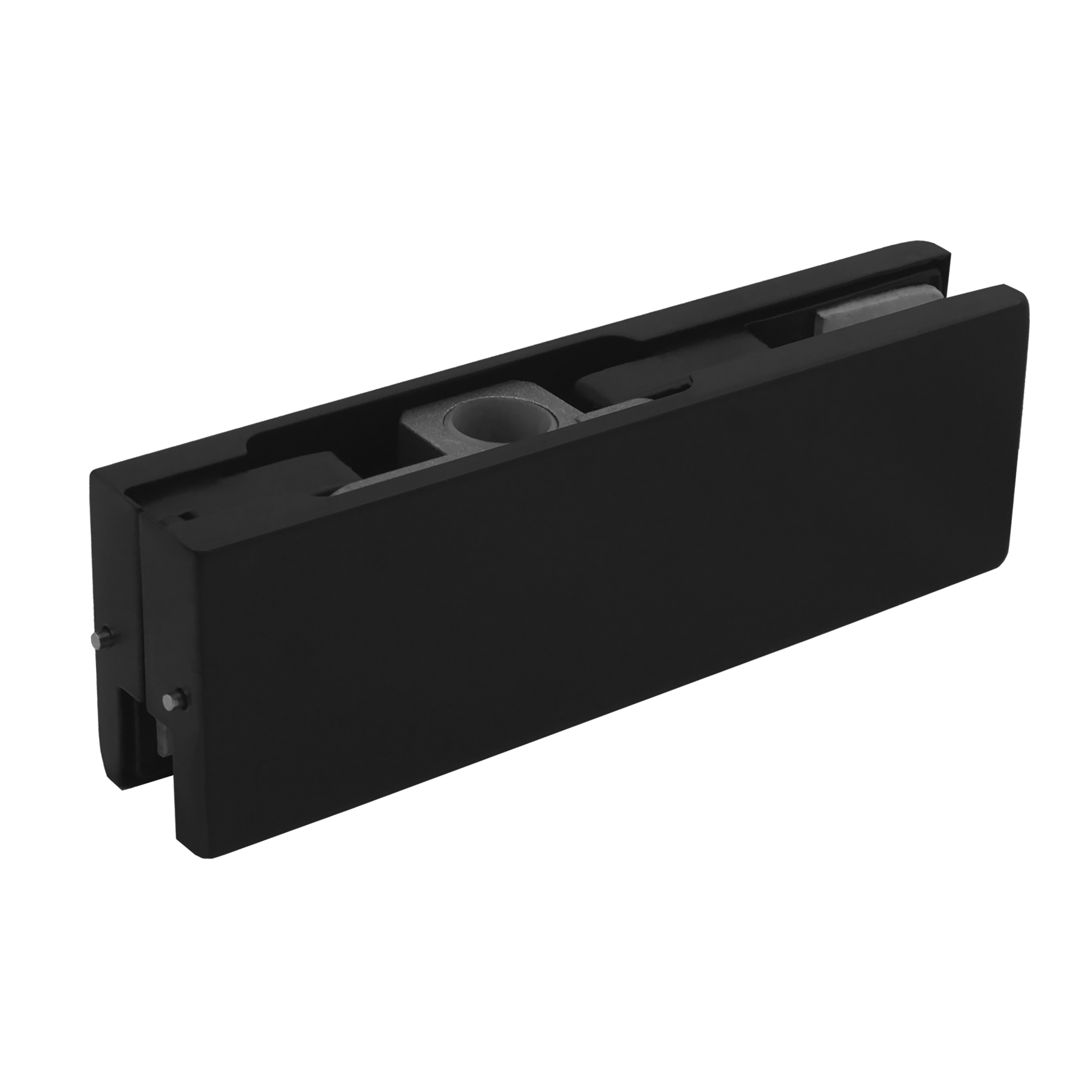

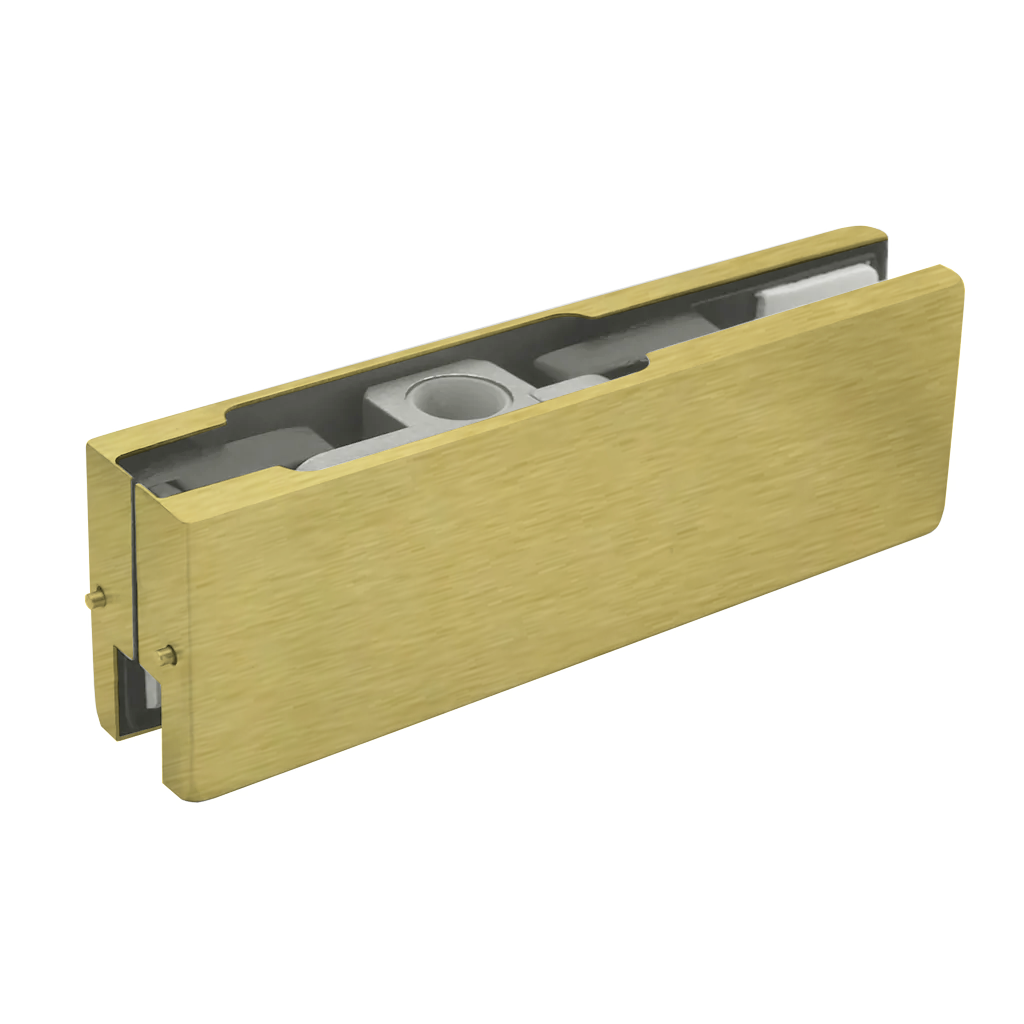

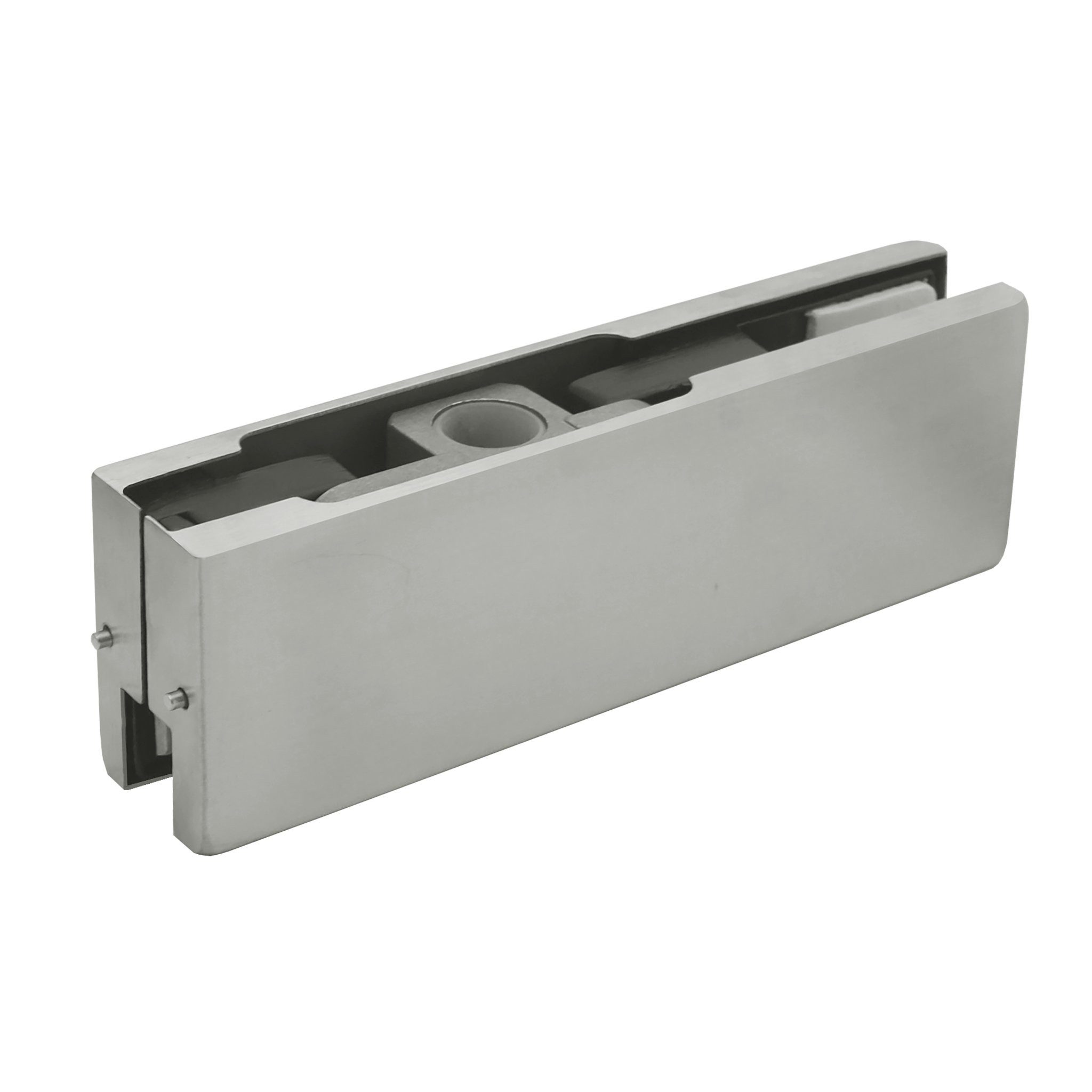

The GGH PFIT Series Top Patch with Pivot Insert is designed to provide a secure top pivot connection for frameless commercial glass doors. Featuring an aluminum body with a stainless steel 304 cover plate, this top patch fitting works with compatible bottom pivot systems to support smooth and controlled door swing. The included PFINTOP insert allows integration with the PPIV401 patch pin, making it suitable for storefront entrances, office doors, and other high-traffic glass door applications.

More Product Information

Material: Aluminum Body with Stainless Steel 304 Cover Plate

Product Length: 6-1/2" (164mm)
Product Width: 2" (51mm)
Product Height: 1-1/8" (29.6mm)

Glass Specifications

Glass Thickness Range: 3/8" to 1/2" (10mm to 12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: 3/4" (19.05mm) Diameter Hole with Corner Notch

Mounting & Compatibility

Mounting Type: Glass Mount
Thread Size: M6
Gasket Material: Grey Interior Gaskets
Gasket Thickness: 1/16" (2mm)

Includes: Gaskets, Allen Key, Template

Performance & Capacity

Maximum Width:
• 36" (914mm) for 3/8" glass
• 42" (1066mm) for 1/2" glass

Maximum Height:
• 84" (2133mm) for 3/8" glass
• 102" (2590mm) for 1/2" glass

Maximum Weight Capacity: 88 kg (194 lbs)
Tested Cycles: 500,000 operations

Compare To: PH21A
