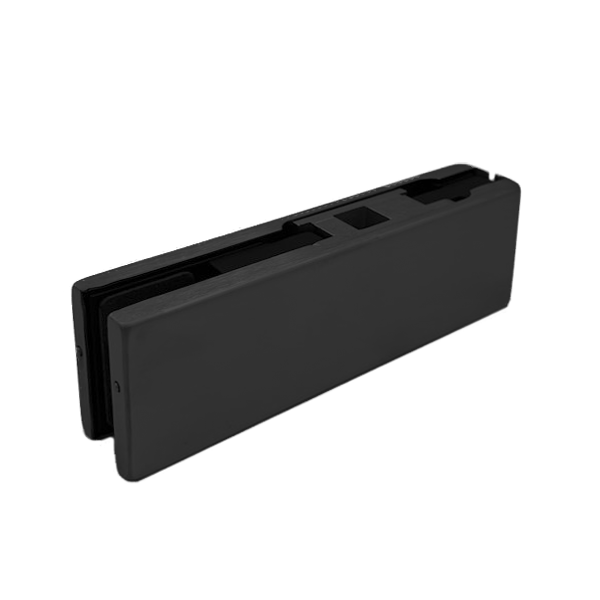

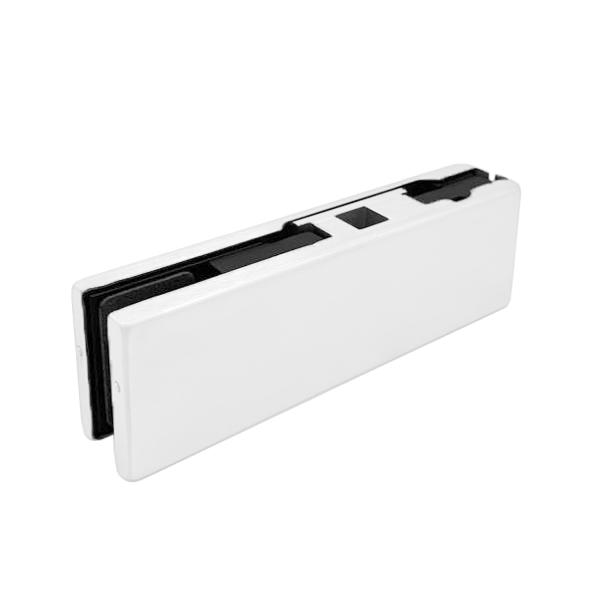

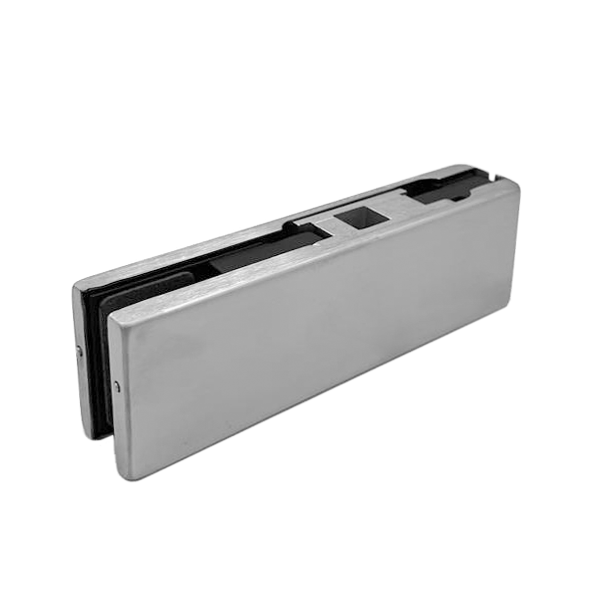

The GGH PFIT Series Top Patch with Closer Insert is designed for frameless glass doors utilizing concealed door closer systems. Featuring an aluminum body with a stainless steel 304 cover plate, this patch fitting provides a secure connection between the glass door and compatible concealed closer hardware while maintaining a clean architectural appearance. Its compact design makes it ideal for storefront entrances, office doors, and other commercial glass door installations requiring controlled closing performance.

More Product Information

Material: Aluminum Body with Stainless Steel 304 Cover Plate

Product Length: 6-1/2" (164mm)
Product Width: 2" (51mm)
Product Height: 1-3/8" (33.6mm)

Glass Specifications

Glass Thickness Range: 3/8" to 1/2" (10mm to 12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: 3/4" (19.05mm) Diameter Hole

Mounting & Compatibility

Mounting Type: Glass Mount
Thread Size: M6 Threaded
Gasket Material: Grey Interior Gaskets
Gasket Thickness: 1/16" (2mm)

Includes: Gaskets, Allen Key, Template

Performance & Capacity

Maximum Width:
• 36" (914mm) for 3/8" glass
• 42" (1067mm) for 1/2" glass

Maximum Height:
• 84" (2134mm) for 3/8" glass
• 102" (2591mm) for 1/2" glass

Maximum Weight Capacity: 194 lbs. (88 kg)

Tested Cycles: 500,000 Operations
