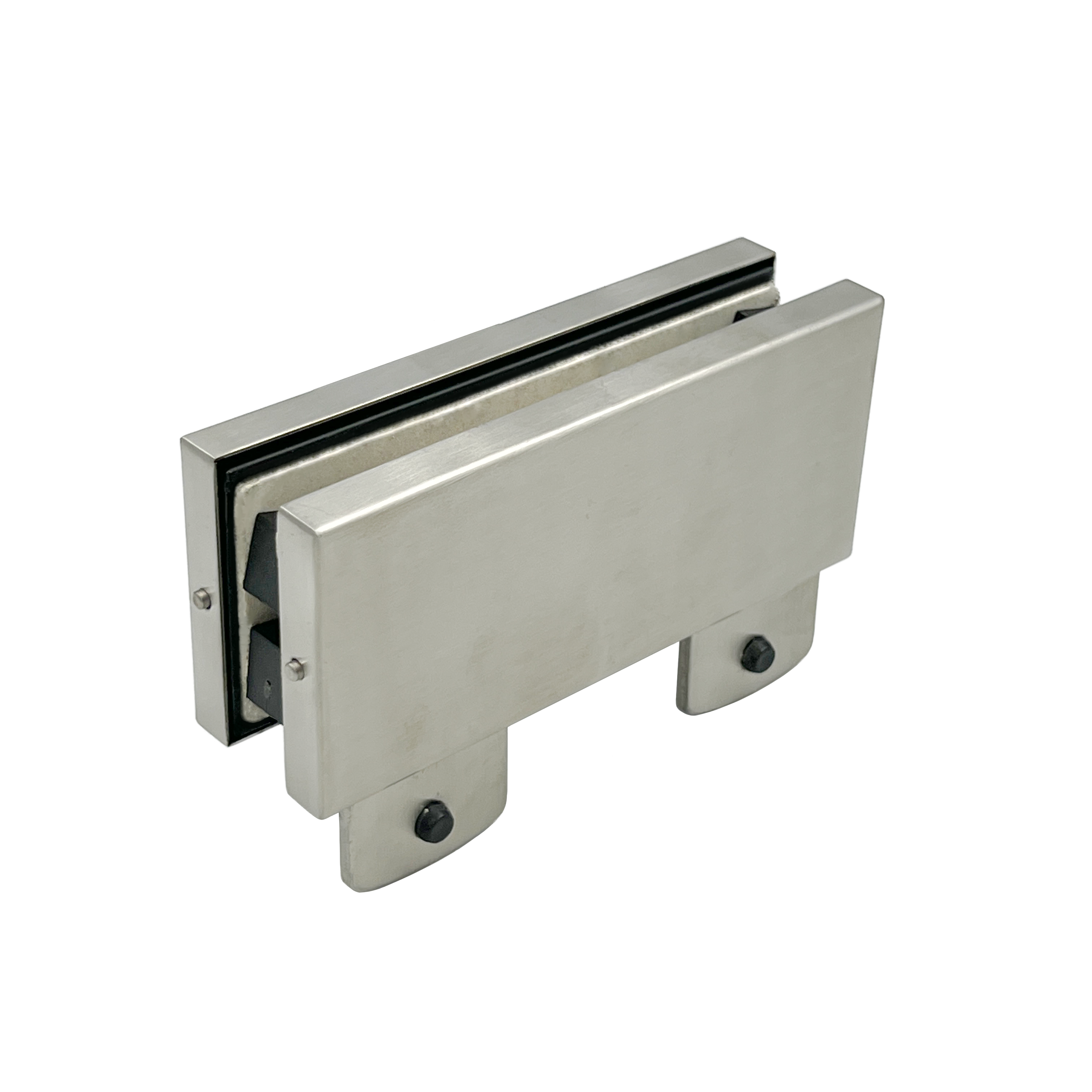

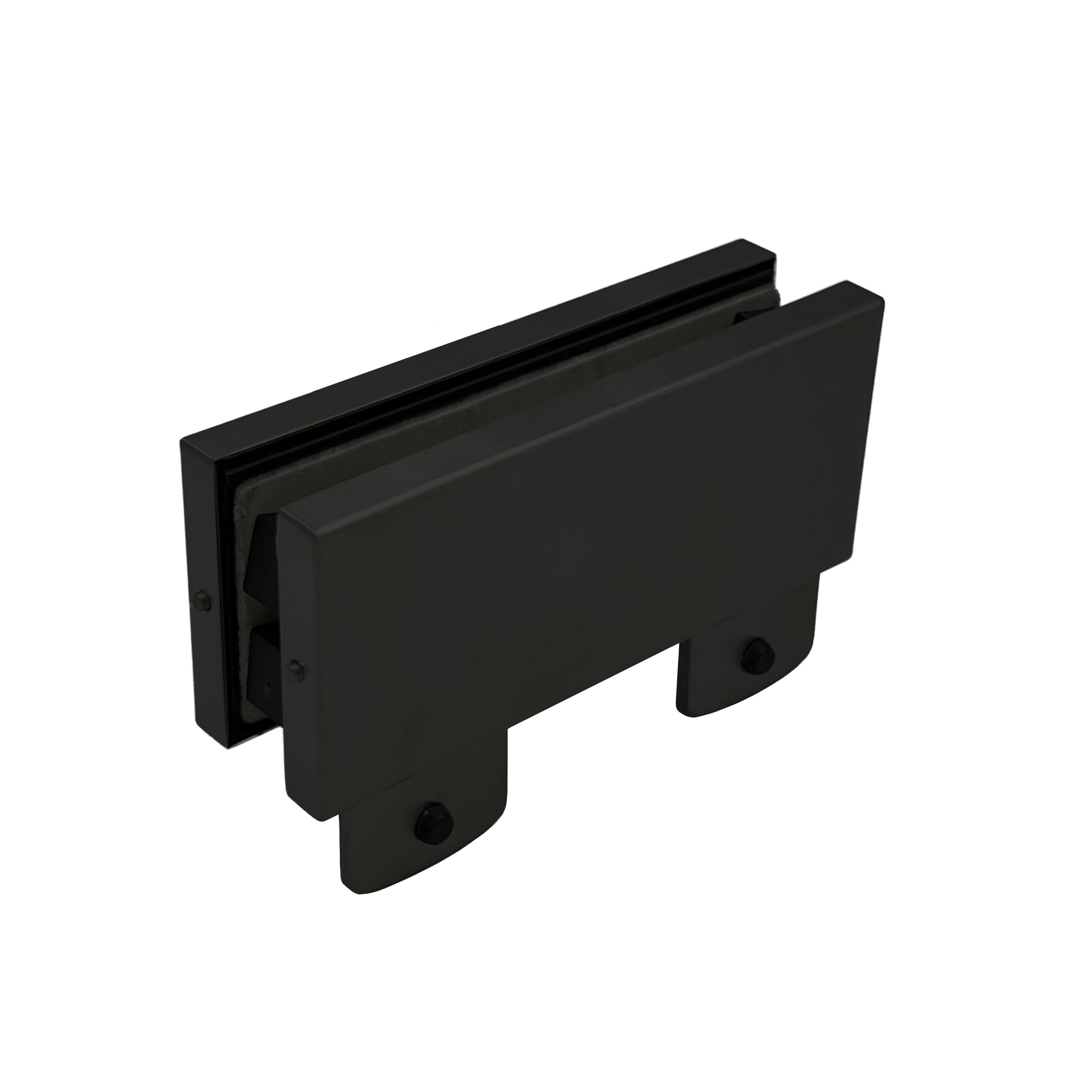

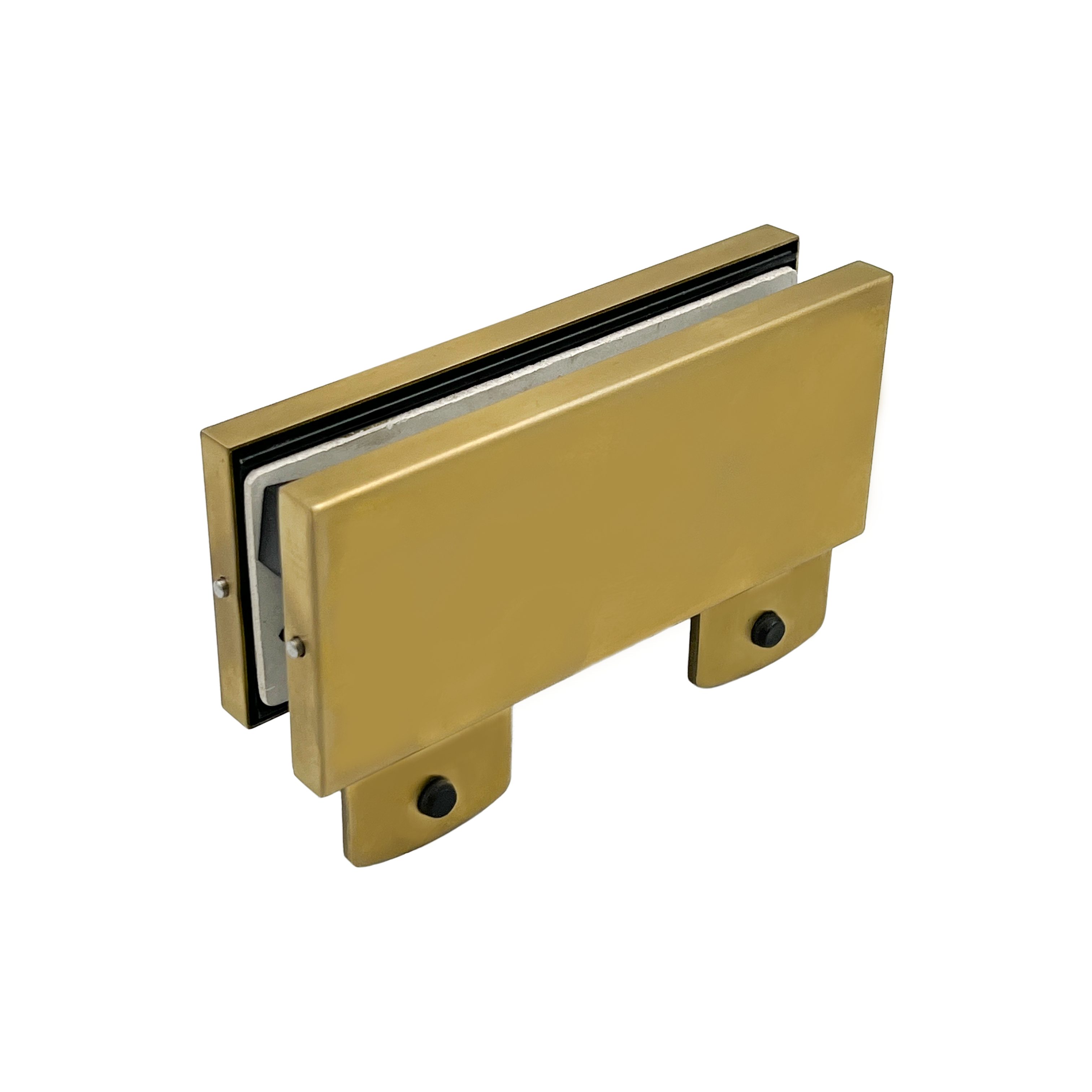

The GGH PFIT Series Top Connector with Door Stopper is designed to connect upper glass panels while providing controlled door movement in frameless glass door systems. Featuring an aluminum body with a stainless steel 304 cover plate, this fitting helps maintain glass alignment and structural stability while incorporating an integrated door stop. Its versatile design makes it suitable for storefront entrances, office doors, and other commercial glass door applications requiring transom connections and controlled swing operation.

More Product Information

Material: Aluminum Body with Stainless Steel 304 Cover Plate

Product Length: 4-1/2" (115mm)
Product Width: 2-3/4" (69.9mm)
Product Height: 1-1/4" (32mm)

Glass Specifications

Glass Thickness Range: 3/8" to 1/2" (10mm to 12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: 3/4" (19.05mm) Diameter Hole

Mounting & Compatibility

Mounting Type: Glass Mount
Thread Size: M6 Threaded
Gasket Material: Grey Interior Gaskets
Gasket Thickness: 1/16" (2mm)

Includes: Gaskets, Allen Key, Template

Performance & Capacity

Maximum Width:
• 36" (914mm) for 3/8" glass
• 42" (1067mm) for 1/2" glass

Maximum Height:
• 84" (2134mm) for 3/8" glass
• 102" (2591mm) for 1/2" glass

Maximum Weight Capacity: 220 lbs. (100 kg)

Compare To: PH70

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
