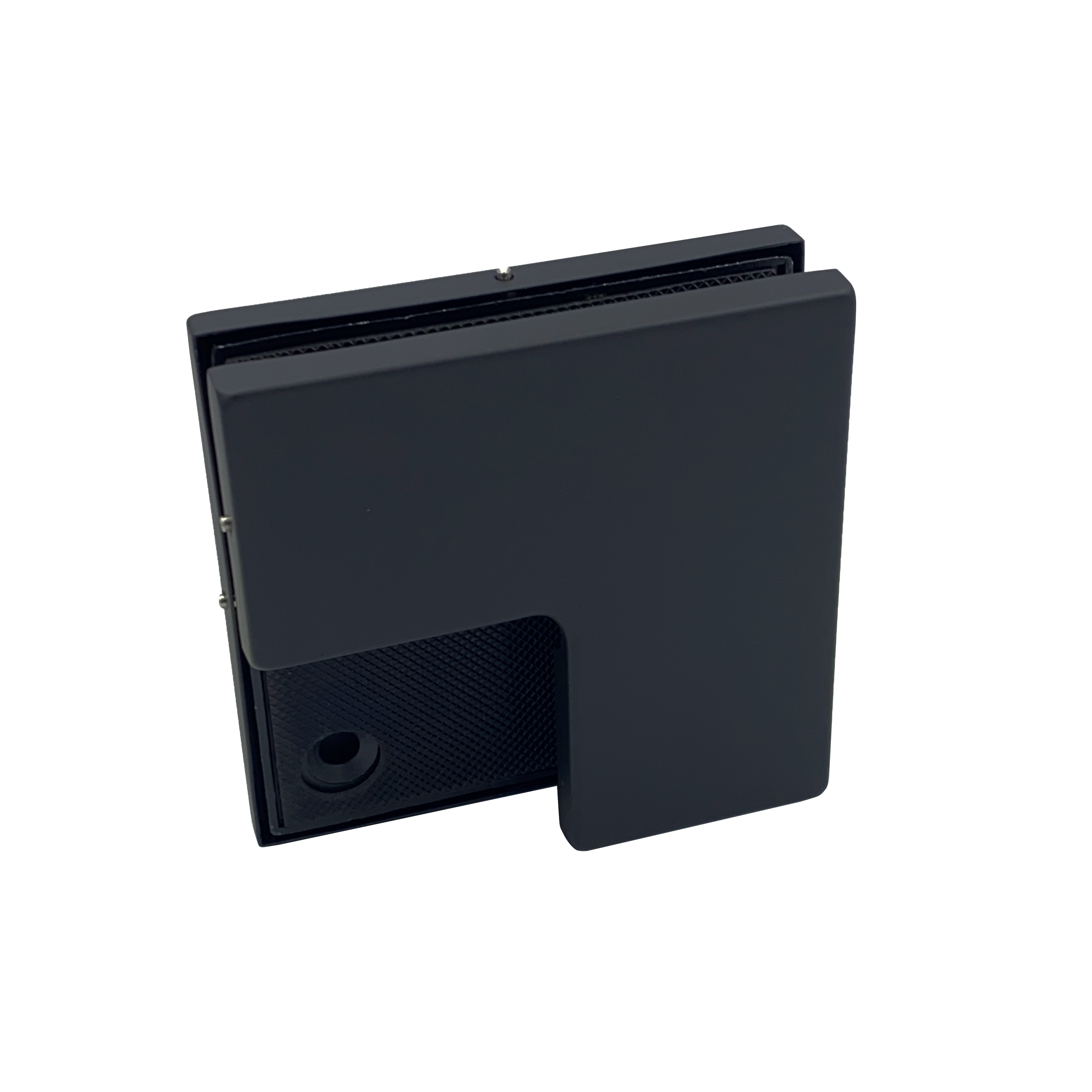

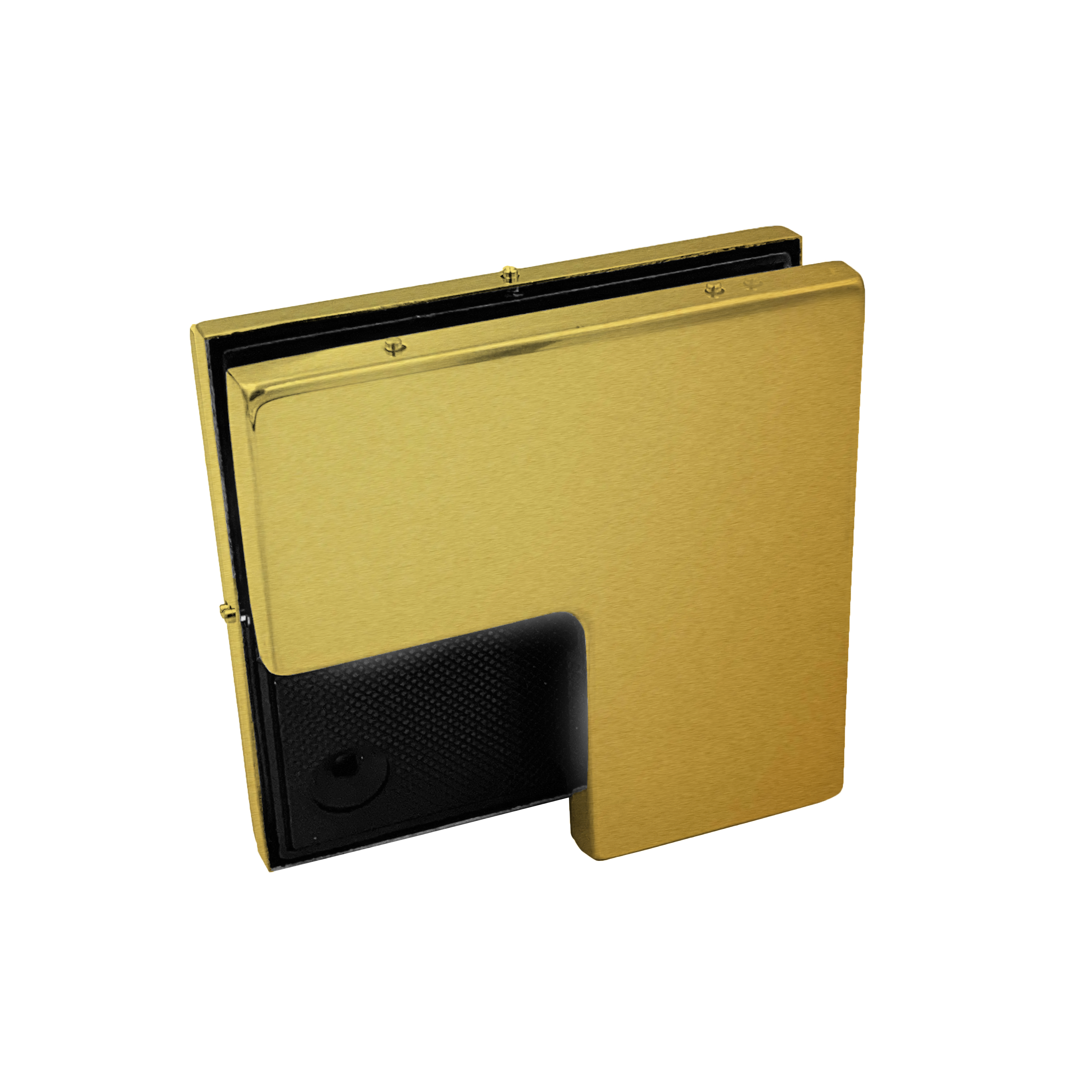

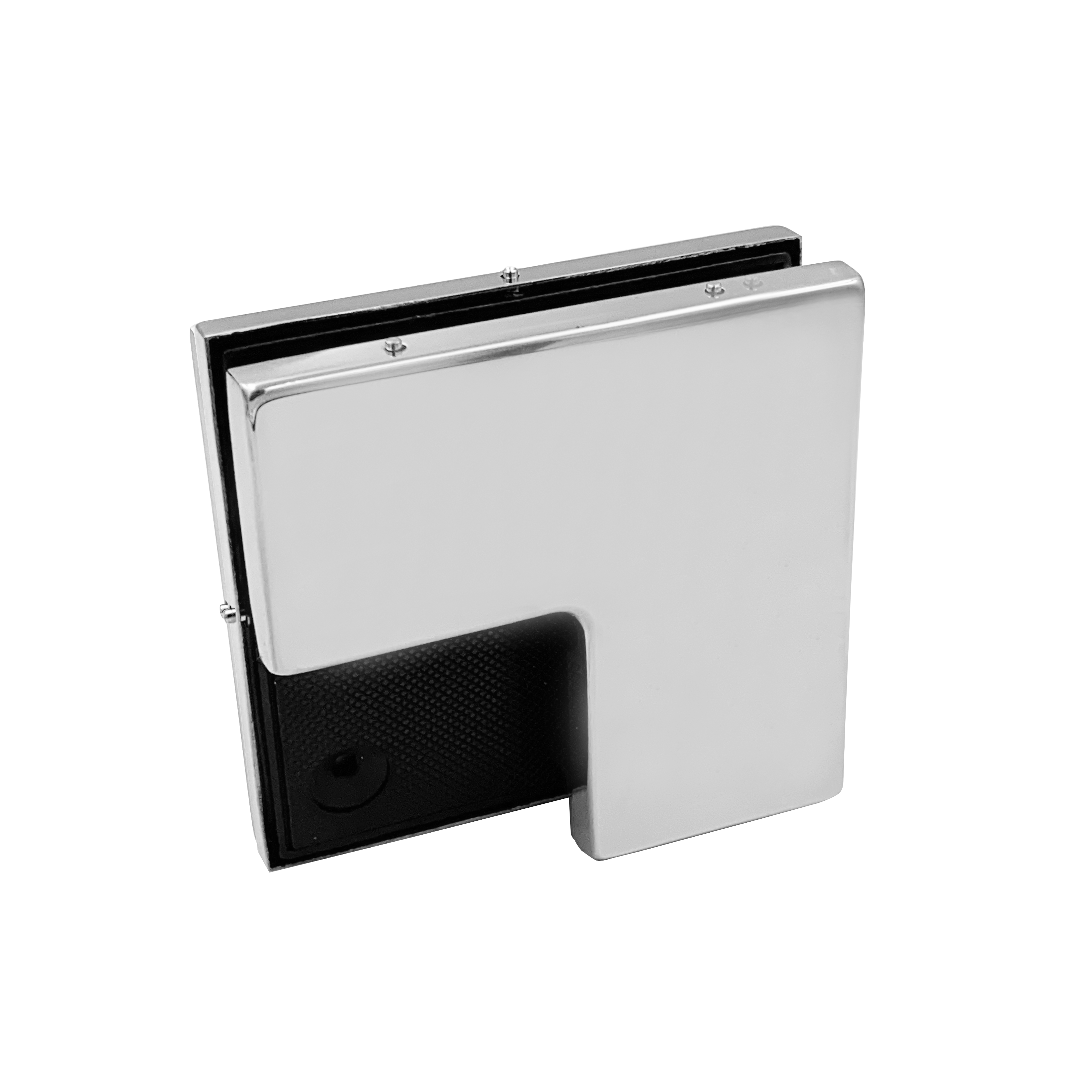

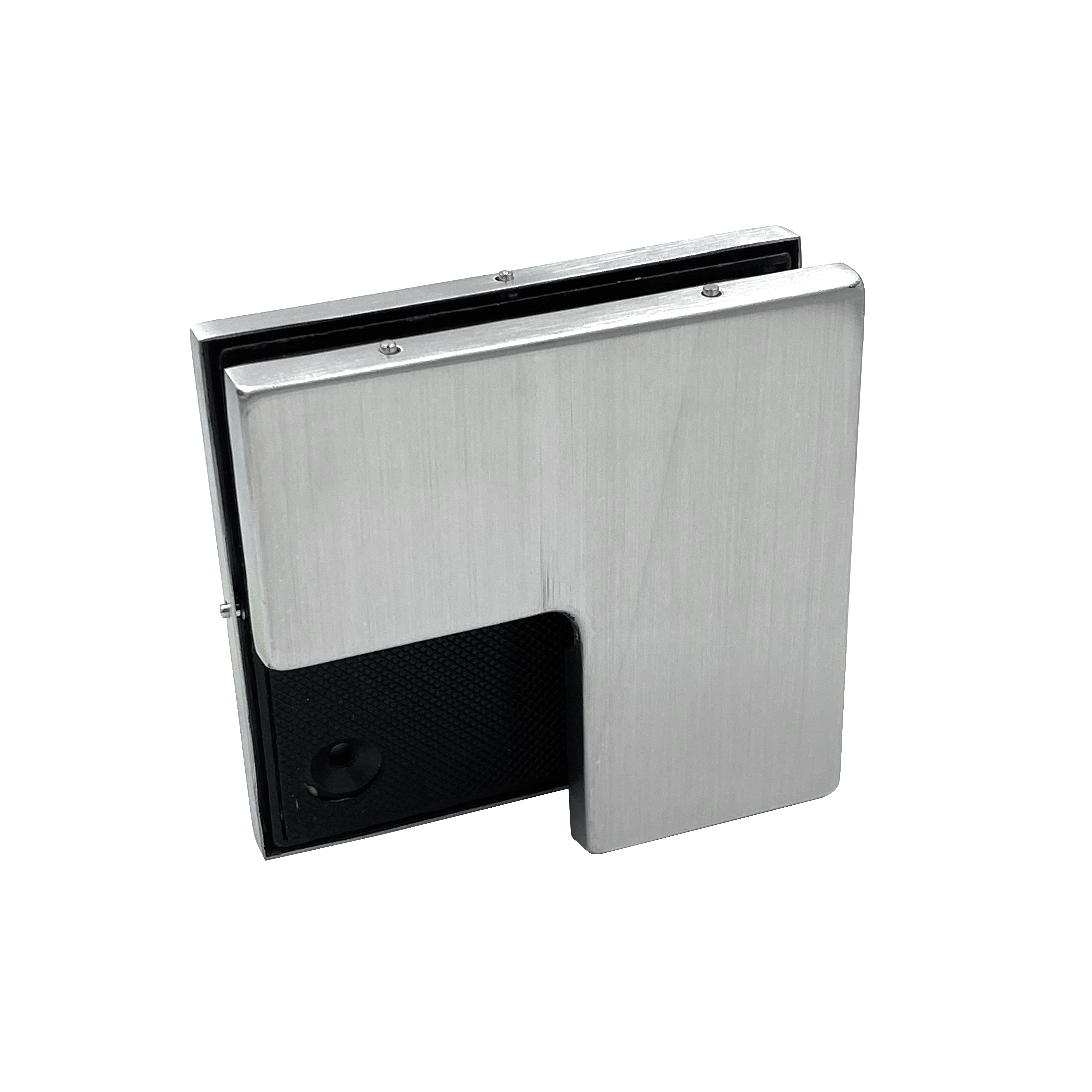

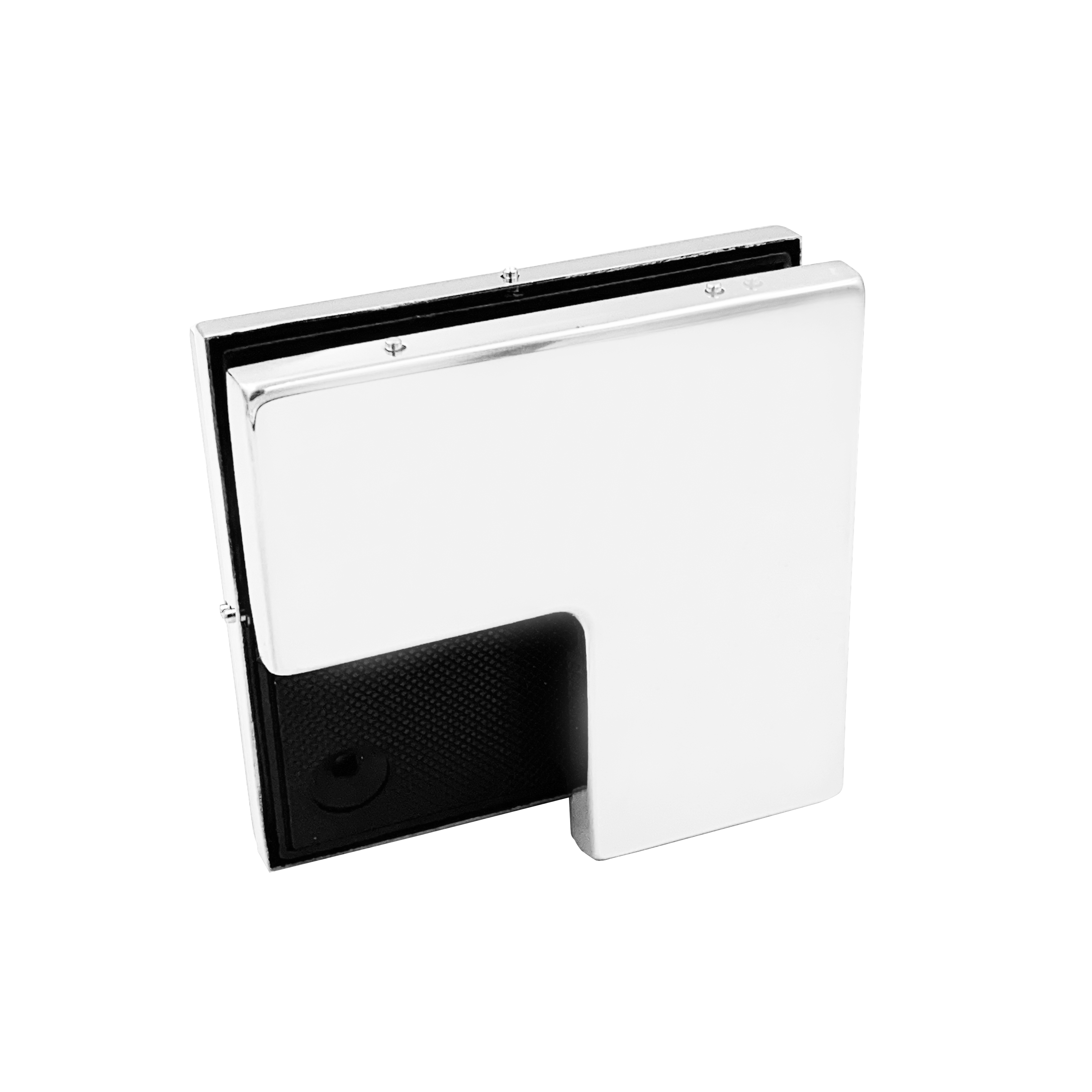

The GGH PFIT Series L-Shape Connector with Heavy-Duty Door Stop is designed for frameless glass door systems requiring a robust glass-to-glass connection with enhanced door stopping capability. Featuring an aluminum body with a stainless steel 304 cover plate, this fitting provides reliable support for multi-panel glass assemblies while helping protect door hardware and surrounding glass from excessive impact. Its heavy-duty door stop design makes it ideal for high-traffic commercial entrances, storefronts, and interior glass door systems.

More Product Information

Material: Aluminum Body with Stainless Steel 304 Cover Plate

Product Length: 4-1/8" (106mm)
Product Width: 4-1/8" (106mm)
Product Height: 1-1/4" (31.8mm)

Glass Specifications

Glass Thickness Range: 3/8" to 1/2" (10mm to 12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: 3/4" (19.05mm) Diameter Hole

Mounting & Compatibility

Mounting Type: Glass Mount
Thread Size: M6 Threaded
Gasket Material: Grey Interior Gaskets
Gasket Thickness: 1/16" (2mm)

Includes: Gaskets, Allen Key, Template

Performance & Capacity

Maximum Width:
• 36" (914mm) for 3/8" glass
• 42" (1067mm) for 1/2" glass

Maximum Height:
• 84" (2134mm) for 3/8" glass
• 102" (2591mm) for 1/2" glass

Maximum Weight Capacity: 220 lbs. (100 kg)

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
