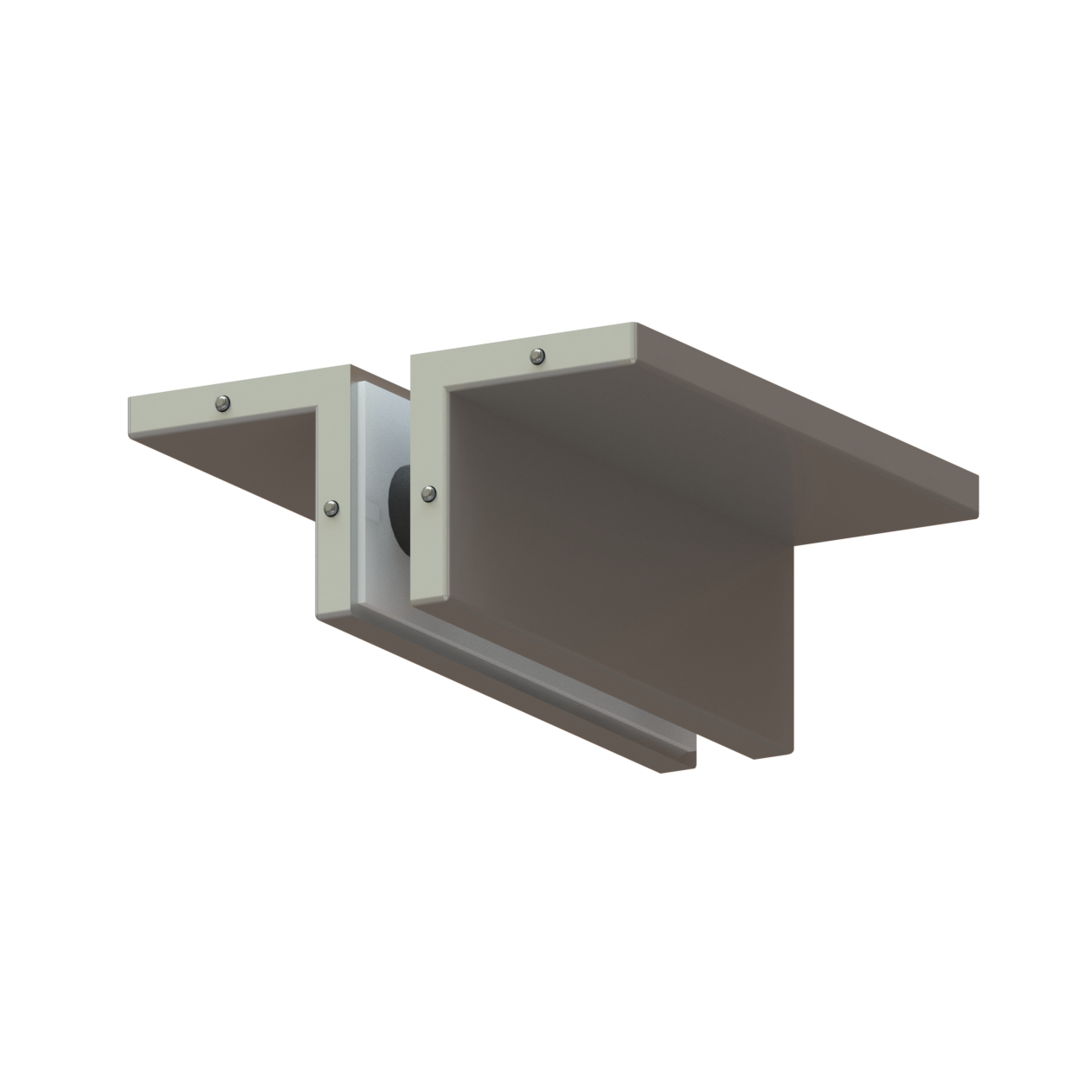

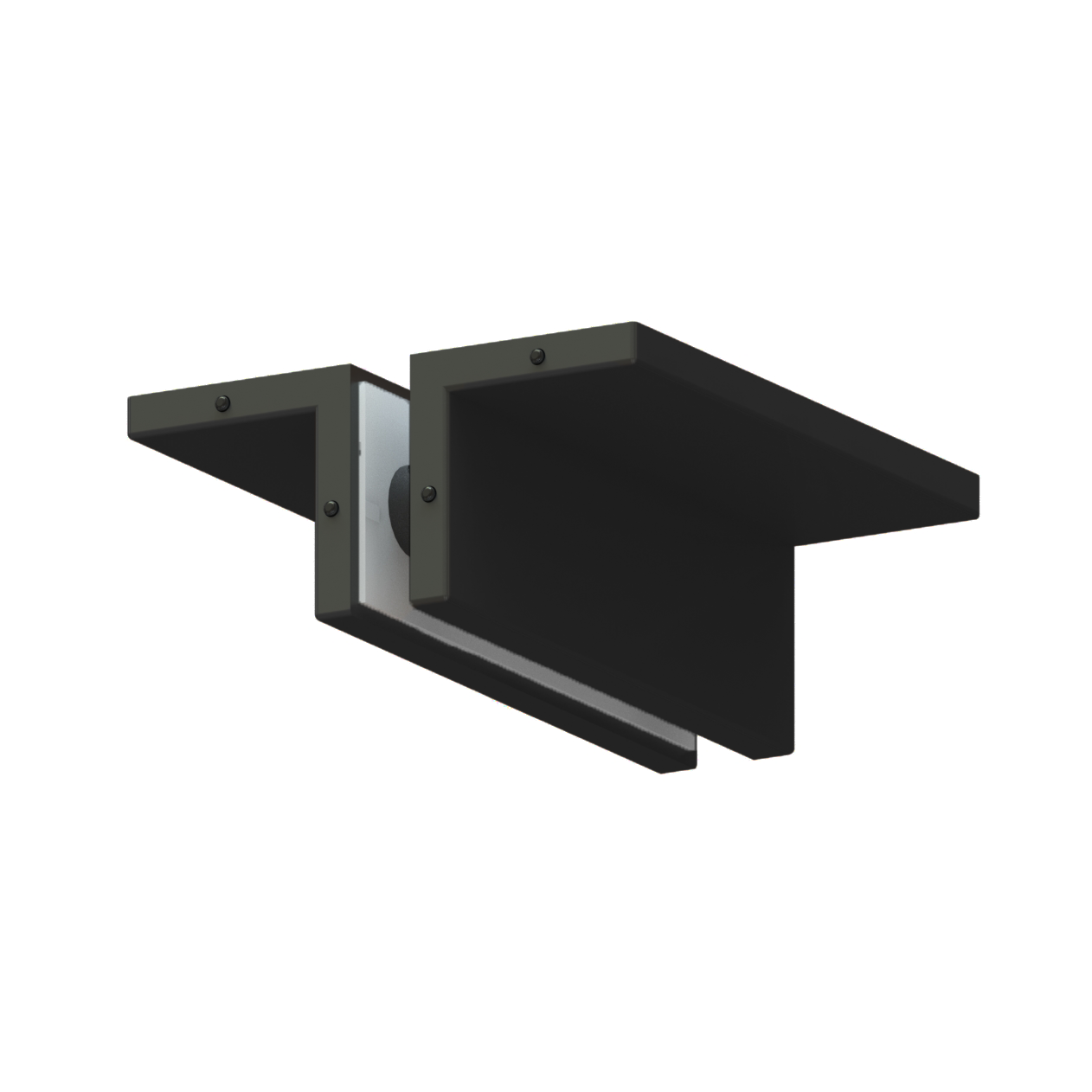

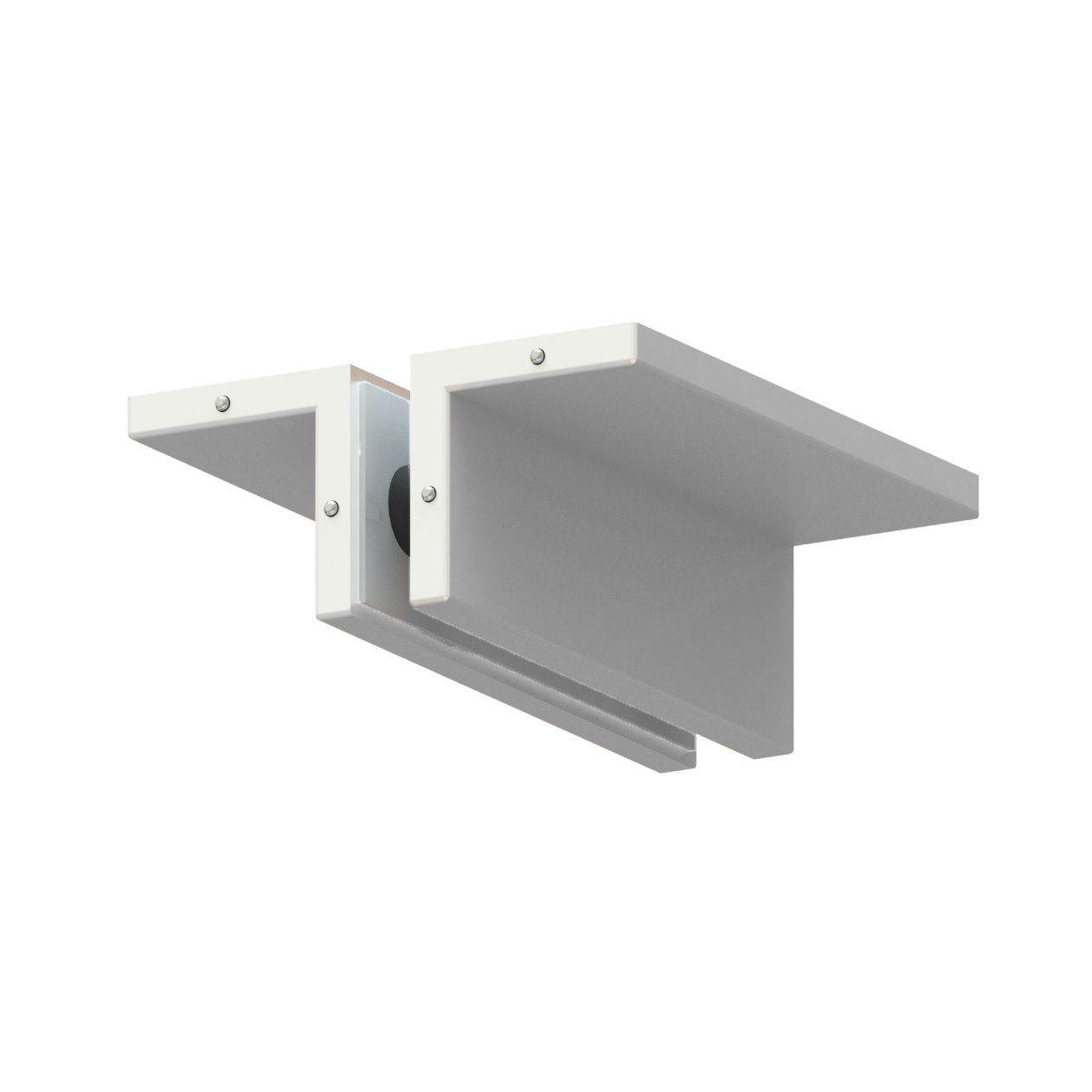

The GGH PFIT Series Ceiling Mounted Support Fin Connector is designed to provide overhead support and stabilization for vertical glass fins and transom assemblies in frameless glass systems. Featuring an aluminum body with a stainless steel 304 cover plate, this fitting helps transfer loads to the building structure while maintaining proper glass alignment. Its ceiling-mounted design makes it ideal for storefront entrances, structural glass facades, transom systems, and other commercial glazing applications requiring additional support for large glass installations.

More Product Information

Material: Aluminum Body with Stainless Steel 304 Cover Plate

Product Length: 8-5/8" (220mm)
Product Width: 6-7/8" (176mm)
Product Height: 3-1/8" (79mm)

Glass Specifications

Glass Thickness Range: 3/8" to 1/2" (10mm to 12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: 3/8" (9.5mm) Diameter Hole

Mounting & Compatibility

Mounting Type: Glass Mount, Ceiling Mount
Thread Size: M10 Threaded
Gasket Material: Grey Interior Gaskets
Gasket Thickness: 1/16" (2mm)

Includes: Gaskets, Allen Key, Anchors, Screws

Performance

Application: Structural Glass Fin Support and Ceiling-Mounted Stabilization

Compare To: PH94

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
