The GGH Ladder Pull Handle is a heavy-duty back-to-back door pull engineered for commercial storefronts, office entrances, and premium residential glass door applications. Manufactured from high-quality 304 stainless steel, the handle features a tubular round profile that delivers a comfortable grip while providing outstanding corrosion resistance and long-term durability. Its clean architectural design complements modern frameless glass entrances and aluminum door systems.

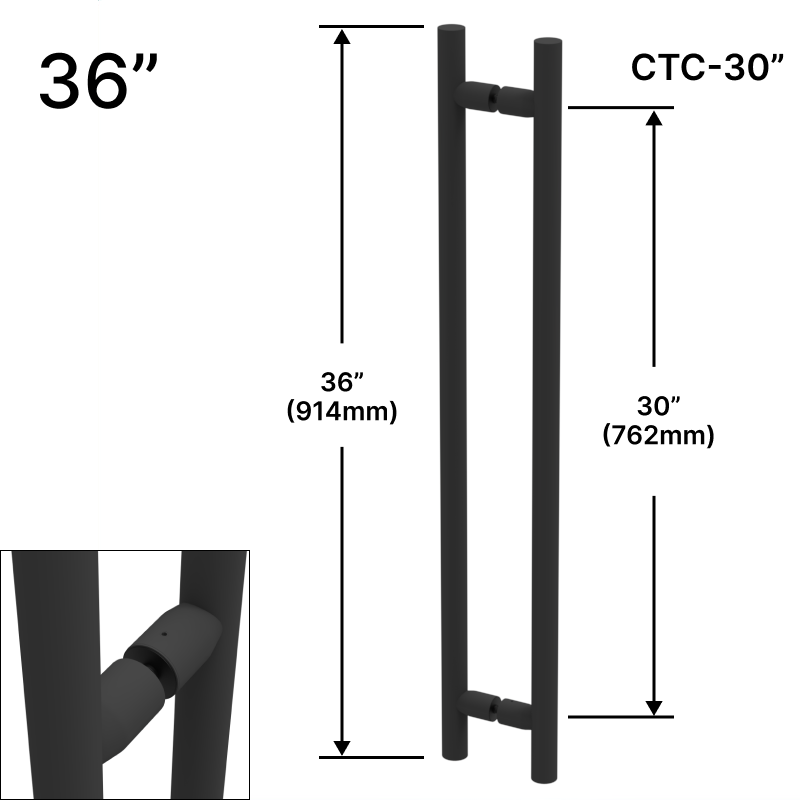

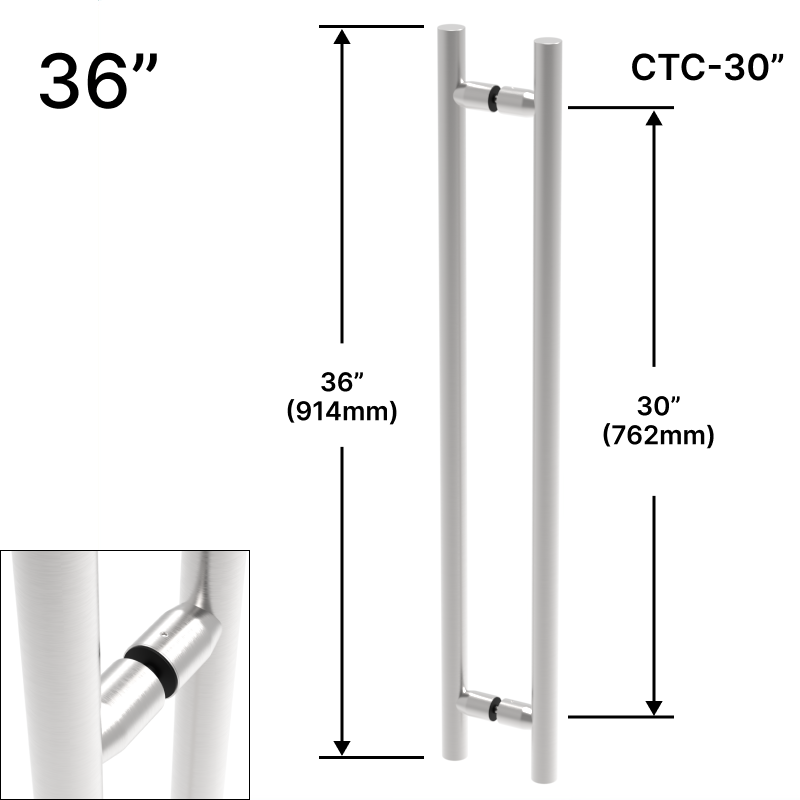

Designed for 3/8" to 1/2" (10 mm to 12 mm) tempered monolithic or tempered laminated glass, the handle features 36" (914 mm) center-to-center spacing with a 1-1/4" (32 mm) diameter tubular profile and an overall projection of 6-3/16" (157.50 mm). Installation requires 5/8" (16 mm) diameter holes in the glass and includes mounting hardware for 1-3/4" to 2" (44 mm to 50.8 mm) thick doors. Black 1/16" (1.6 mm) PP interior gaskets help protect the glass during installation, making the handle suitable for both commercial and residential architectural door systems.

More Product Information

Material: 304 Stainless Steel

Profile: Tubular / Round

Product Diameter: 1-1/4" (32 mm)

Product Length: 36" (914 mm)

Product Height: 6-3/16" (157.50 mm)

Glass Thickness Range: 3/8" to 1/2" (10 mm to 12 mm)

Glass Type: Tempered Monolithic or Tempered Laminated Glass

Glass Fabrication: Requires 5/8" (16 mm) Diameter Holes in the Glass

Includes: Mounting Hardware for 1-3/4" to 2" (44 mm to 50.8 mm) Thick Doors

Gasket: Black Interior Gaskets

Gasket Material: PP

Gasket Thickness: 1/16" (1.6 mm)

Mounting Type: Back-to-Back

Min. Selling Quantity: 1

Units per Box: 2

Product Weight: 27.43 lbs. (12.44 kg)

Product Weight (Metric): 12,443.31 g

For technical inquiries or certification requests, please contact us at technical@ggh-usa.com.

Product Warning: Always install using the specified glass thickness and required glass fabrication. Ensure the handle is securely fastened before use. Improper installation or exceeding the recommended door specifications may result in product failure, property damage, or personal injury. Product images are for reference only; actual finish may vary.
