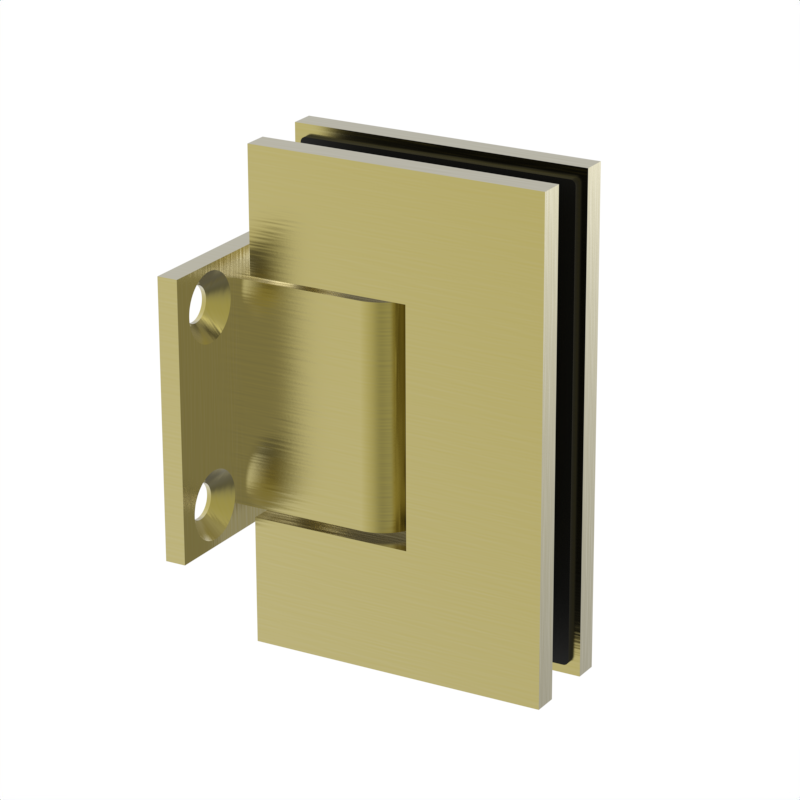

The GGH Short Back Plate Shower Hinge from the JENNIFER Series is a premium square-design hinge crafted for glass-to-wall shower door installations. Its compact short back plate design ensures a sleek, minimalist appearance while maintaining superior performance and durability. Ideal for modern frameless shower enclosures, the JEN074 hinge combines aesthetic elegance with reliable functionality, offering a discreet yet robust solution for your glass projects.

More Product Information

Material: Brass

Hinge Style: Short Back Plate
Profile: Square
Product Length: 2-1/2" (62.99mm)
Product Width: 2" (50.80mm)
Product Height: 3-9/16" (90mm)

Glass Thickness Range: 5/16" (8mm) to 1/2" (12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: See Template for Details

Includes: Hinge Assembly & Gaskets
Gasket: Included with Hinge Body
Gasket Material: EPDM
Gasket Thickness: 1mm

Mounting Type: Wall to Glass

Adjustability: Door Alignment
Adjustment Feature: 5° Reversible Pin for Door Alignment and Closure Adjustment

Maximum Door Width:
Two Hinges: 28" (711mm)
Three Hinges: 32" (813mm)

Maximum Load:
Two Hinges: 80 lbs. (36 kg)
Three Hinges: 120 lbs. (54 kg)

Compare To: GLENS2 / GEN074

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
