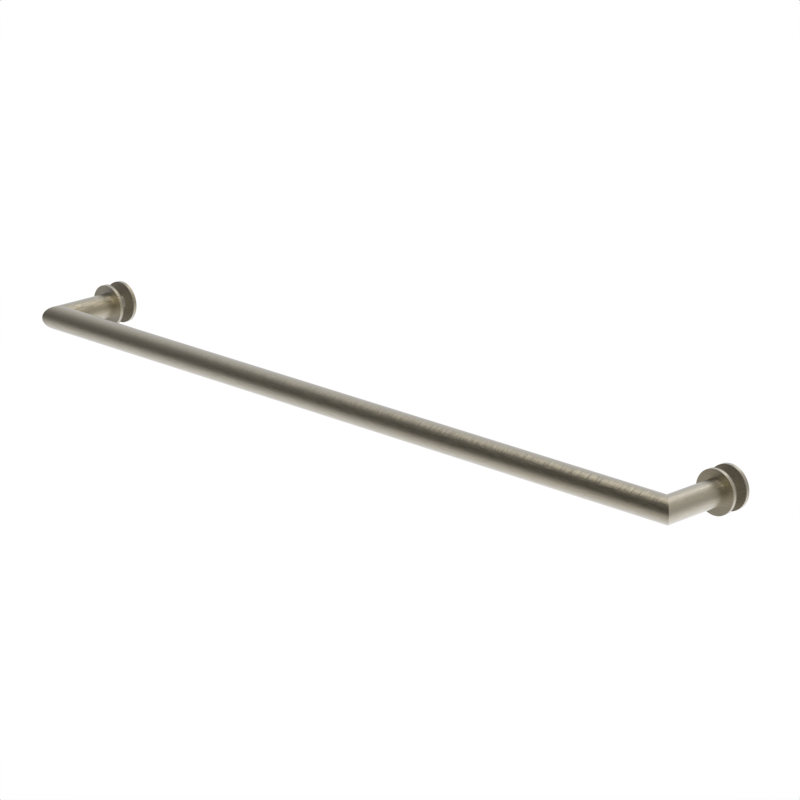

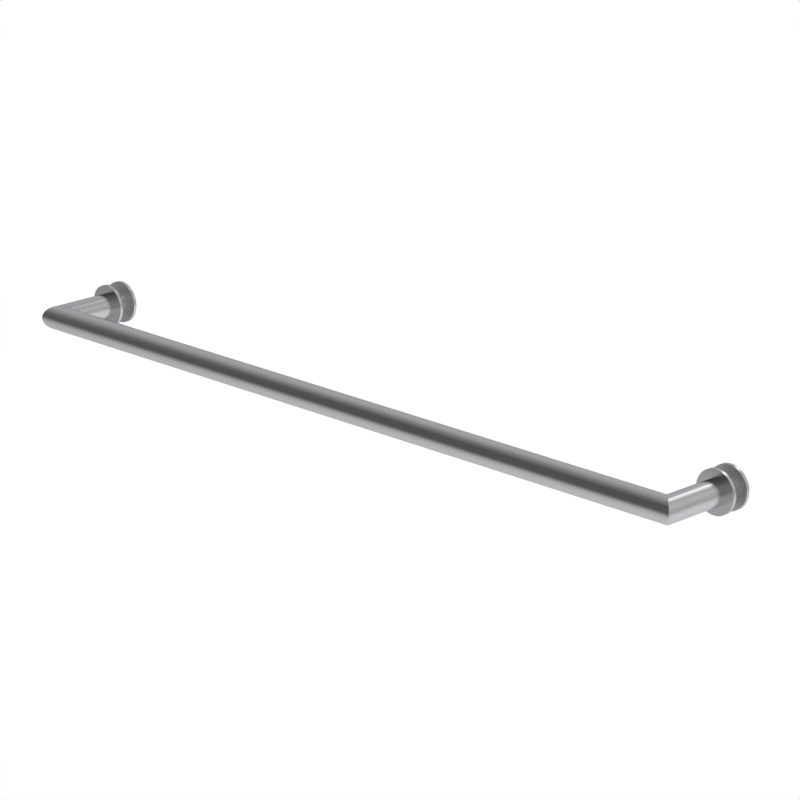

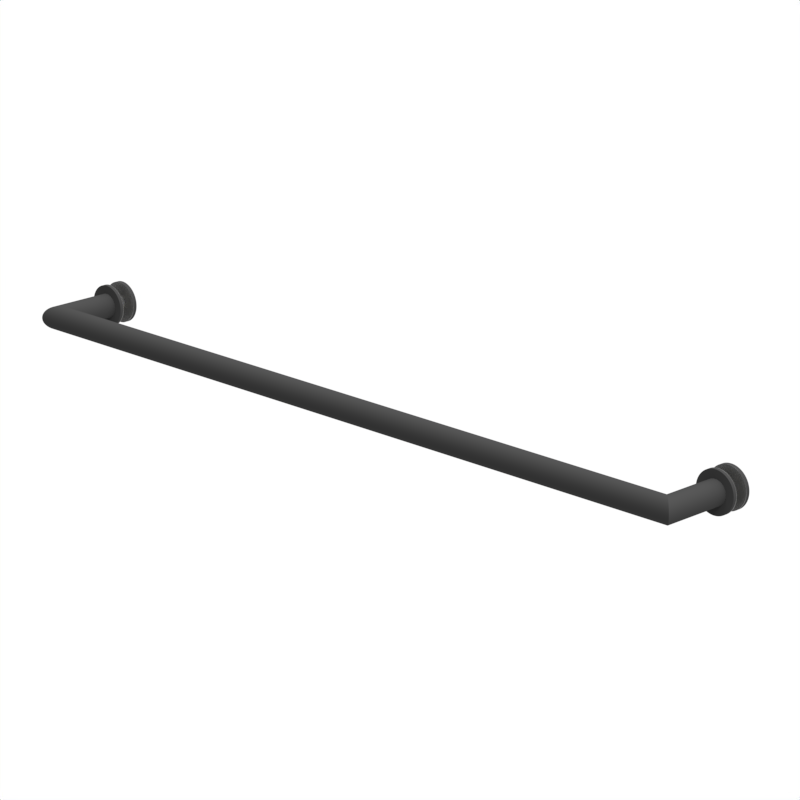

The GGH Single Sided Mitered Handle is a sophisticated solution for frameless shower enclosures. Designed with sleek mitered edges, it provides functionality and a modern aesthetic to complement any bathroom style.

More Product Information

Product Diameter: 3/4" (19mm) Mitered Tubing
Projection from Glass: 2-3/8" (60mm)
Product Length: 24-3/4" (629mm)
Material: Brass

Includes: Towel bar, decorative metal washers, clear or black gaskets, screws, allen key and plastic washers to prevent metal-to-glass contact
Gasket Material: Clear Vinyl or EPDM
Gasket Thickness: 1mm
Thread Size: M6 Threaded

Glass Thickness Range: 1/4" (6mm) to 1/2" (12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: Requires 1/2" (12mm) diameter holes
Hole to Hole (CTC): 24" (609.6mm)
Mounting Type: Glass Mount (Single Sided)

Compatible With: Shower doors, shower hinges, glass clamps, U-channels, glass door locks, shower sweeps
Application: Shower stock doors and glass partitions

Compare To: TBRM24/MT24

For technical inquiries: technical@ggh-usa.com

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
