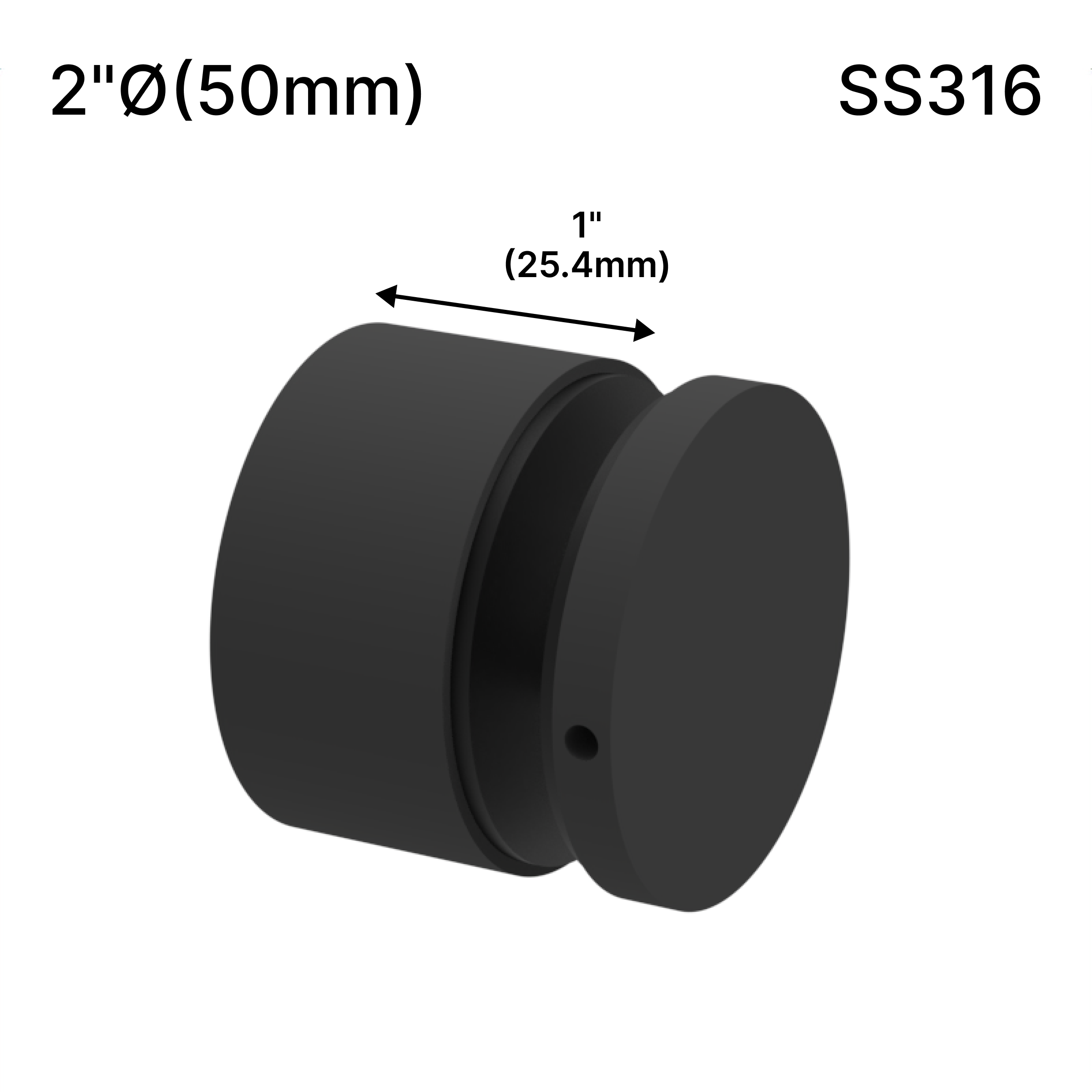

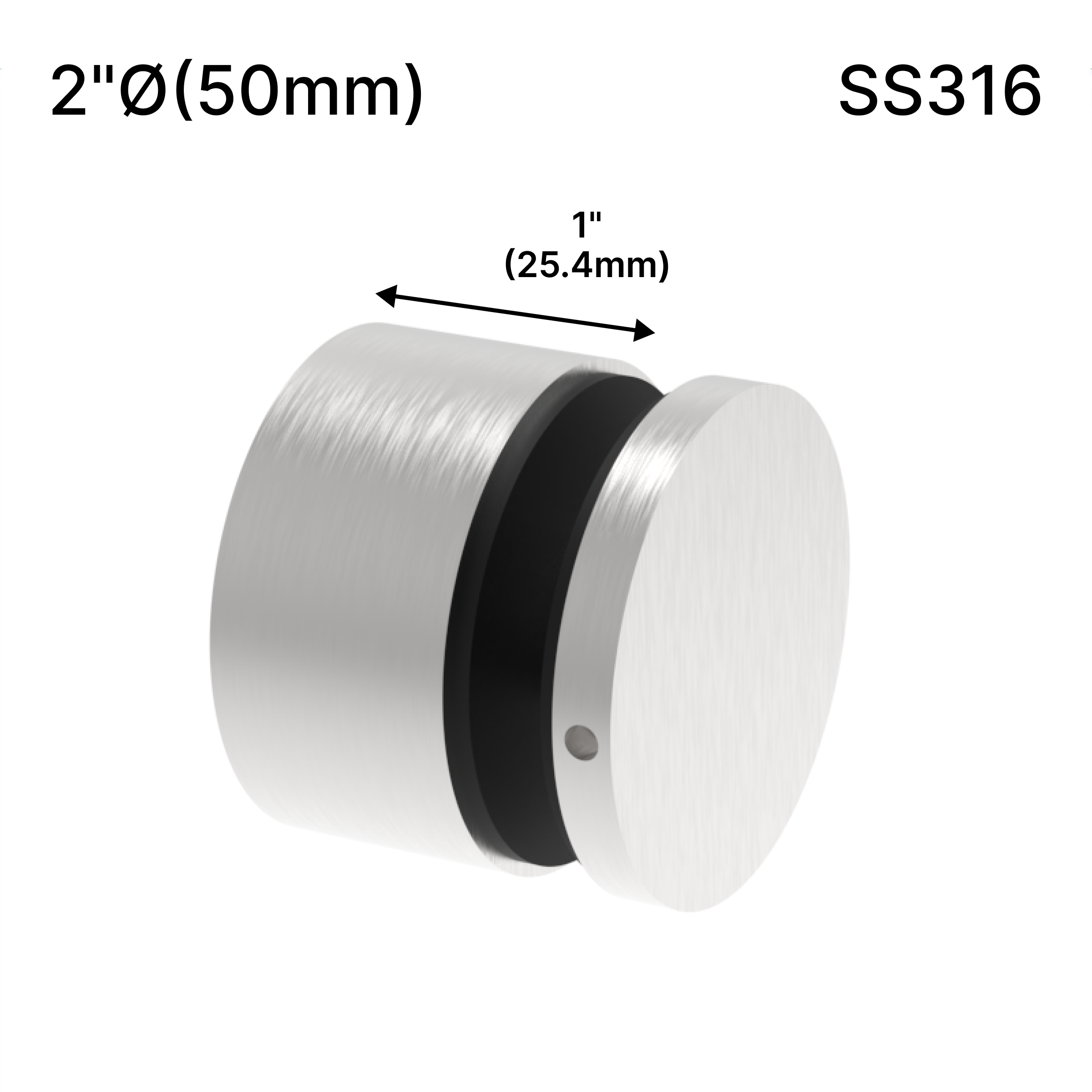

Our GGH Superior Series Solid Standoffs are the ideal choice for securely mounting glass panels. Crafted from stainless steel, both the standoff base and cap offer exceptional durability and corrosion resistance, making them suitable for both interior and exterior applications.

More Product Information

Product Diameter: 2" (50.80mm)
Base Height: 1" (25.40mm)
Overall Body Height: 1-11/16" (42.90mm)
Material: 316 Stainless Steel
Includes: Standoff base & cap, Gaskets and Grommets
Gasket Material: EPDM
Gasket Thickness: 2mm
Thread Size: 3/8"-16 Threaded

Glass Thickness Range: 1/2" (12mm) to 27/32" (21.52mm)
Glass Type: Monolithic Tempered Glass or Laminated Tempered Glass
Glass Fabrication: Requires 3/4" (19mm) diameter hole in the glass
Minimum Distance from Edge of the glass: 1" (25.40mm)
Edge of Glass to Center: 6" (152.40mm)
Recommended Horizontal Spacing: 20" to 39" (Spacing Depends on Use and Mounting Conditions)
Maximum Recommended Panel Width: 60" (1524mm)

Compare To: RS2X1

For technical inquiries: technical@ggh-usa.com

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
