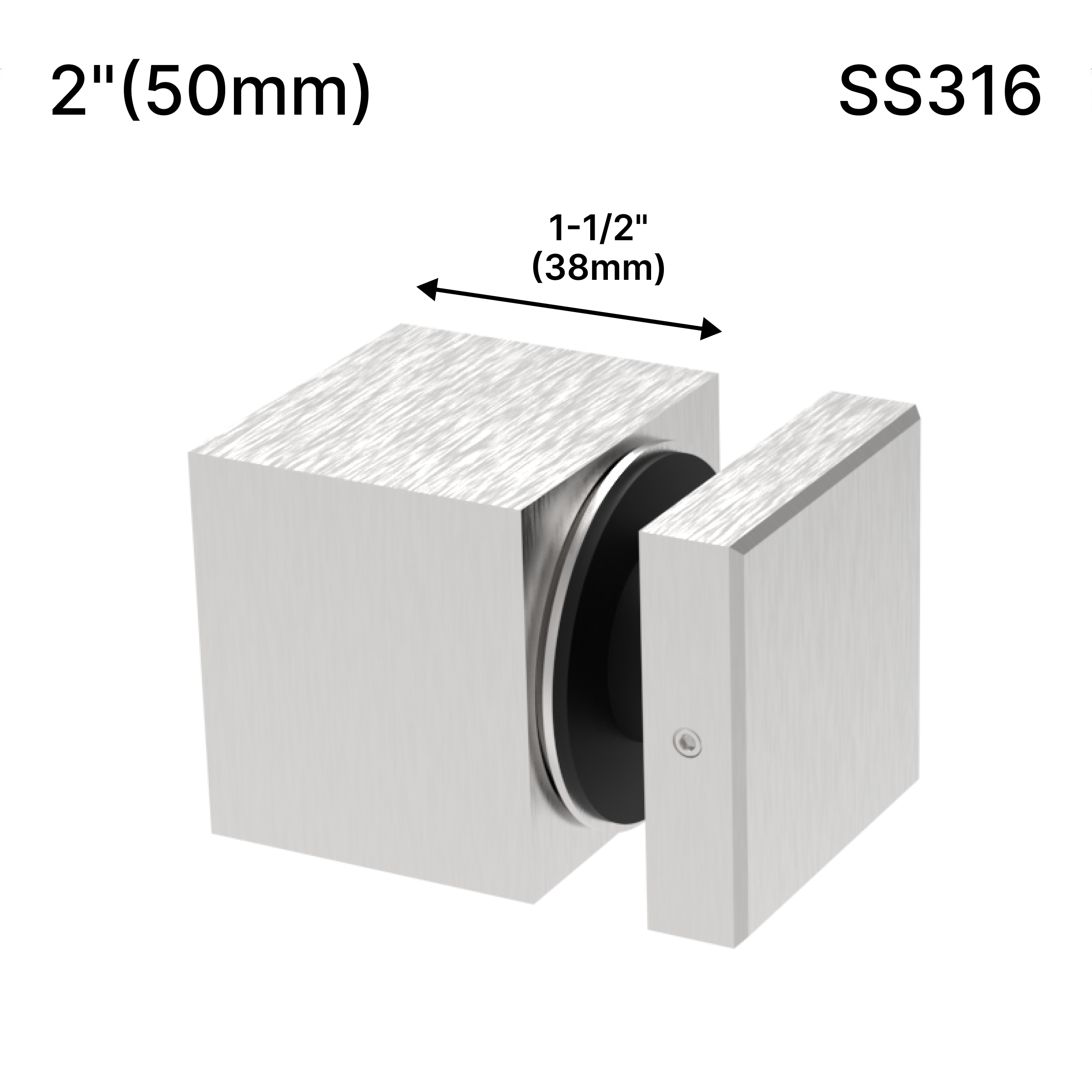

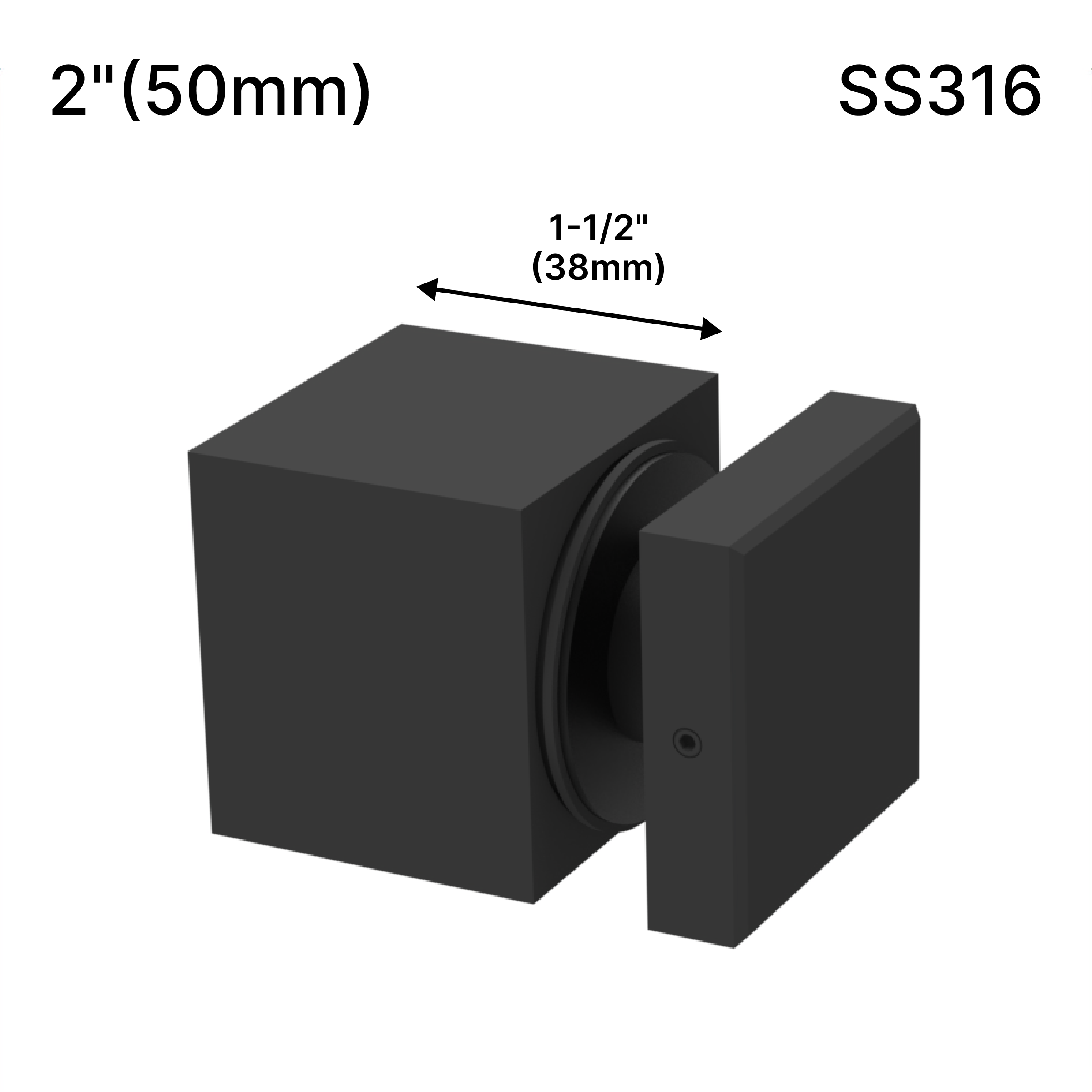

The GGH Square Solid Standoff is a premium mounting solution designed for glass railing systems, signage, and architectural applications. Crafted from stainless steel, it offers exceptional durability and corrosion resistance, making it ideal for both indoor and outdoor environments.

More Product Information

Product Diameter:
Base Height: 1-1/2" (38.10mm)
Overall Body Height: 2-3/8" (59.60mm)
Material: 316 Stainless Steel
Includes: Standoff base & cap, Gaskets and Grommets
Gasket Material: EPDM
Gasket Thickness: 2mm
Thread Size: 3/8"-16 Threaded

Glass Thickness Range: 1/2" (12mm) to 27/32" (21.52mm)
Glass Type: Monolithic Tempered Glass or Laminated Tempered Glass
Glass Fabrication: Requires 3/4" (19mm) diameter hole in the glass
Minimum Distance from Edge of the glass: 1-1/2" (38.10mm)
Edge of Glass to Center: 6" (152.40mm)
Recommended Horizontal Spacing: 20" to 39" (Spacing Depends on Use and Mounting Conditions)
Maximum Recommended Panel Width: 60" (1524mm)

For technical inquiries: technical@ggh-usa.com

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
