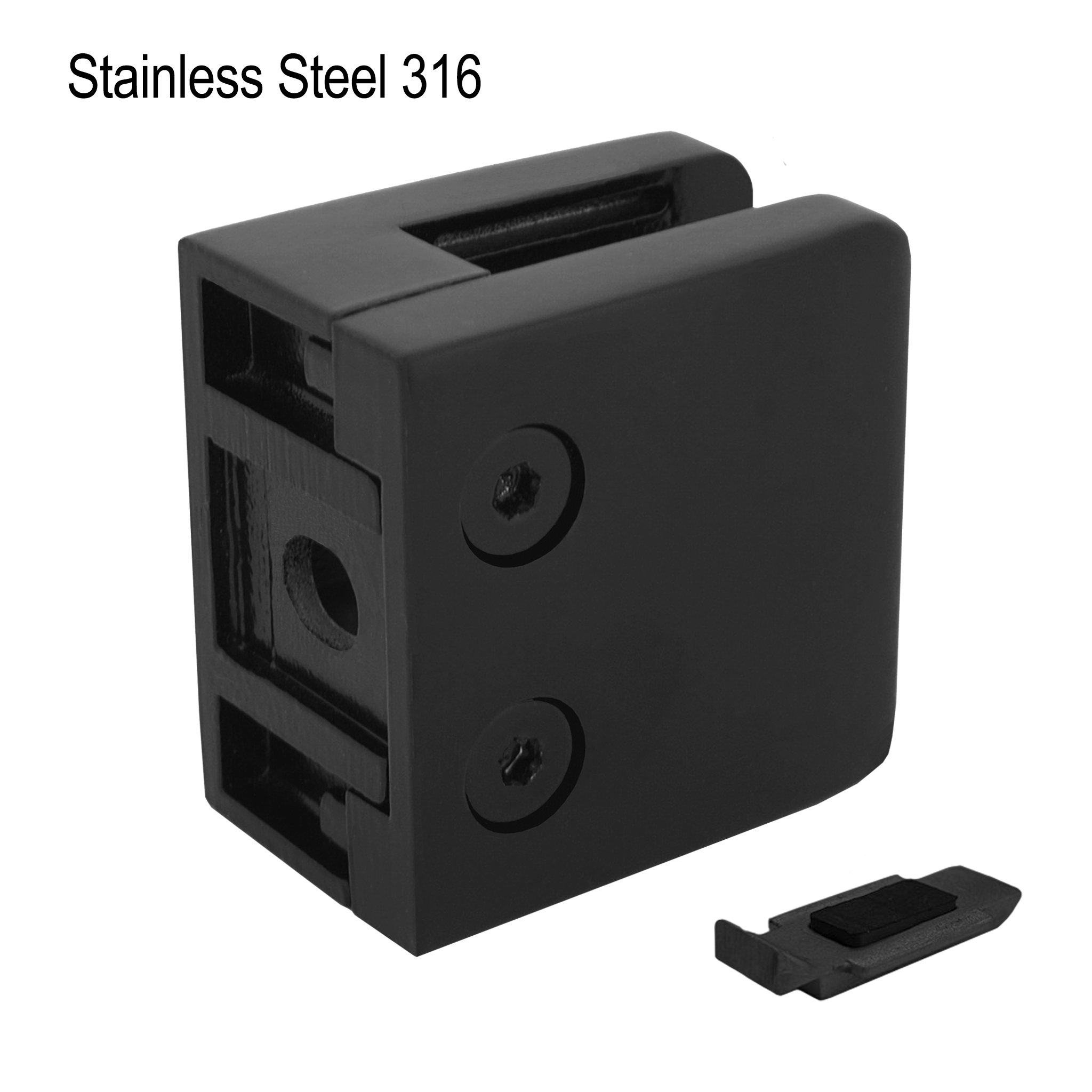

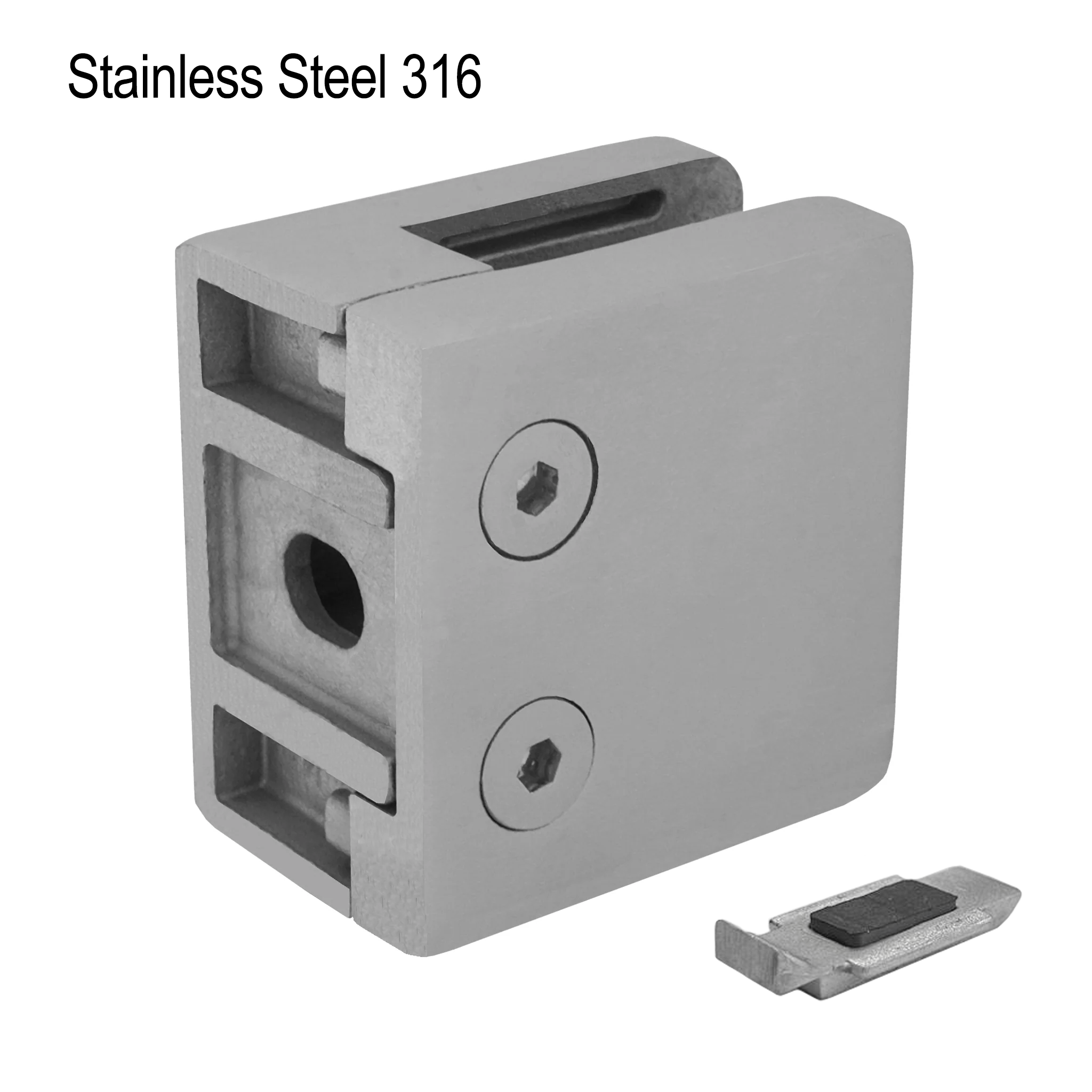

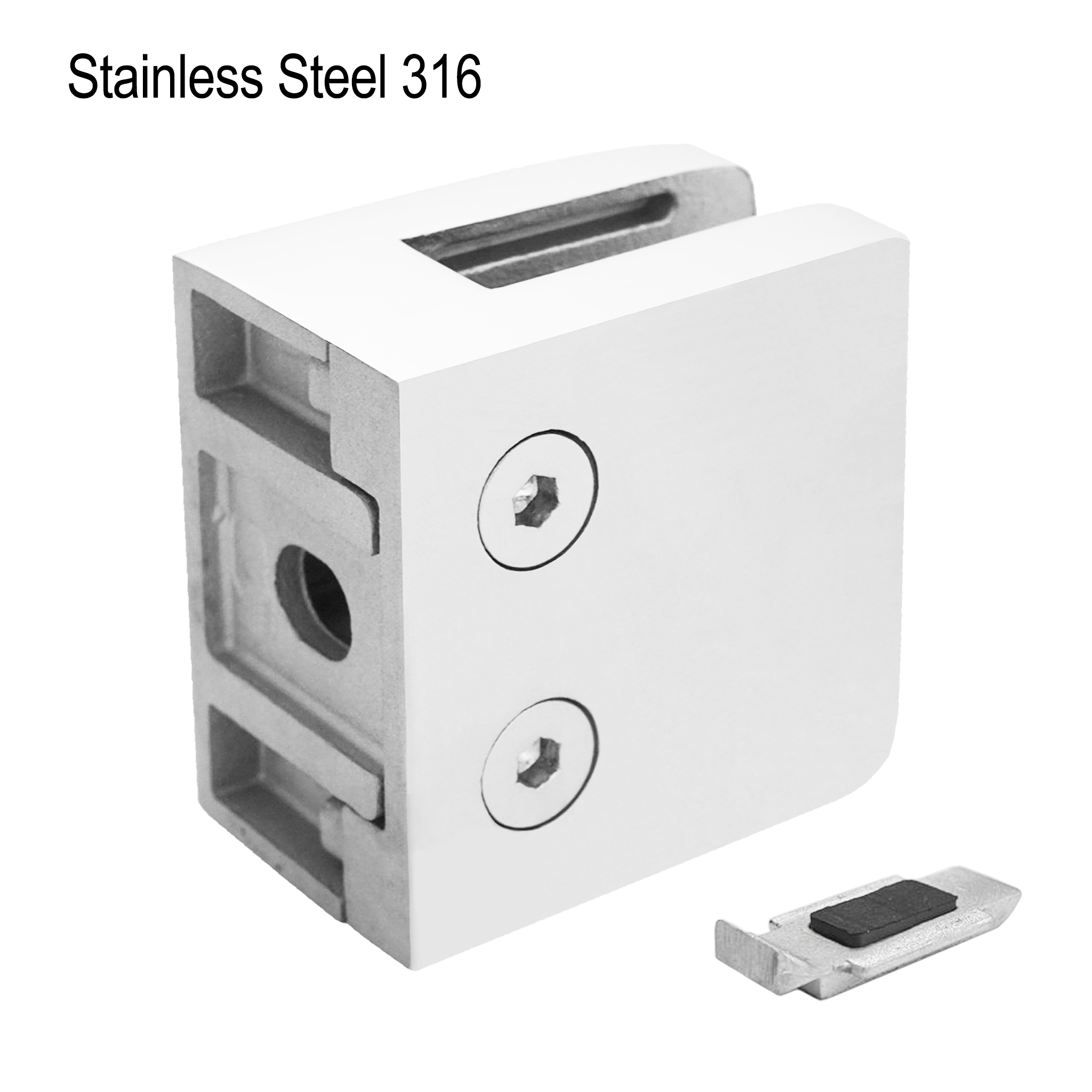

The GGH CLAM Series Square Railing Clamp is a reliable and versatile solution for securing glass panels in modern railing and partition systems. Featuring a flat back design for easy mounting on flat surfaces, it is crafted from high-grade SS316 stainless steel to ensure long-lasting durability and corrosion resistance in both interior and exterior environments. Designed for monolithic tempered glass, this clamp offers a secure hold with integrated gaskets, a repositionable glass plate for precise alignment, and an optional safety pin for added stability in demanding applications.

More Product Information

Product Length: 2-3/16" (50.00mm)
Product Width: 2-3/16" (50.00mm)
Product Height: 1-3/8" (35mm)
Material: 316 Stainless Steel
Includes: Clamp, glass ledge, holding plate, gaskets, and mounting screws
Gasket Material: EPDM
Gasket Thickness: 3mm / 4mm (depending on glass thickness)
Thread Size: 1/2" Dia hole size

Glass Thickness Range: 3/8" (10mm) and 1/2" (12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: Requires 1/2" (12mm) diameter hole

Compare To: S2412BS

For technical inquiries: technical@ggh-usa.com

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
