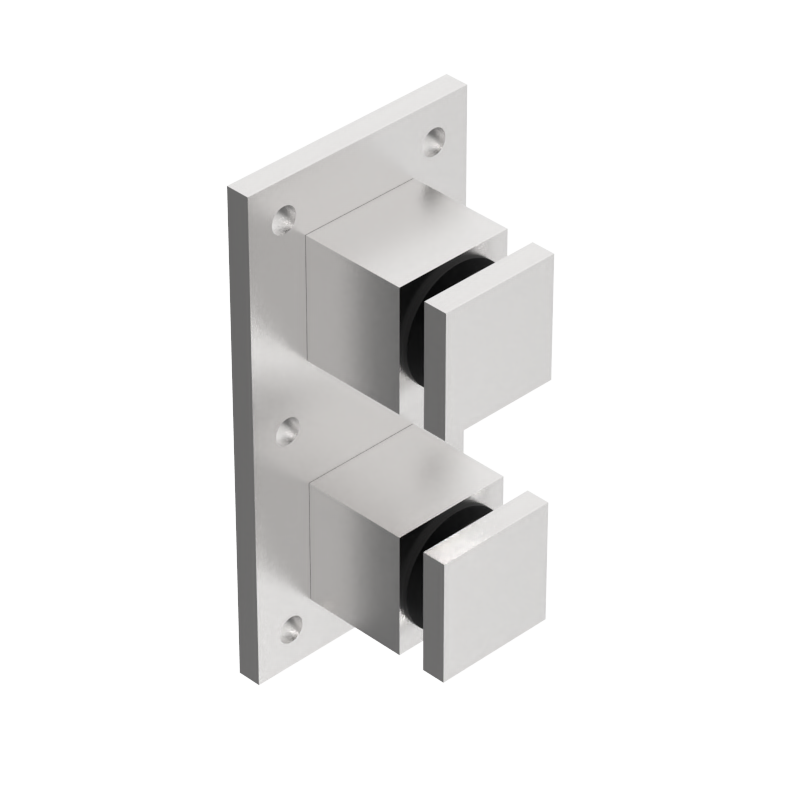

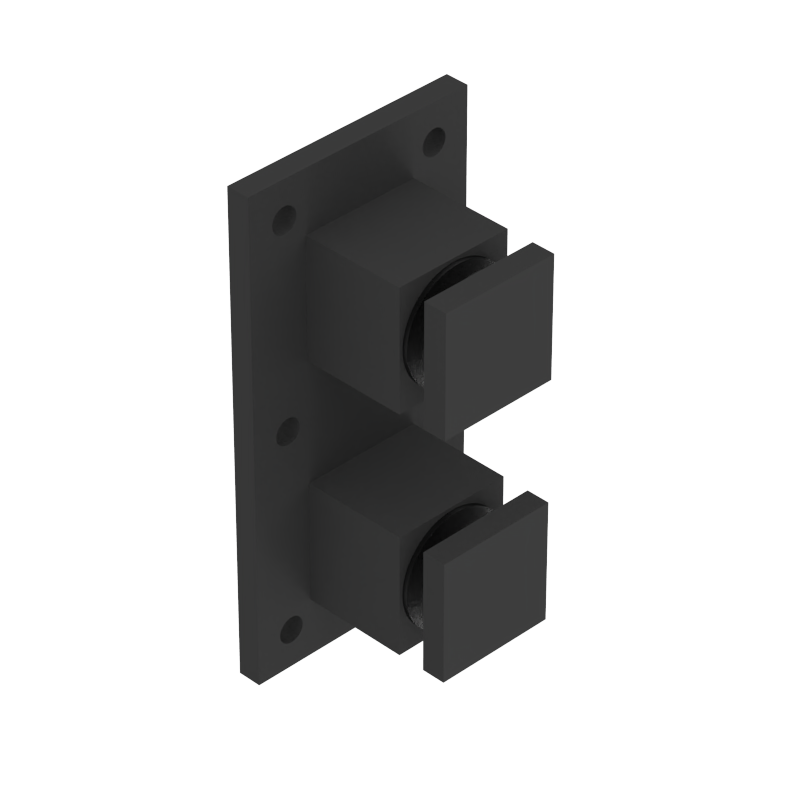

The GGH Plate-Mounted Standoff is a premium solution engineered for secure and stable glass railing installations. Designed with a Square standoff mounted to a base plate, it delivers enhanced support and simplified surface mounting on wood, concrete, or wall applications. Crafted from high-grade 316 stainless steel, it offers excellent corrosion resistance for both interior and exterior environments. Ideal for monolithic and laminated tempered glass, this system ensures durability, precision alignment, and a clean, modern architectural finish.

More Product Information

Overall Body Height: 8" (203.20mm)
Material: 316 Stainless Steel
Includes: Base Mounting Plate, Standoff Base, Standoff Cap, Gaskets and Grommets
Gasket Material: Nylon
Gasket Thickness: 2mm
Thread Size: M12 Threaded

Glass Thickness Range: 1/2" (12mm) to 27/32" (21.52mm)
Glass Type: Monolithic Tempered Glass or Laminated Tempered Glass
Glass Fabrication: Requires 3/4" (19mm) diameter hole in the glass
Minimum Distance from Edge of the glass: 2-1/8" (54mm)
Edge of Glass to Center: 6" (152.40mm)
Recommended Horizontal Spacing: 20" to 39" (Spacing Depends on Use and Mounting Conditions)
Maximum Recommended Panel Width: 60" (1524mm)

Compare To: SSOB20

For technical inquiries: technical@ggh-usa.com

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
