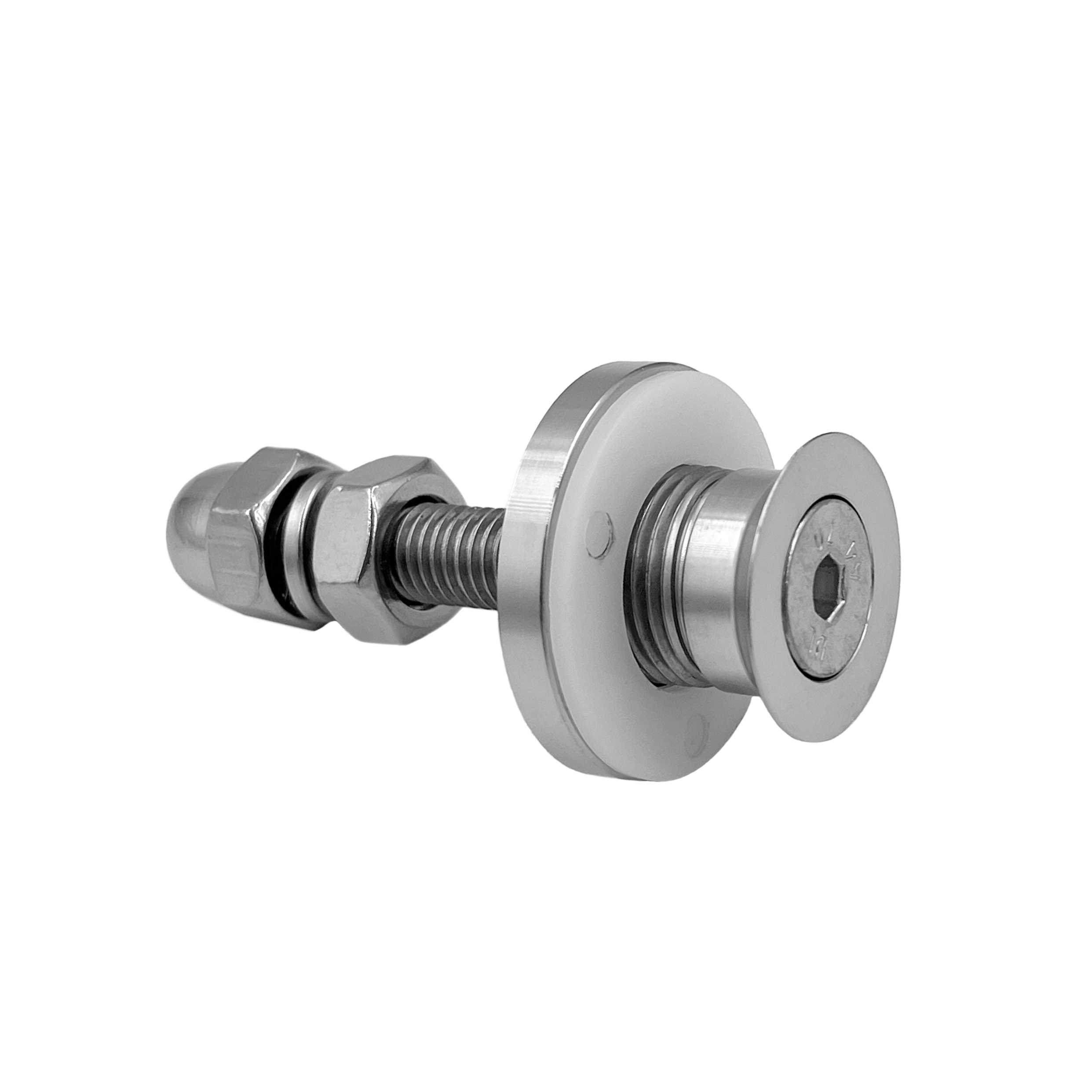

![[SPYFARIG818] SPY Series GGH Spider Fittings - Rigid for 8mm to 18mm Glass](http://ggh-usa.com/cdn/shop/files/SPYFARIG818_b90ec45b-18a1-4775-9568-2f0a4fe97c1c.png?v=1774978982&width=3840)
Overview
GGH SPY Series Rigid Fasteners provide secure and reliable attachment while minimizing deflection in glass panels. Specifically designed for interior applications, these fasteners ensure stability and a sleek, modern appearance.
More Product Information
Material: 316 Stainless Steel
Glass Thickness Range: 5/16" (8mm) to 11/16" (18mm)
Glass Type: Monolithic or Laminated Tempered Glass
Glass Fabrication: Refer to Glass Template
Mounting Fastener Size: M10 Threaded
Product Diameter: 1-5/8" (40mm)
Product Length: 3-3/8" (85.89mm)
Includes: Gaskets, 2 Metal Washers, 1 Glass Collar
Gasket Material: PP
Gasket Thickness: 1/16" (2mm)
For technical inquiries: technical@ggh-usa.com
Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
| Length | 3-3/8 in. (85.89 mm) |
|---|---|
| Diameter | 1-5/8 in. (40.00 mm) |
| Weight | 0.56 lbs. (0.2522 kg) |
