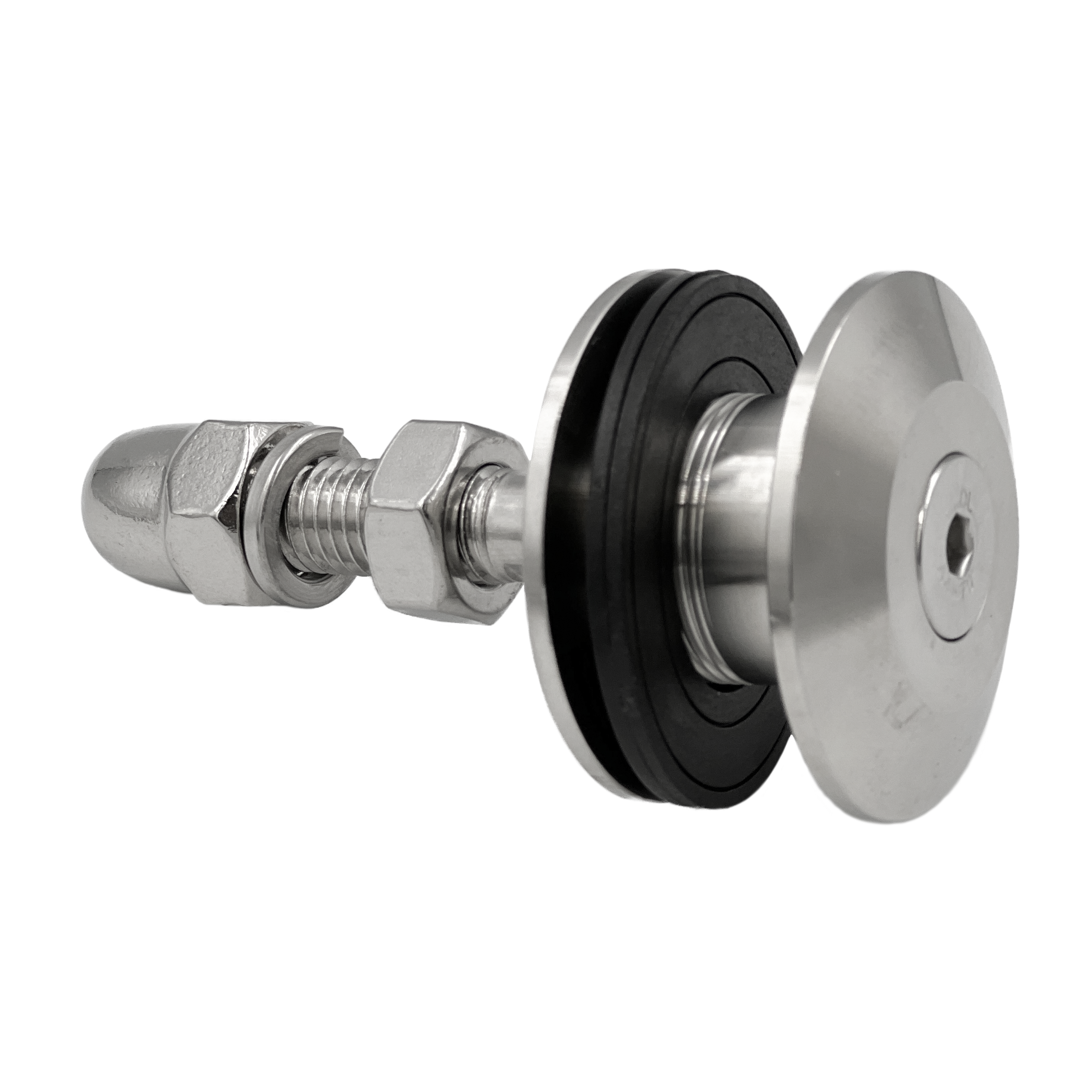

[SPYFASWEXT1523] SPY Series GGH Spider Fittings - Exterior Swivel for 15mm to 23mm Glass
FinishesBrushed Stainless Steel 316

[SPYFASWEXT1523] SPY Series GGH Spider Fittings - Exterior Swivel for 15mm to 23mm Glass

Features, Advantages, and Benefits

• Exterior swivel fastener for structural glass systems
• Designed for adjustable exterior glass mounting applications
• Manufactured from 316 stainless steel for superior corrosion resistance
• Compatible with 15mm to 23mm tempered or laminated glass
• Swivel mechanism allows up to 6° adjustment in any direction
• Helps evenly distribute stress across glass panels
• Suitable for exterior spider fitting systems

Overview

GGH SPY Series Exterior Swivel Fasteners offer a sophisticated solution for achieving an all-glass look. Ideal for 15mm to 23mm (5/8" to 7/8") tempered glass panels, these fasteners are crafted from 316 Alloy Stainless Steel for exceptional durability and corrosion resistance, making them perfect for outdoor applications.

More Product Information

Material: 316 Stainless Steel

Glass Thickness Range: 9/16" (15mm) to 15/16" (23mm)
Glass Type: Monolithic or Laminated Tempered Glass
Glass Fabrication: Refer to Glass Template

Mounting Fastener Size: M14 Threaded

Adjustability: Tilt Adjustable
Tilt Adjustment: Up to 6° in Any Direction

Product Diameter: 2-3/8" (59mm)
Product Length: 4-5/8" (118.45mm)

Includes: Gaskets, 2 Metal Washers, 1 Glass Collar
Gasket Material: PP
Gasket Thickness: 1/16" (2mm)

For technical inquiries: technical@ggh-usa.com

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.

Length 4-5/8 in. (118.45 mm)
Diameter 2-3/8 in. (59.00 mm)
Weight 1.61 lbs. (0.7304 kg)
