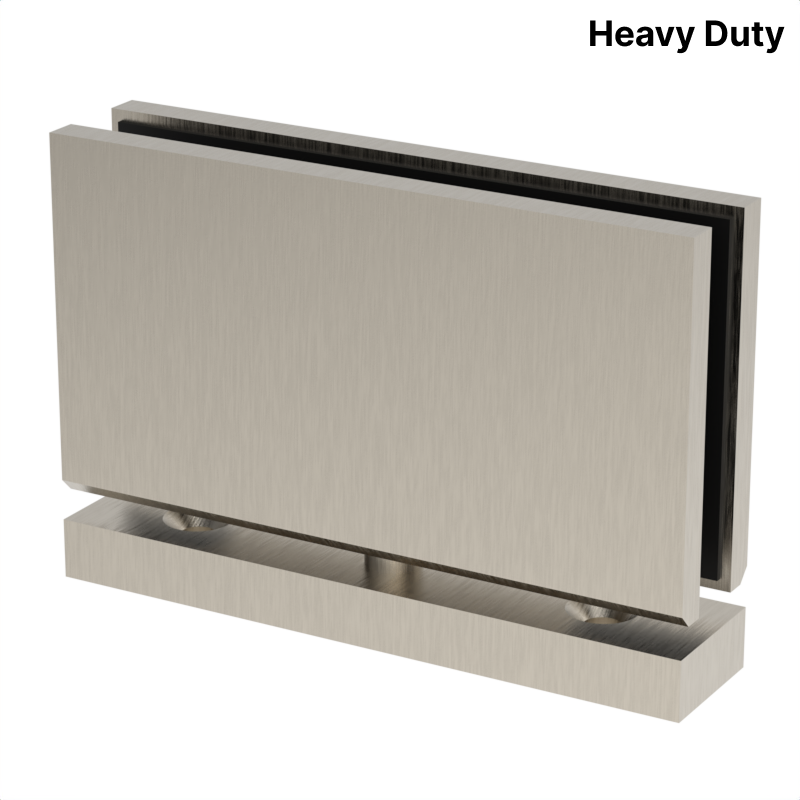

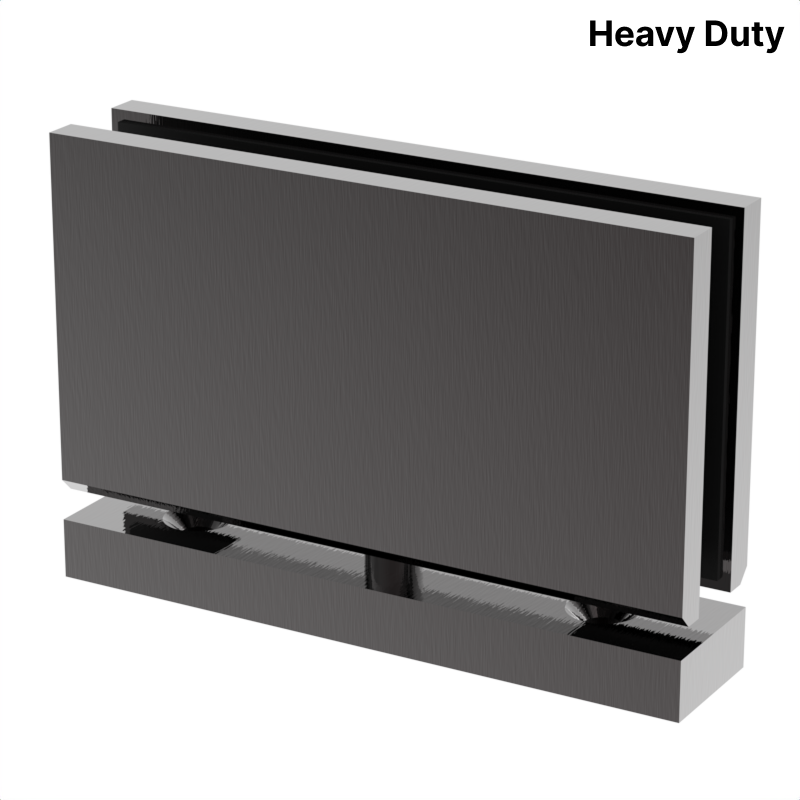

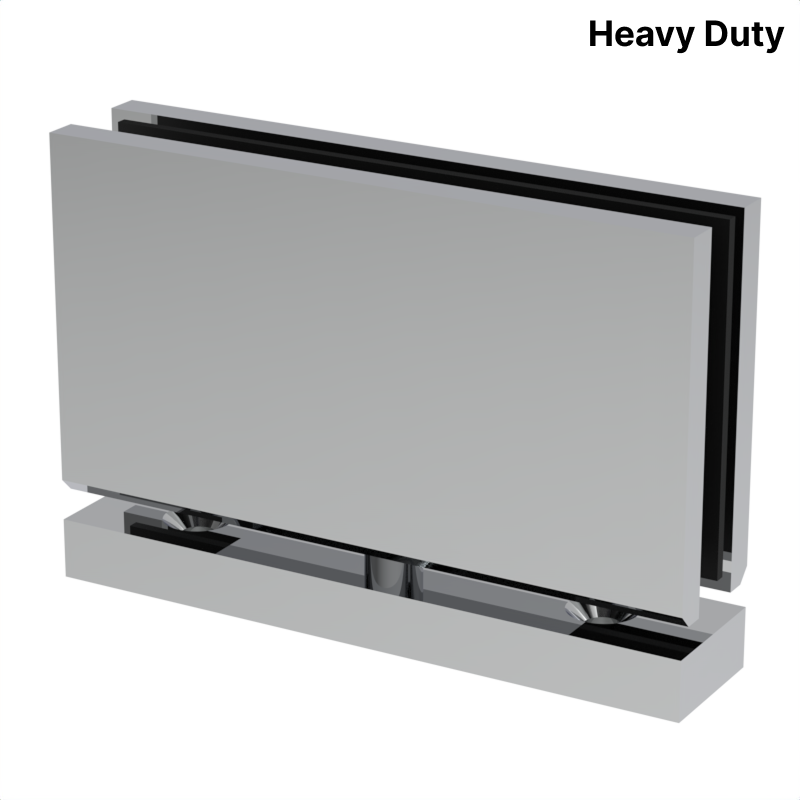

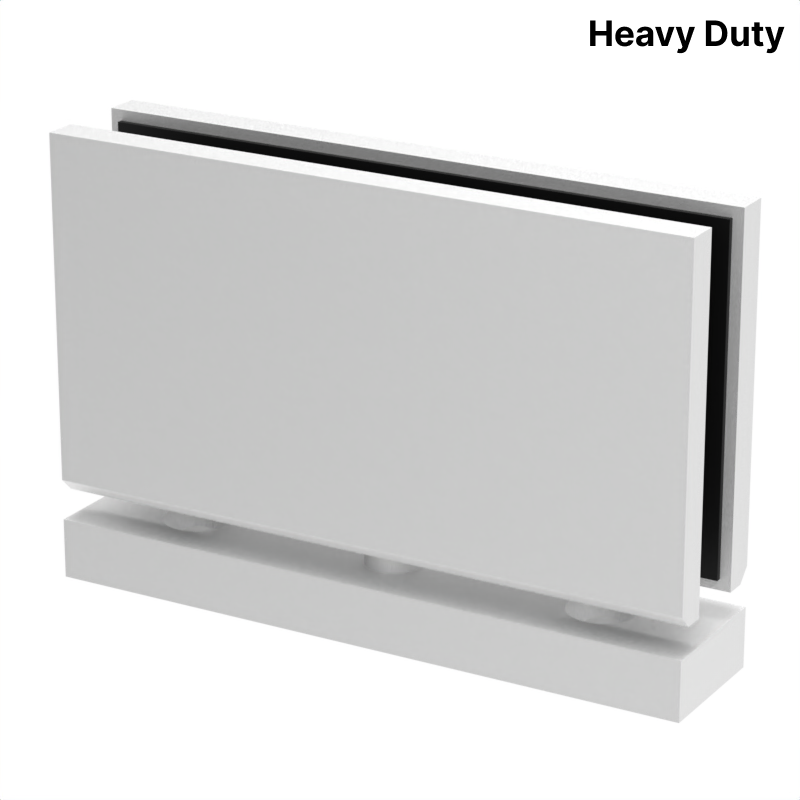

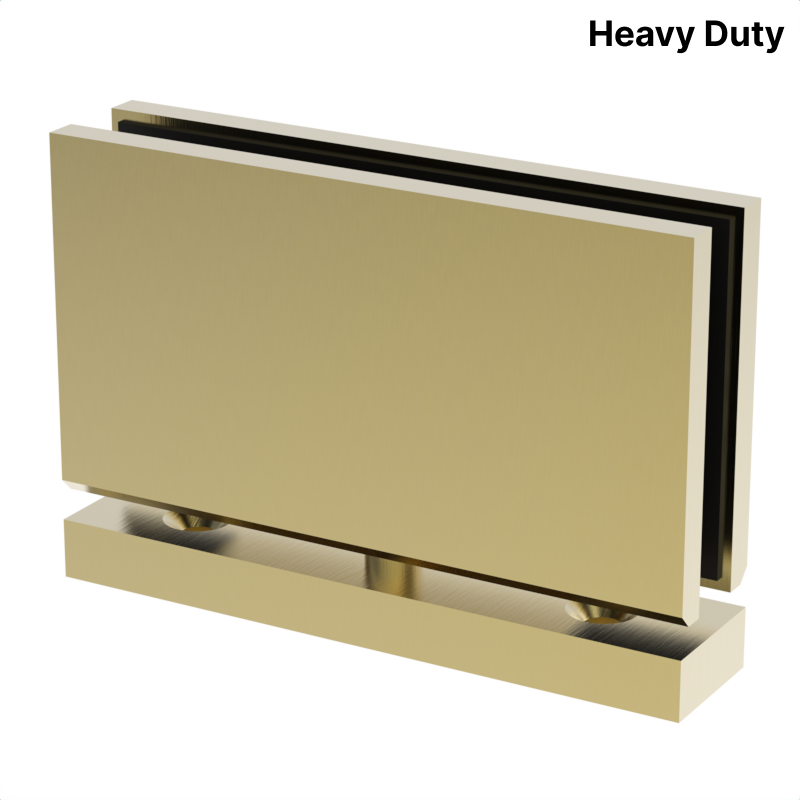

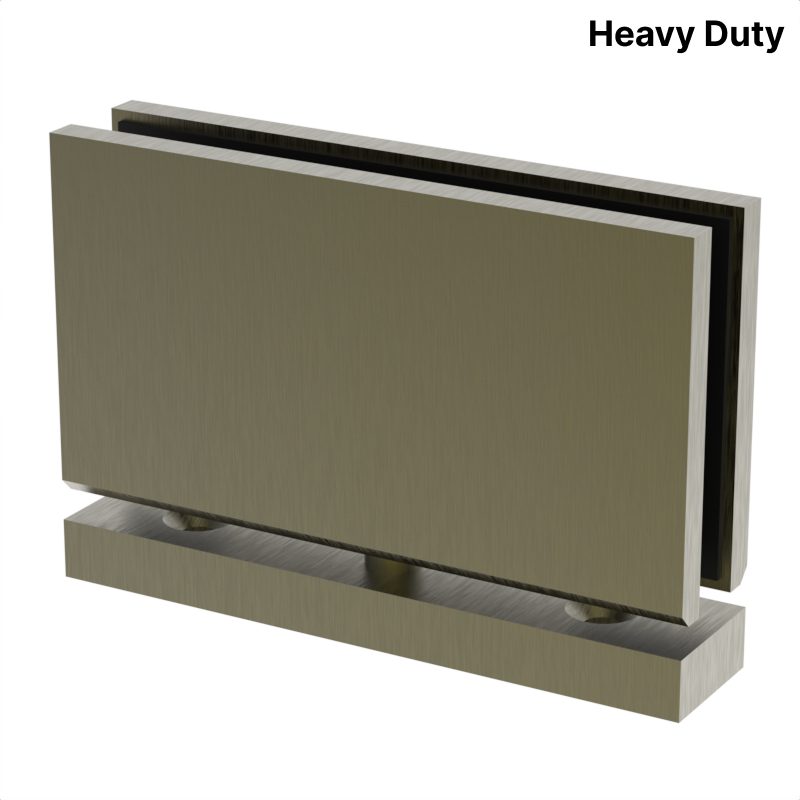

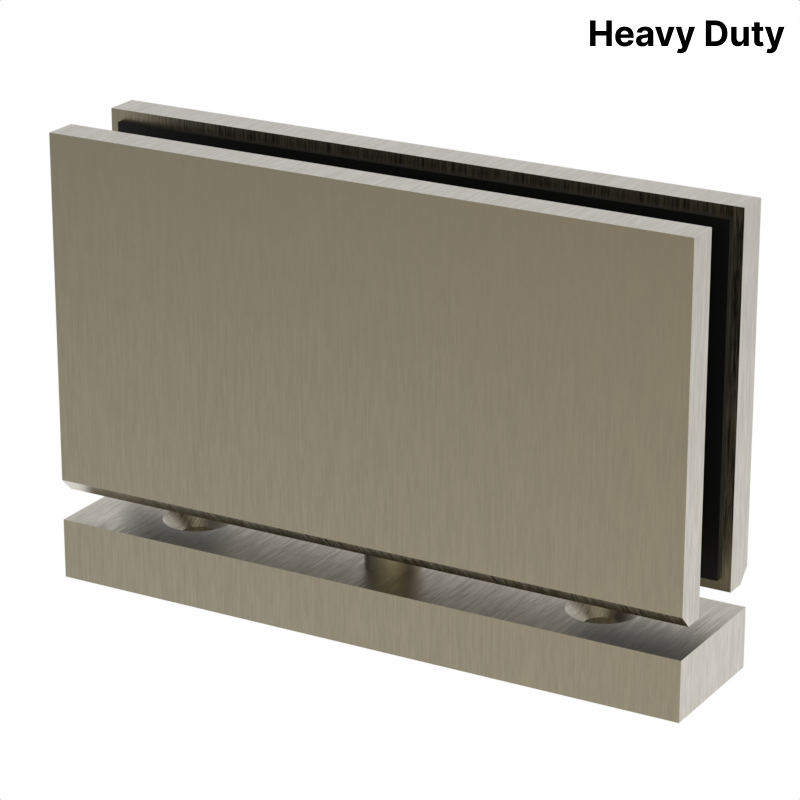

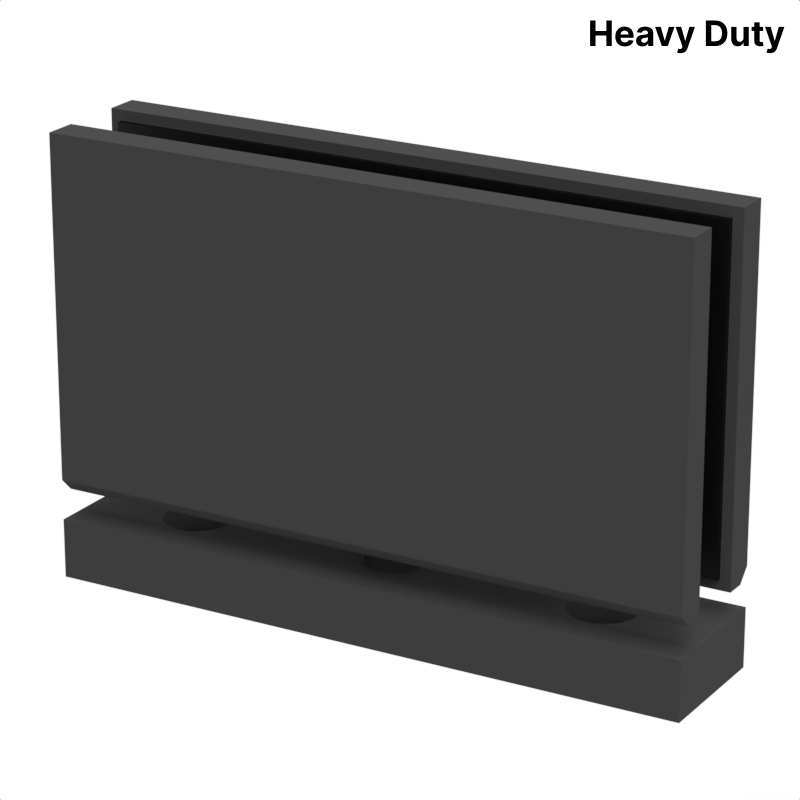

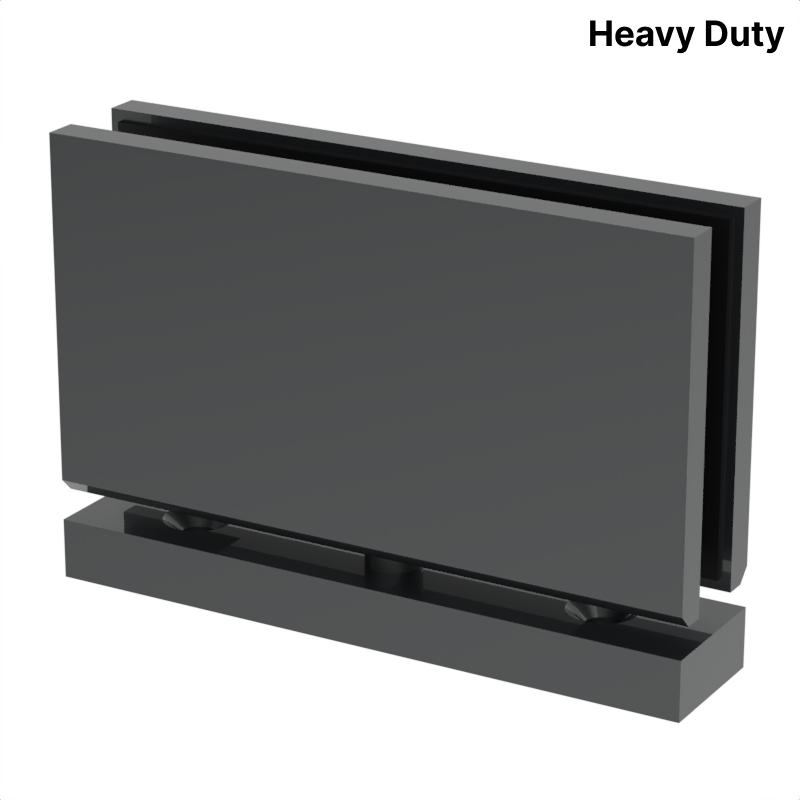

The GGH Heavy-Duty Square Pivot Hinge from the CARA Series is designed for frameless shower door applications requiring a top and bottom pivot system for heavier glass doors. Manufactured from Brass, this pivot hinge supports smooth door operation and reliable glass support for shower doors installed with floor, ceiling, or header-mounted configurations.

More Product Information

Material: Brass

Profile: Square
Product Length: 4-3/4" (121mm)
Product Width: 1" (24.89mm)
Product Height: 3-1/4" (82mm)

Glass Thickness Range: 1/2" (12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: See Template for Details

Includes: Hinge Assembly & Gaskets
Gasket: Included with Hinge Body
Gasket Material: EPDM
Gasket Thickness: 1mm

Mounting Type: Glass Mount / Floor Mount / Ceiling Mount

Adjustability: Door Alignment
Adjustment Feature: 5° Reversible Pin for Door Alignment and Closure Adjustment

Edge Mount Method: 9/16" (14mm) Clearance
Transom Pivot Alternate Option: 9/16" (14mm) Clearance

Maximum Door Width:
Two Hinges: 36" (914mm)

Maximum Load:
Two Hinges: 145 lbs. (66 kg)

Compare To: CAMGS010 / SRCAR010

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
