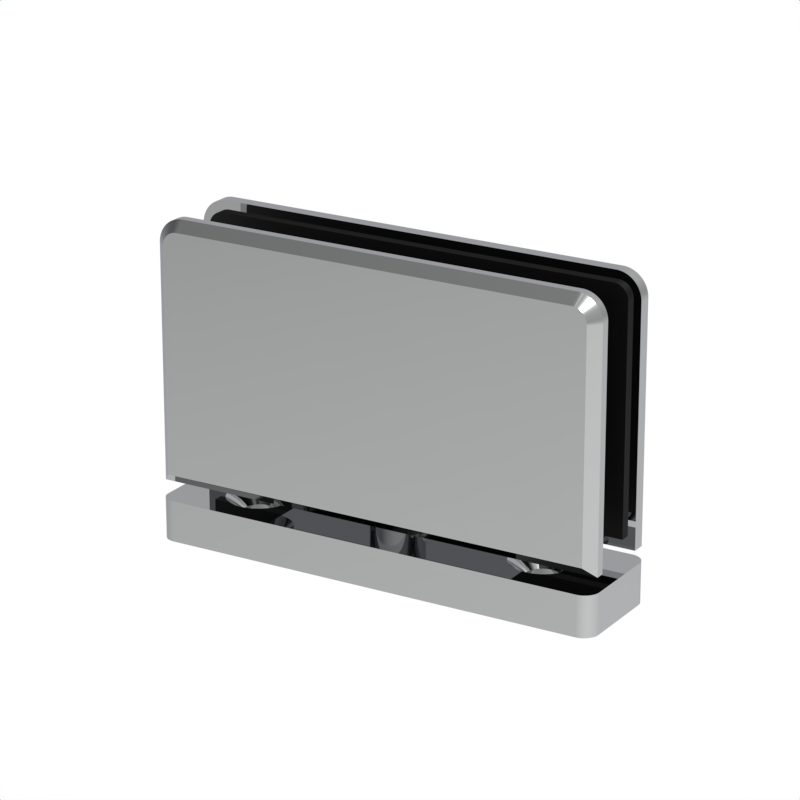

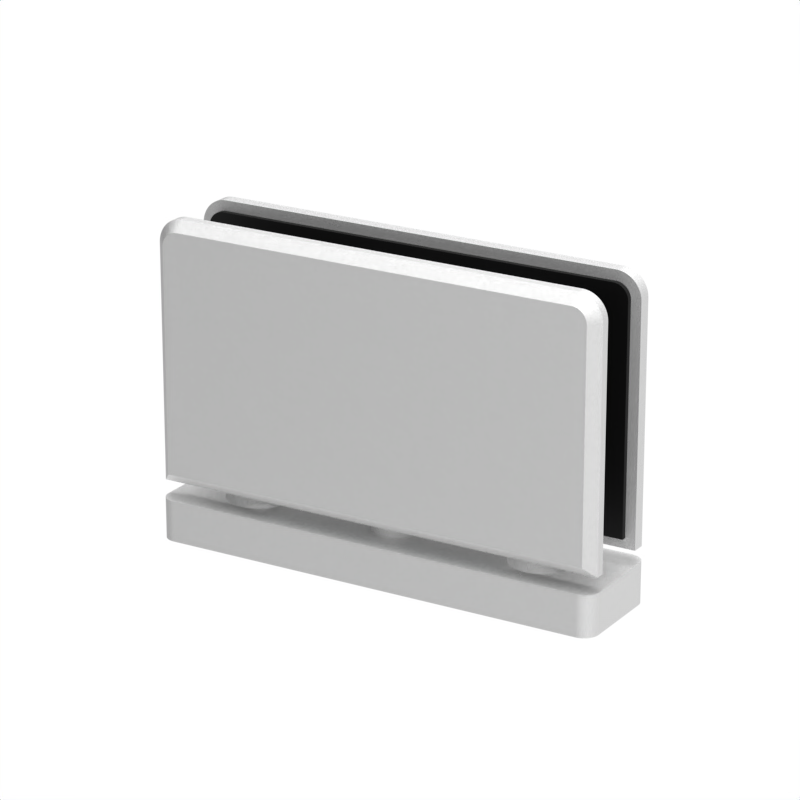

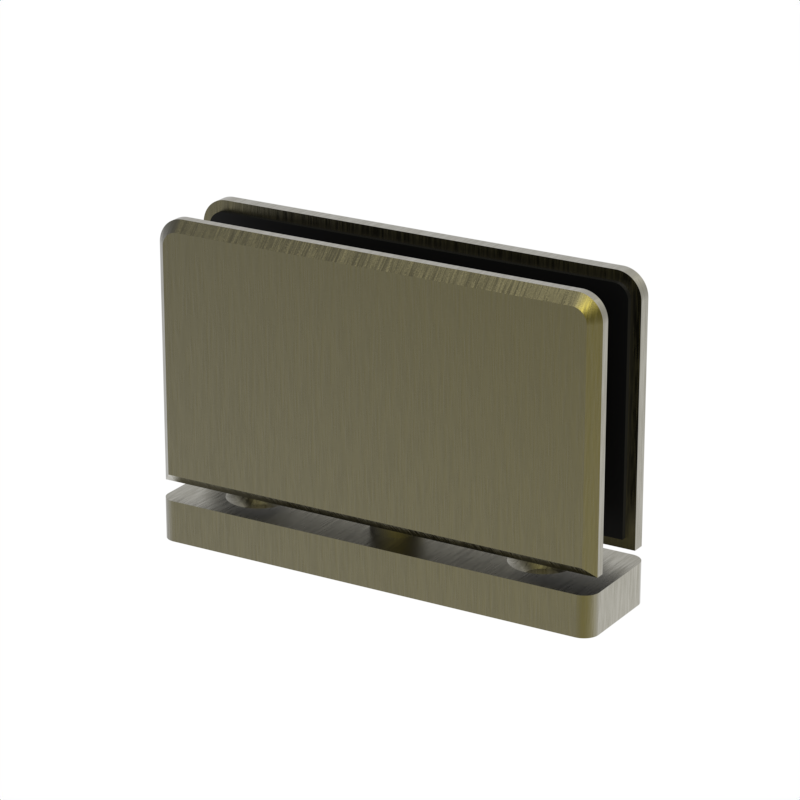

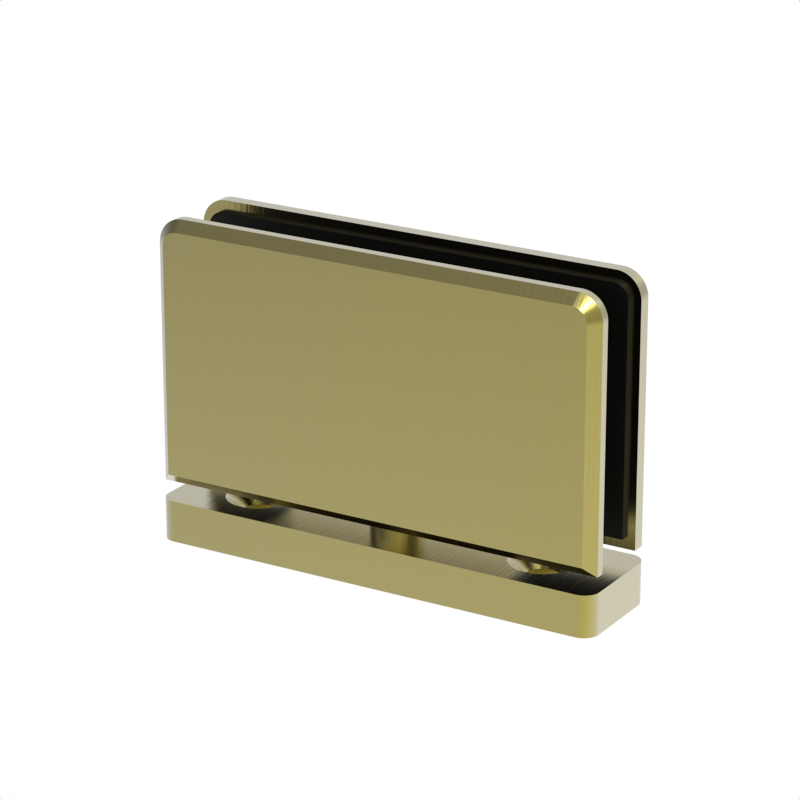

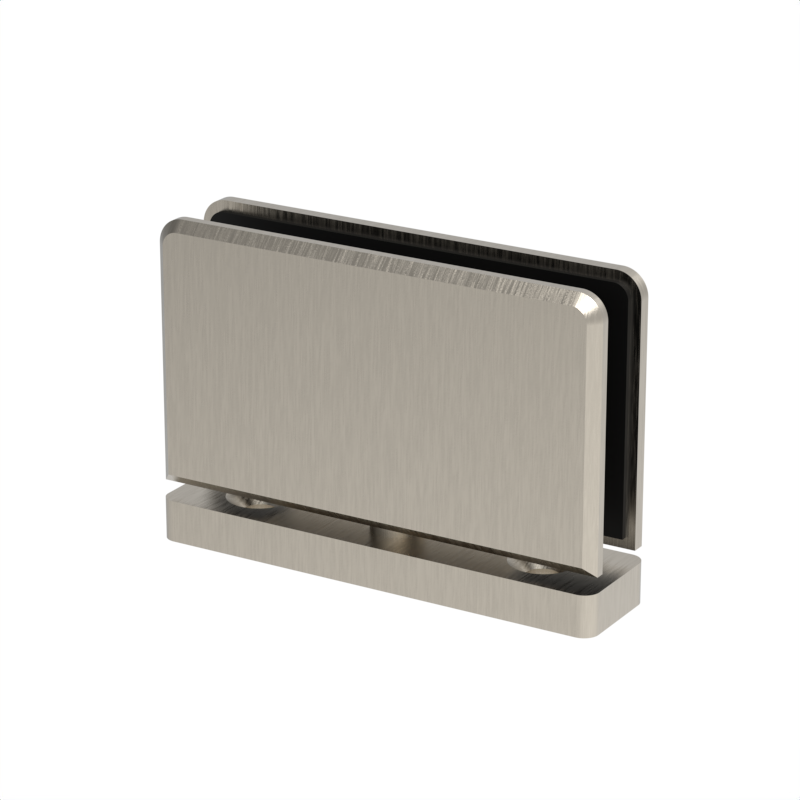

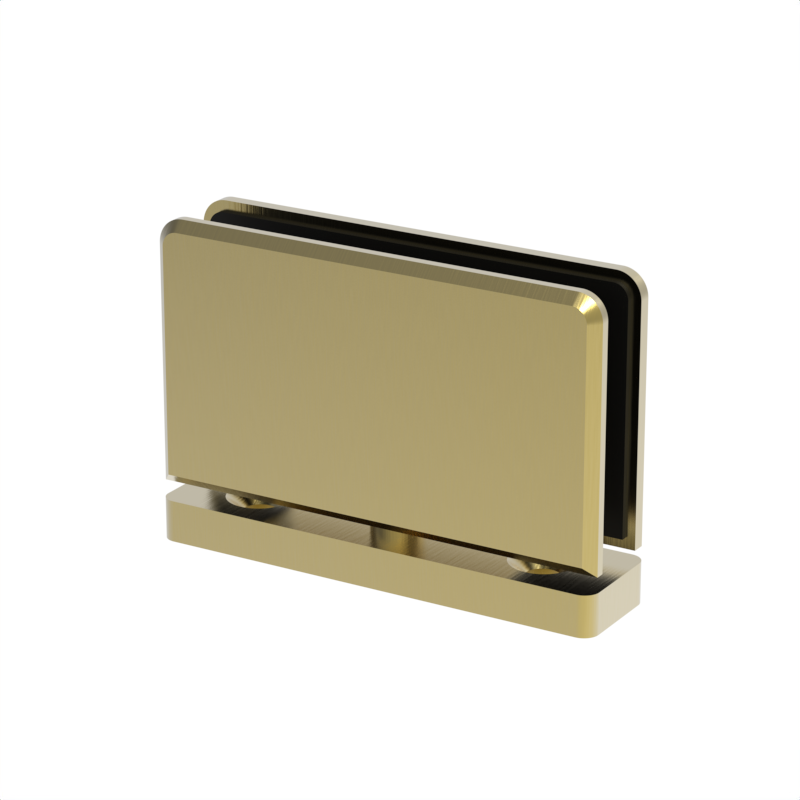

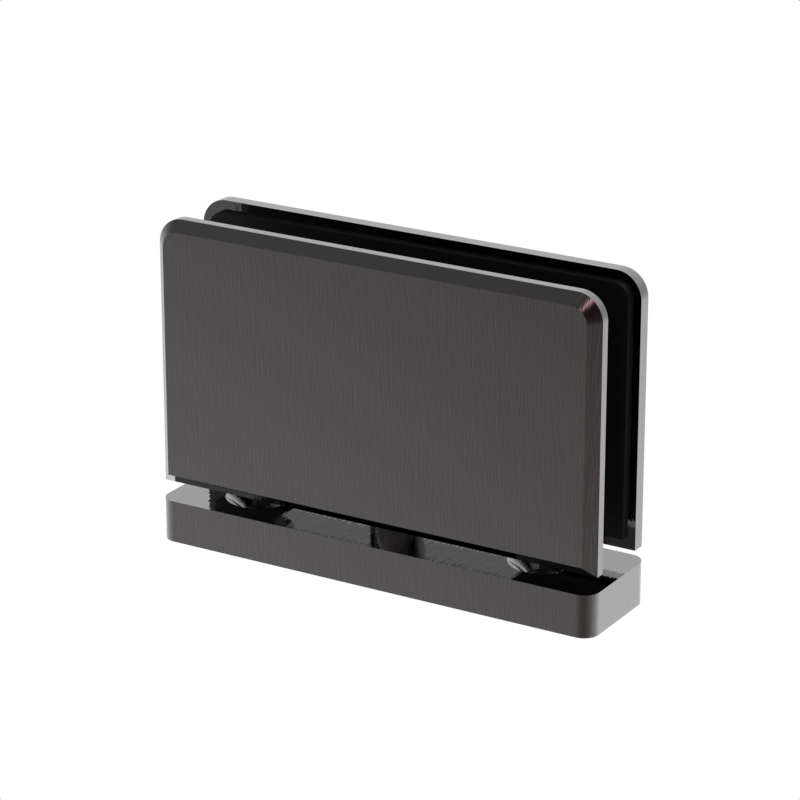

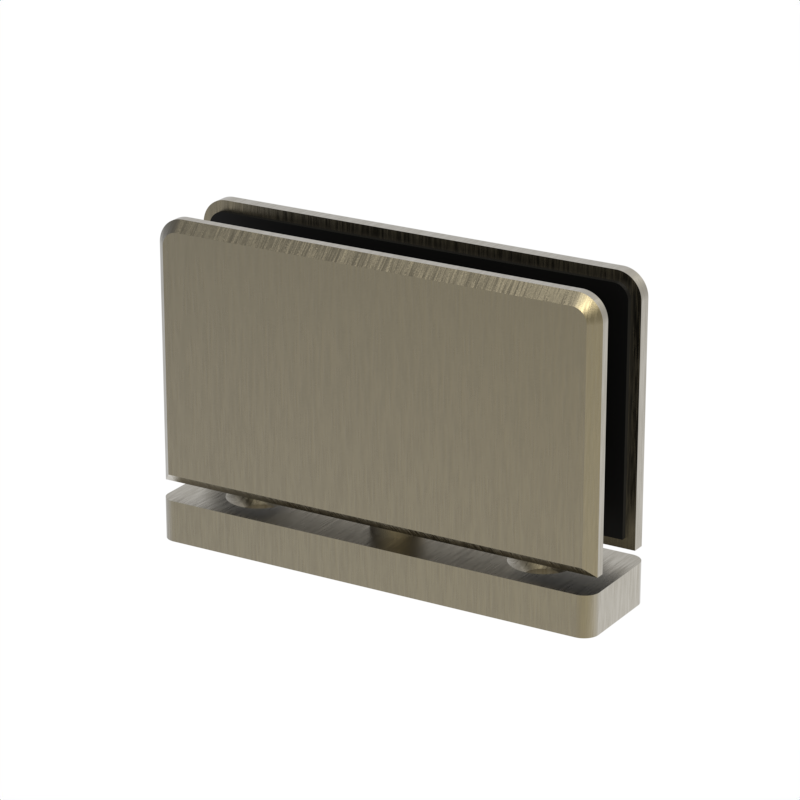

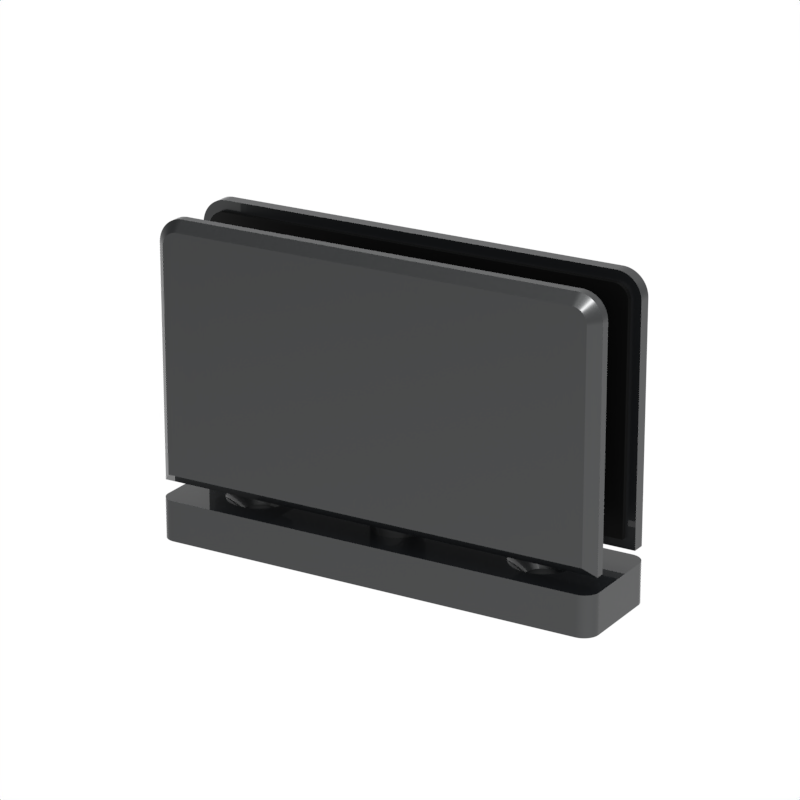

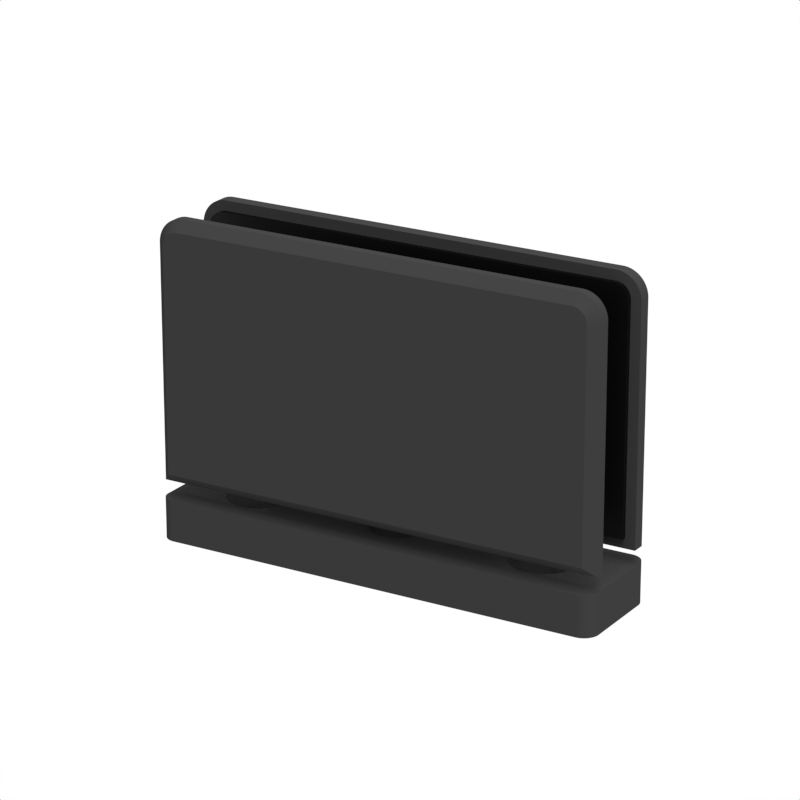

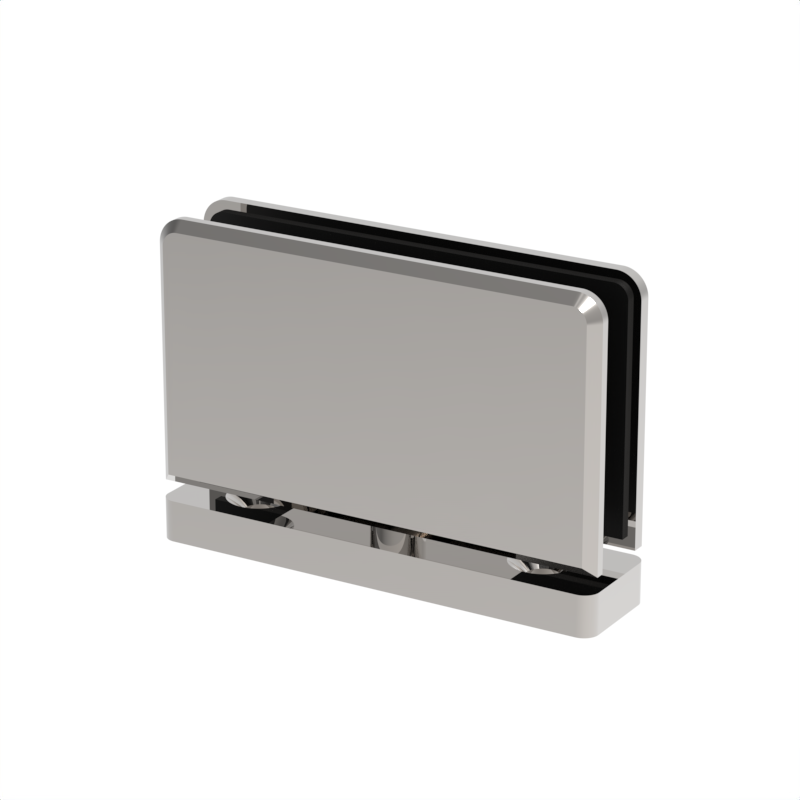

The GGH Beveled Pivot Hinge from the PIPER Series is designed for frameless shower door applications requiring a top and bottom pivot system. Manufactured from Brass, this pivot hinge supports smooth door operation and reliable glass support for shower doors installed with floor, ceiling, or header-mounted configurations.

More Product Information

Material: Brass

Profile: Beveled
Product Length: 3-9/16" (90mm)
Product Width: 13/16" (20.57mm)
Product Height: 2-7/16" (61.80mm)

Glass Thickness Range: 5/16" (8mm) to 3/8" (10mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: See Template for Details

Includes: Hinge Assembly & Gaskets
Gasket: Included with Hinge Body
Gasket Material: EPDM
Gasket Thickness: 1mm

Mounting Type: Glass Mount / Floor Mount / Ceiling Mount

Adjustability: Door Alignment
Adjustment Feature: 5° Reversible Pin for Door Alignment and Closure Adjustment

Edge Mount Method: 7/16" (11mm) Clearance
Alternate Edge Mount Method: 7/16" (11mm), or 1/8" (3mm), or 3/16" (5mm) Clearance
Inset Mount Method: 7/16" (11mm) Clearance
Transom Pivot Alternate Option: 3/16" (5mm) Clearance

Maximum Door Width:
Two Hinges: 31" (787mm)

Maximum Load:
Two Hinges: 100 lbs. (45 kg)

Compare To: PAT01 / PPH01

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
