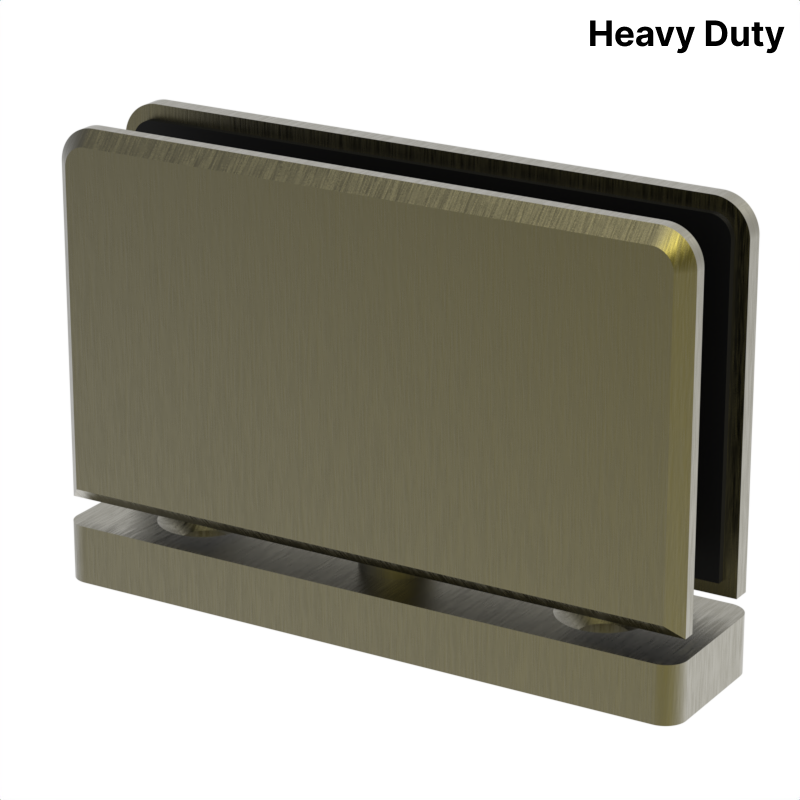

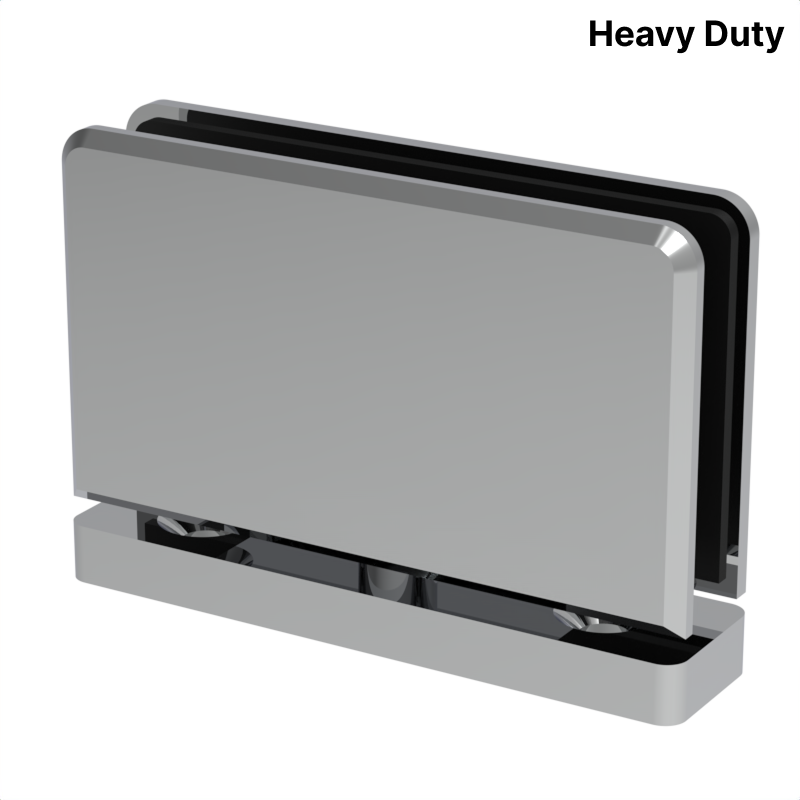

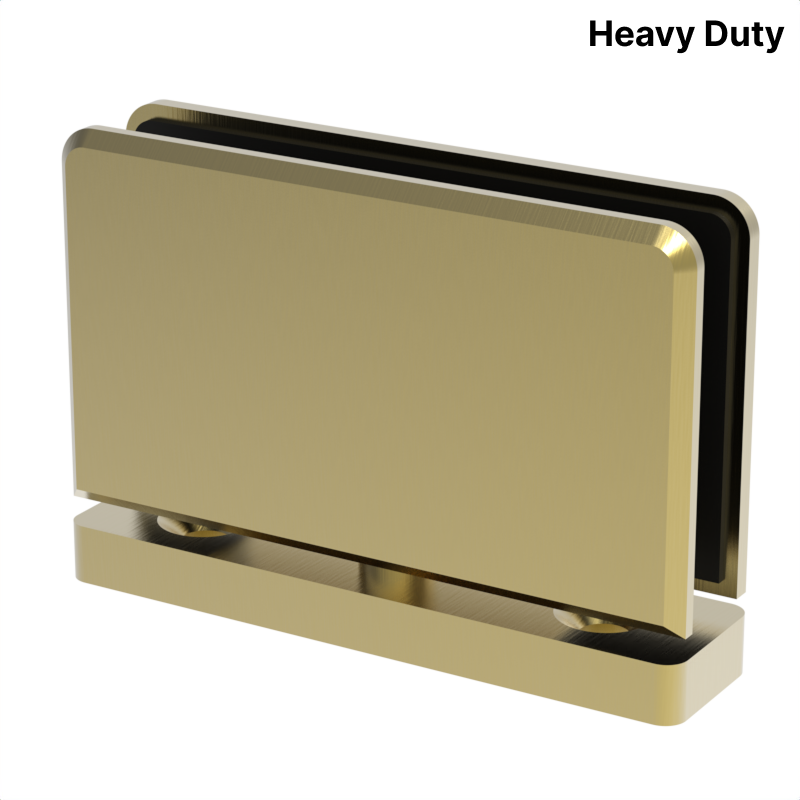

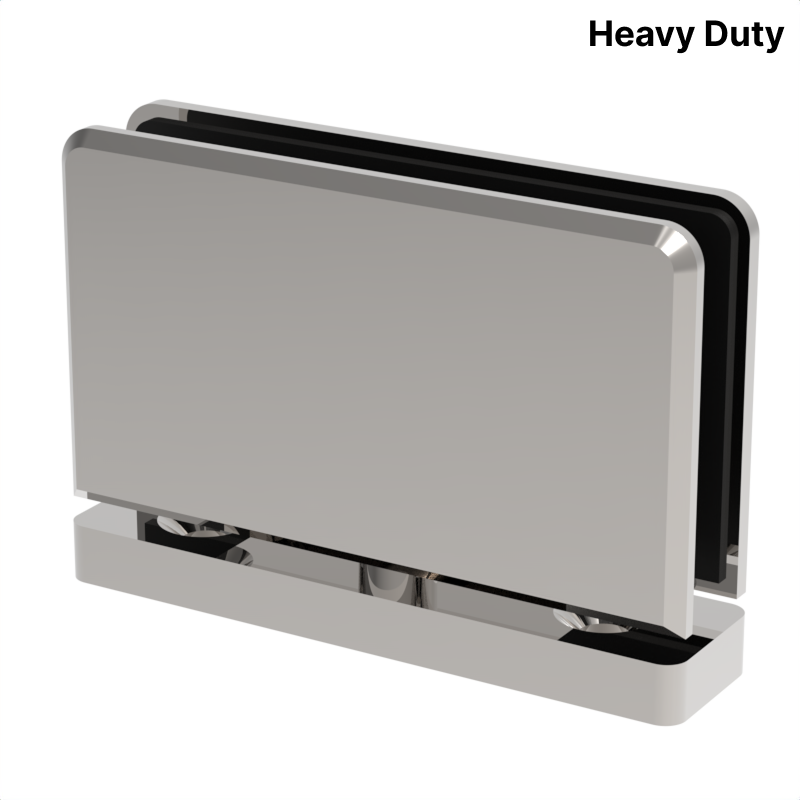

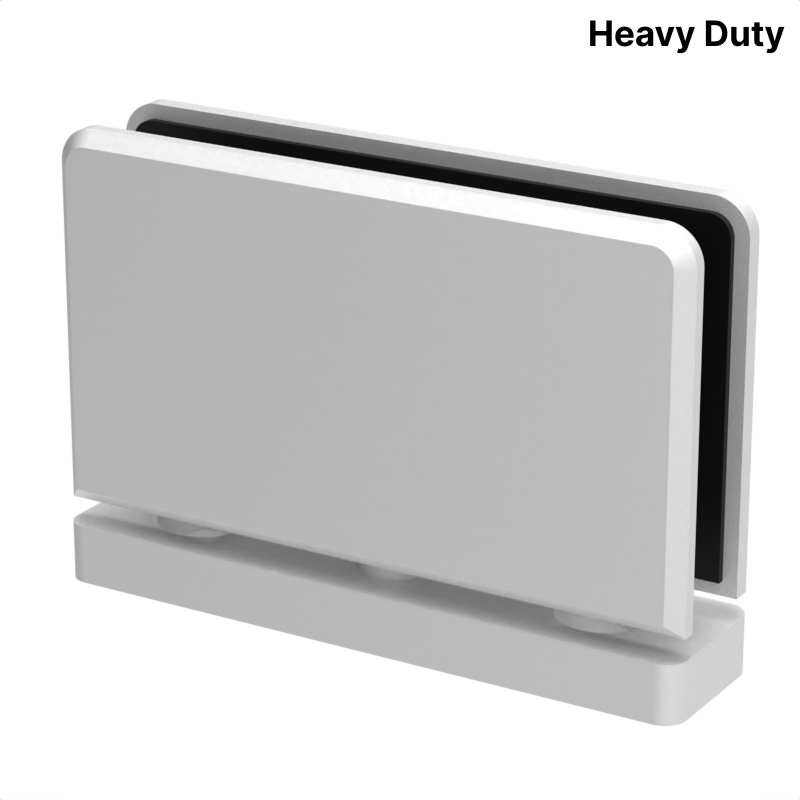

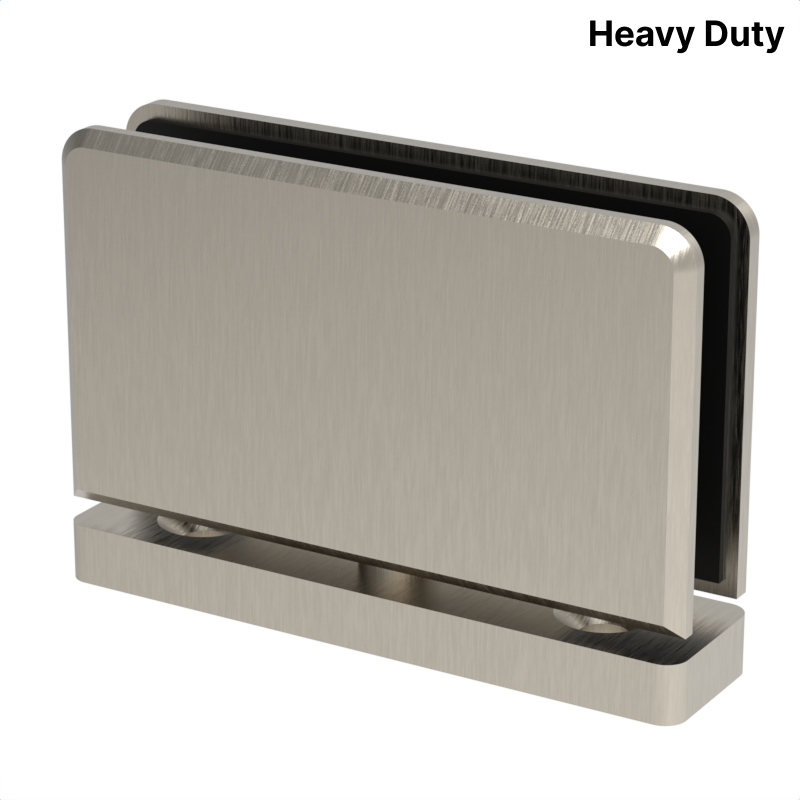

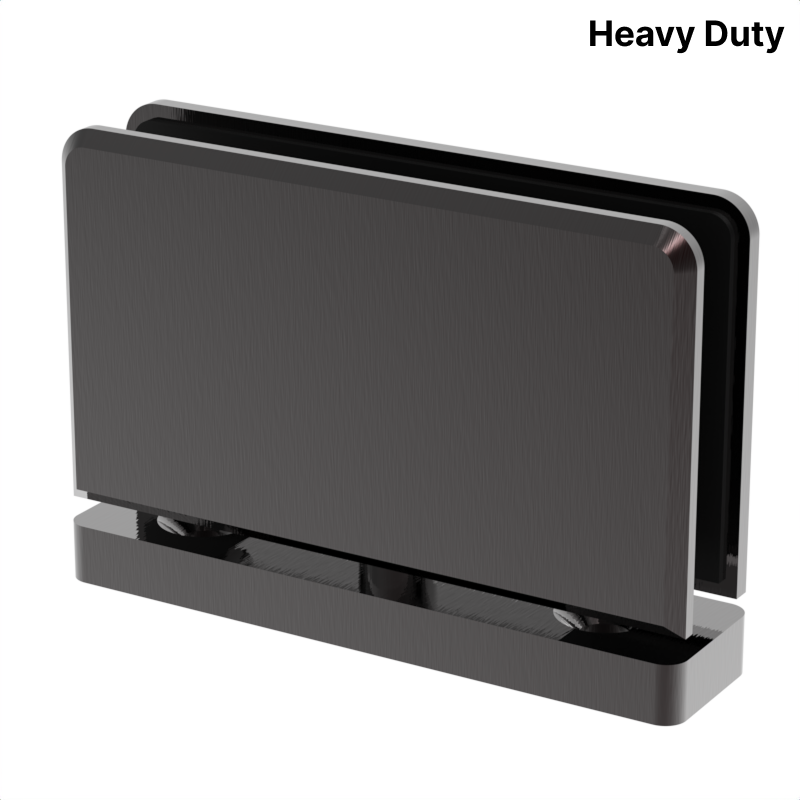

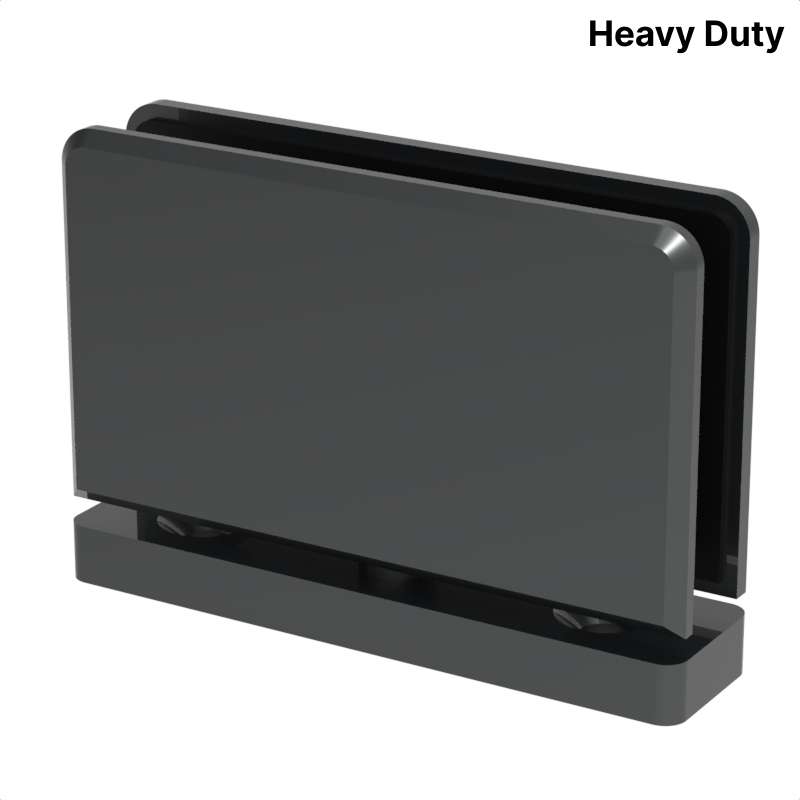

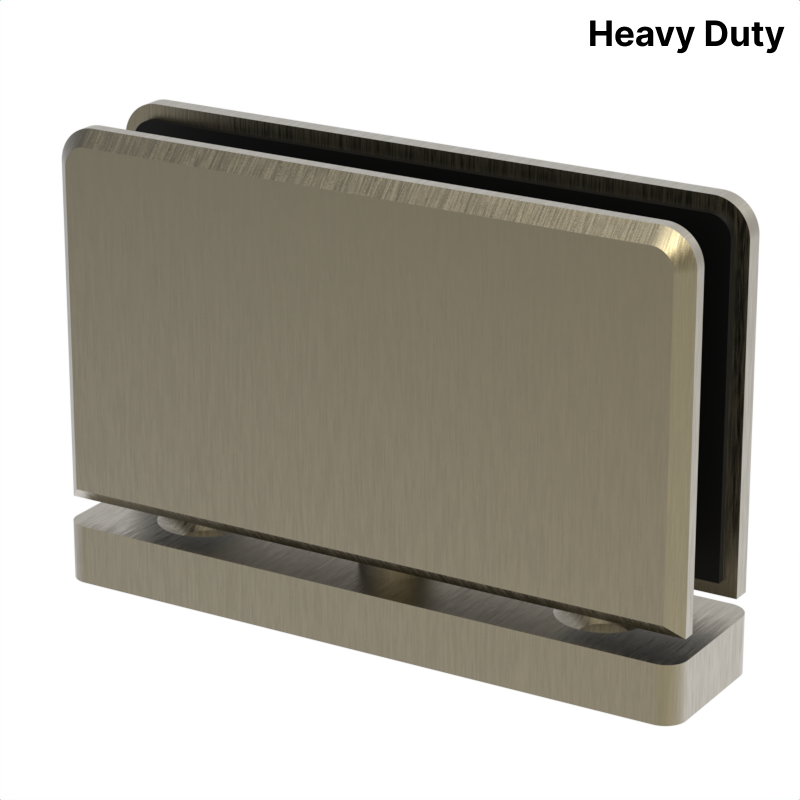

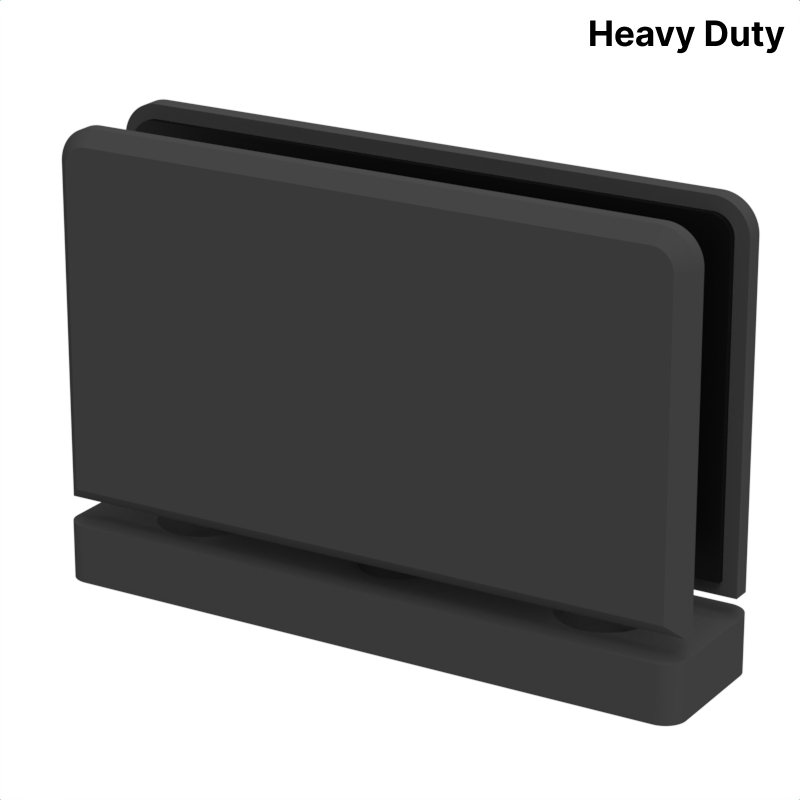

The GGH Heavy-Duty Pivot Hinge from the PIPER Series is designed for frameless shower door applications requiring increased load capacity and reliable pivot performance. Manufactured from Brass, this heavy-duty pivot hinge supports smooth opening and closing of larger shower doors while maintaining a clean architectural appearance.

More Product Information

Material: Brass

Profile: Beveled
Product Length: 4-3/4" (121mm)
Product Width: 1" (24.89mm)
Product Height: 3-1/4" (82mm)

Glass Thickness Range: 1/2" (12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: See Template for Details

Includes: Hinge Assembly & Gaskets
Gasket: Included with Hinge Body
Gasket Material: EPDM
Gasket Thickness: 1mm

Mounting Type: Glass Mount / Floor Mount / Ceiling Mount

Adjustability: Door Alignment
Adjustment Feature: 5° Reversible Pin for Door Alignment and Closure Adjustment

Edge Mount Method: 9/16" (14mm) Clearance
Transom Pivot Alternate Option: 9/16" (14mm) Clearance

Maximum Door Width:
Two Hinges: 36" (914mm)

Maximum Load:
Two Hinges: 145 lbs. (66 kg)

Compare To: PATGS01 / SRPPH01

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
