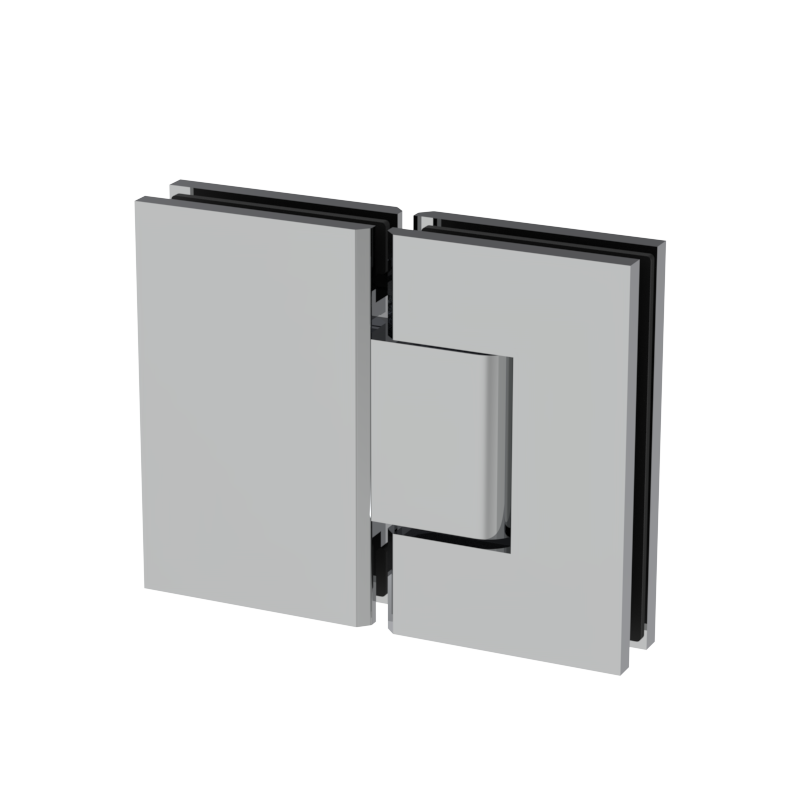

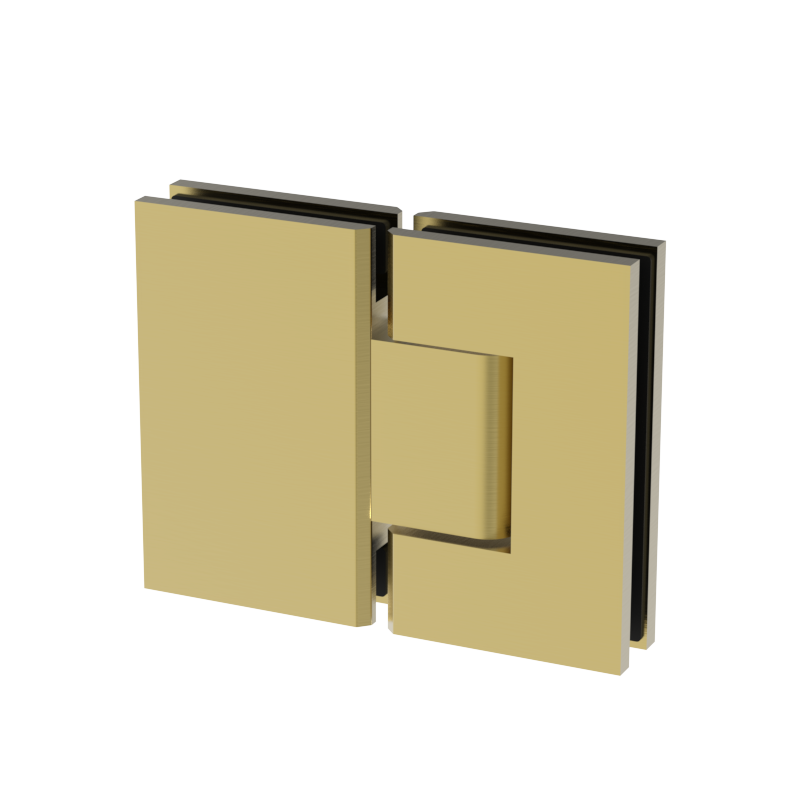

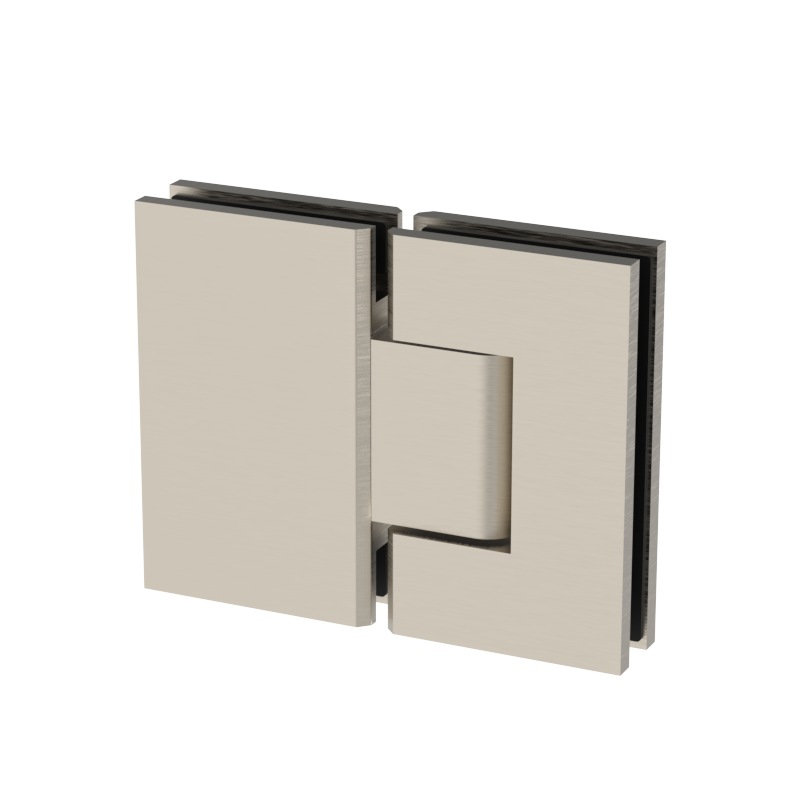

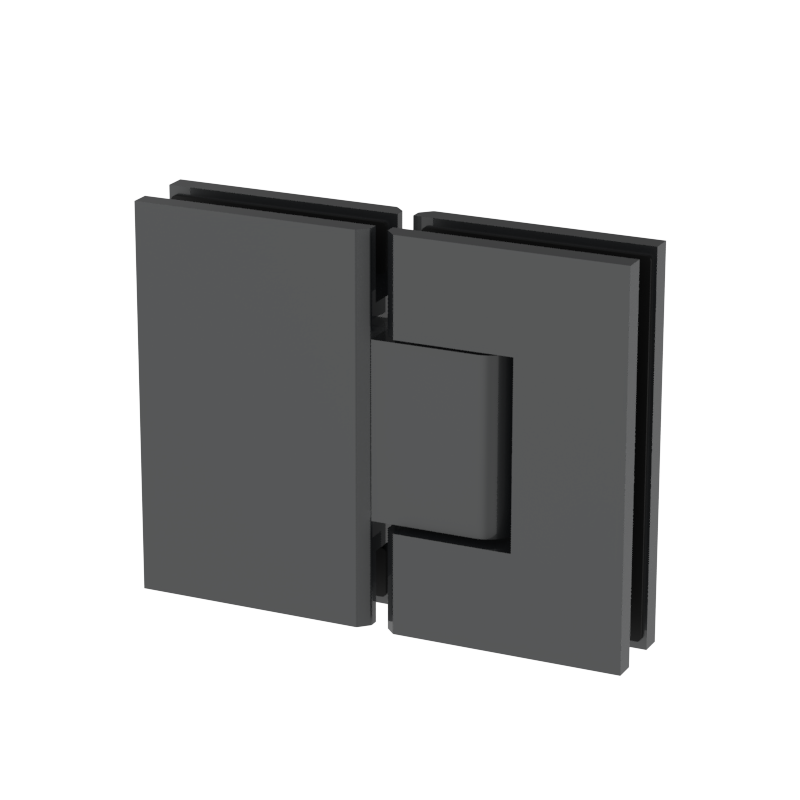

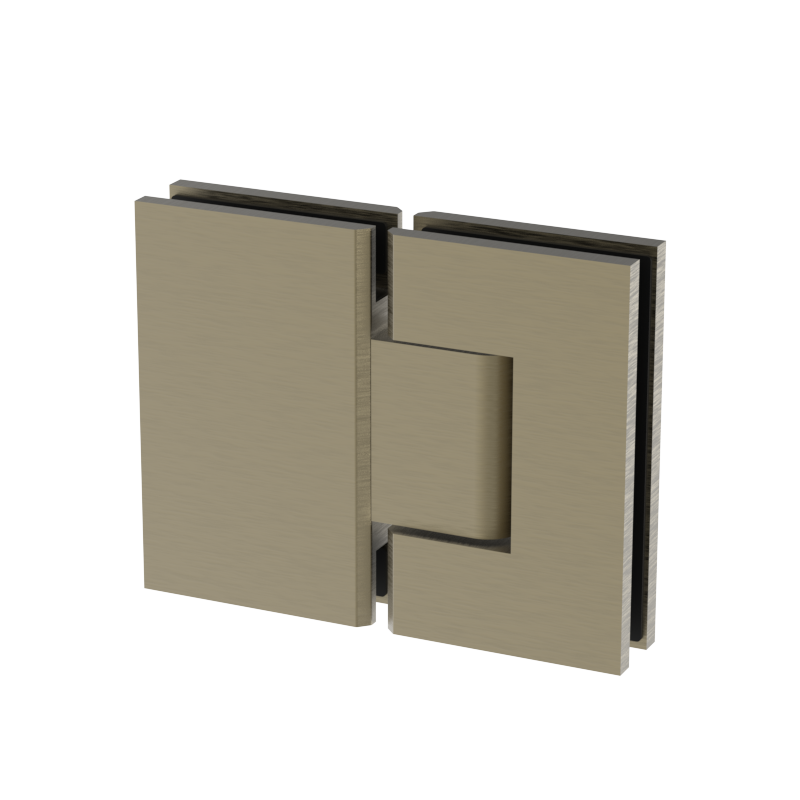

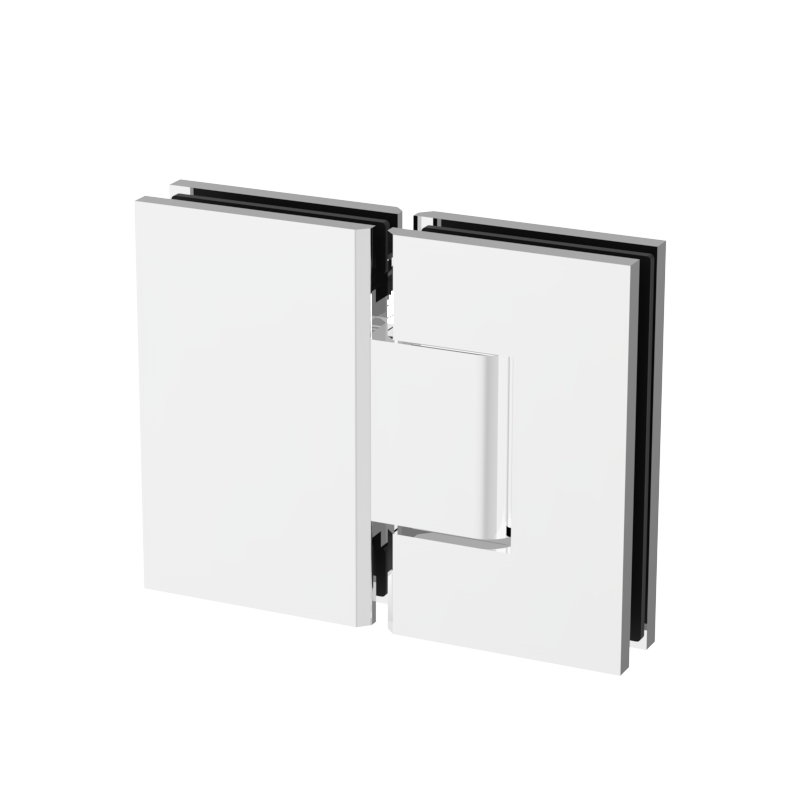

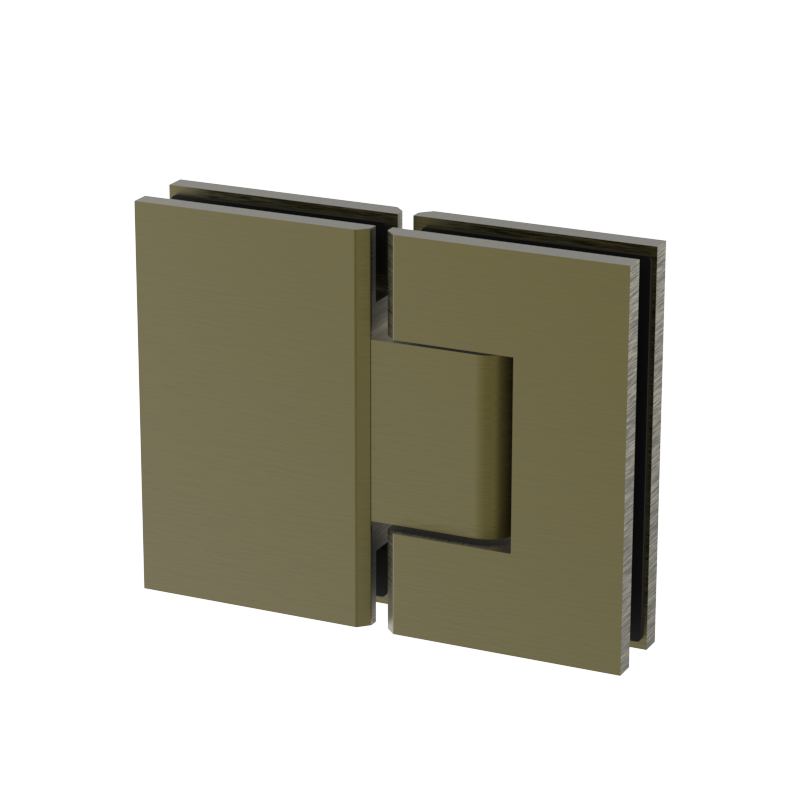

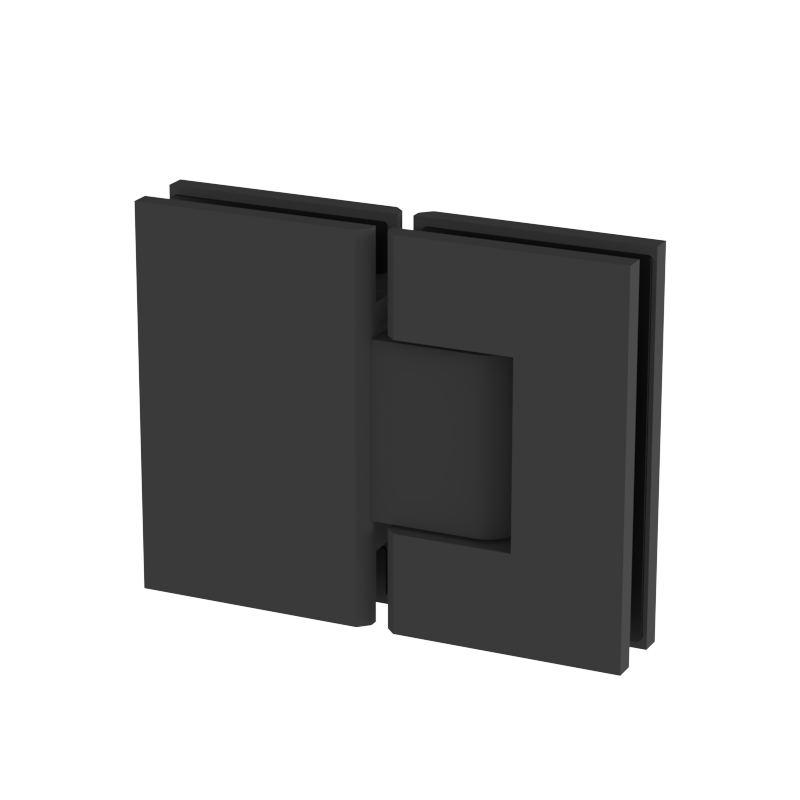

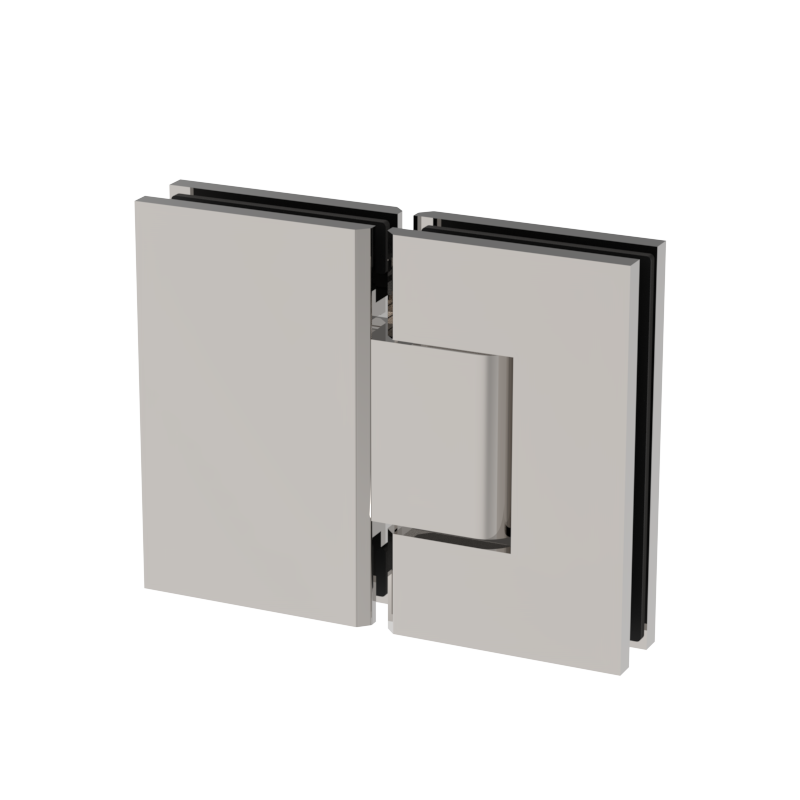

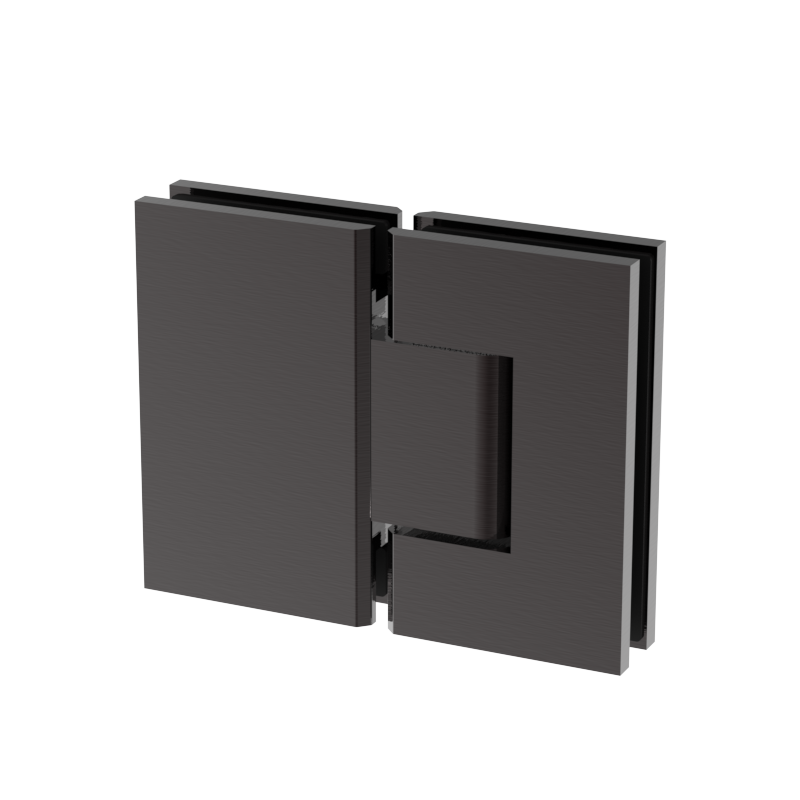

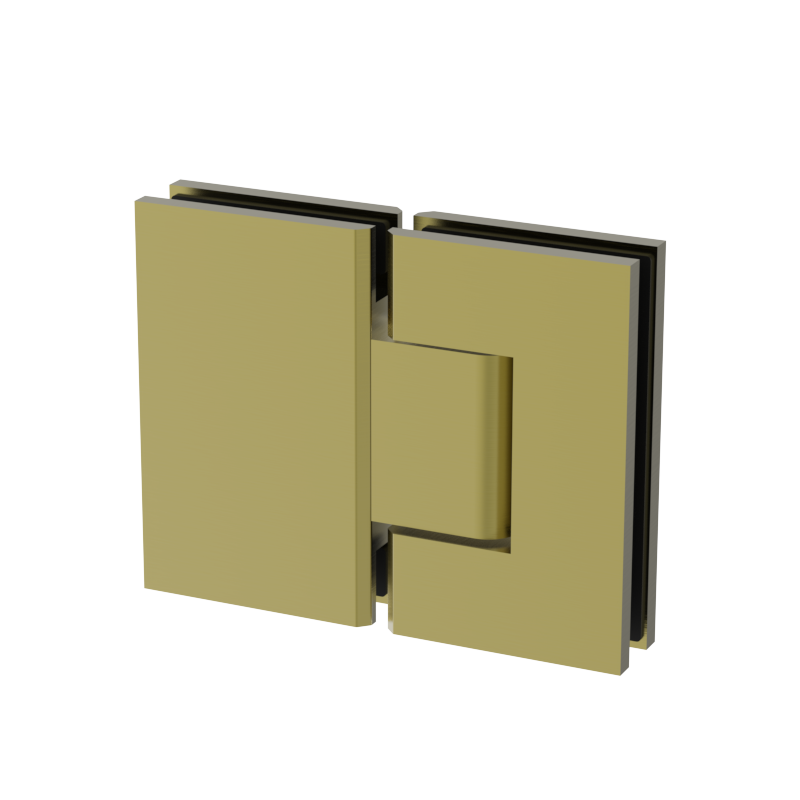

The GGH 180° Glass-to-Glass Shower Hinge from the JENNIFER Series is designed for frameless shower door applications requiring a straight-line connection between two glass panels. Manufactured from Brass, this regular-duty hinge features a square profile and a 5° reversible pin that assists with door alignment and closure adjustment while providing a clean, modern appearance for contemporary shower enclosures.

More Product Information

Material: Brass

Profile: Square
Product Length: 4-1/2" (114.18mm)
Product Width: 13/16" (19.94mm)
Product Height: 3-9/16" (90mm)

Glass Thickness Range: 5/16" (8mm) to 1/2" (12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: See Template for Details

Includes: Hinge Assembly & Gaskets
Gasket: Included with Hinge Body
Gasket Material: EPDM
Gasket Thickness: 1mm

Mounting Type: Glass to Glass

Adjustability: Door Alignment
Adjustment Feature: 5° Reversible Pin for Door Alignment and Closure Adjustment

Maximum Door Width:
Two Hinges: 28" (711mm)
Three Hinges: 32" (813mm)

Maximum Load:
Two Hinges: 80 lbs. (36 kg)
Three Hinges: 120 lbs. (54 kg)

Compare To: GLEN180 / GEN180

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
