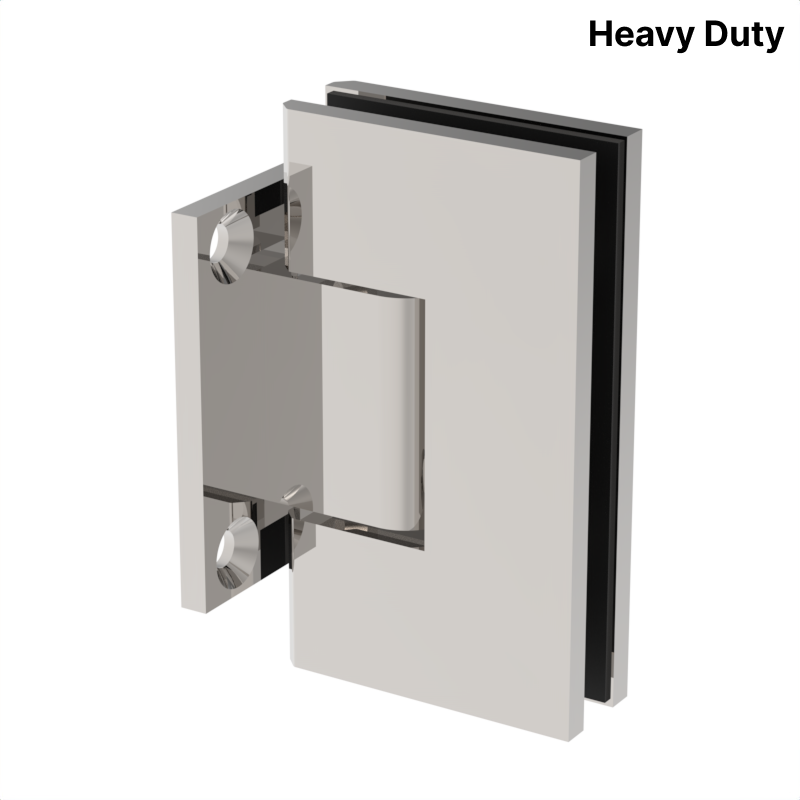

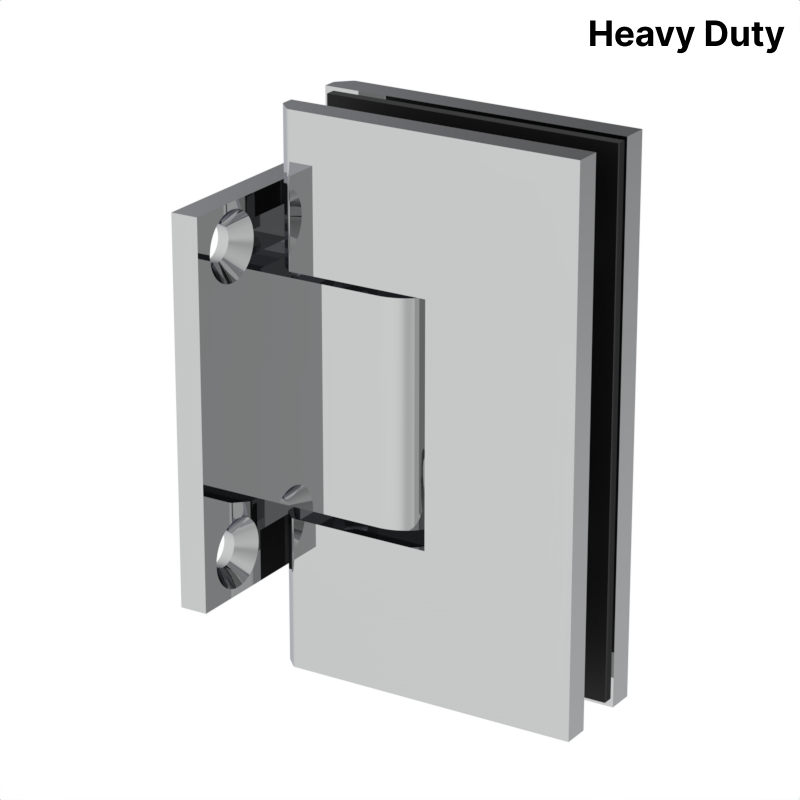

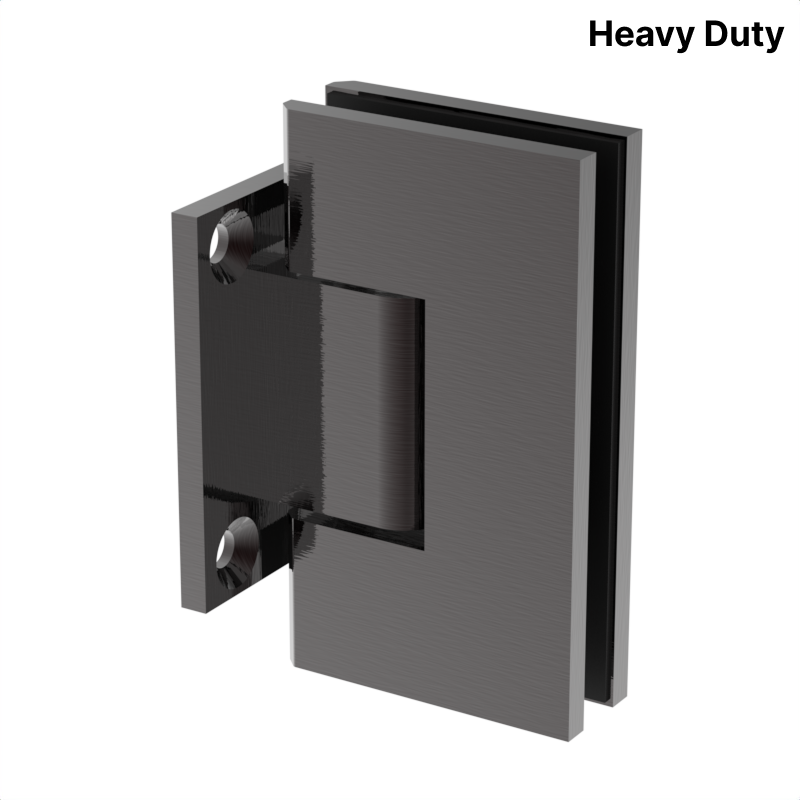

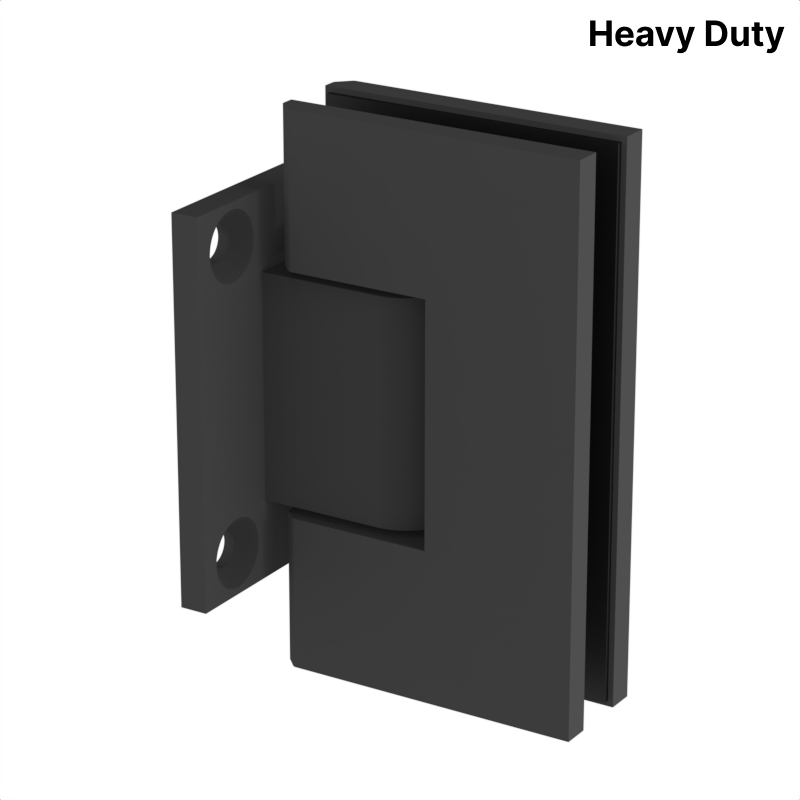

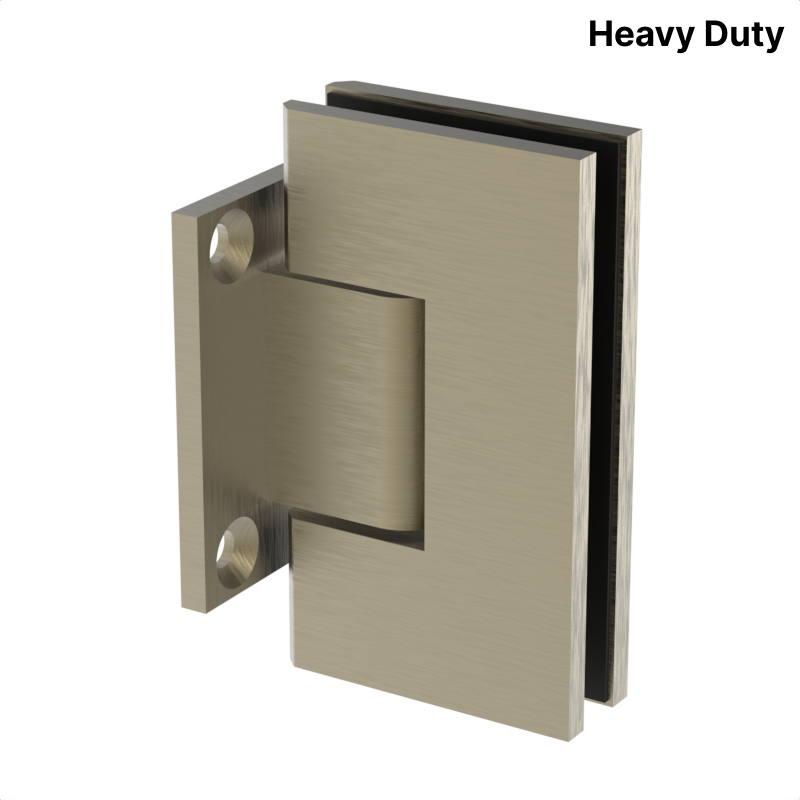

The GGH Short Back Plate Shower Hinge from the VIVIAN Series is designed for wall-to-glass frameless shower door applications requiring heavy-duty support. Manufactured from Brass, this square hinge features a compact short back plate design that provides reliable support for heavier shower doors while maintaining a clean architectural appearance.

More Product Information

Material: Brass

Hinge Style: Short Back Plate
Profile: Square
Product Length: 2-5/8" (65.89mm)
Product Width: 2-1/8" (54mm)
Product Height: 3-15/16" (100mm)

Glass Thickness Range: 3/8" (10mm) to 1/2" (12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: See Template for Details

Includes: Hinge Assembly & Gaskets
Gasket: Included with Hinge Body
Gasket Material: EPDM
Gasket Thickness: 1mm

Mounting Type: Wall to Glass

Adjustability: Door Alignment
Adjustment Feature: 5° Reversible Pin for Door Alignment and Closure Adjustment

Maximum Door Width:
Two Hinges: 36" (914mm) recommended door width
Three Hinges: 36" (914mm) recommended door width

Maximum Load:
Two Hinges: 110 lbs. (50 kg)
Three Hinges: 140 lbs. (63 kg)

Compare To: VENS2 / V1E074
