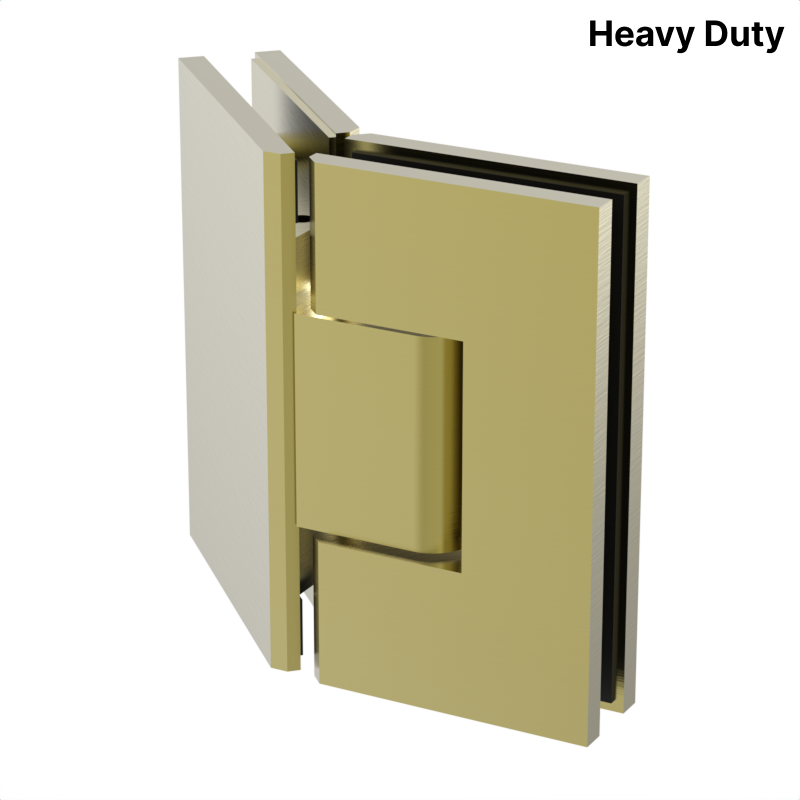

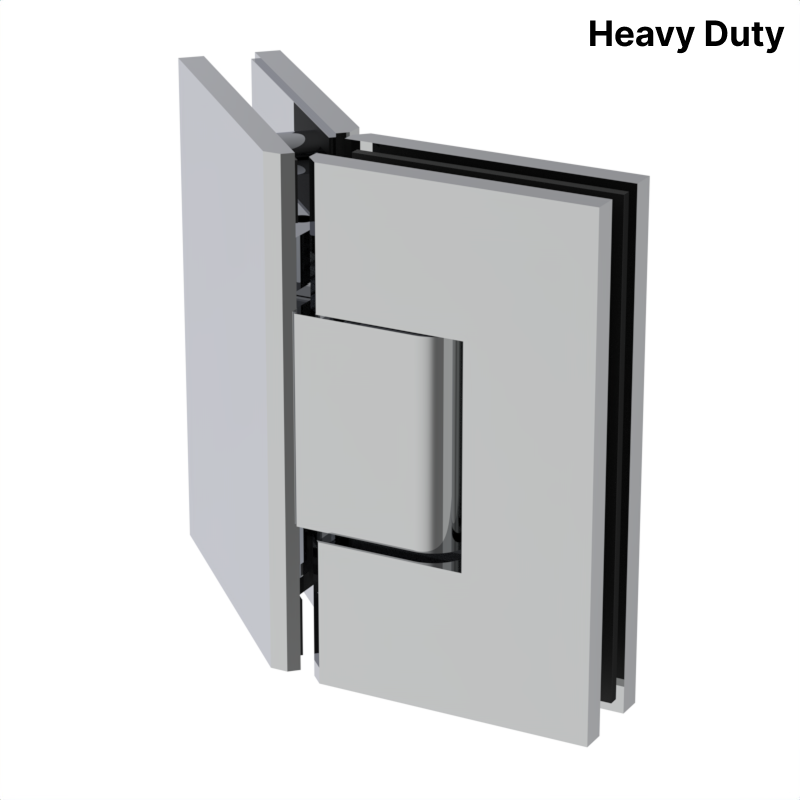

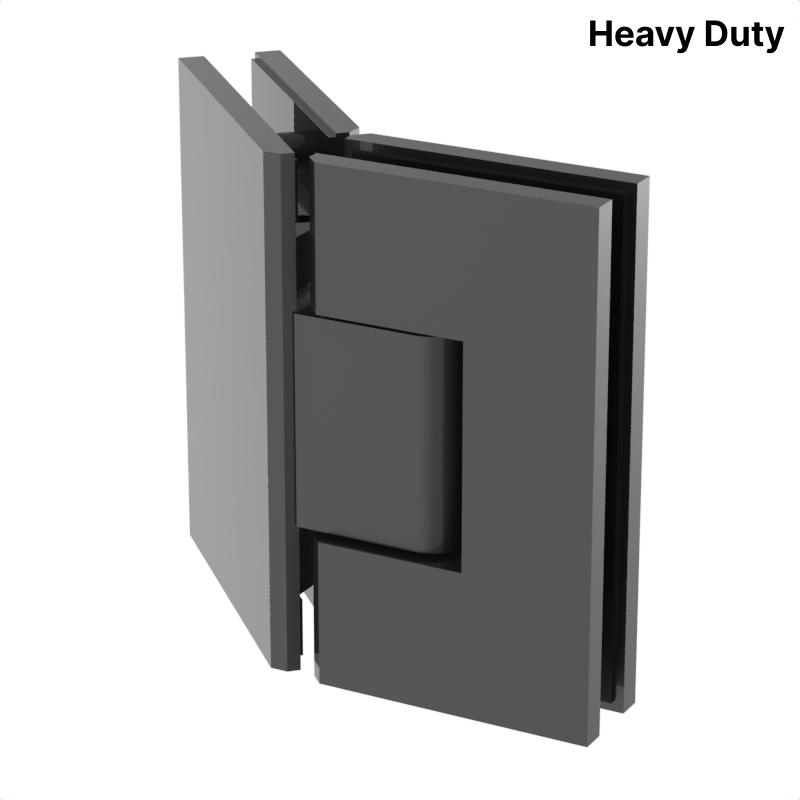

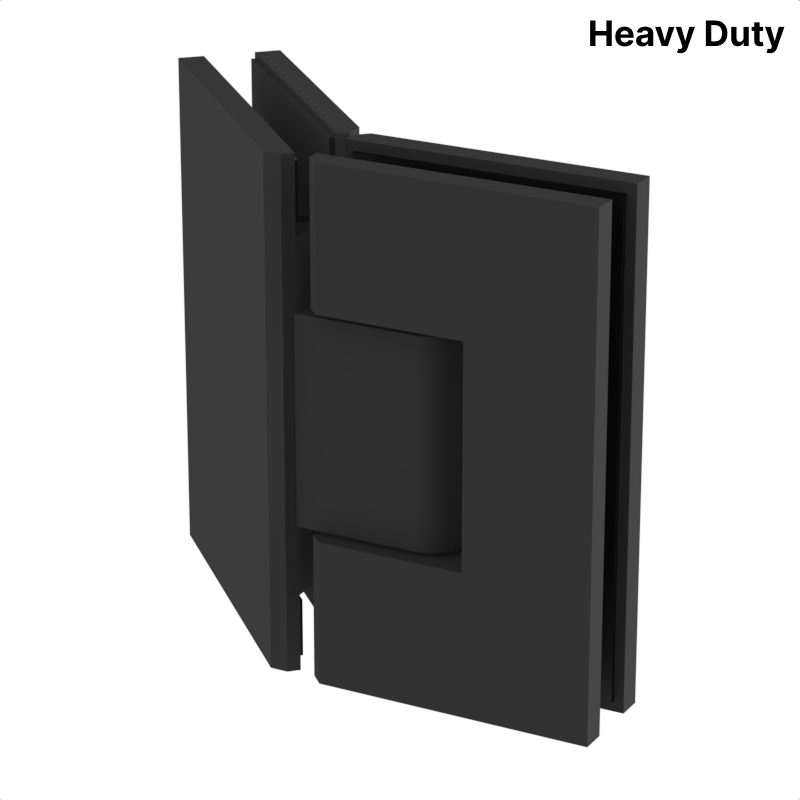

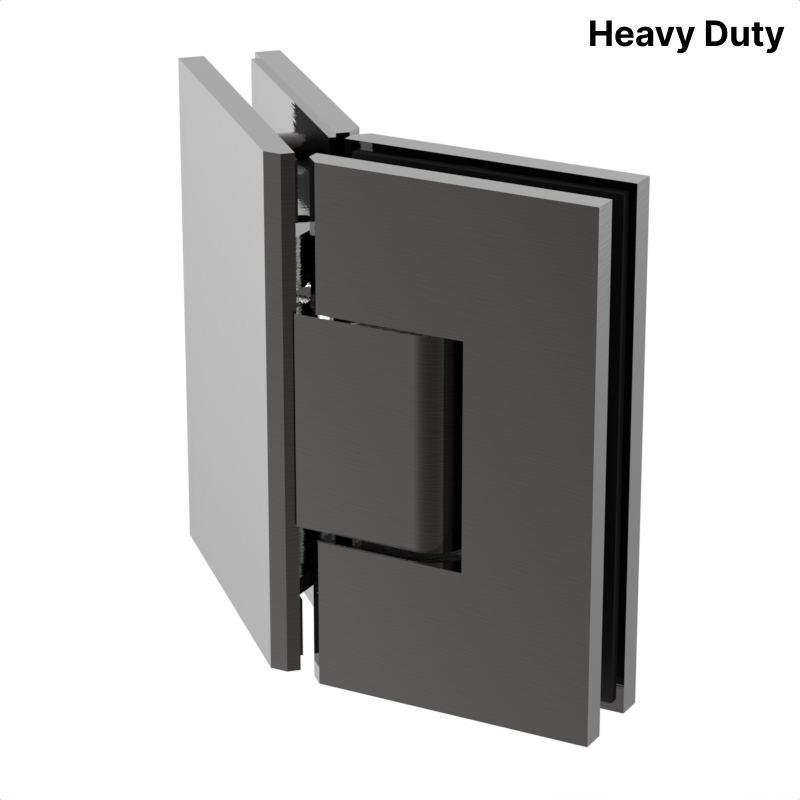

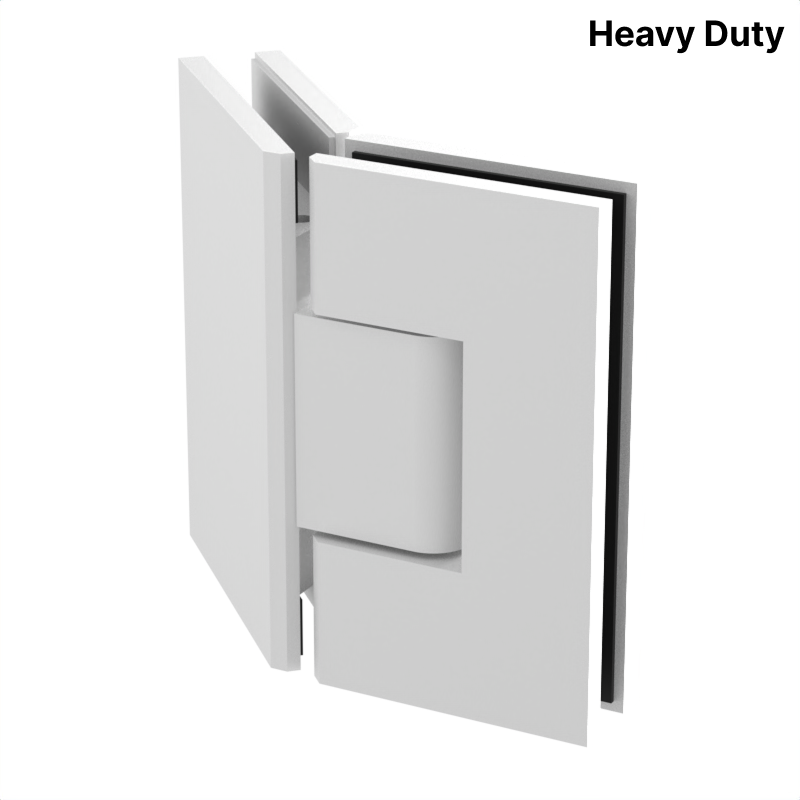

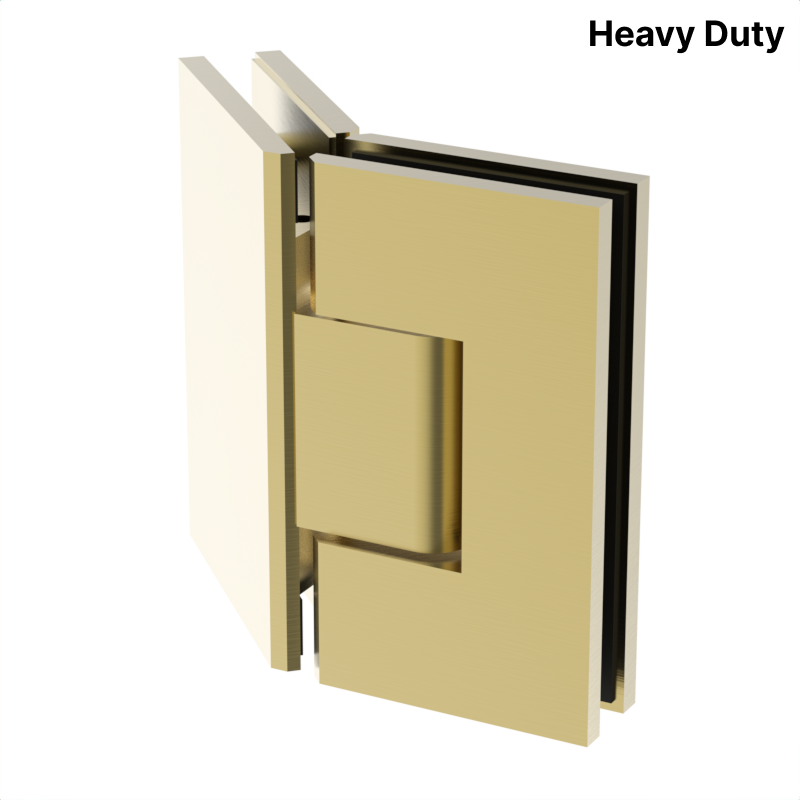

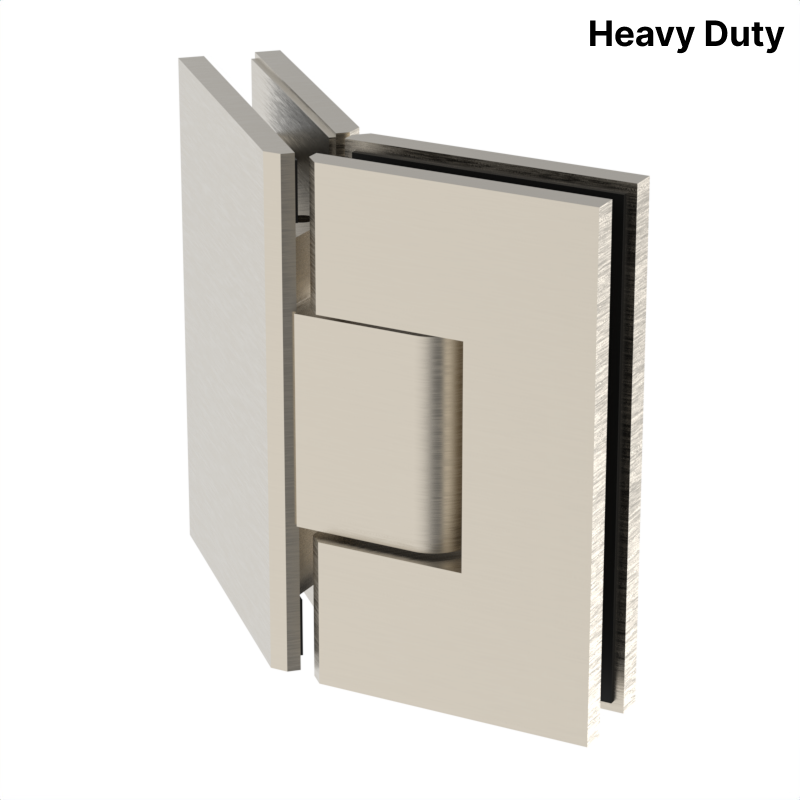

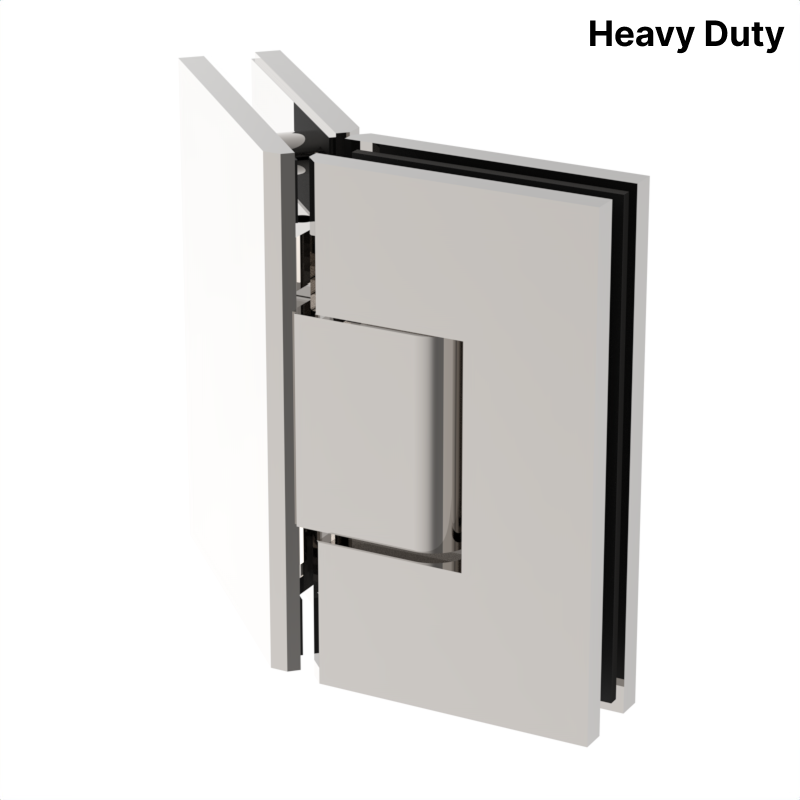

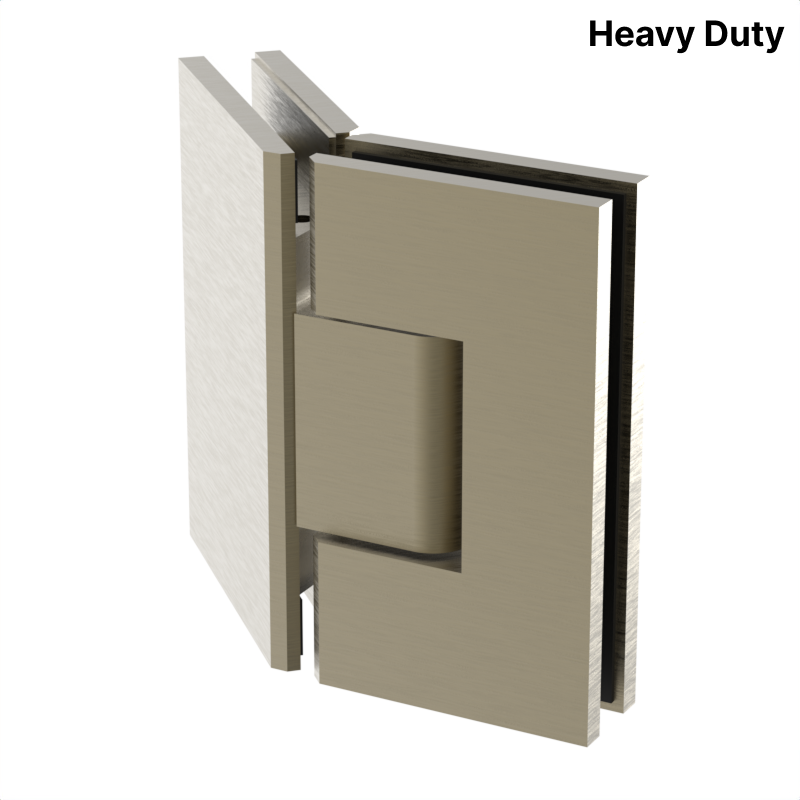

The GGH 135° Glass-to-Glass Shower Hinge from the VIVIAN Series is designed for neo-angle frameless shower door applications requiring a secure connection between glass panels at a 135° angle. Manufactured from Brass, this square heavy-duty hinge provides reliable support for larger shower doors while maintaining a clean architectural appearance.

More Product Information

Material: Brass

Profile: Square
Product Length: 4-7/16" (113.14mm)
Product Width: 2-3/8" (59.76mm)
Product Height: 3-15/16" (100mm)

Glass Thickness Range: 3/8" (10mm) to 1/2" (12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: See Template for Details

Includes: Hinge Assembly & Gaskets
Gasket: Included with Hinge Body
Gasket Material: EPDM
Gasket Thickness: 1mm

Mounting Type: Glass to Glass

Adjustability: Door Alignment
Adjustment Feature: 5° Reversible Pin for Door Alignment and Closure Adjustment

Maximum Door Width:
Two Hinges: 36" (914mm) maximum door width
Three Hinges: 36" (914mm) maximum door width

Maximum Load:
Two Hinges: 110 lbs. (50 kg)
Three Hinges: 140 lbs. (63 kg)

Compare To: VEN135 / V1E045
