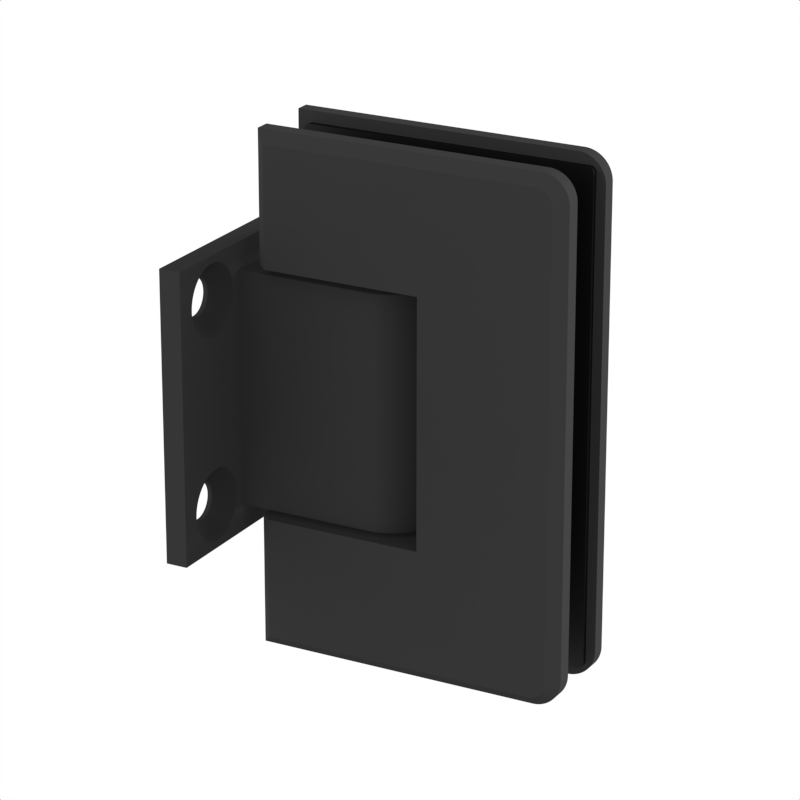

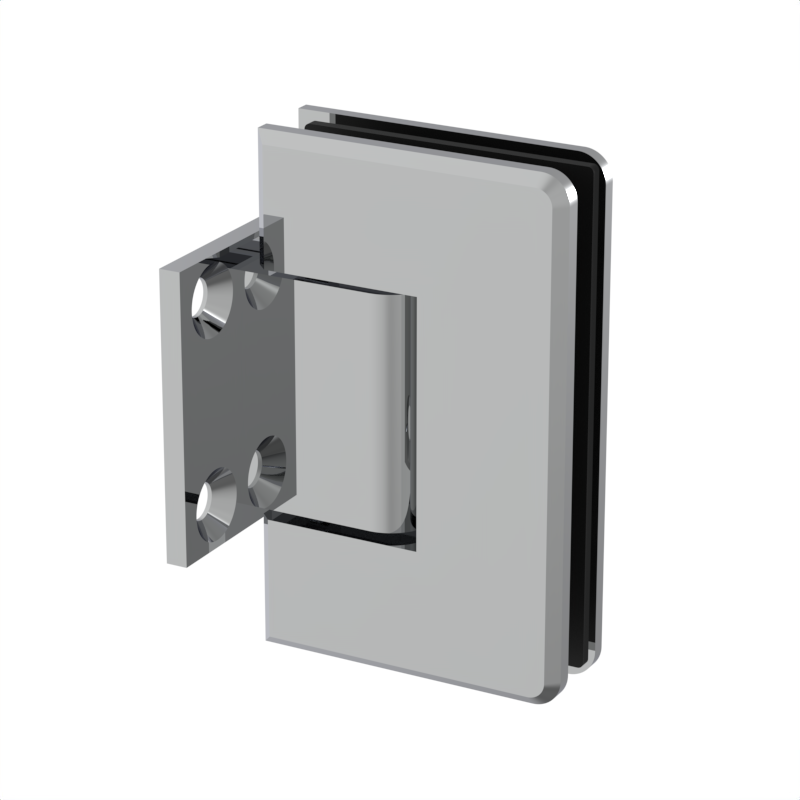

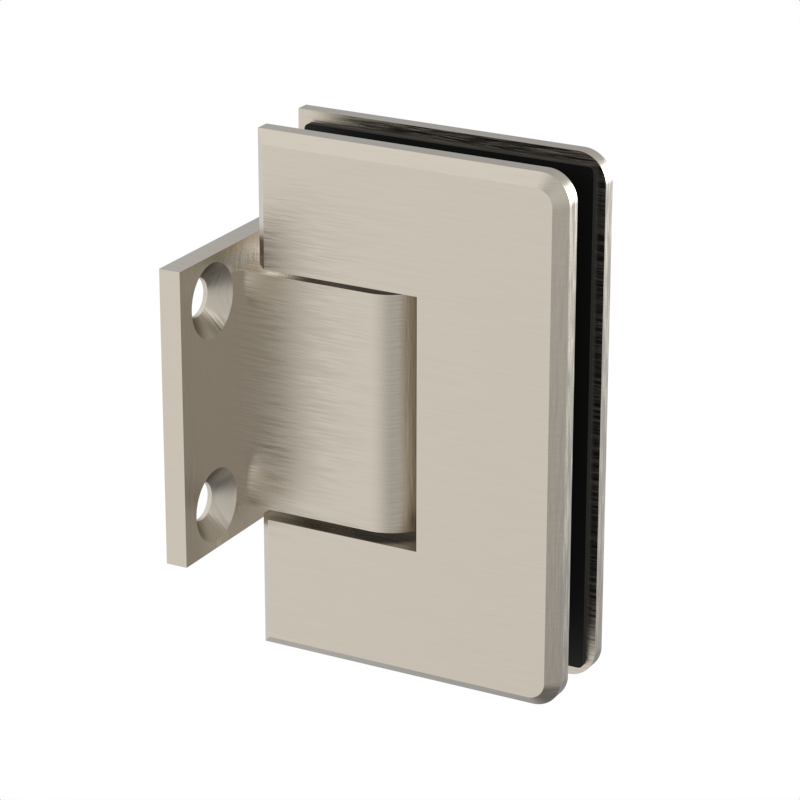

The GGH Short Back Plate Shower Hinge from the BEVERLY Series is designed for wall-to-glass frameless shower door applications requiring reliable door support. Manufactured from Brass, this regular-duty hinge features a beveled profile and compact short back plate design for a clean architectural appearance in contemporary shower enclosures.

More Product Information

Material: Brass

Hinge Style: Short Back Plate
Profile: Beveled
Product Length: 2-1/2" (62.99mm)
Product Width: 2" (50.80mm)
Product Height: 3-9/16" (90mm)

Glass Thickness Range: 5/16" (8mm) to 1/2" (12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: See Template for Details

Includes: Hinge Assembly & Gaskets
Gasket: Included with Hinge Body
Gasket Material: EPDM
Gasket Thickness: 1mm

Mounting Type: Wall to Glass

Adjustability: Door Alignment
Adjustment Feature: 5° Reversible Pin for Door Alignment and Closure Adjustment

Maximum Door Width:
Two Hinges: 28" (711mm)
Three Hinges: 32" (813mm)

Maximum Load:
Two Hinges: 80 lbs. (36 kg)
Three Hinges: 120 lbs. (54 kg)

Compare To: PRESS2 / P1N074
