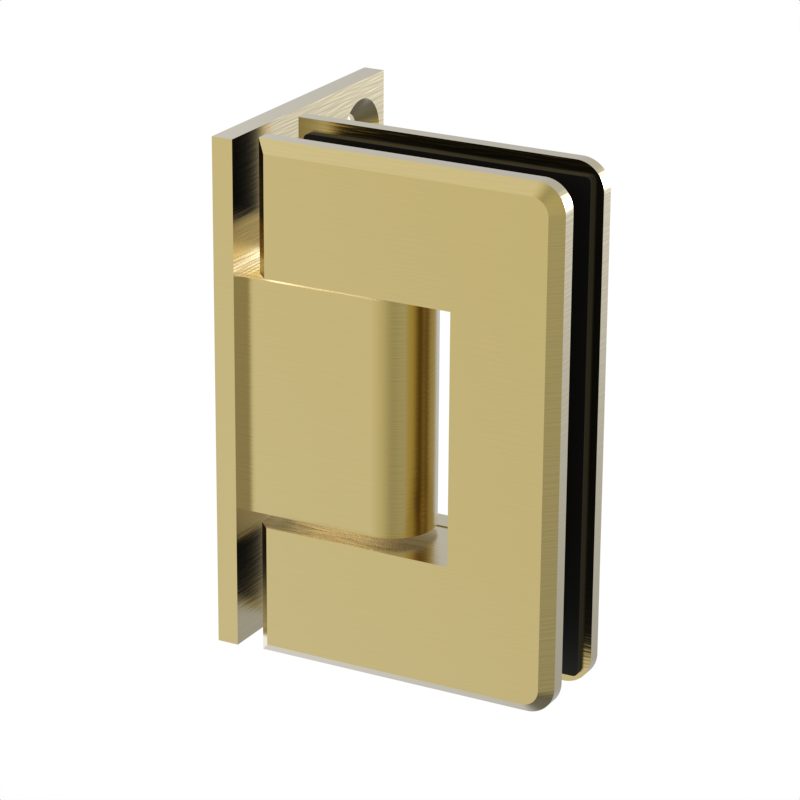

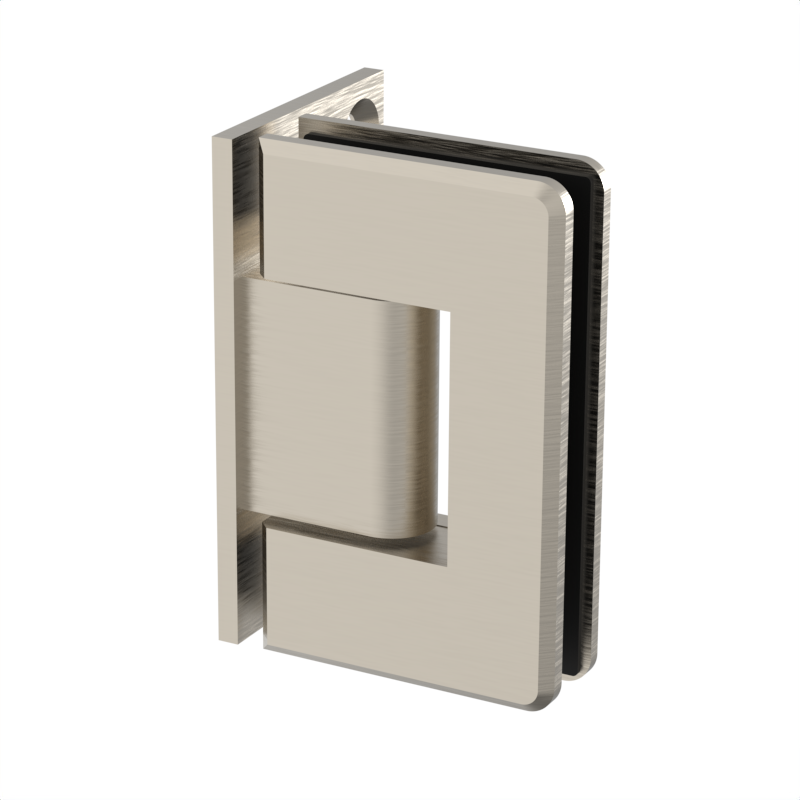

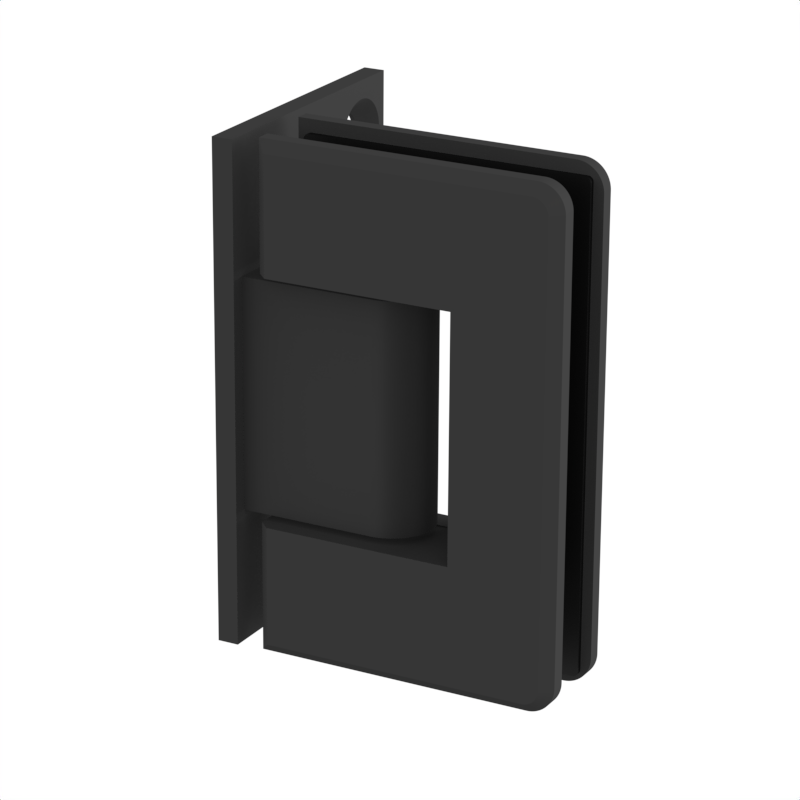

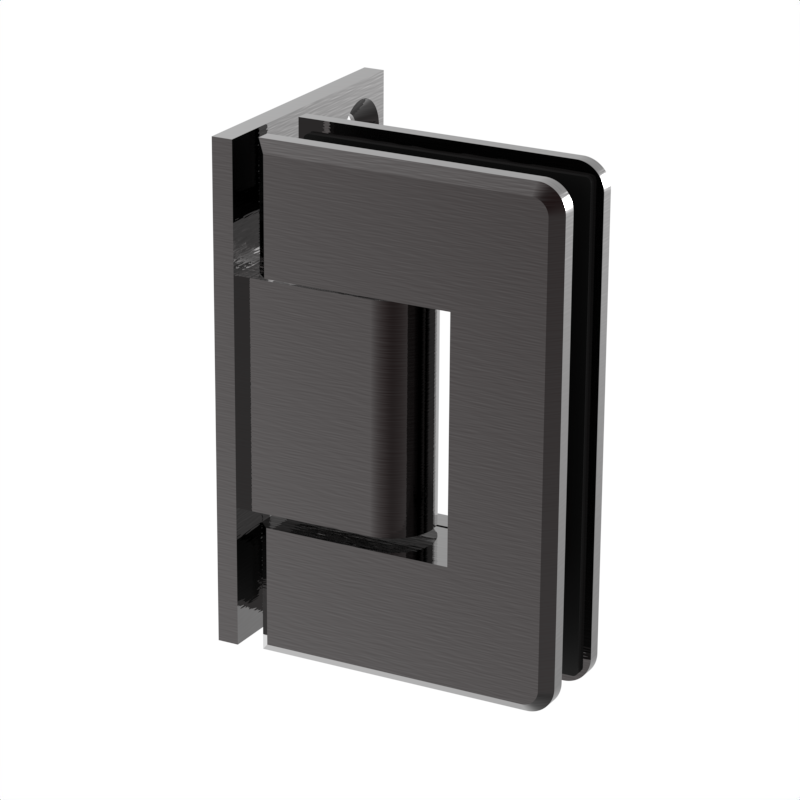

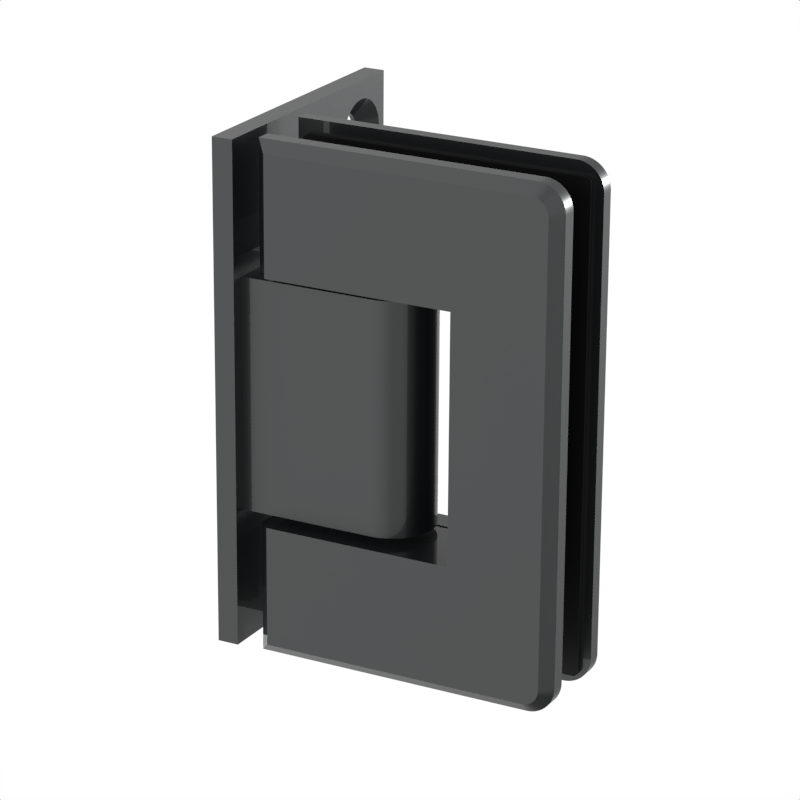

The GGH Offset Plate Shower Hinge from the BEVERLY Series is designed for wall-to-glass frameless shower door applications requiring reliable door support and alignment adjustability. Manufactured from Brass, this regular-duty hinge features a beveled profile and offset plate configuration with a 5° reversible pin that assists with door alignment and closure adjustment while providing an elegant appearance for contemporary shower enclosures.

More Product Information

Material: Brass

Hinge Style: Offset Plate
Profile: Beveled
Product Length: 2-1/2" (62.92mm)
Product Width: 2" (50.80mm)
Product Height: 3-1/2" (88.90mm)

Glass Thickness Range: 5/16" (8mm) to 1/2" (12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: See Template for Details

Includes: Hinge Assembly & Gaskets
Gasket: Included with Hinge Body
Gasket Material: EPDM
Gasket Thickness: 1mm

Mounting Type: Wall to Glass

Adjustability: Door Alignment
Adjustment Feature: 5° Reversible Pin for Door Alignment and Closure Adjustment

Maximum Door Width:
Two Hinges: 28" (711mm)
Three Hinges: 32" (813mm)

Maximum Load:
Two Hinges: 80 lbs. (36 kg)
Three Hinges: 120 lbs. (54 kg)

Compare To: PRES03 / P1N044
