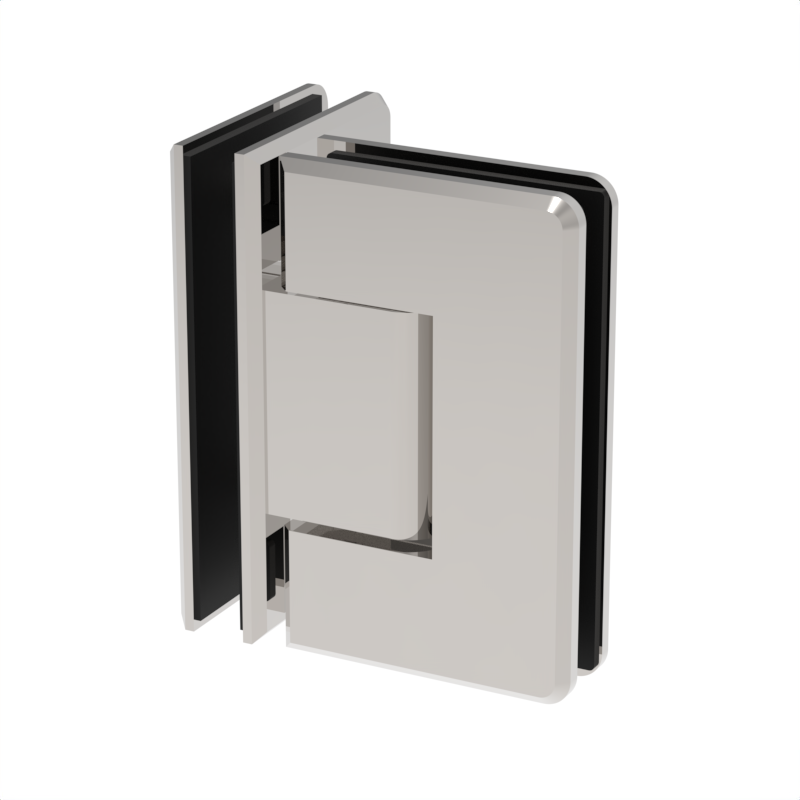

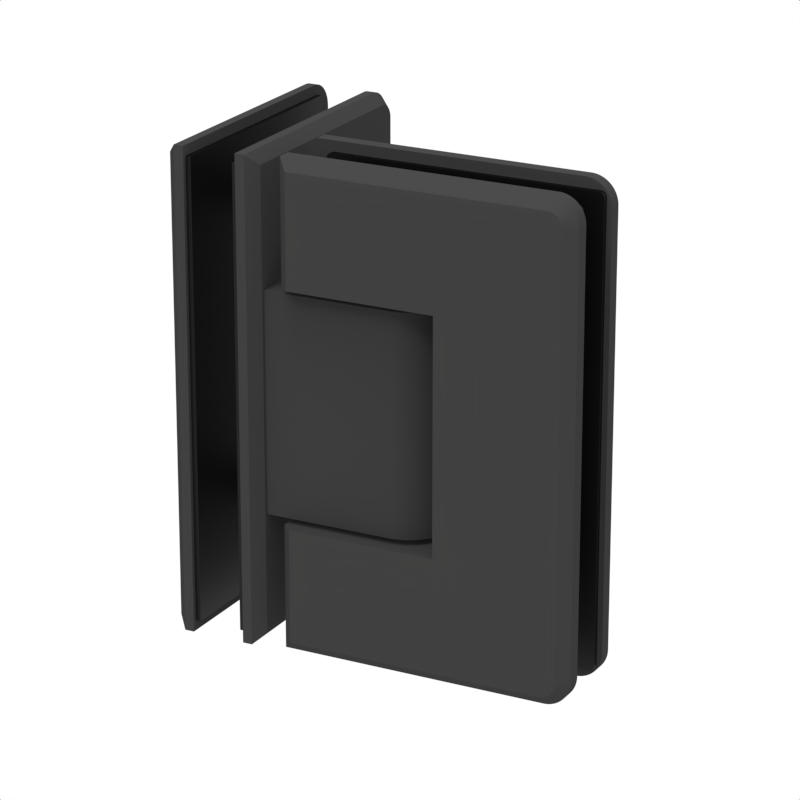

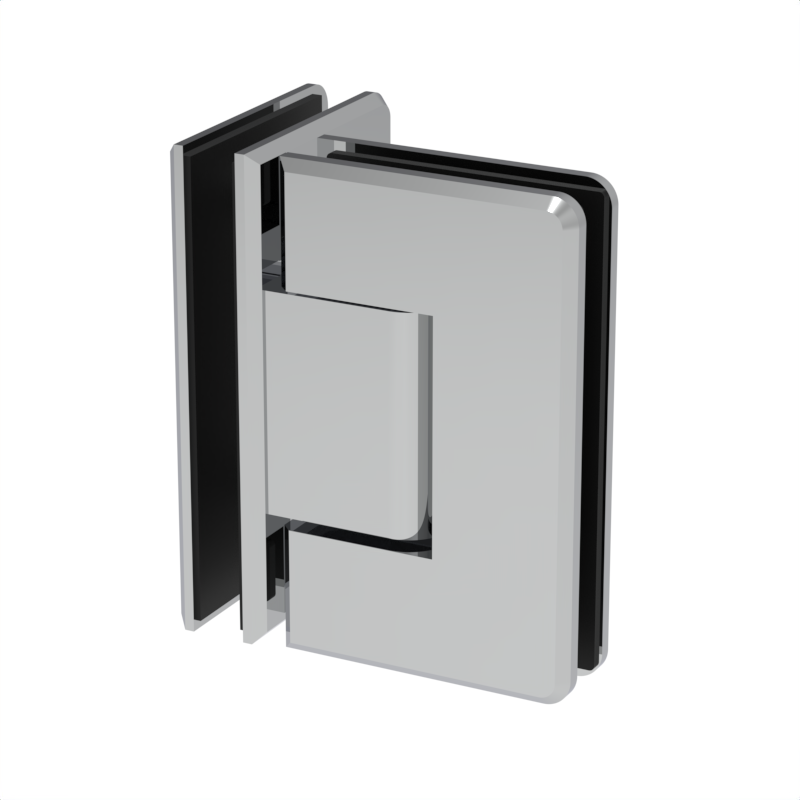

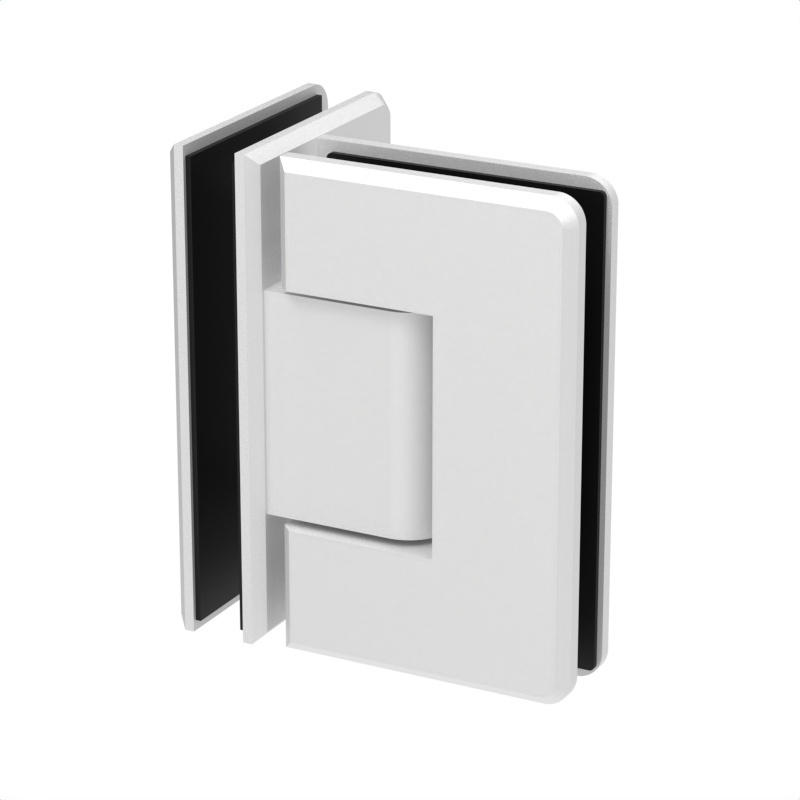

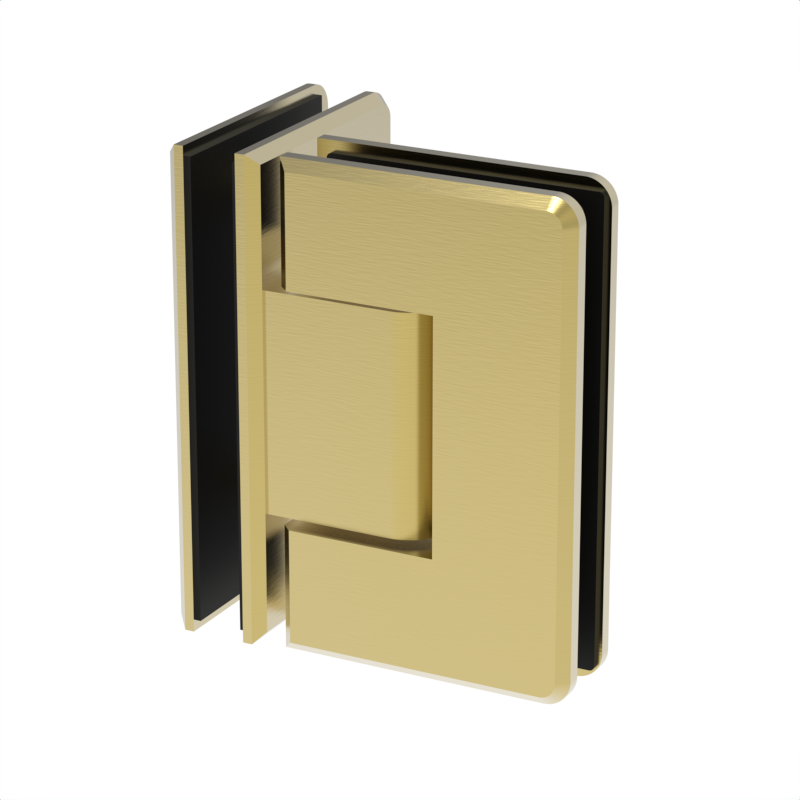

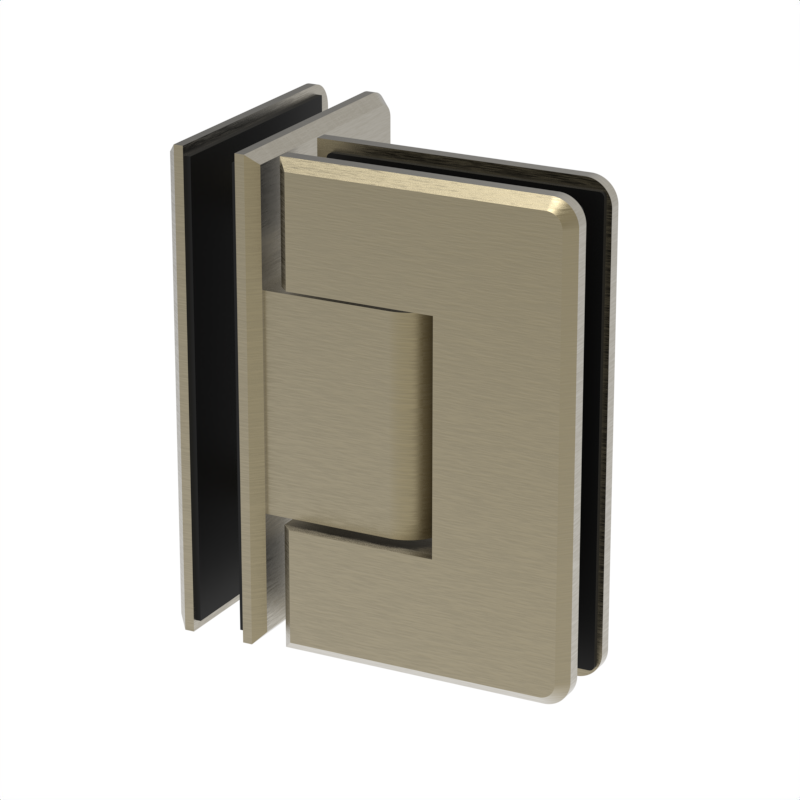

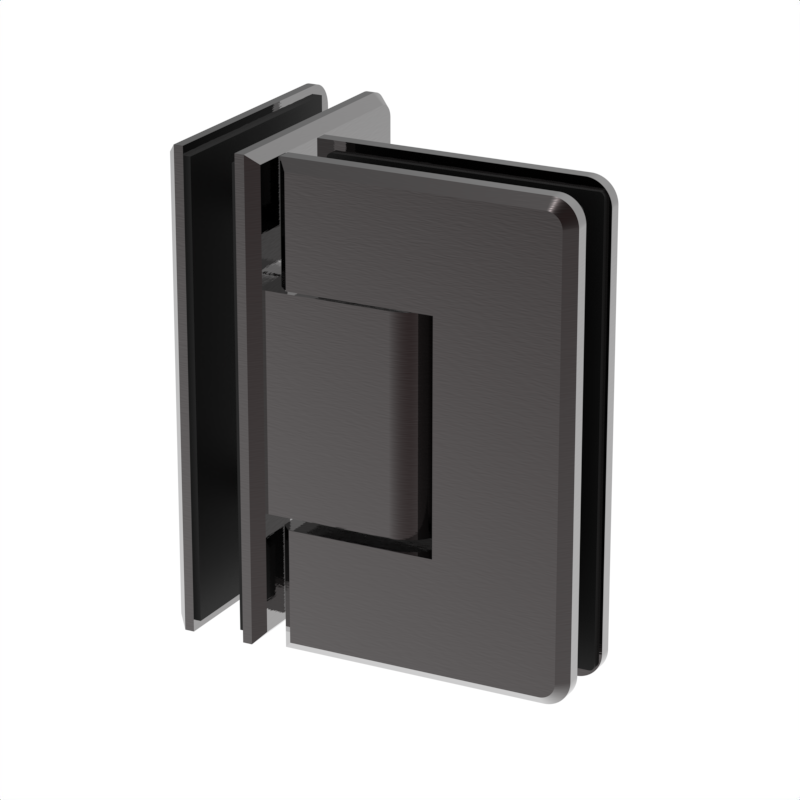

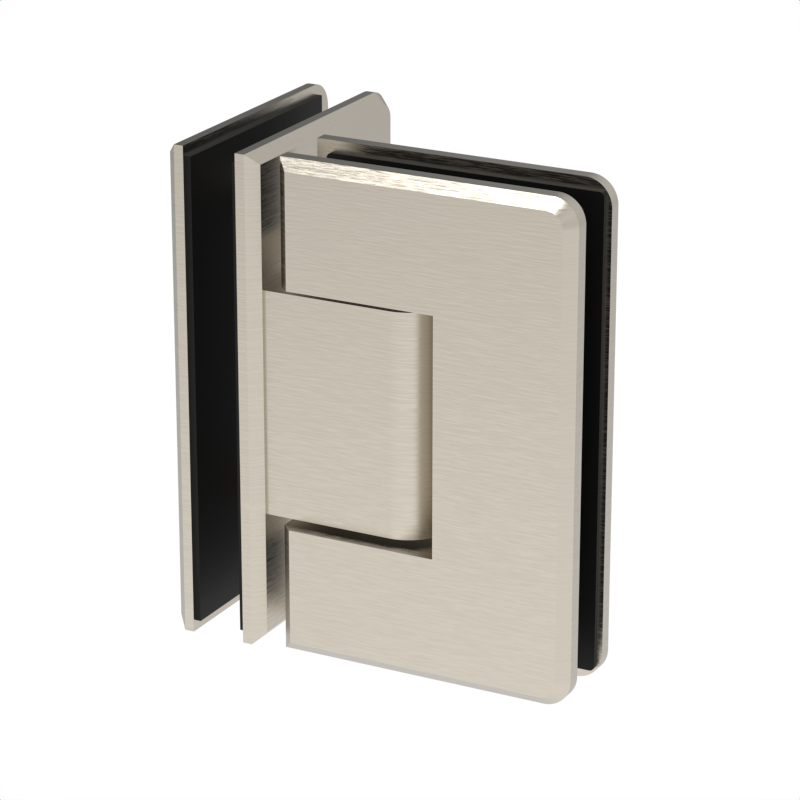

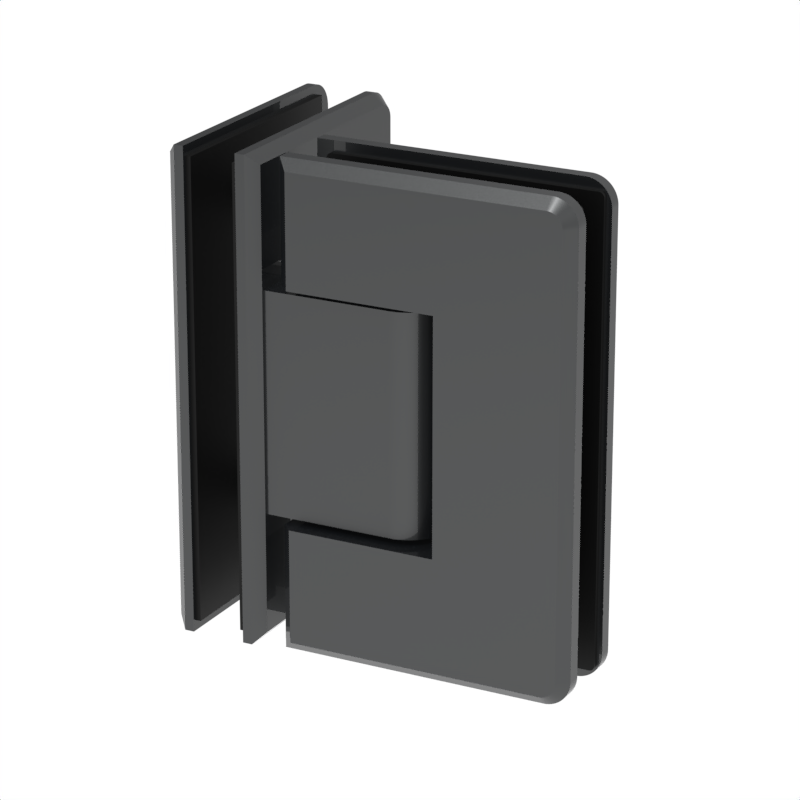

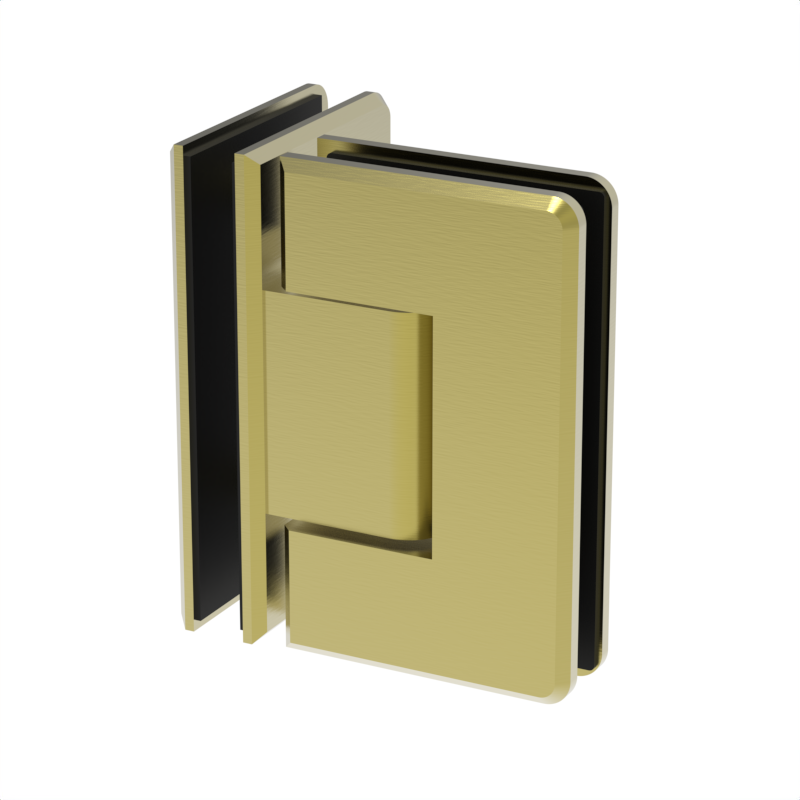

The GGH 90° Glass-to-Glass Shower Hinge from the BEVERLY Series is designed for frameless shower door applications requiring a secure connection between glass panels at a 90° angle. Manufactured from Brass, this regular-duty hinge features a beveled profile and provides reliable support while maintaining a refined architectural appearance for contemporary shower enclosures.

More Product Information

Material: Brass

Profile: Beveled
Product Length: 3" (76.96mm)
Product Width: 3/4" (19.36mm)
Product Height: 3-1/2" (89mm)

Glass Thickness Range: 5/16" (8mm) to 1/2" (12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: See Template for Details

Includes: Hinge Assembly & Gaskets
Gasket: Included with Hinge Body
Gasket Material: EPDM
Gasket Thickness: 1mm

Mounting Type: Glass to Glass

Adjustability: Door Alignment
Adjustment Feature: 5° Reversible Pin for Door Alignment and Closure Adjustment

Maximum Door Width:
Two Hinges: 28" (711mm) recommended door width
Three Hinges: 32" (813mm) recommended door width

Maximum Load:
Two Hinges: 80 lbs. (36 kg)
Three Hinges: 120 lbs. (54 kg)

Compare To: PRES90 / P1N092

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
