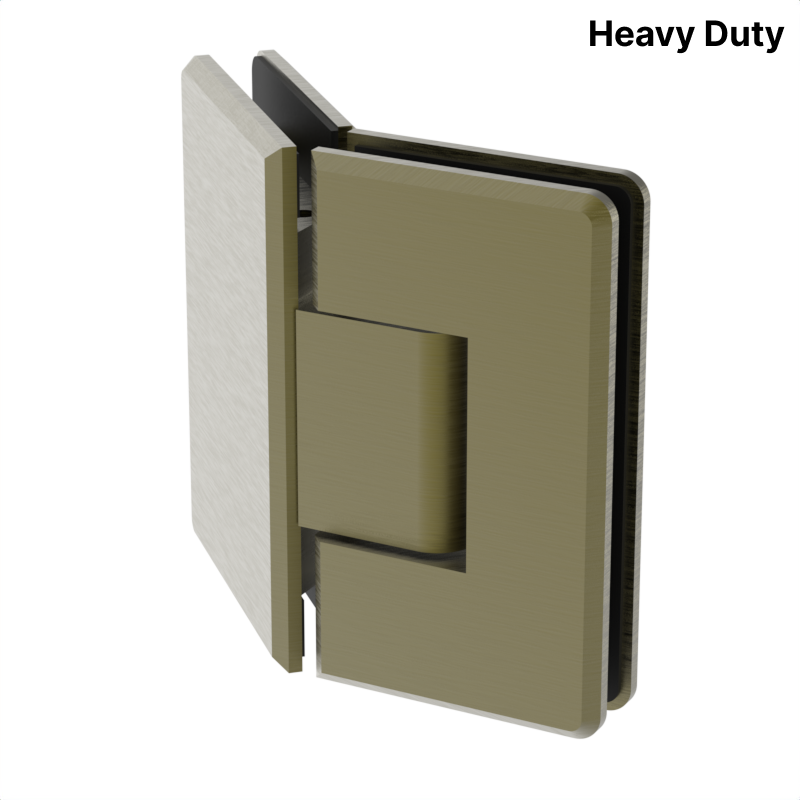

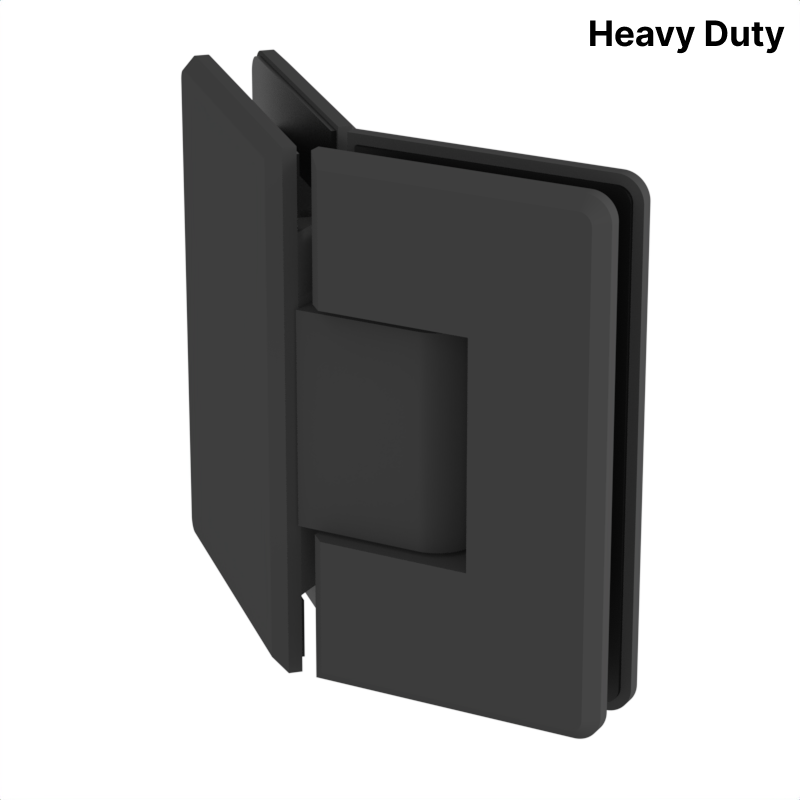

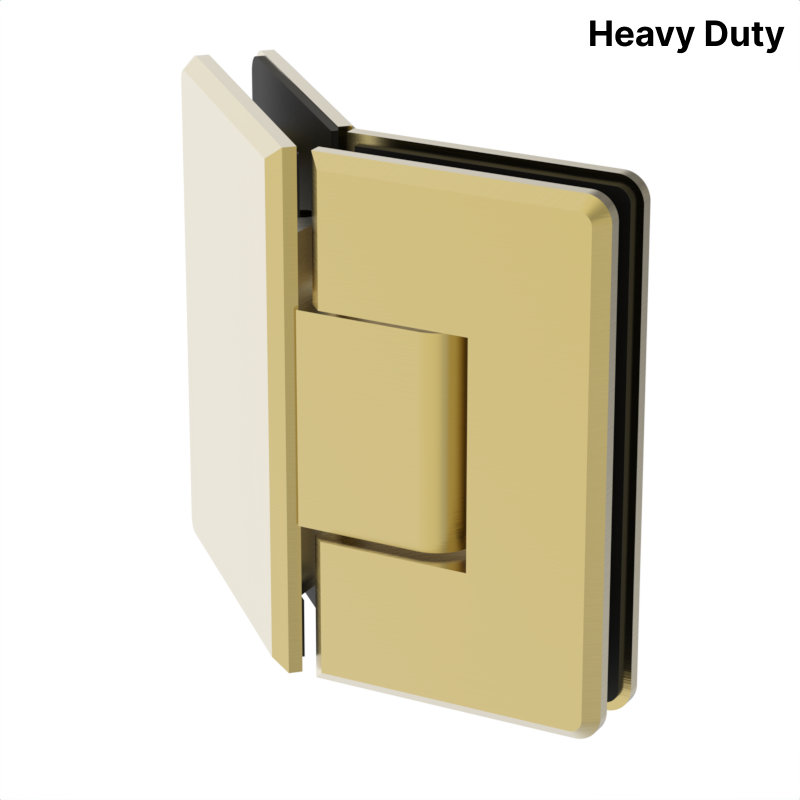

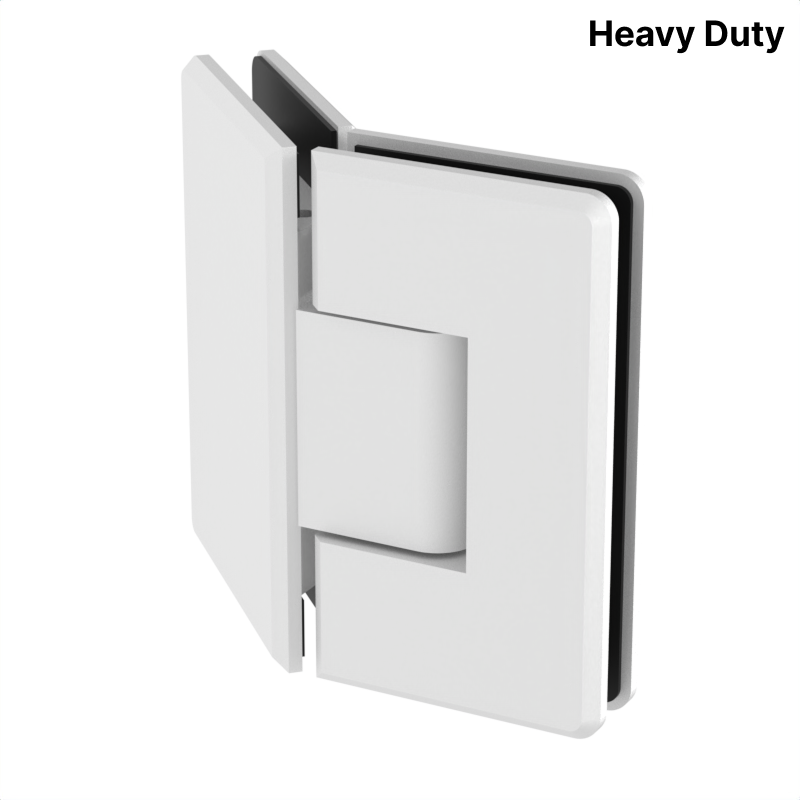

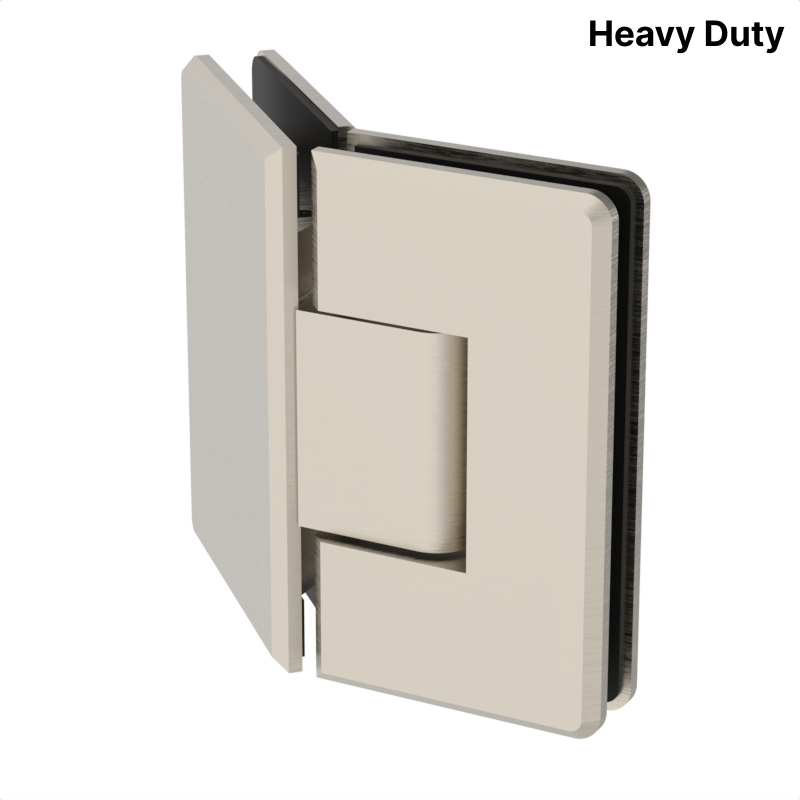

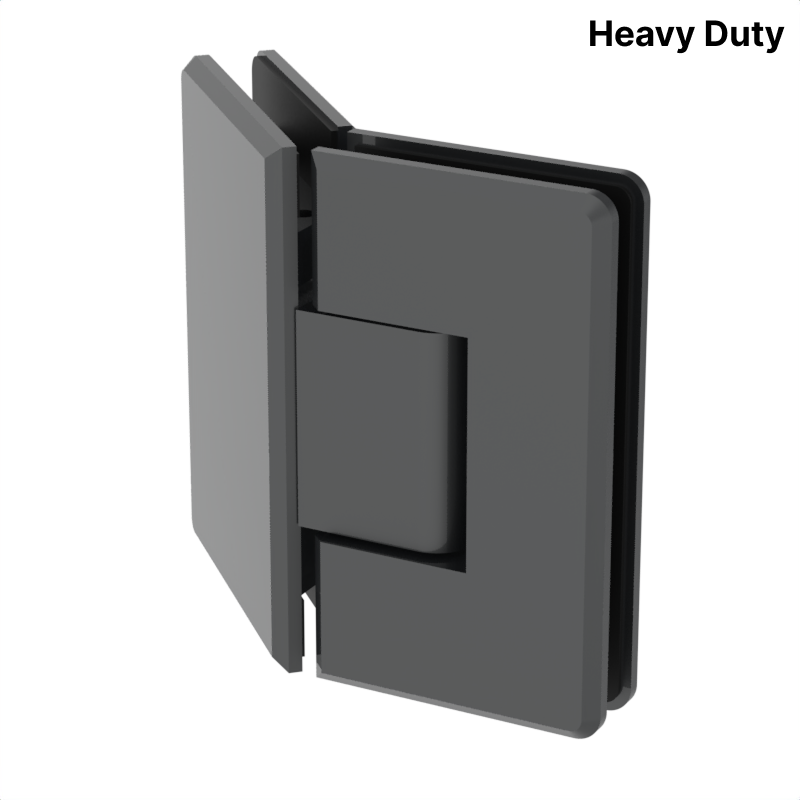

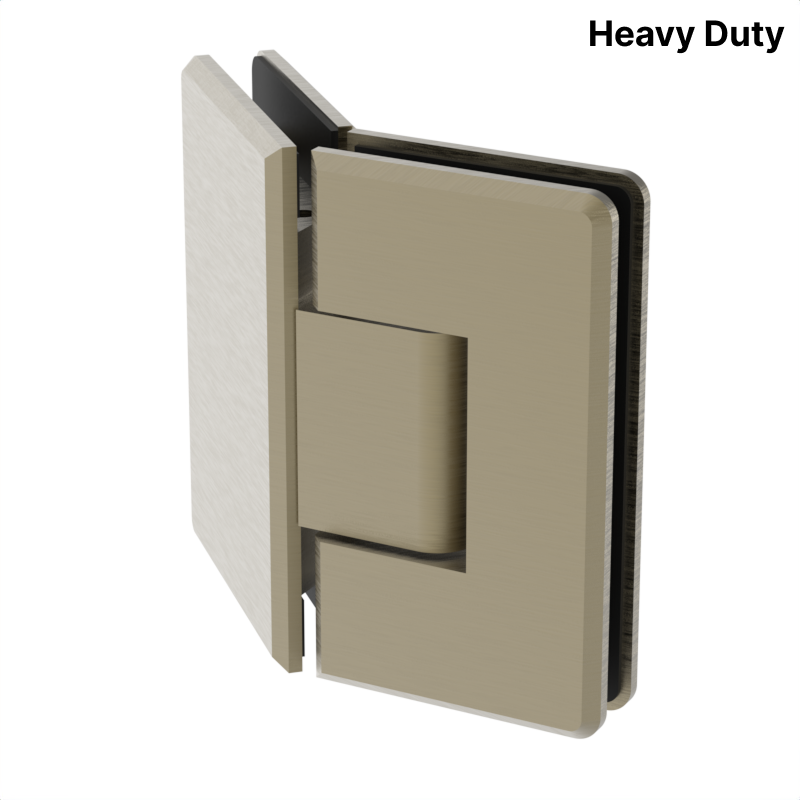

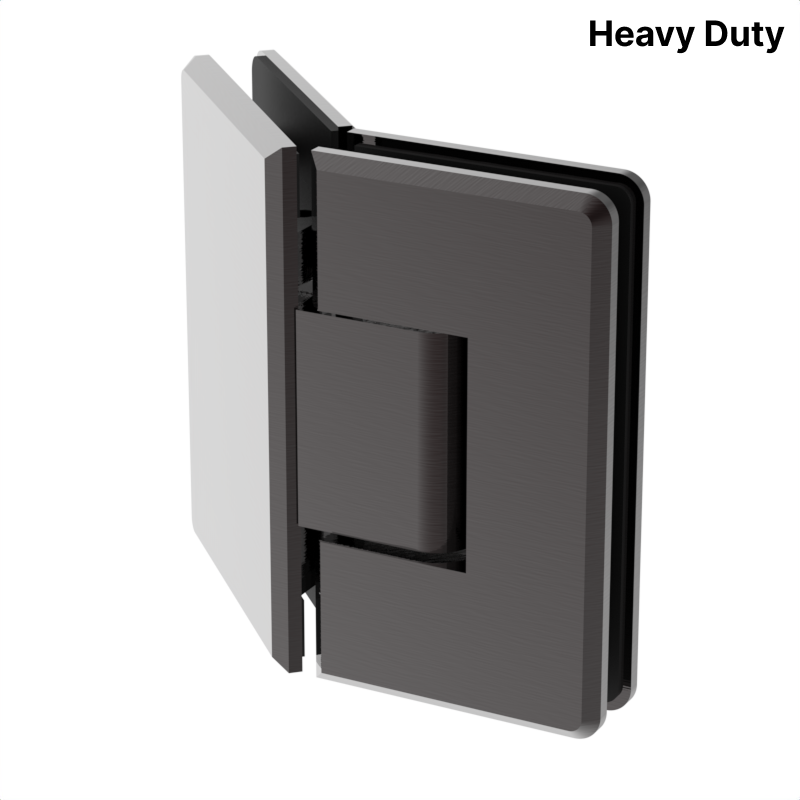

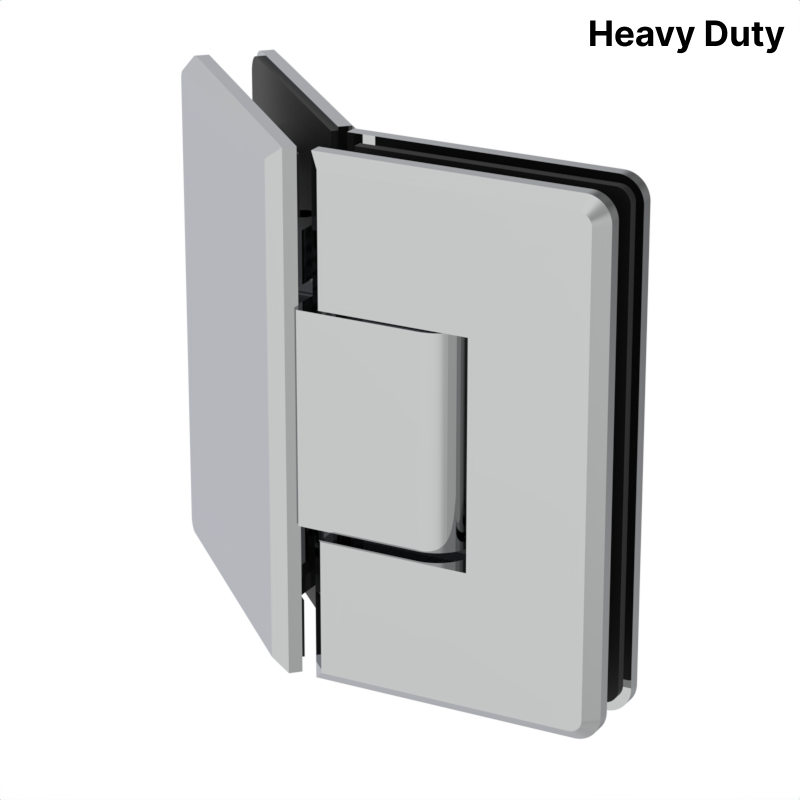

The GGH 135° Glass-to-Glass Shower Hinge from the COLETTE Series is a premium-quality hinge engineered for frameless shower door installations. Its innovative design provides a seamless connection between glass panels, enhancing the overall aesthetics of your shower enclosure while ensuring durability and strength. This hinge is the perfect solution for modern bathrooms, offering both style and secure support for your glass doors.

More Product Information

Material: Brass

Profile: Beveled
Product Length: 4-7/16" (113.14mm)
Product Width: 13/16" (20.32mm)
Product Height: 3-5/16" (100mm)

Glass Thickness Range: 3/8" (10mm) to 1/2" (12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: See Template for Details

Includes: Hinge Assembly & Gaskets
Gasket: Included with Hinge Body
Gasket Material: EPDM
Gasket Thickness: 1mm

Mounting Type: Glass to Glass

Adjustability: Door Alignment
Adjustment Feature: 5° Reversible Pin for Door Alignment and Closure Adjustment

Maximum Door Width:
Two Hinges: 36" (914mm) maximum door width
Three Hinges: 36" (914mm) maximum door width

Maximum Load:
Two Hinges: 110 lbs. (50 kg)
Three Hinges: 140 lbs. (63 kg)

Compare To: CLN1350 / C0L0450

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
