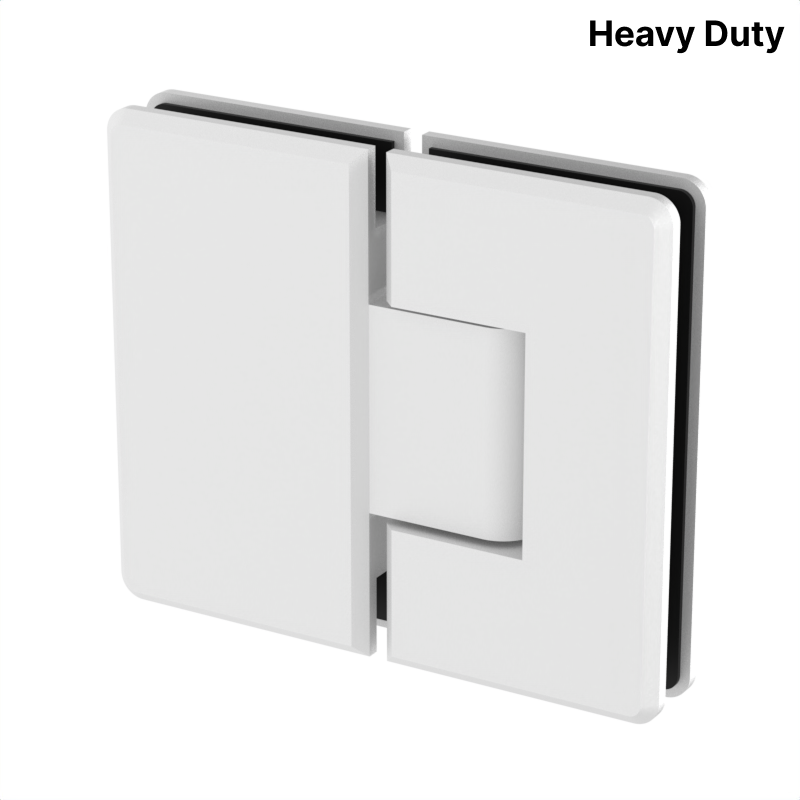

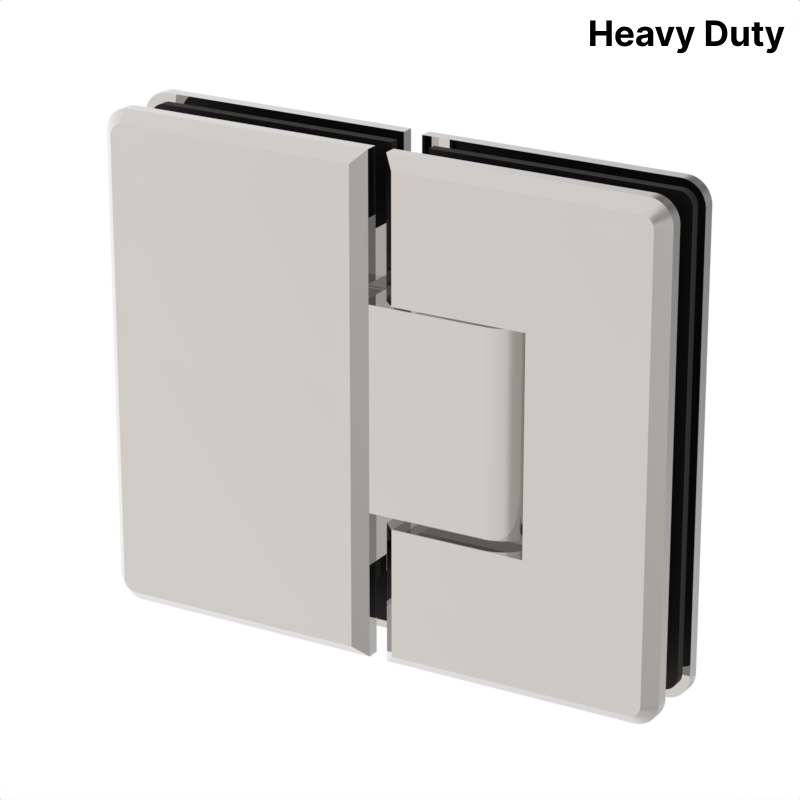

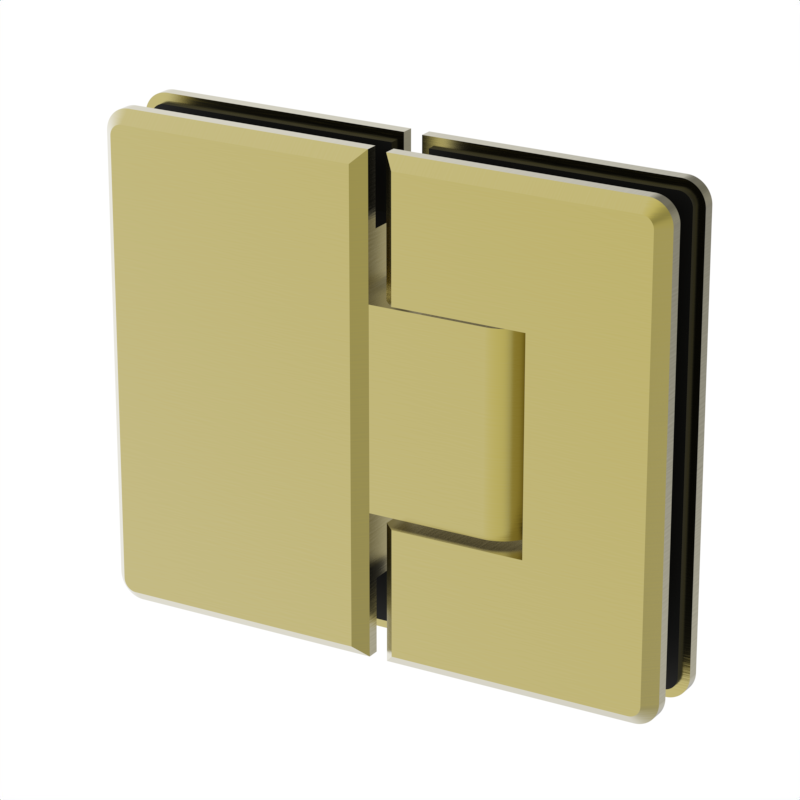

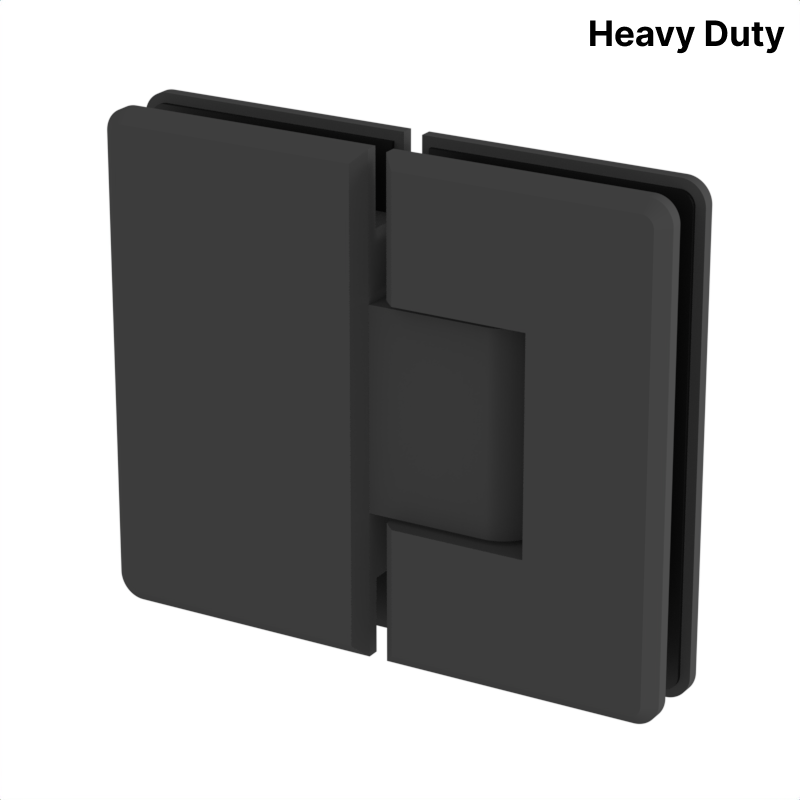

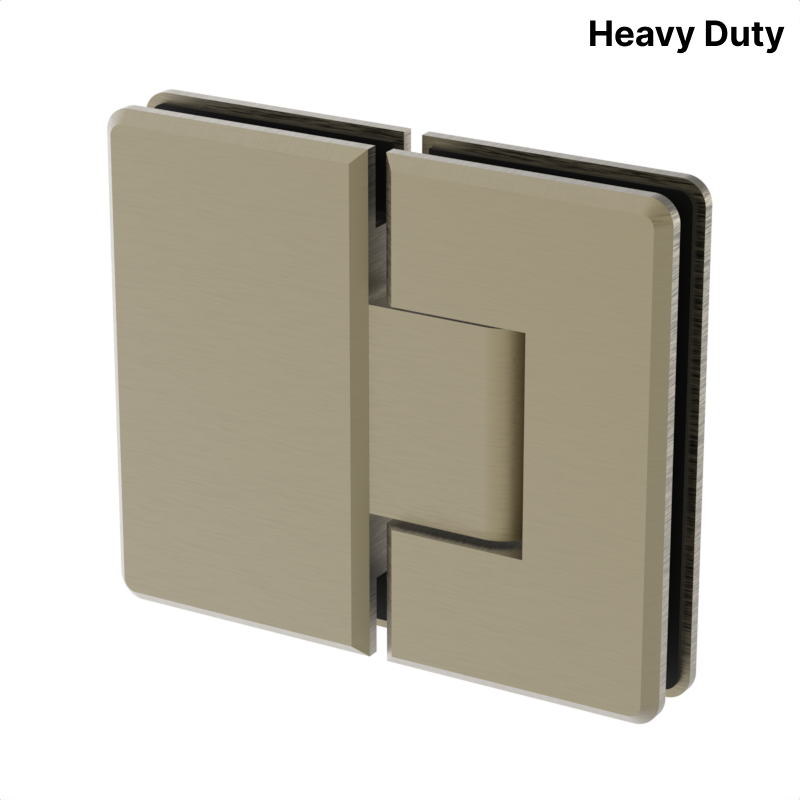

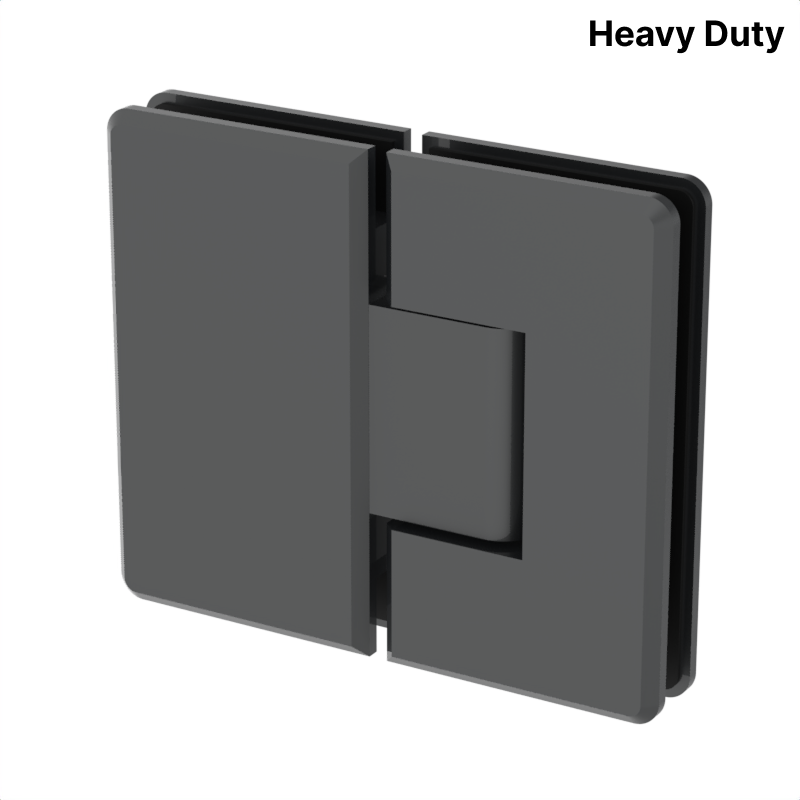

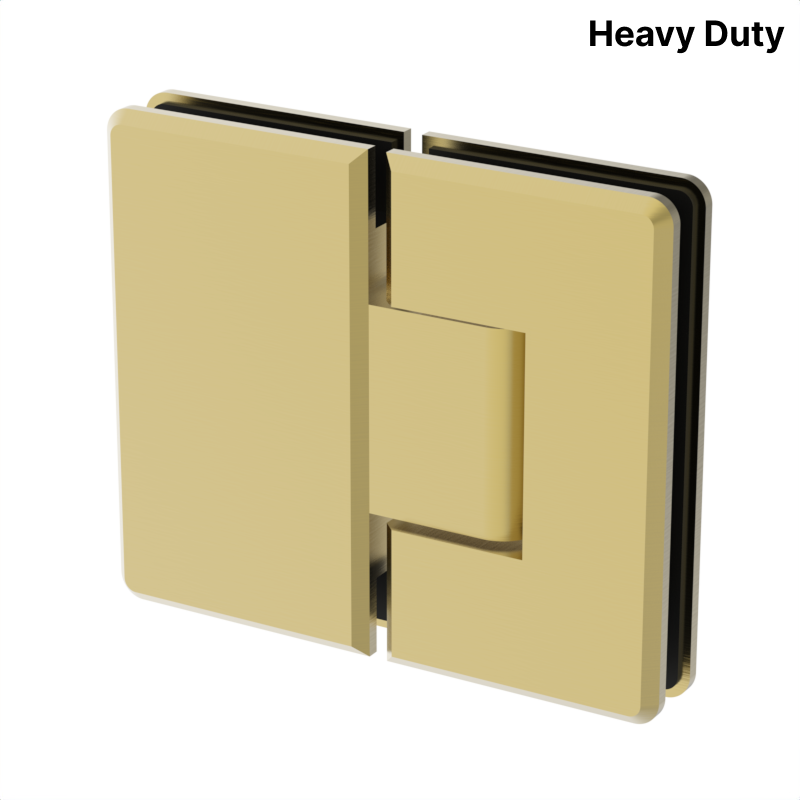

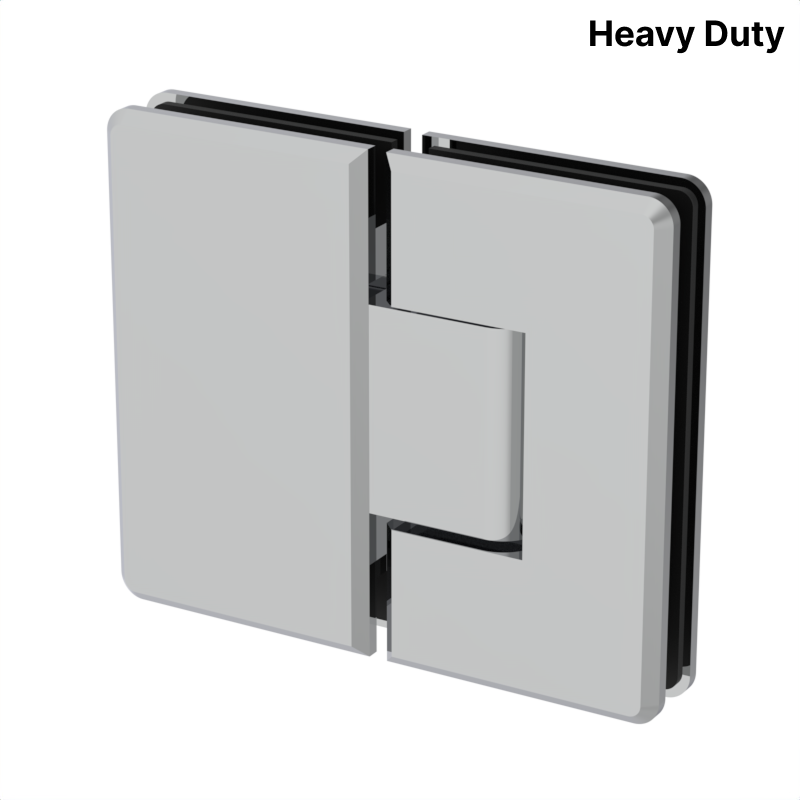

The GGH 180° Glass-to-Glass Shower Hinge from the COLETTE Series is designed for frameless shower door applications requiring a straight-line connection between glass panels. Manufactured from Brass, this heavy-duty hinge features a beveled profile and provides reliable support for larger shower doors while maintaining a refined architectural appearance for contemporary shower enclosures.

More Product Information

Material: Brass

Profile: Beveled
Product Length: 4-5/8" (117.81mm)
Product Width: 13/16" (20.32mm)
Product Height: 3-5/16" (100mm)

Glass Thickness Range: 3/8" (10mm) to 1/2" (12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: See Template for Details

Includes: Hinge Assembly & Gaskets
Gasket: Included with Hinge Body
Gasket Material: EPDM
Gasket Thickness: 1mm

Mounting Type: Glass to Glass

Adjustability: Door Alignment
Adjustment Feature: 5° Reversible Pin for Door Alignment and Closure Adjustment

Maximum Door Width:
Two Hinges: 36" (914mm) maximum door width
Three Hinges: 36" (914mm) maximum door width

Maximum Load:
Two Hinges: 110 lbs. (50 kg)
Three Hinges: 140 lbs. (63 kg)

Compare To: CLN180 / C0L180

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
