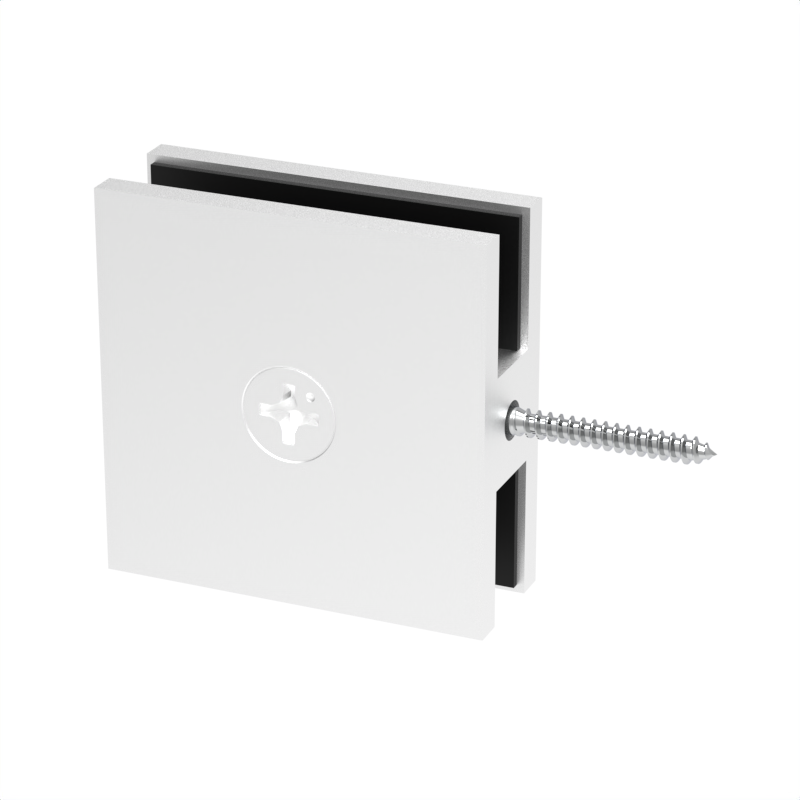

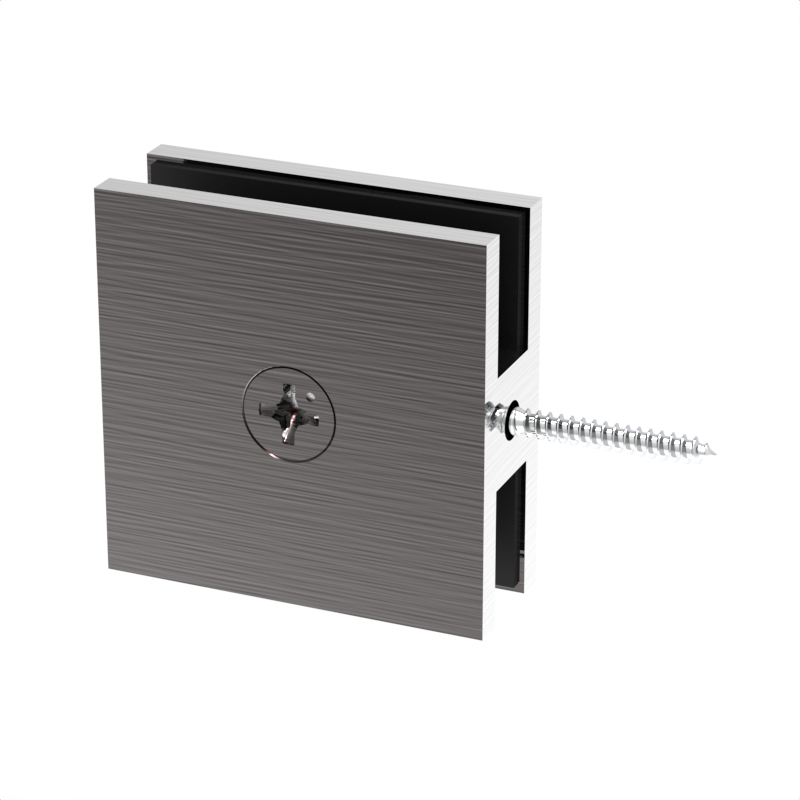

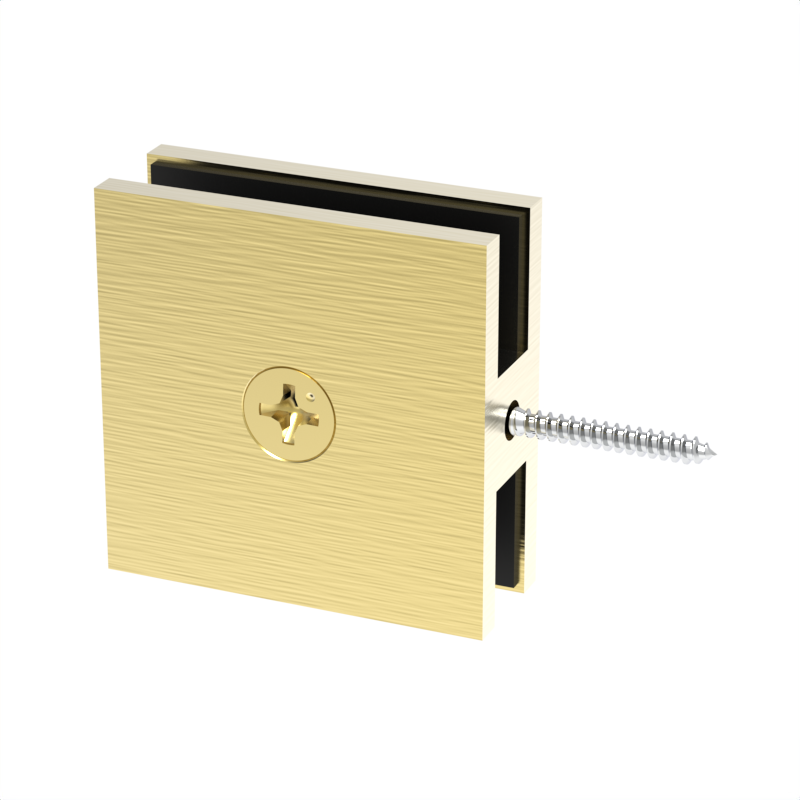

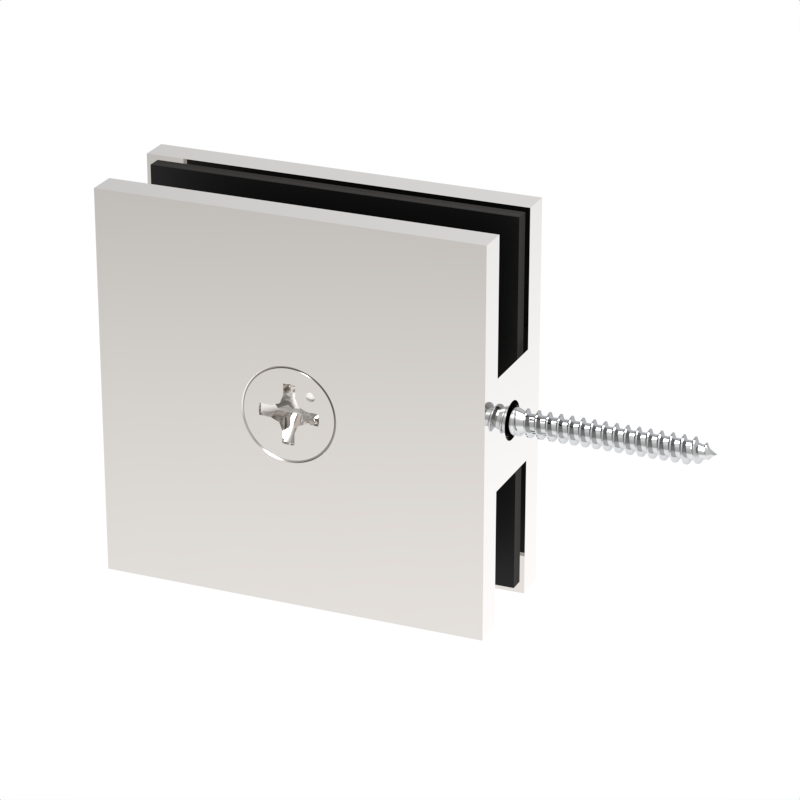

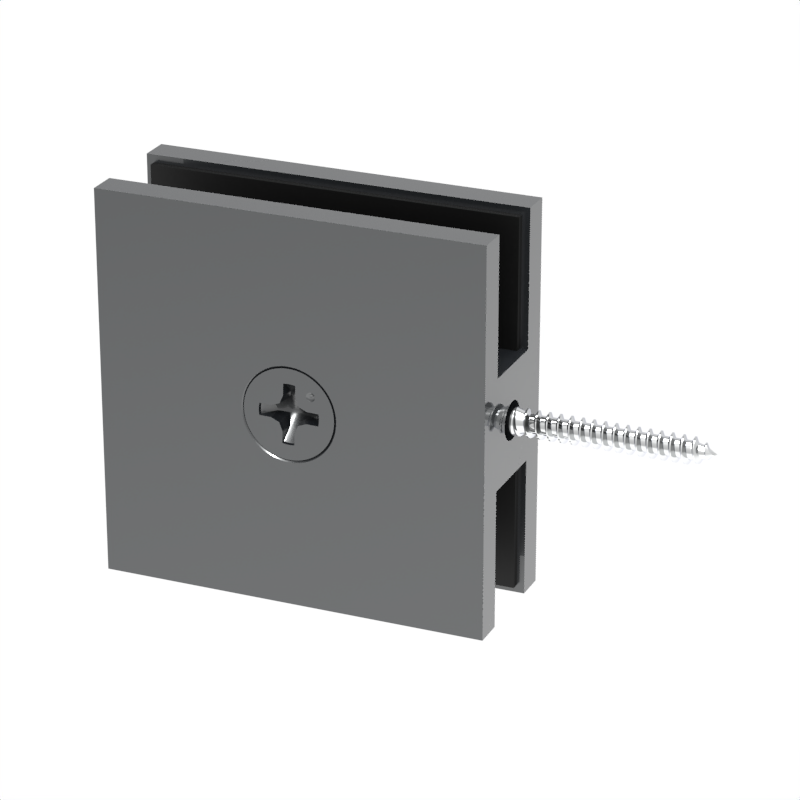

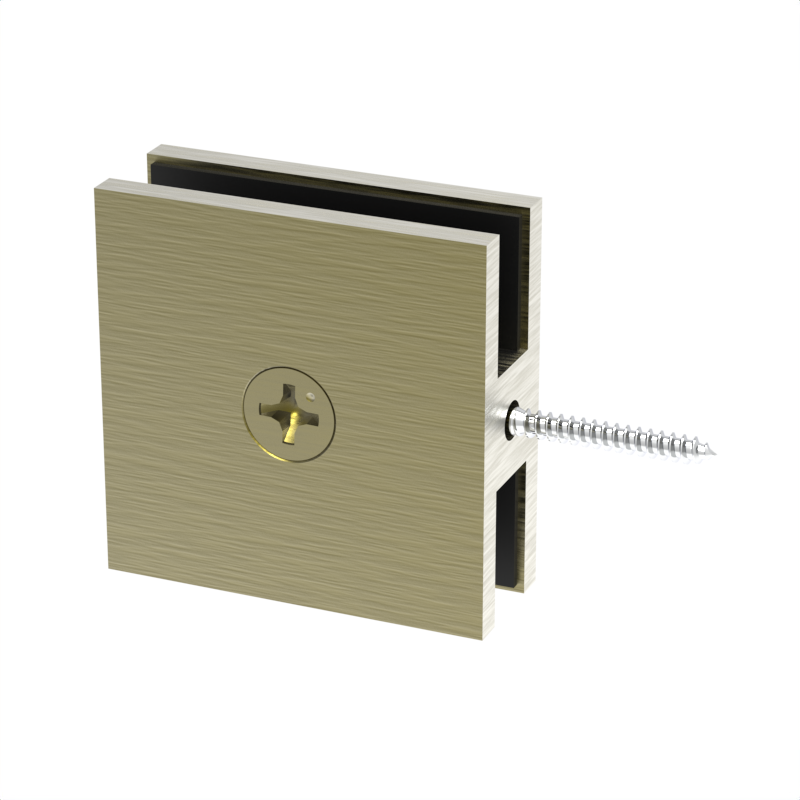

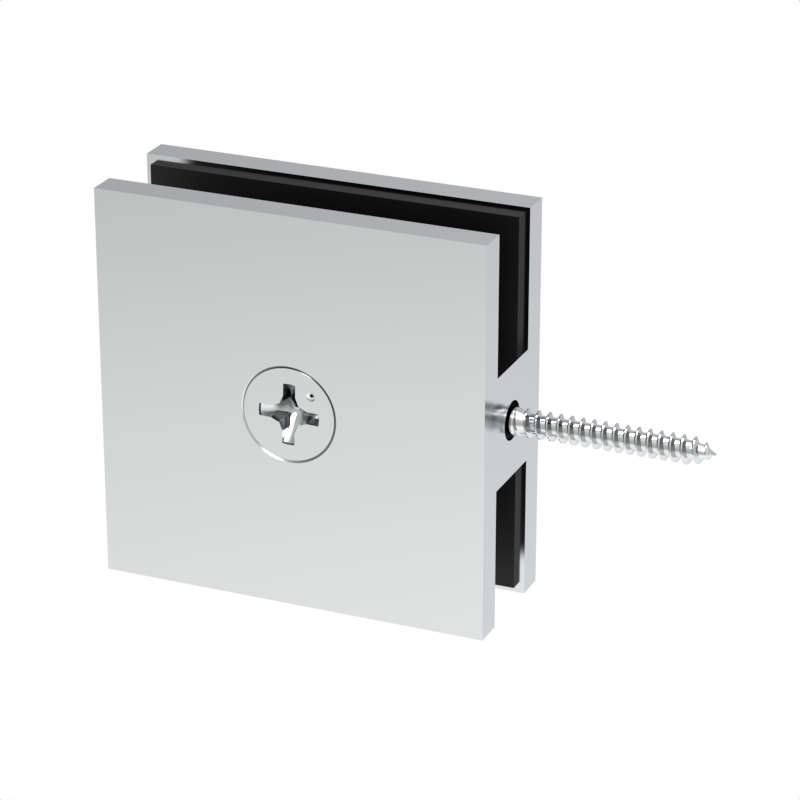

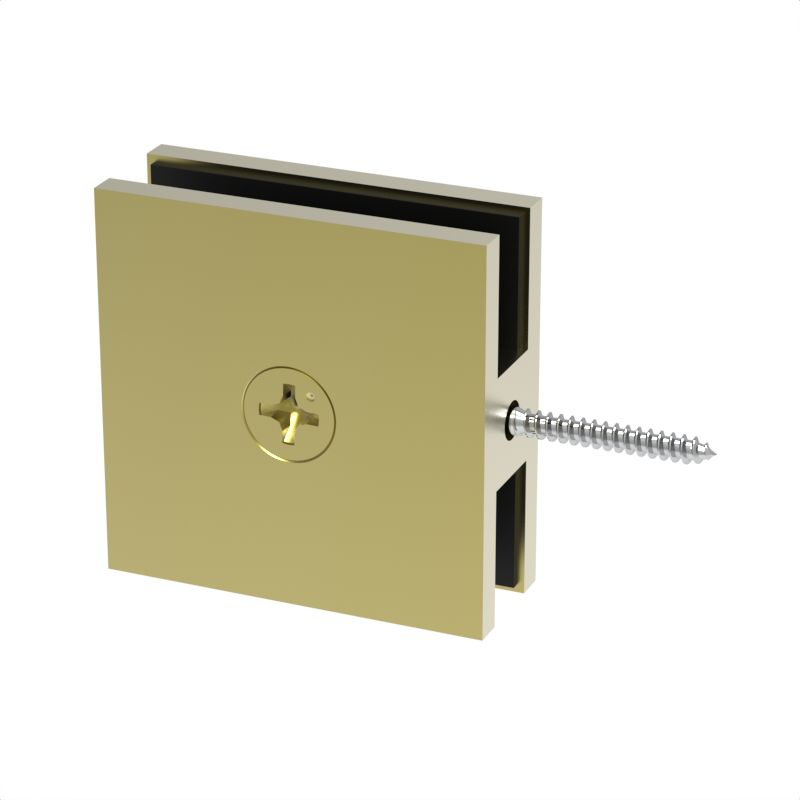

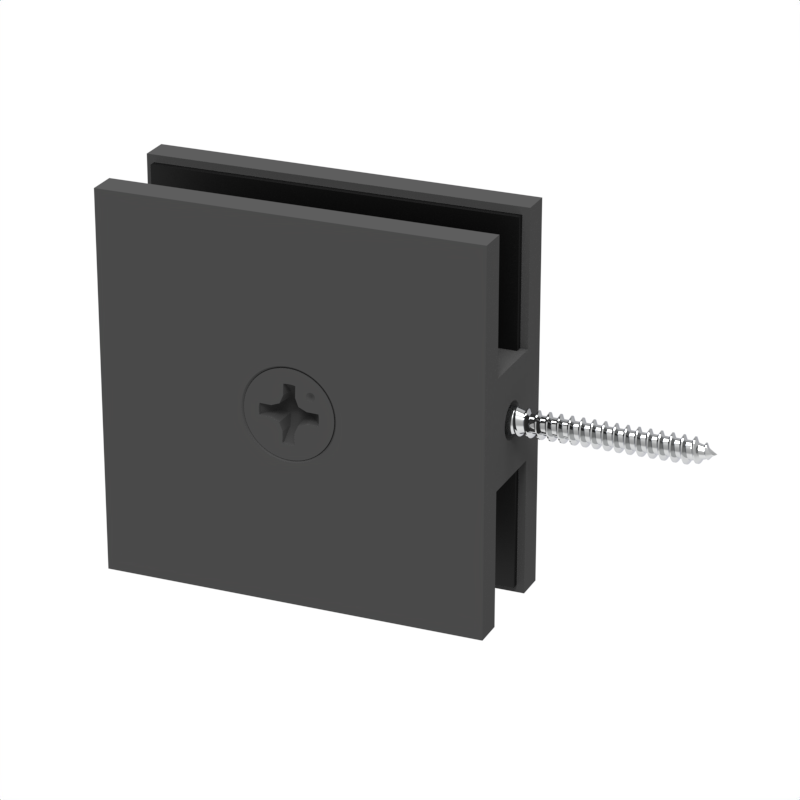

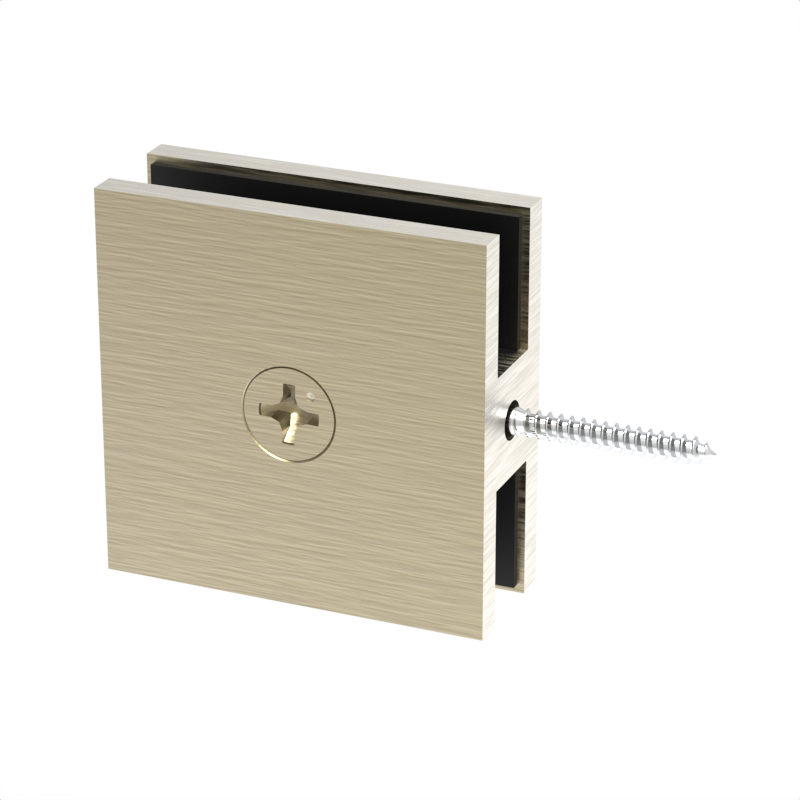

The GGH Transom Glass To Wall Clamp - Square - 180° Movable is a versatile hardware solution for frameless shower door installations. Designed to secure the connection between glass panels and the wall, this clamp allows the transom glass to swivel at a 180-degree angle, enabling effective steam and moisture release. Its durable brass construction ensures both stability and a modern aesthetic, making it ideal for contemporary bathroom designs.

More Product Information

Material: Brass

Profile: Square
Product Length: 2" (51mm)
Product Width: 11/16" (18mm)
Product Height: 2" (51mm)

Glass Thickness Range: 3/8" (10mm) to 1/2" (12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: See Template for Details

Includes: Clamp with Gaskets, Screws, Wall Anchor and Allen Key

Mounting Type: Wall to Transom Glass Panel

Adjustability: None

Product Projection From Surface: 3/16" (5mm)

Compare To: SPT1W / SGC186

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
