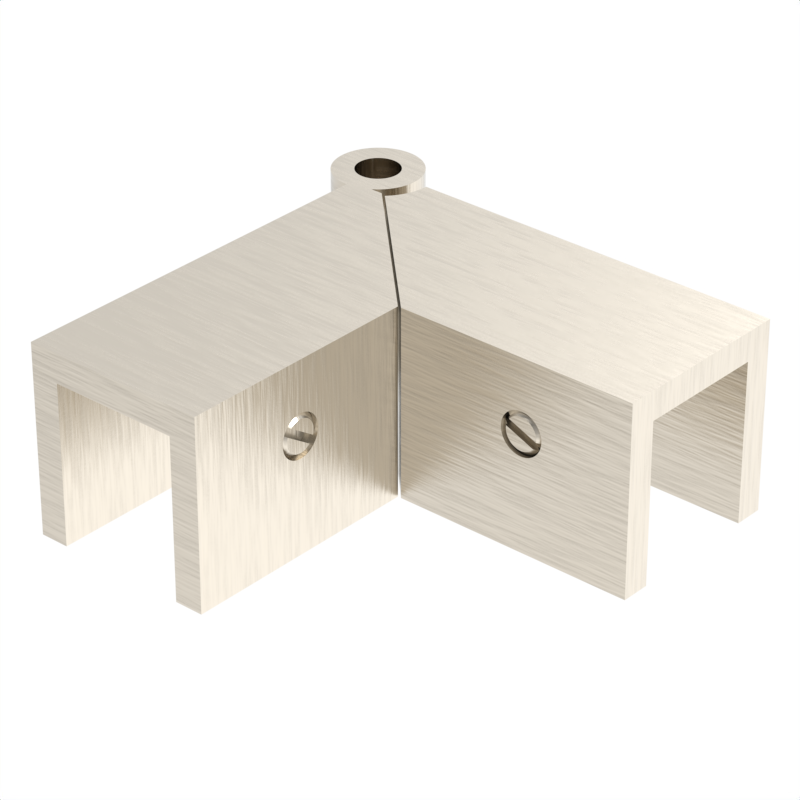

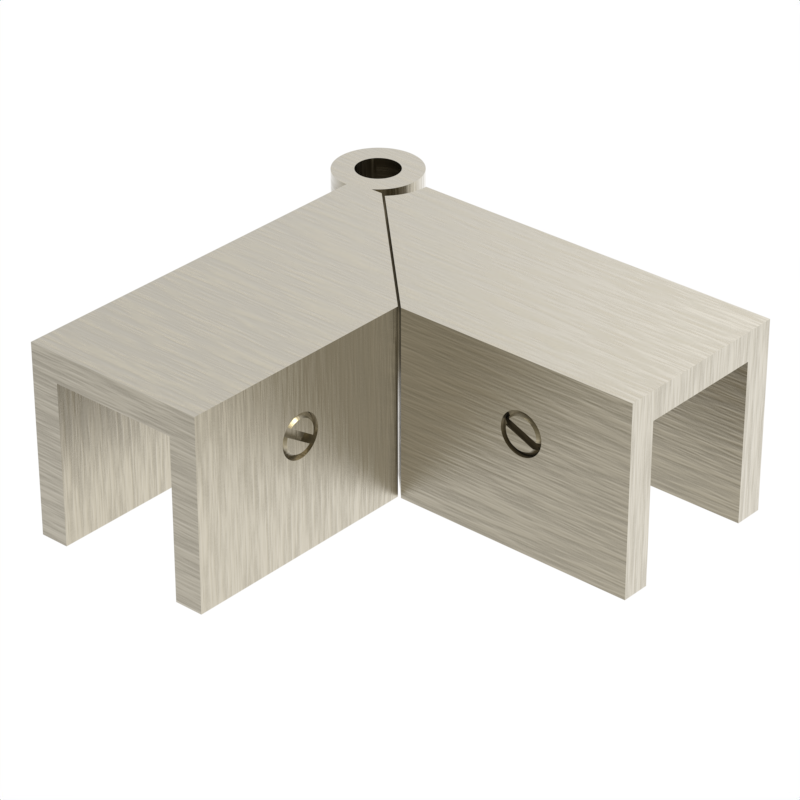

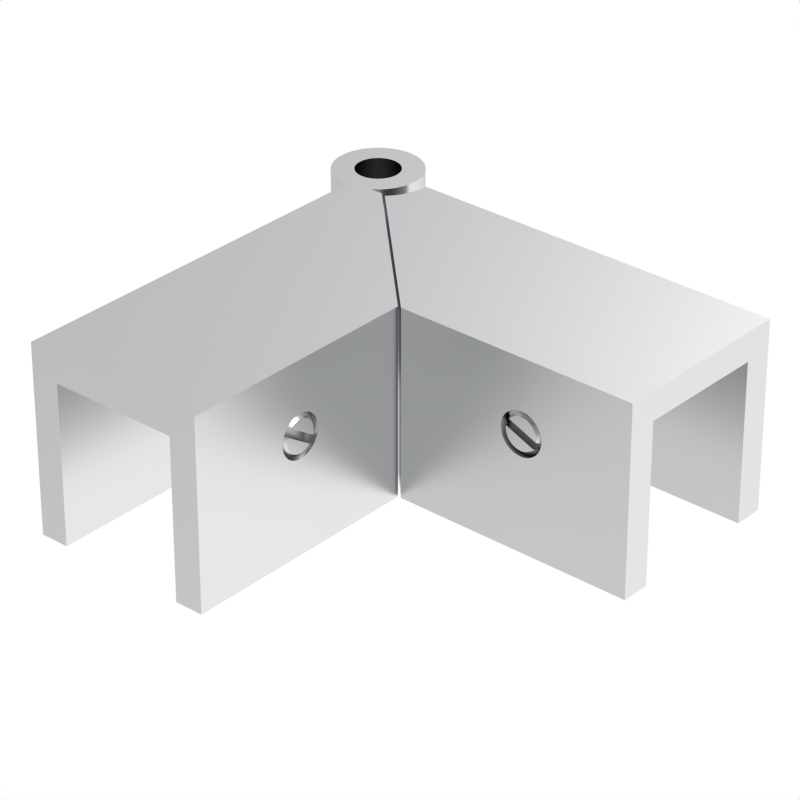

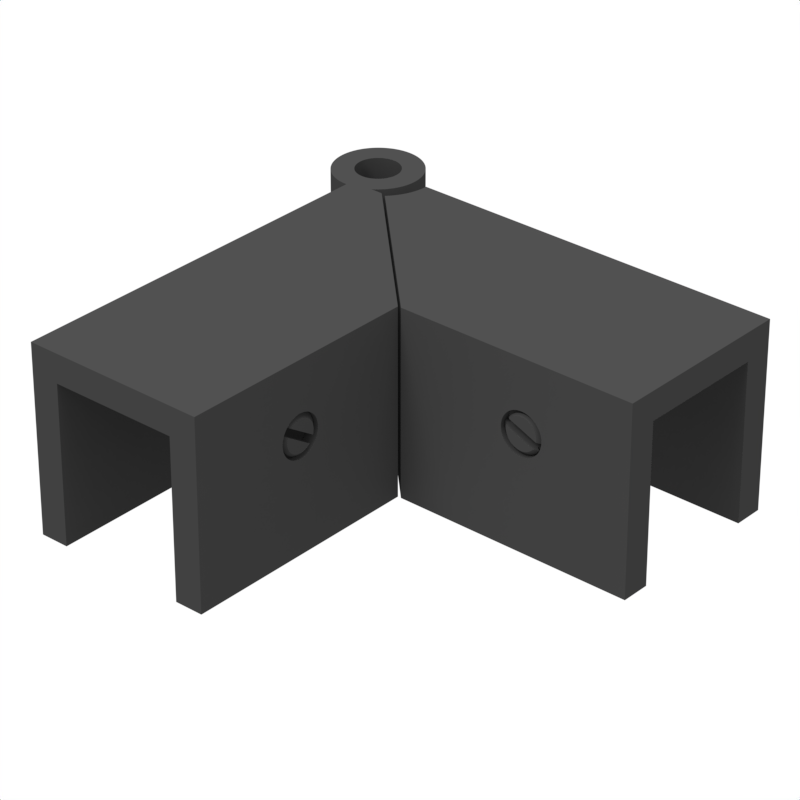

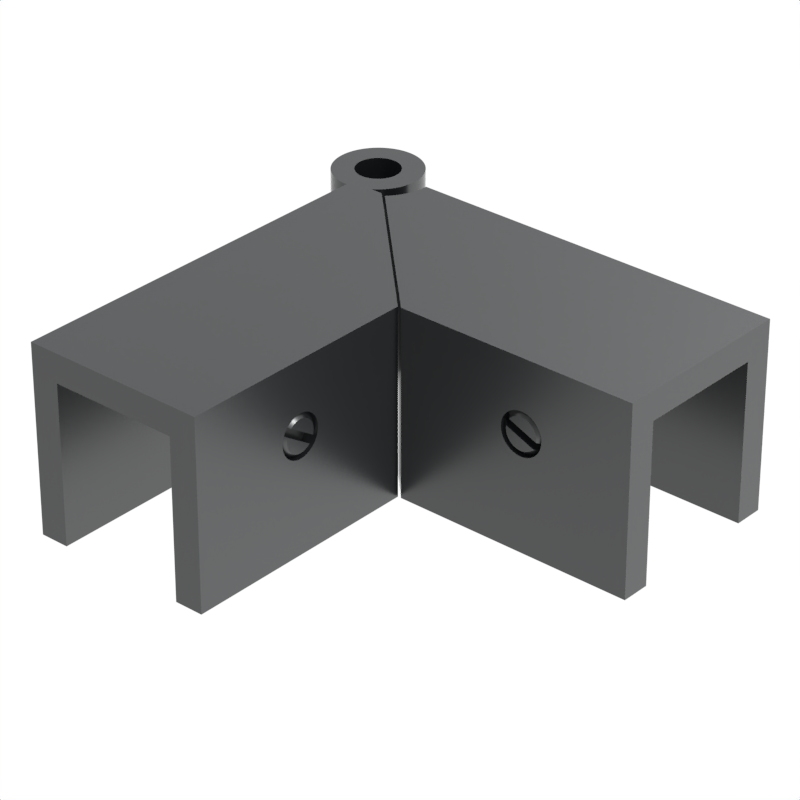

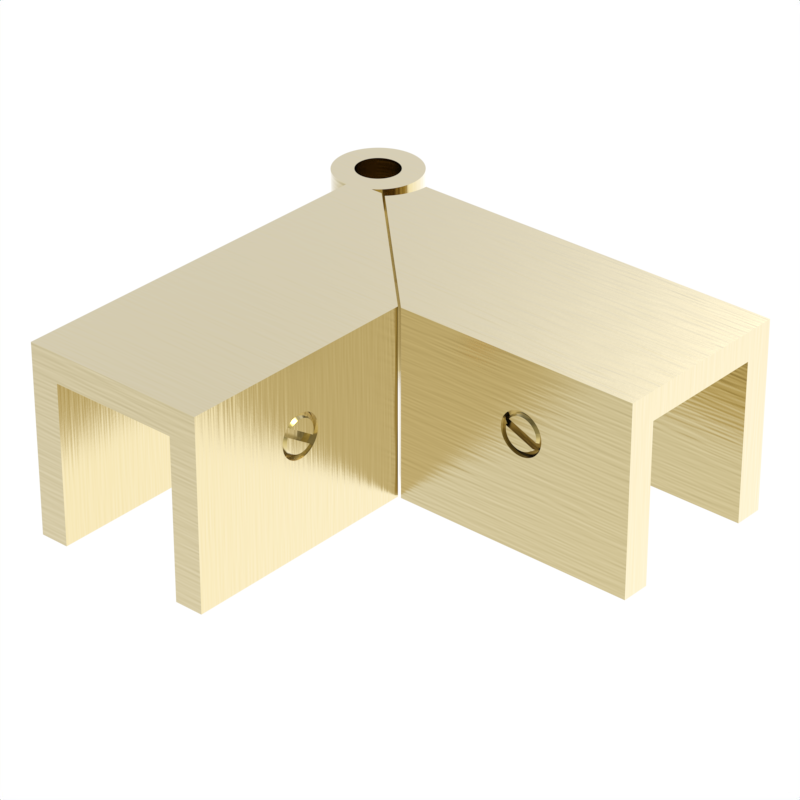

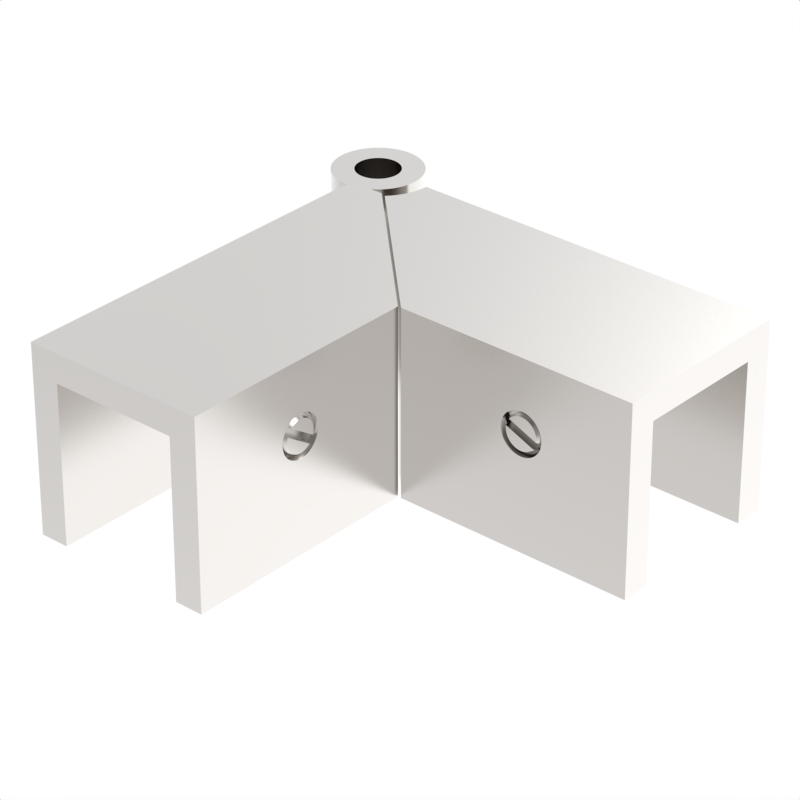

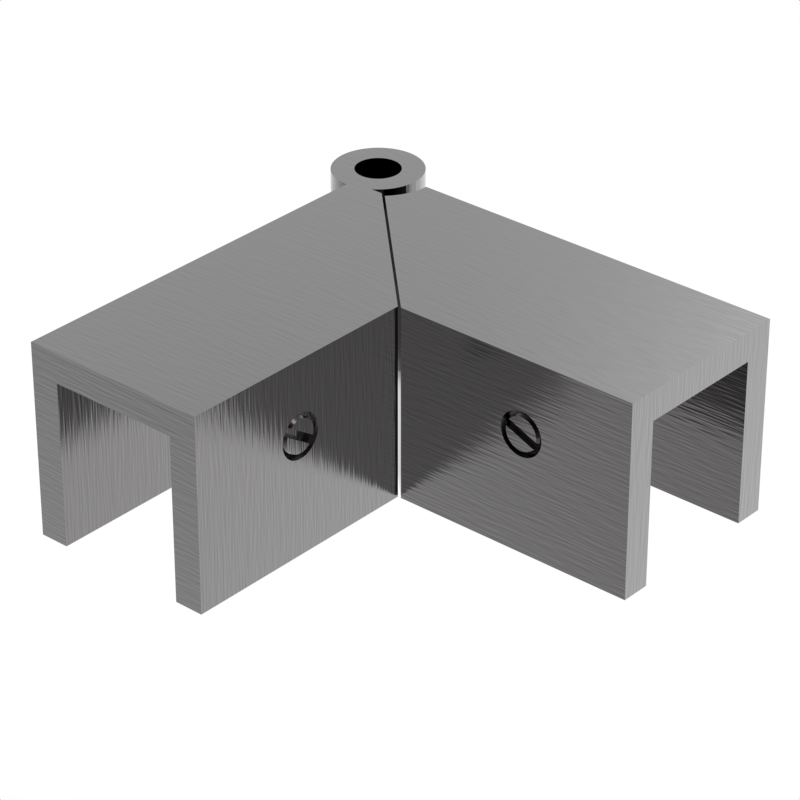

The GGH Sleeve Over Glass Clamp - 90° Adjustable - Square offers a flexible and secure solution for mounting 3/8" to 1/2" tempered glass panels in frameless shower enclosures. Made from solid brass, this clamp features an adjustable design, allowing precise angle adjustments on-site with an Allen key set screw. Its sleek, square profile is ideal for modern shower door installations, providing both functionality and aesthetic appeal.

More Product Information

Material: Brass

Profile: Square
Product Length: 2-3/8" (60mm)
Product Width: 2-3/8" (60mm)
Product Height: 1" (26mm)

Glass Thickness Range: 3/8" (10mm) to 1/2" (12mm)
Glass Type: Monolithic Tempered Glass

Includes: Clamp with Gaskets and Allen Screws
Gasket: Black Interior Gaskets or Transparent Gaskets

Mounting Type: Glass to Glass

Mounting Fastener Size: 6mm Allen Screws

Adjustability: Angular
Adjustment Feature: Adjustable with Allen key set screw for on-site angle modification

Product Projection From Surface: 3/16" (5mm)

Compare To: SFCADJ / S0GC91

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
