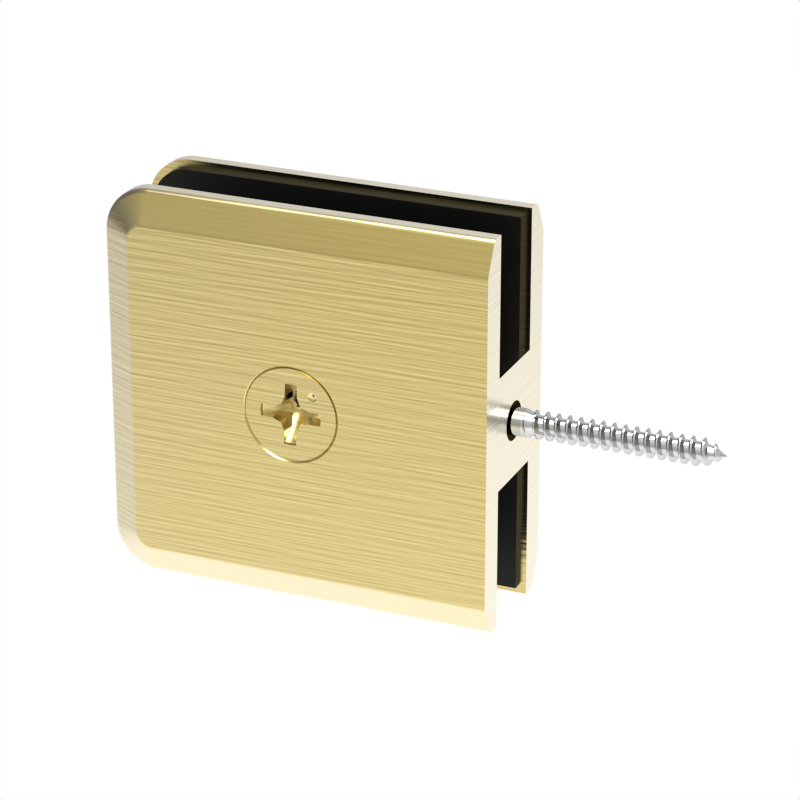

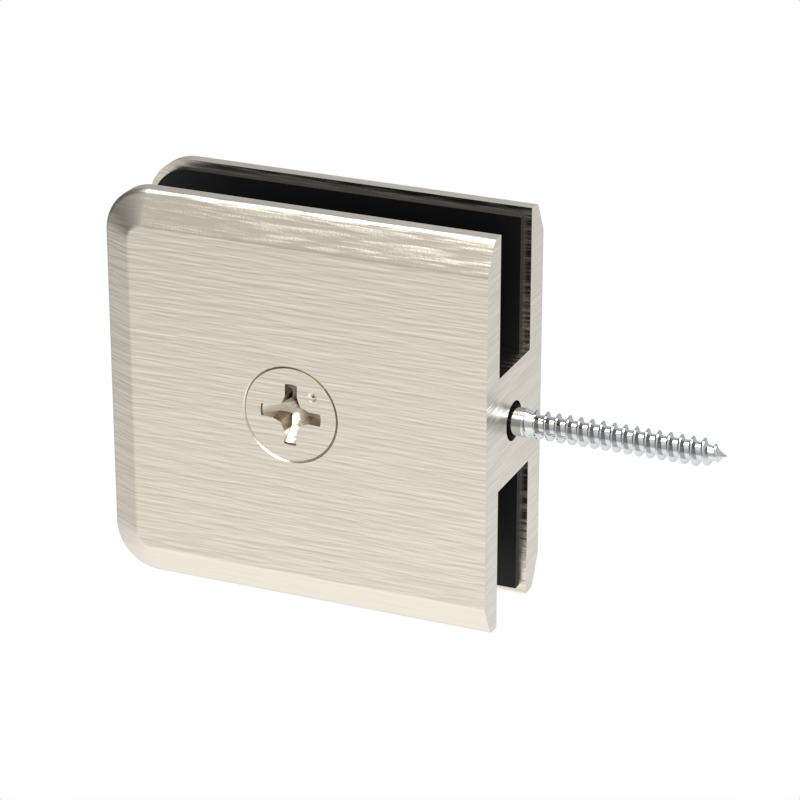

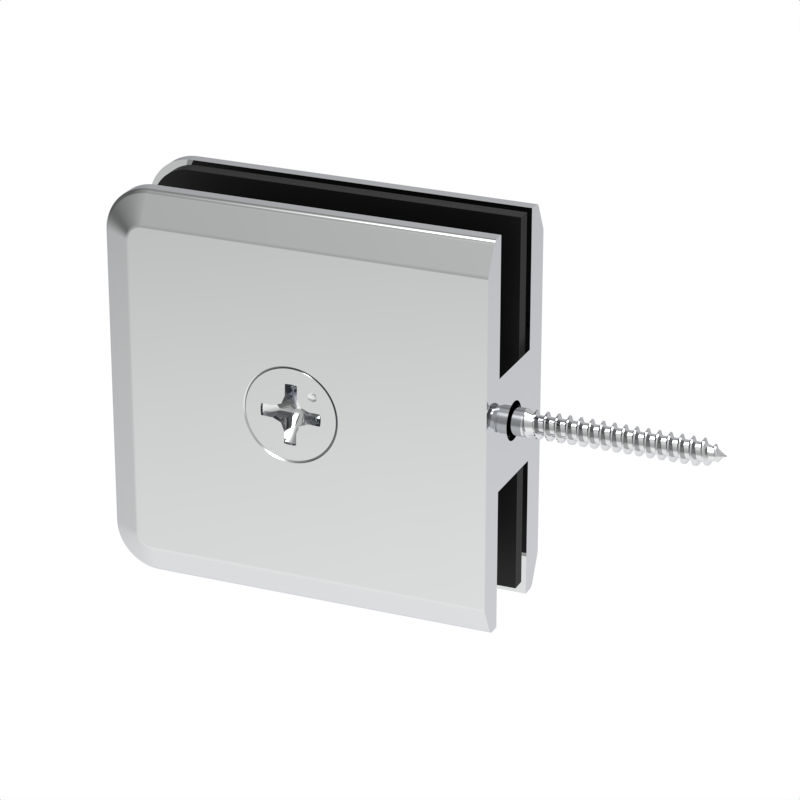

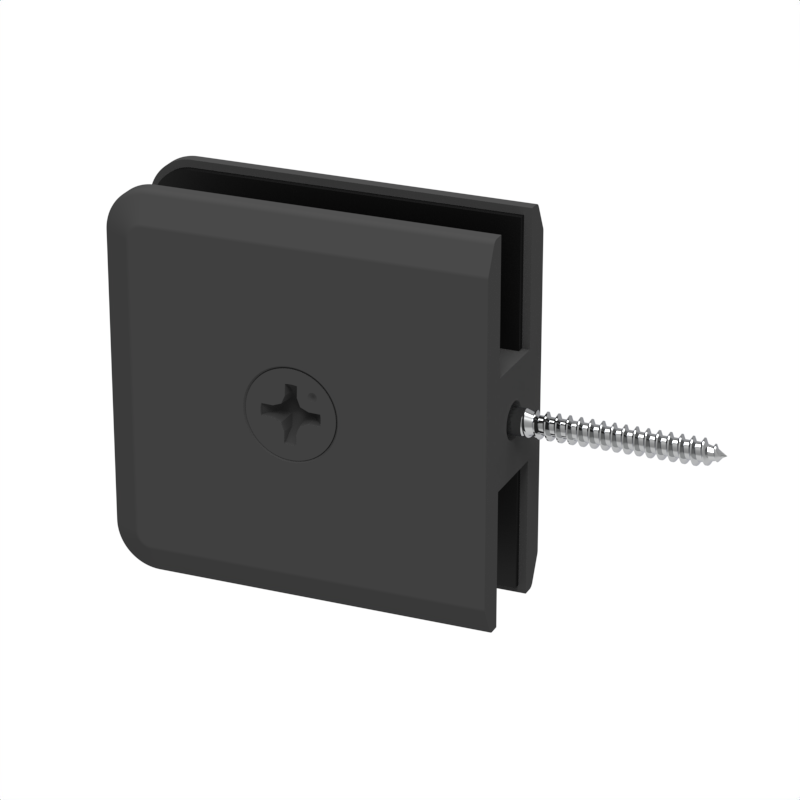

GGH Shower Clamp - Beveled - Transom Glass To Wall - 180° Movable

*Actual product colors may vary from the images shown.

[BEVC186]GGH Shower Clamp - Beveled - Transom Glass To Wall - 180° Movable

Finishes

[BEVC186]GGH Shower Clamp - Beveled - Transom Glass To Wall - 180° Movable

Features, Advantages, and Benefits

• Beveled transom clamp with 180° movable connection for transom glass applications
• Manufactured from Brass
• Beveled profile complements beveled shower hinges and hardware
• Designed to secure transom glass panels while allowing controlled movement for ventilation and steam release
• Compatible with shower clamps, shower handles, shower U-channels, shower sweeps, shower header bars and shower thresholds
• Suitable for indoor residential and commercial bathroom glass installations
• Ideal for frameless shower enclosures requiring movable transom panels

The GGH Transom Glass To Wall Clamp - Beveled - 180° Movable is a high-quality hardware accessory designed for frameless shower door glass installations. This clamp facilitates the swiveling of transom glass at a 180° angle to efficiently release steam and moisture, enhancing the overall shower experience. Its beveled design ensures a secure and stable attachment between glass panels, offering both style and functionality for modern shower enclosures.

More Product Information

Material: Brass

Profile: Beveled
Product Length: 2" (51mm)
Product Width: 11/16" (18mm)
Product Height: 2" (51mm)

Glass Thickness Range: 3/8" (10mm) to 1/2" (12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: See Template for Details

Includes: Clamp with Gaskets, Screws, Wall Anchor and Allen Key

Mounting Type: Wall to Transom Glass Panel

Adjustability: None

Product Projection From Surface: 3/16" (5mm)

Compare To: BPT1W / BGC186

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
