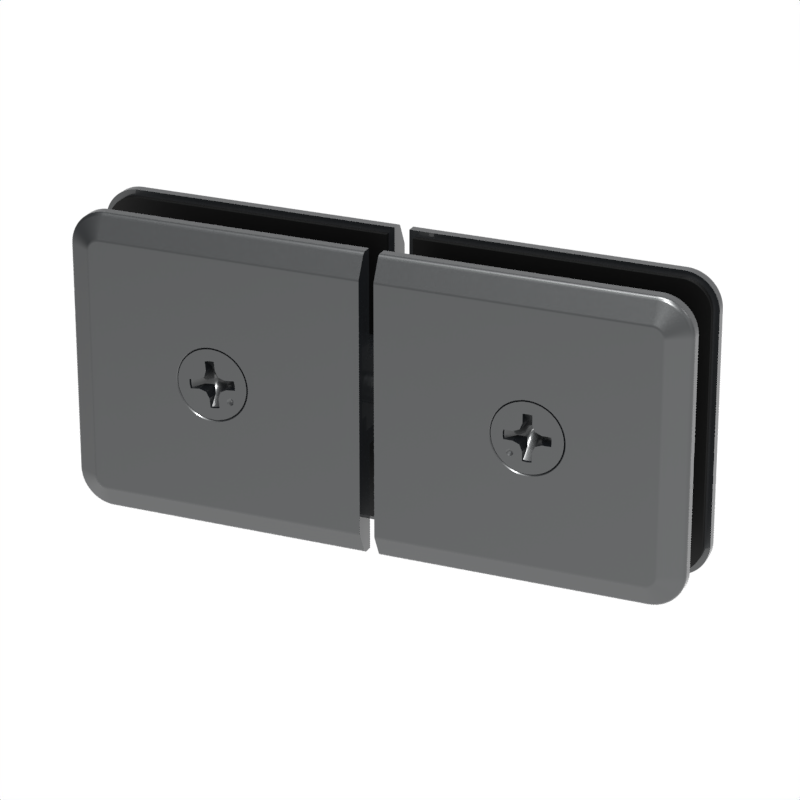

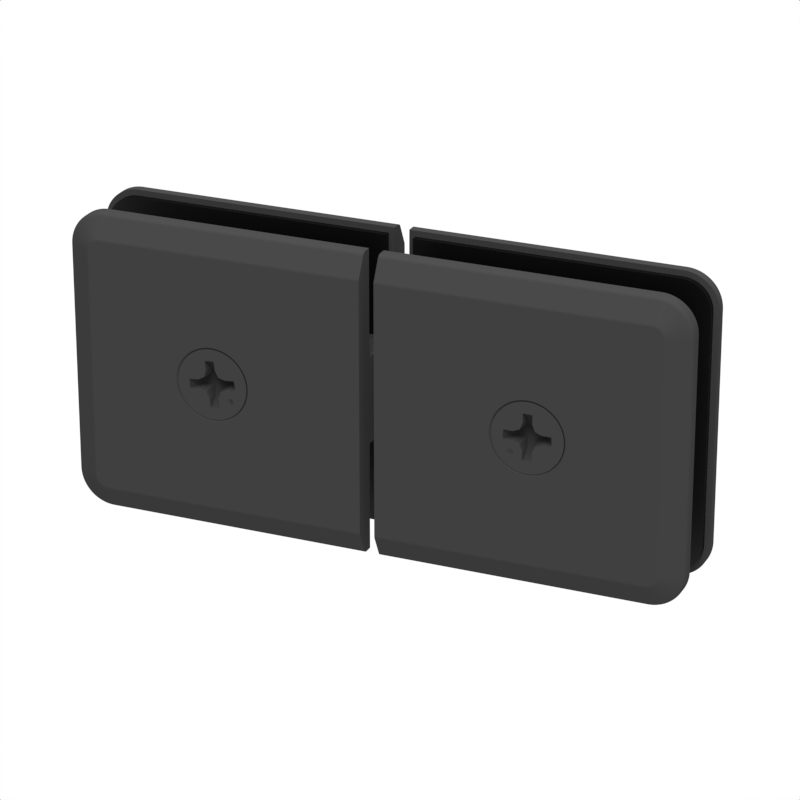

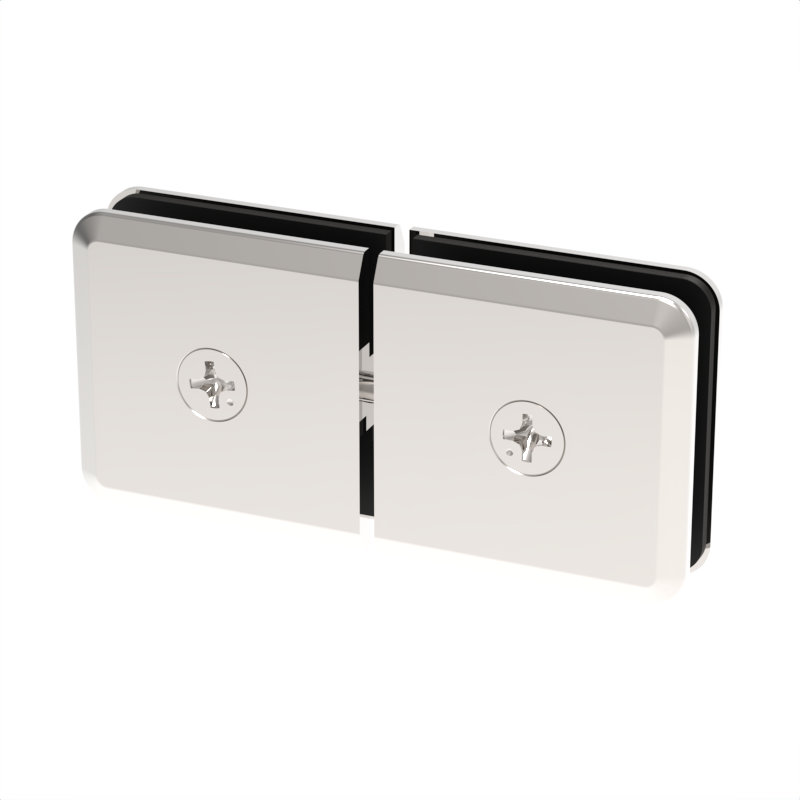

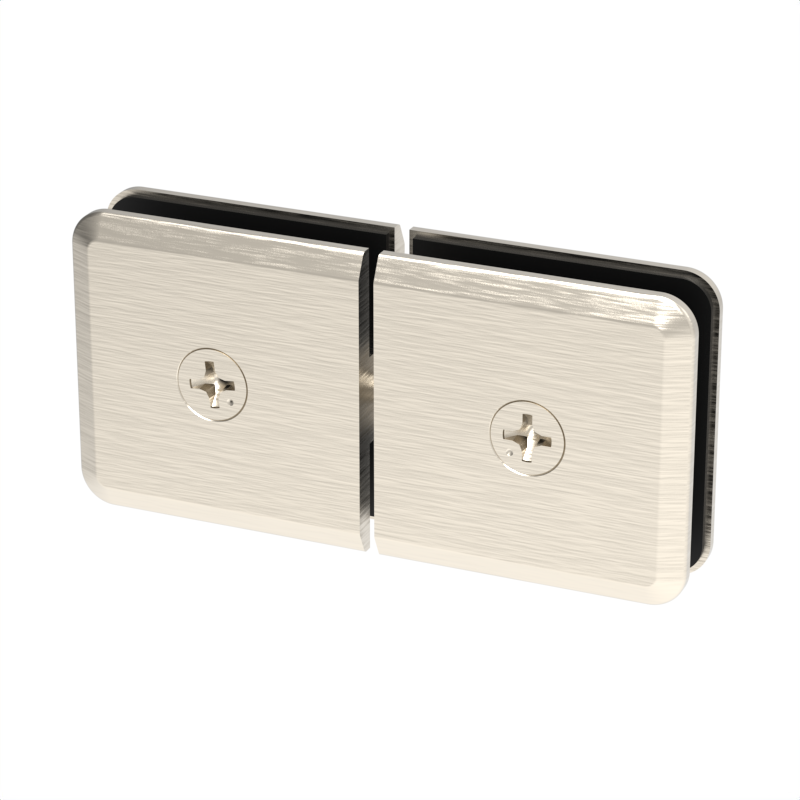

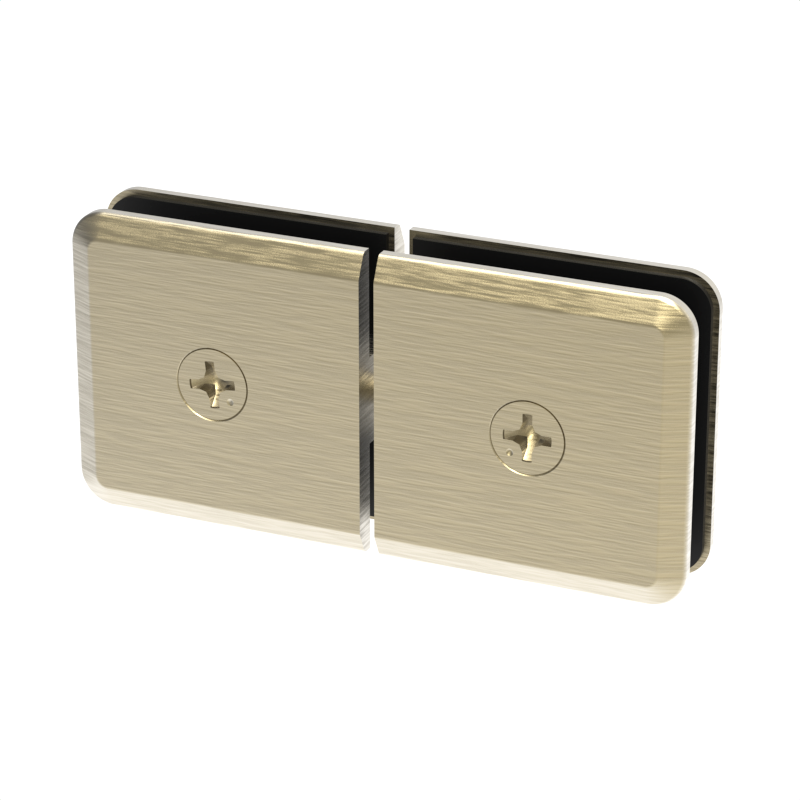

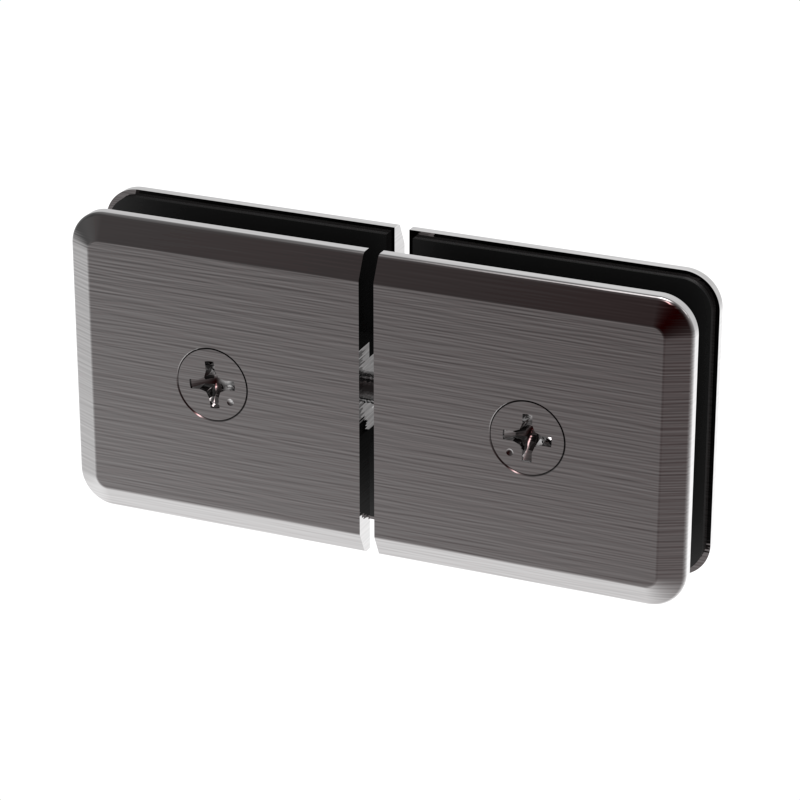

The GGH Transom Glass To Glass Clamp - Beveled - 180° Movable is a versatile hardware piece designed for frameless shower doors. This clamp allows the transom to swivel 180°, enabling the efficient release of steam and moisture. The beveled design provides both style and functionality, offering a sleek and secure connection between glass panels for modern shower enclosures.

More Product Information

Material: Brass

Profile: Beveled
Product Length: 4-1/8" (105mm)
Product Width: 11/16" (18mm)
Product Height: 2" (51mm)

Glass Thickness Range: 3/8" (10mm) to 1/2" (12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: See Template for Details

Includes: Clamp with Gaskets and Screws

Mounting Type: Glass to Glass

Adjustability: Angular
Adjustment Feature: Two clamps can be rotated to fit glass at different angles

Product Projection From Surface: 3/16" (5mm)

Distance Between Glass Panels: 1/8" (2.5mm)

Compare To: CSN184

For technical inquiries or quotes, please contact us at technical@ggh-usa.com.

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
