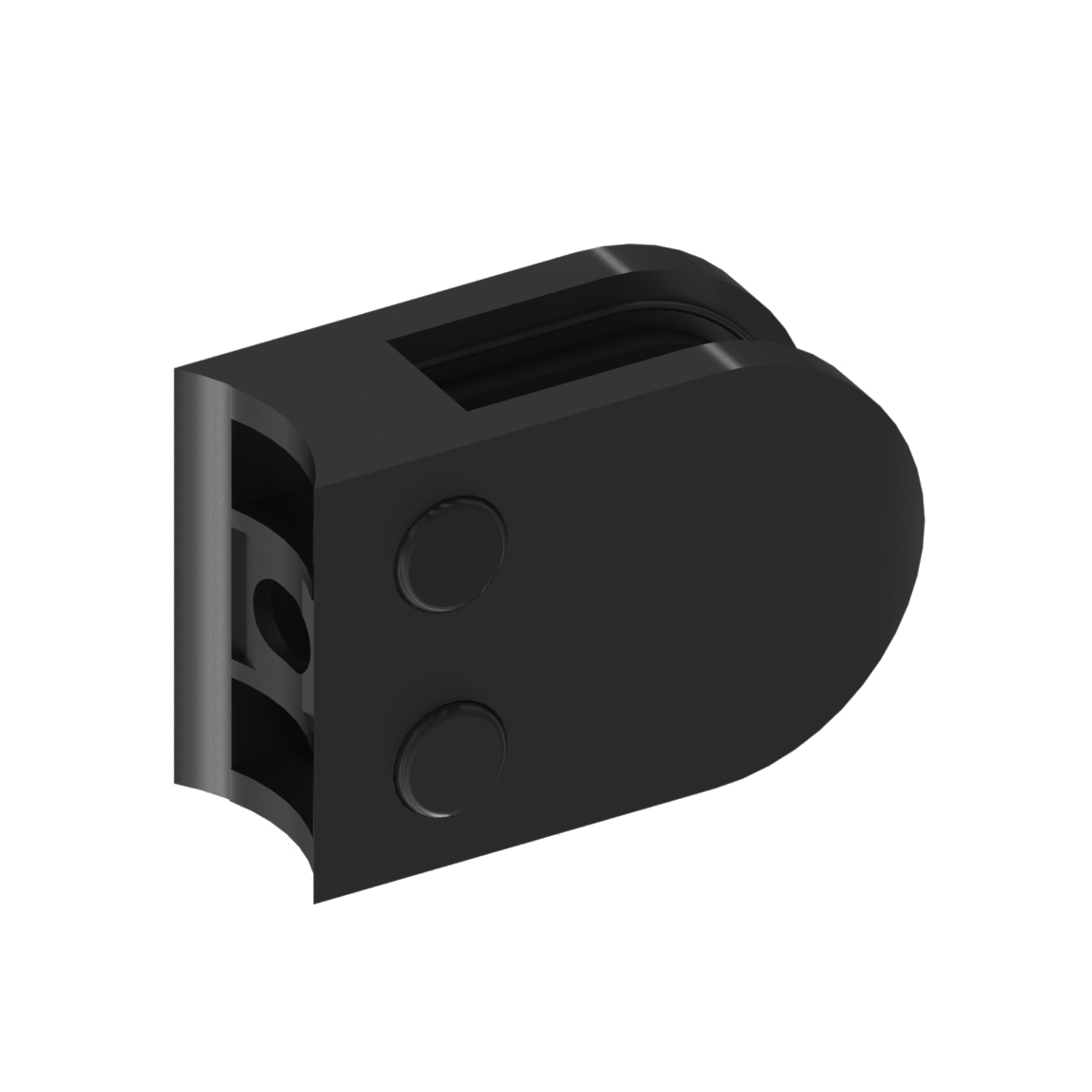

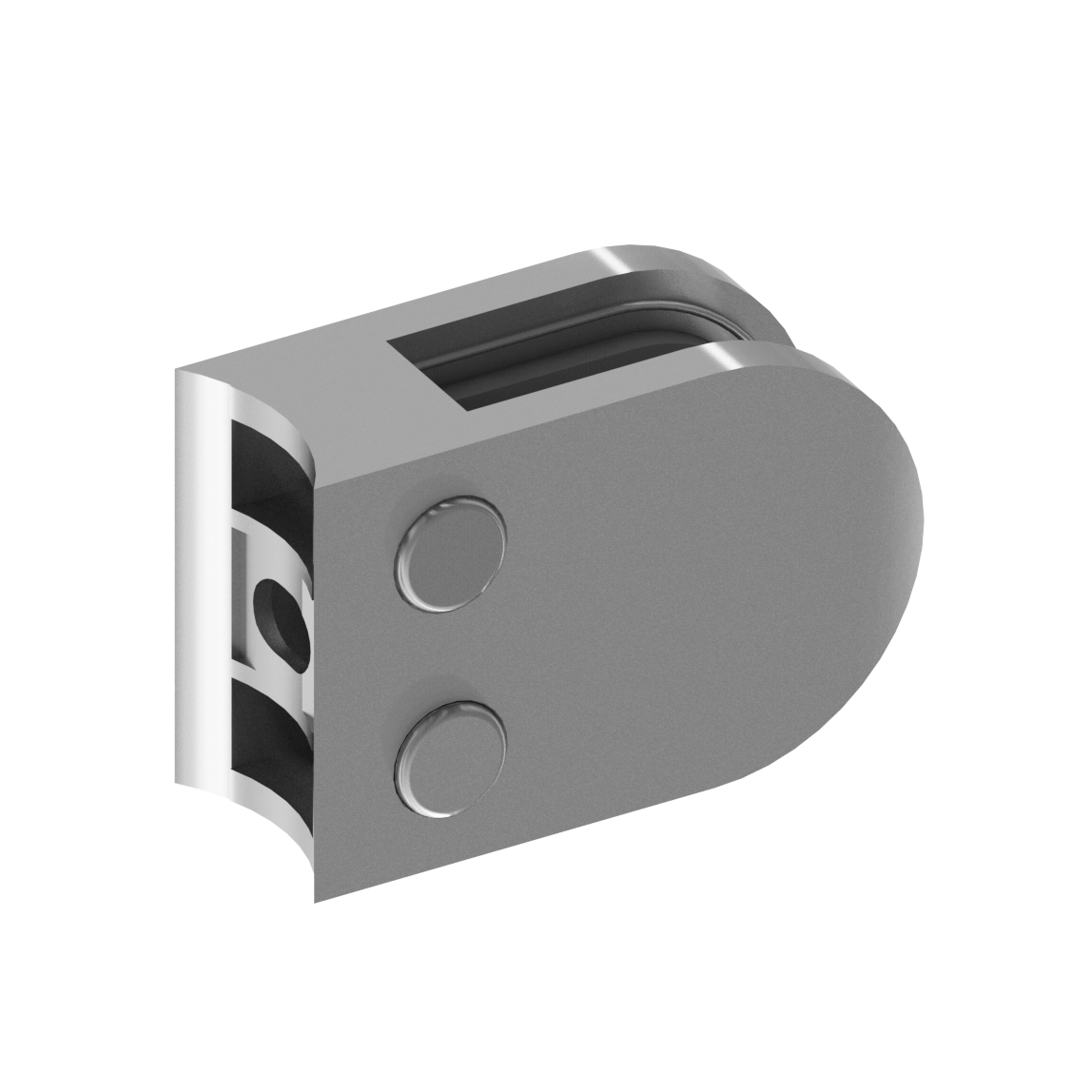

The Round CLAM Series Railing Clamp is a high-quality stainless steel glass clip designed for secure and elegant railing installations. Constructed from SS316 stainless steel, this clamp is built to withstand both indoor and outdoor environments, offering exceptional durability and corrosion resistance.

More Product Information

Product Length: 1-3/4" (45mm)
Product Width: 2-5/8" (67mm)
Product Height: 1-1/4" (31mm)
Material: 316 Stainless Steel
Includes: Clamp, gaskets, mounting screws, caps, and optional safety pin
Gasket Material: EPDM
Gasket Thickness: 2.5mm / 3.5mm (depending on glass thickness)
Thread Size: 1/2" Dia hole size

Glass Thickness Range: 3/8" (10mm) and 1/2" (12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: Requires 1/2" (12mm) diameter hole

Compare To: R710

For technical inquiries: technical@ggh-usa.com

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
