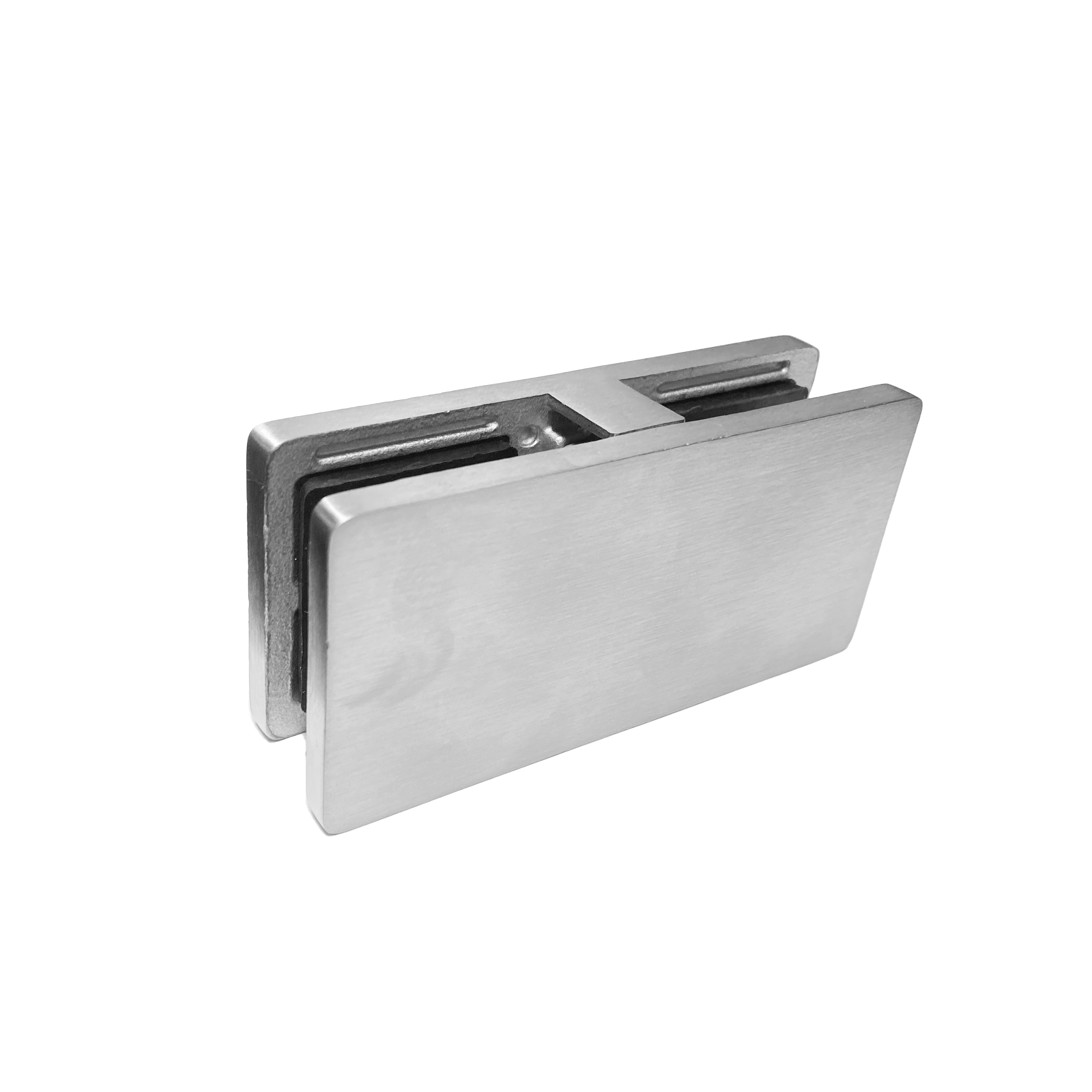

The Pool Fencing Bracket - 180° Glass to Glass - Square is designed to provide a secure and stylish solution for connecting glass panels at a 180° angle in pool fencing systems. Made from high-grade Stainless Steel 316, it offers superior durability and corrosion resistance, making it perfect for both indoor and outdoor applications.

Material: 316 Stainless Steel

Profile: Square
Product Length: 2-3/4" (70mm)
Product Width: 1-1/8" (27mm)
Product Height: 1-3/4" (45mm)

Glass Thickness Range: 1/4" to 1/2" (6mm to 12mm)
Glass Type: Monolithic Tempered Glass

Includes: Optional Safety Pin, Gaskets (10mm & 12mm), Screw Caps
Gasket Material: EPDM (Black)
Gasket Thickness: 1/8" (3mm for 10mm glass), 1/16" (2mm for 12mm glass)

Mounting Fastener Size: M6 Threaded

Mounting Type: Glass Mount

Minimum Height Requirements:
Single Residential Property: 47.24" (1.2m)
Multiple Residential Property: 70.87" (1.8m)
Non-Residential Property: 70.87" (1.8m)
Maximum Glass Width: 40"
Maximum Weight Capacity: 45 kg (100 lbs)
