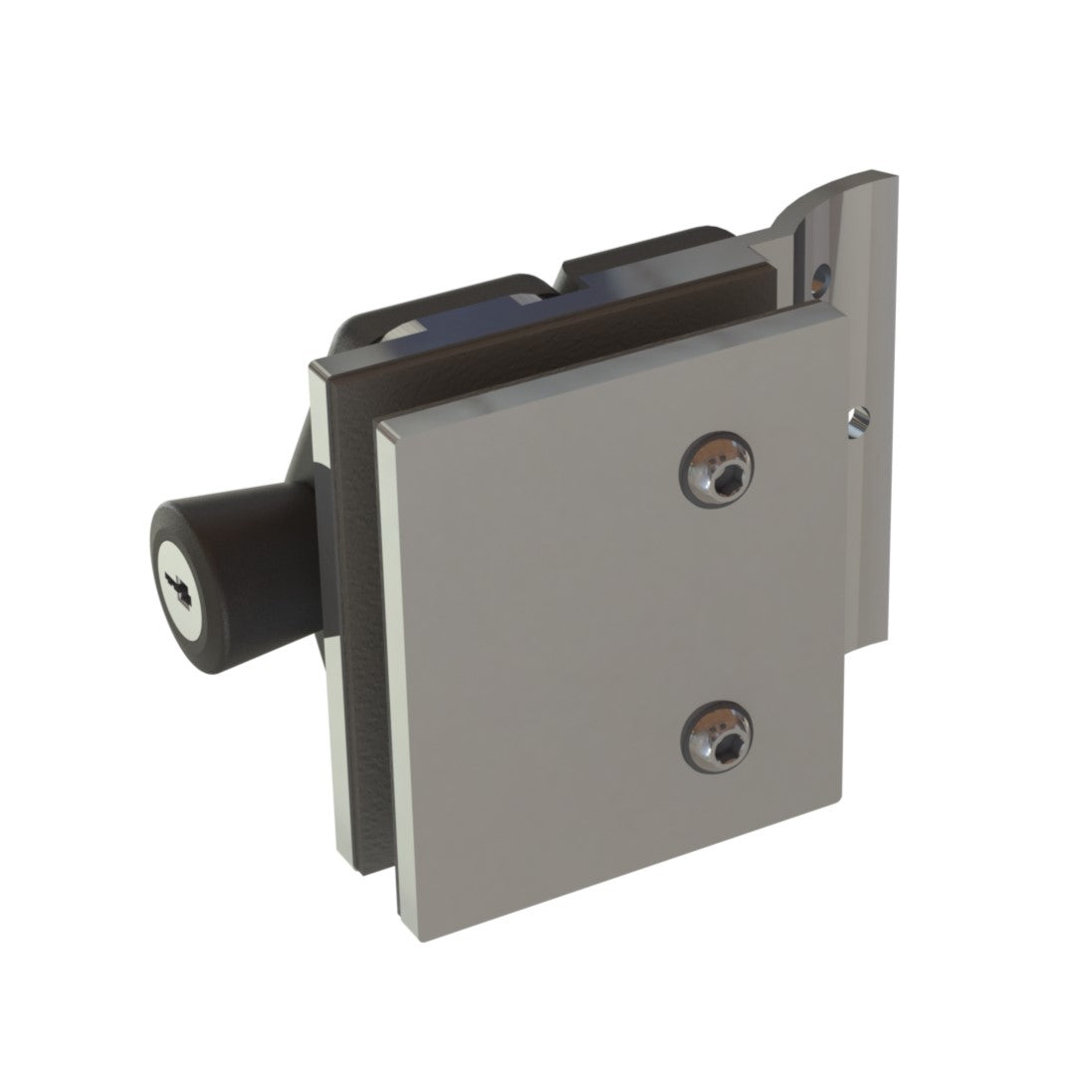

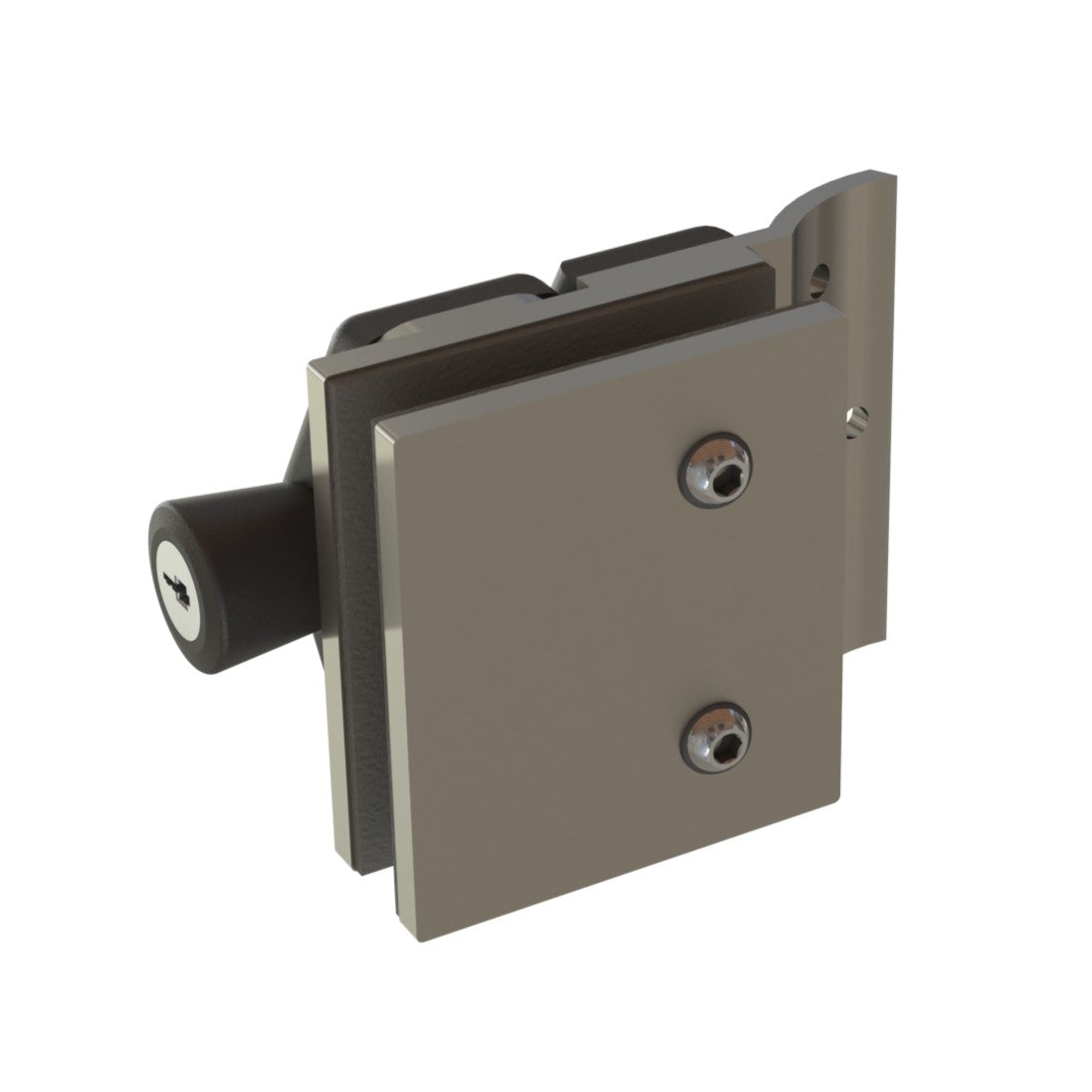

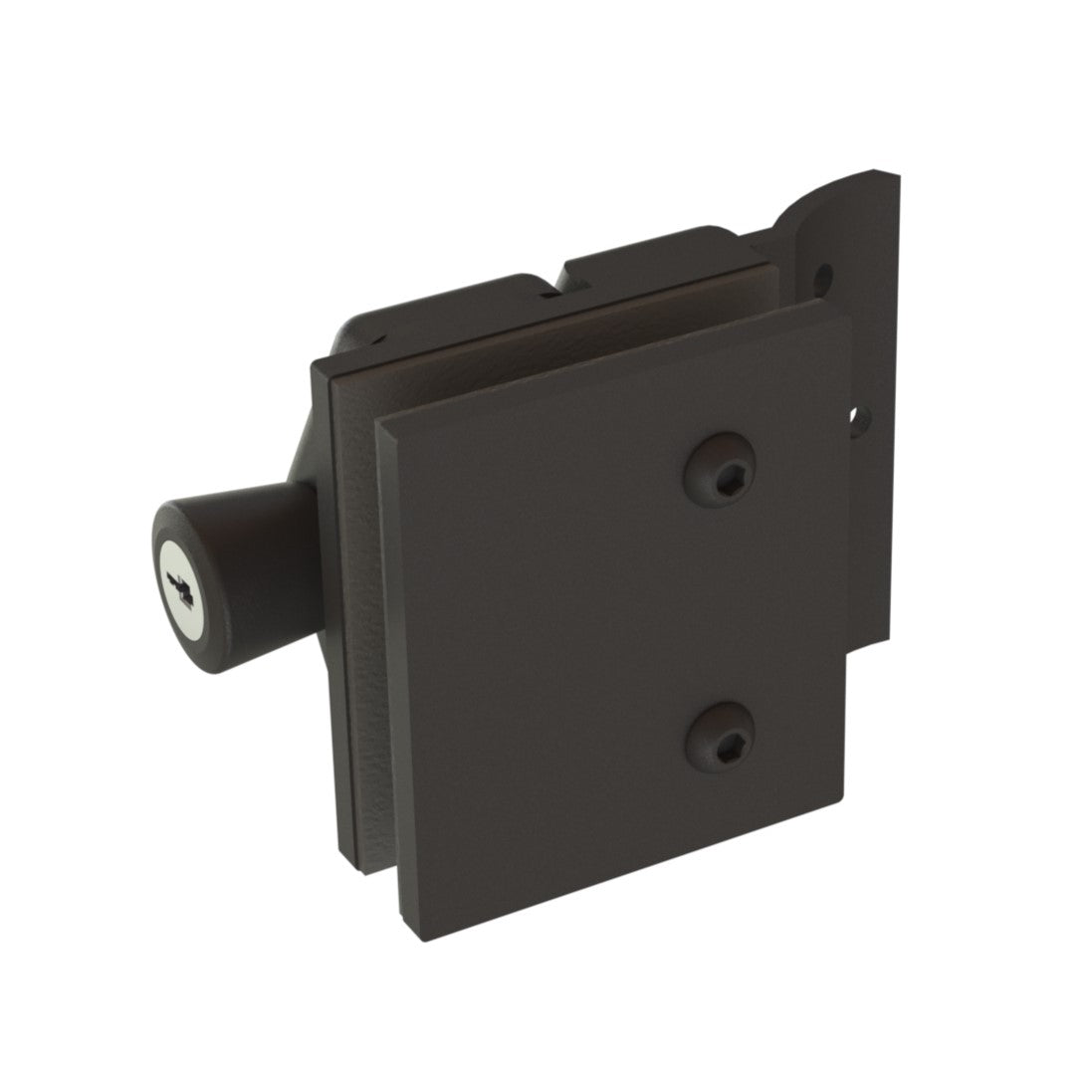

The DIVE Series Round Post Pool Fencing Latch with Lock is a premium and secure solution for pool fencing projects. Crafted from SS316 stainless steel, it delivers exceptional durability and corrosion resistance, making it ideal for both indoor and outdoor applications. This latch is designed to fit glass panels of various thicknesses, ensuring compliance with pool fencing regulations while enhancing safety and style.

More Product Information

Material: 316 Stainless Steel

Product Length: 4-3/4" (120.93mm)
Product Width: 3" (76.20mm)
Product Height: 2" (49.27mm)

Glass Thickness Range: 5/16" to 1/2" (8mm to 12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: 3/8" (10mm) Hole

Height Requirement: Please check your local building code for height requirements.

Includes: Keys
Gasket: Black Interior Gaskets
Gasket Material: EPDM
Gasket Thickness: 1/16" (1.5mm)

Mounting Fastener Size: 1/4" Hole (Post Mounting), M8 Threaded (Glass Mounting)

Mounting Type: Post Mount

Maximum Glass Width: 40"
Maximum Weight Capacity: 45 kg (100 lbs)

For technical inquiries: technical@ggh-usa.com

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
