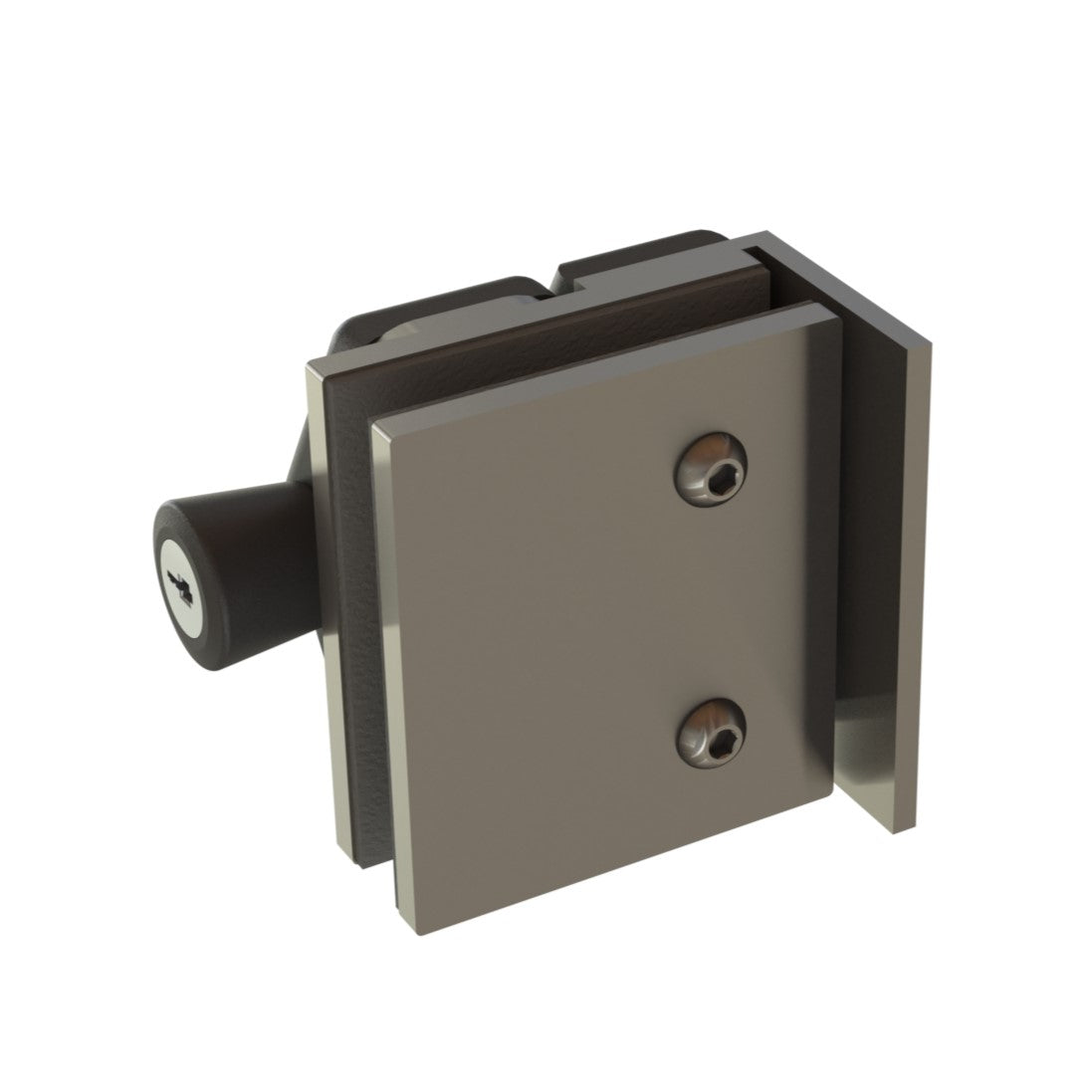

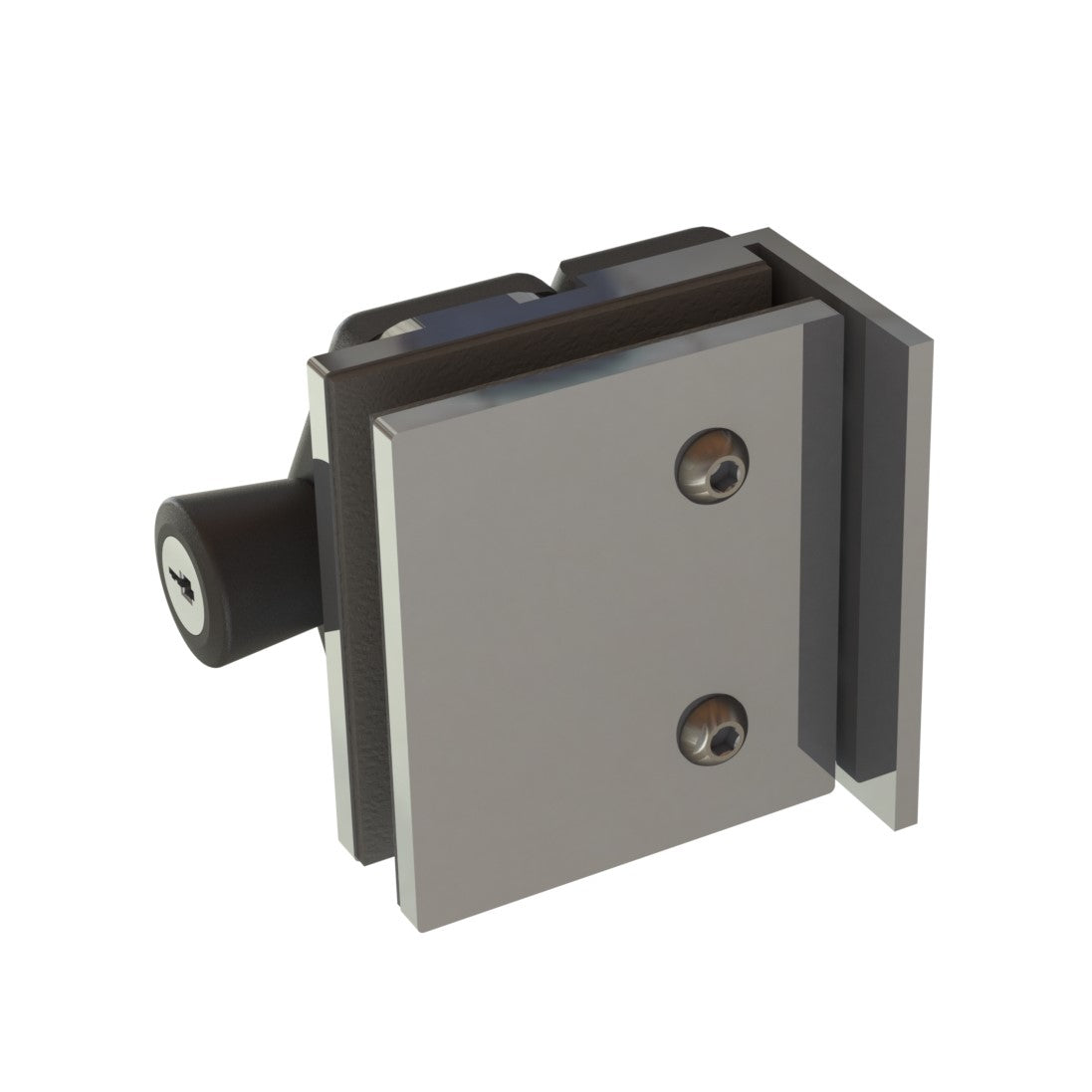

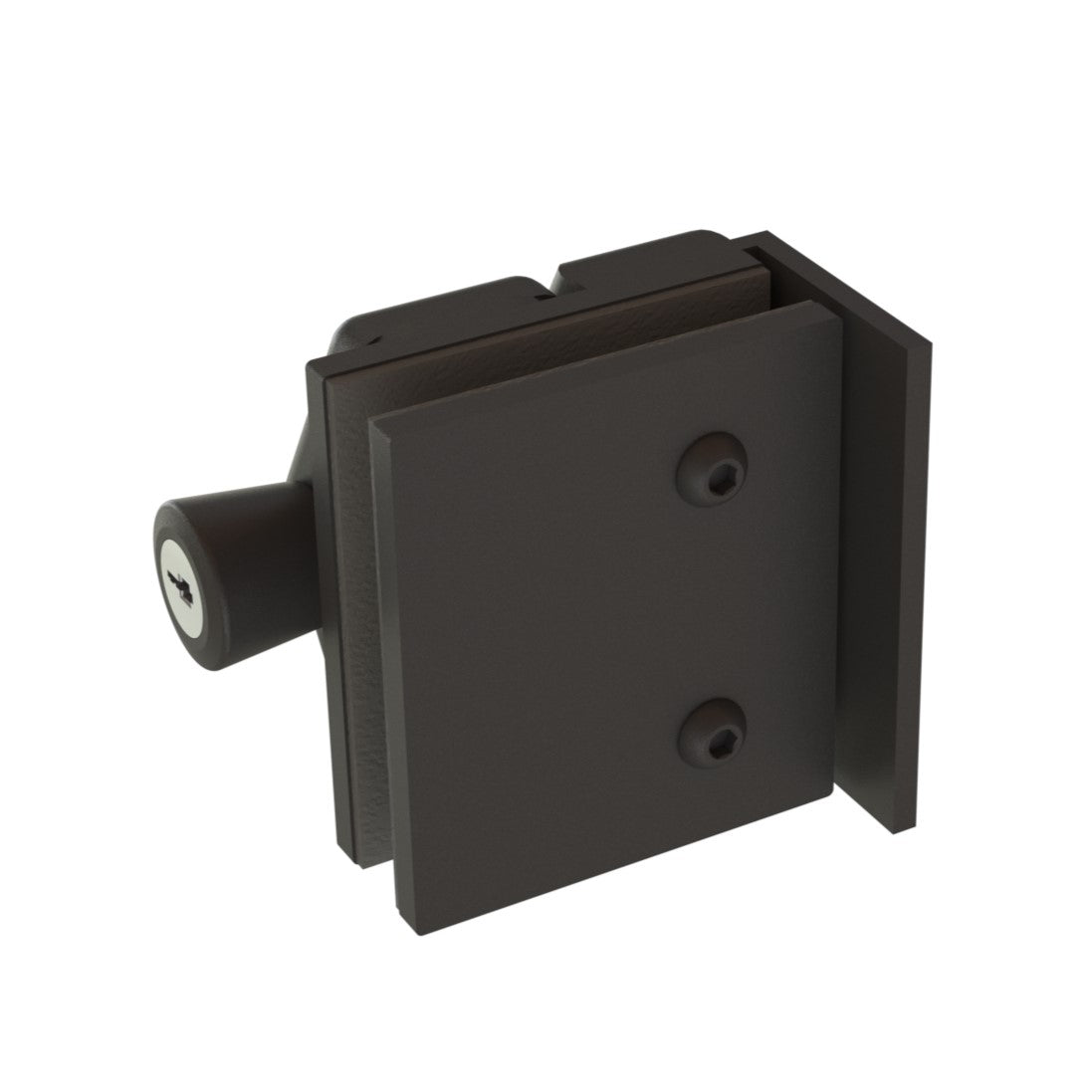

The DIVE Series 90° Wall/Post to Glass Pool Fencing Latch with Lock is a premium safety solution for modern pool fencing. Engineered from durable SS316 stainless steel, it offers corrosion resistance and reliability in both indoor and outdoor applications. This latch is compatible with various glass thicknesses and meets rigorous pool fencing standards, ensuring safety without compromising style.

More Product Information

Material: 316 Stainless Steel

Product Length: 3-3/8" (86.20mm)
Product Width: 3" (76.20mm)
Product Height: 2-3/8" (60.77mm)

Glass Thickness Range: 5/16" to 1/2" (8mm to 12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: 3/8" (10mm) Hole

Gap Requirement: 1/2 inch (12.5 mm) between fixed and door panels.
Height Requirement: Please check your local building code for height requirements.

Includes: Keys
Gasket: Black Interior Gaskets
Gasket Material: EPDM
Gasket Thickness: 1/16" (1.5mm)

Mounting Fastener Size: 1/4" Hole (Post Mounting), M8 Threaded (Glass Mounting)

Mounting Type: Wall Mount

Maximum Glass Width: 40"
Maximum Weight Capacity: 45 kg (100 lbs)

For technical inquiries: technical@ggh-usa.com

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
