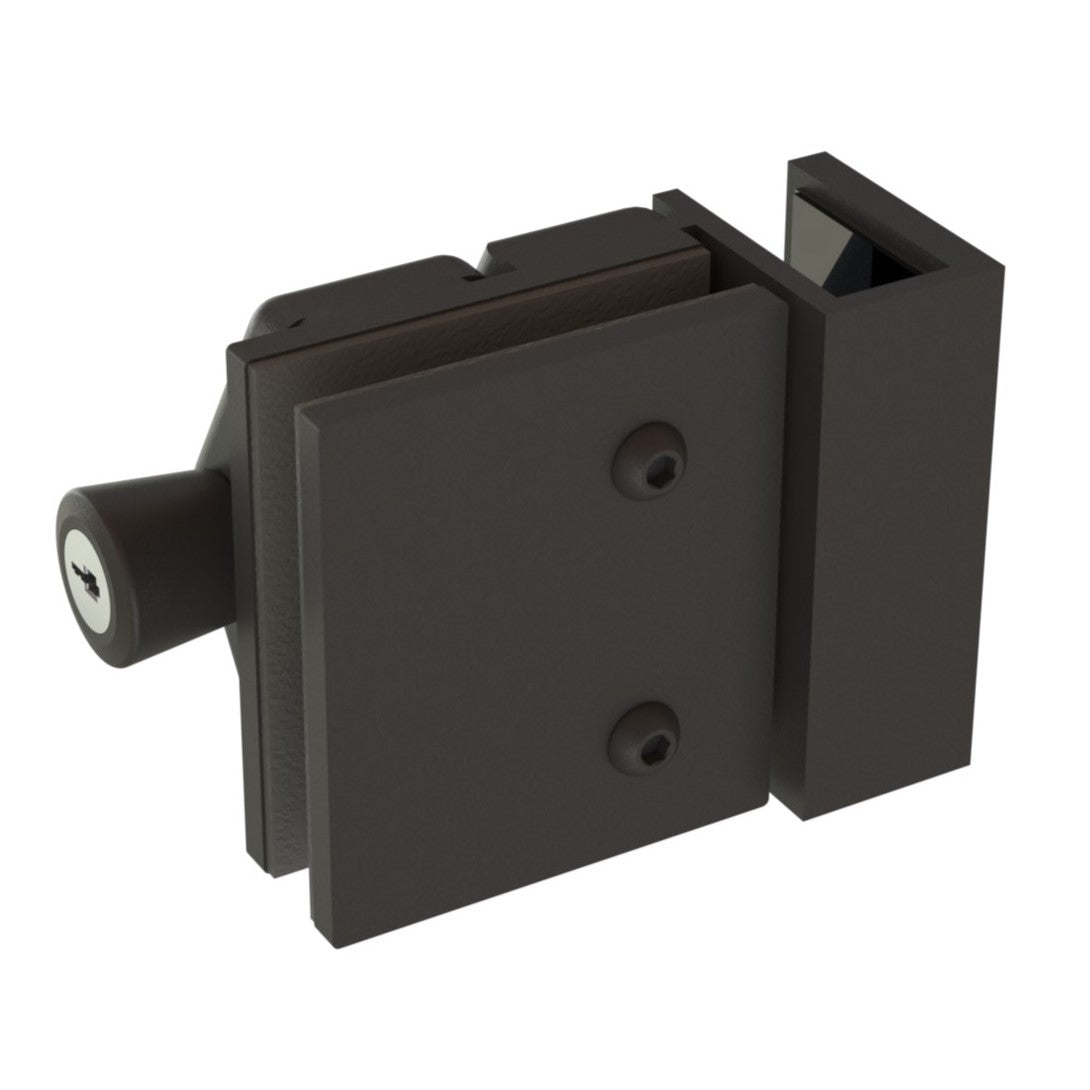

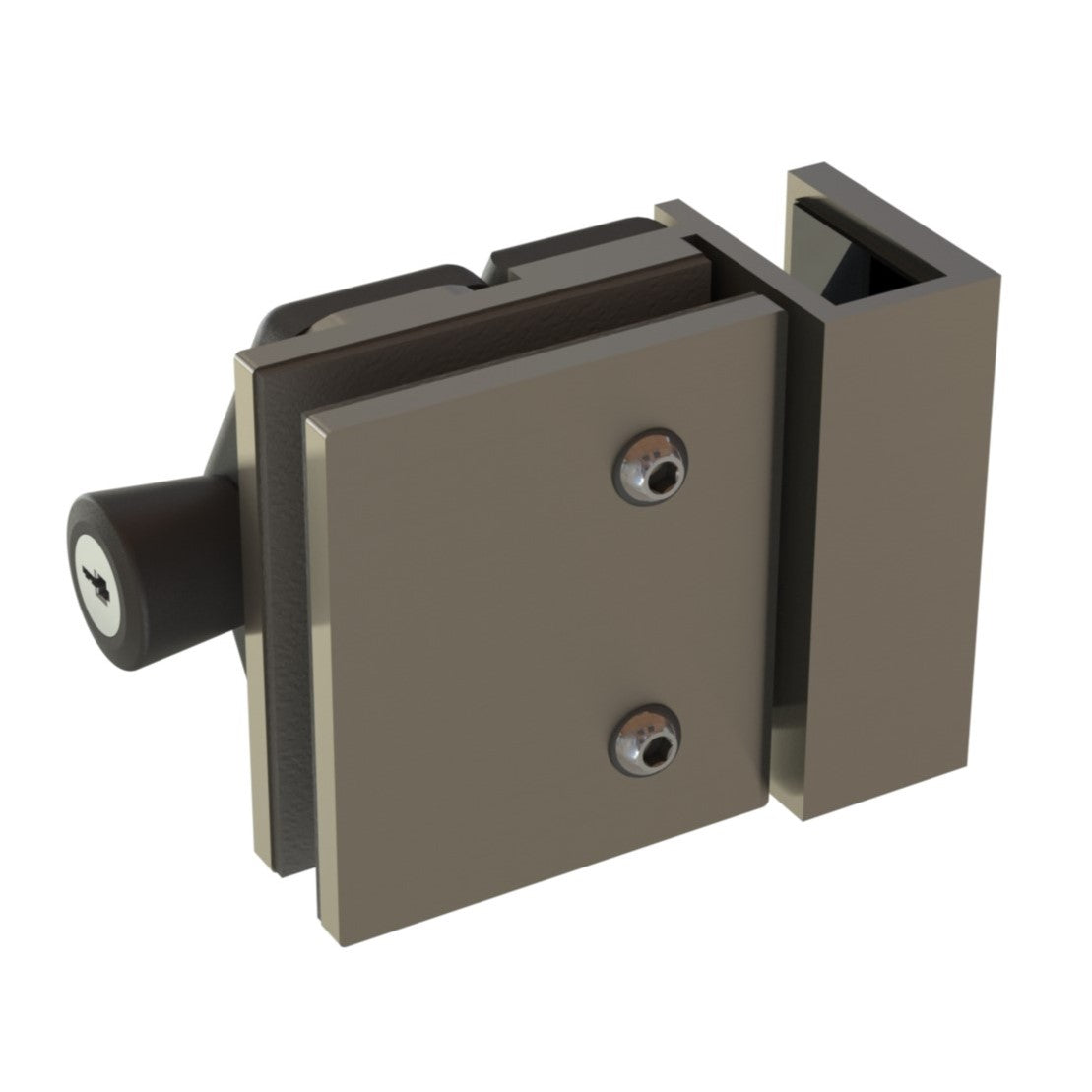

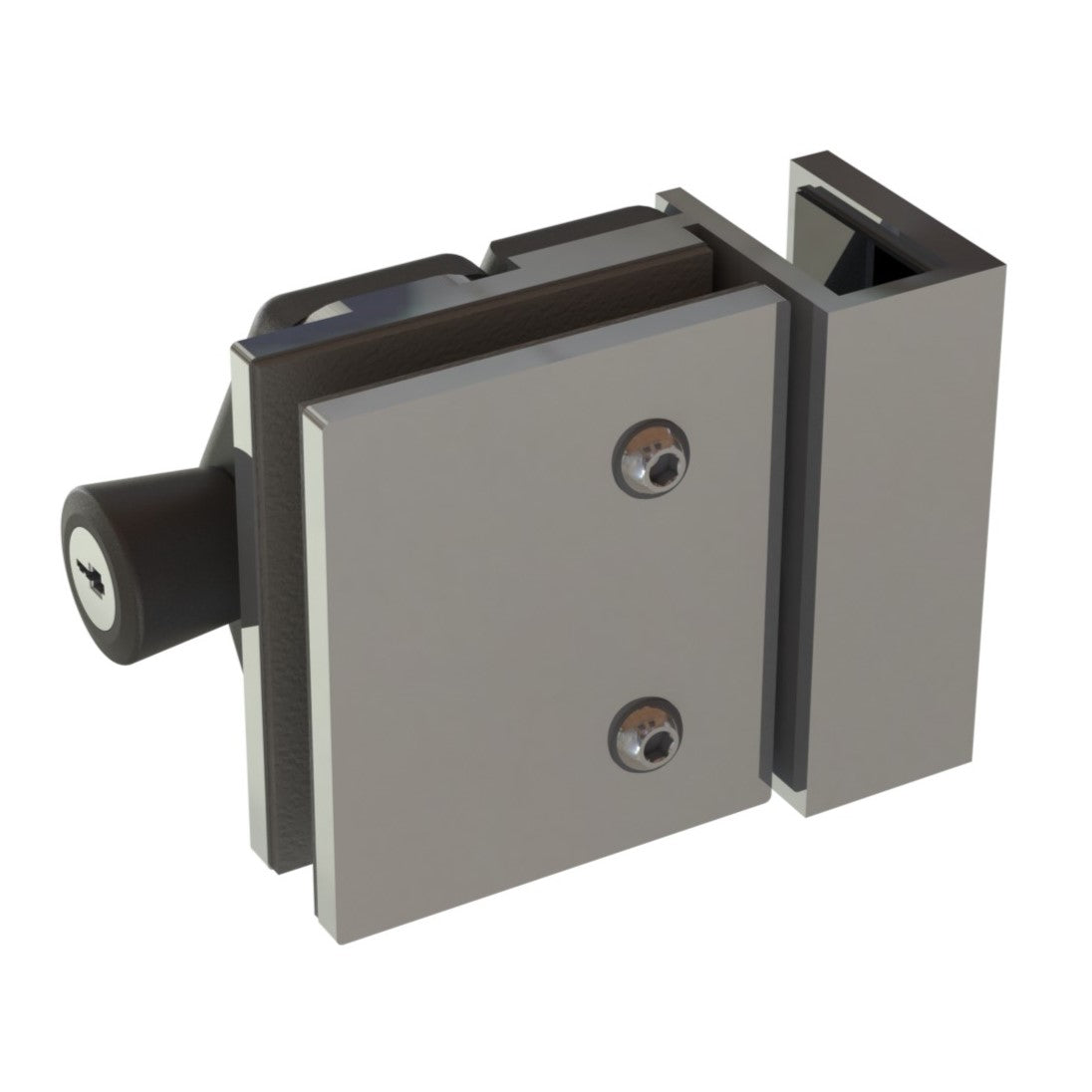

The DIVE Series 90° Glass-to-Glass Outswing Pool Fencing Latch with Lock provides a reliable and stylish solution for pool fencing applications. Designed with safety and durability in mind, this latch is made from premium SS316 stainless steel, ensuring long-lasting performance in both indoor and outdoor environments. Compatible with multiple glass thicknesses and meeting pool fencing standards, this latch is ideal for residential and commercial settings. Available in Brushed Stainless, Polished Stainless, and Matte Black finishes to suit any design preference.

Material: 316 Stainless Steel

Product Length: 4-3/8" (110.00mm)
Product Width: 3" (76.20mm)
Product Height: 2-3/8" (60.27mm)

Glass Thickness Range: 5/16" to 1/2" (8mm to 12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: 3/8" (10mm) Hole

Gap Requirement: 1/2 inch (12.5 mm) between fixed and door panels.
Height Requirement: Please check your local building code for height requirements.

Includes: Keys
Gasket: Black Interior Gaskets
Gasket Material: EPDM
Gasket Thickness: 1/16" (1.5mm)

Mounting Fastener Size: M8 Threaded (Glass Mounting)

Mounting Type: Glass Mount

Maximum Glass Width: 40"
Maximum Weight Capacity: 45 kg (100 lbs)
