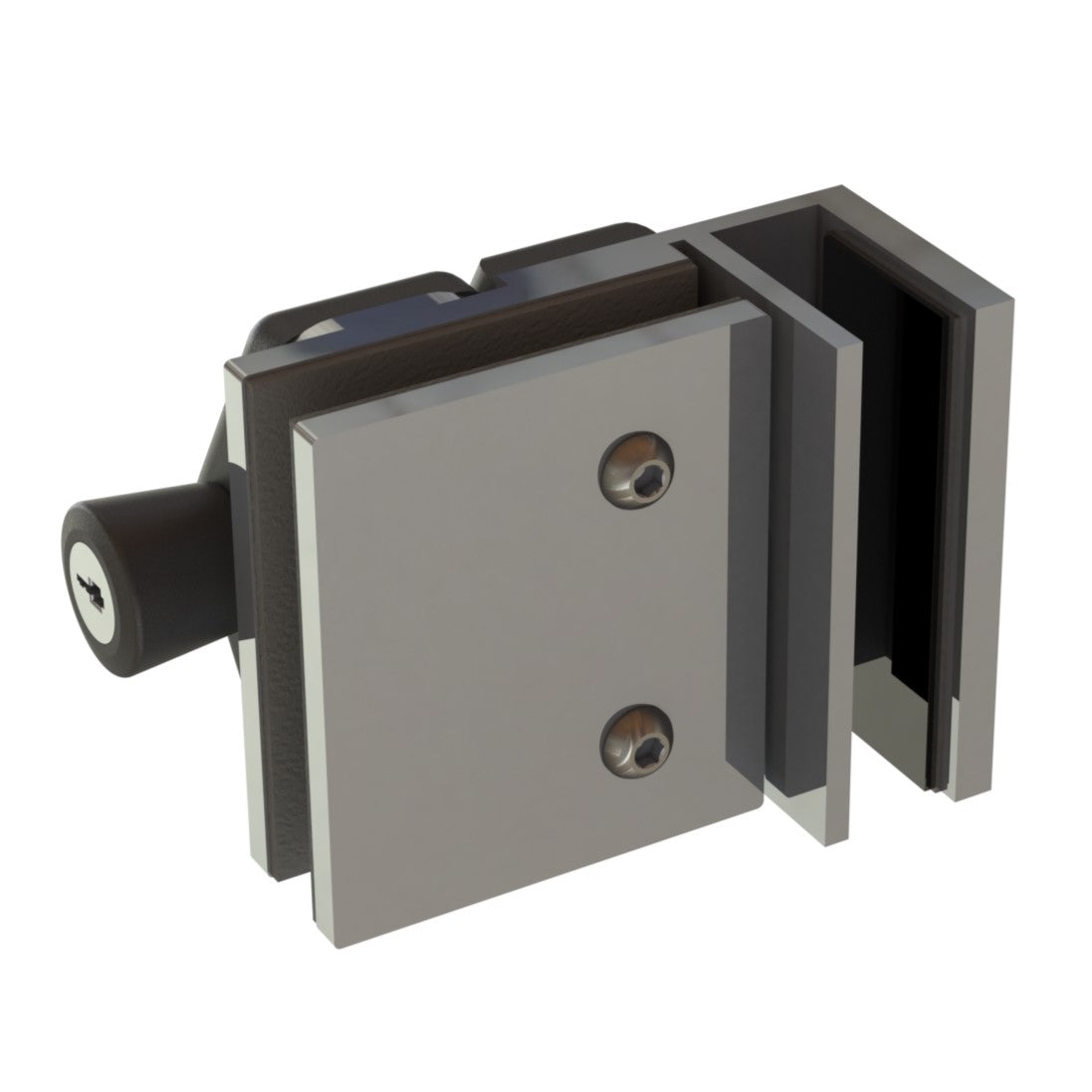

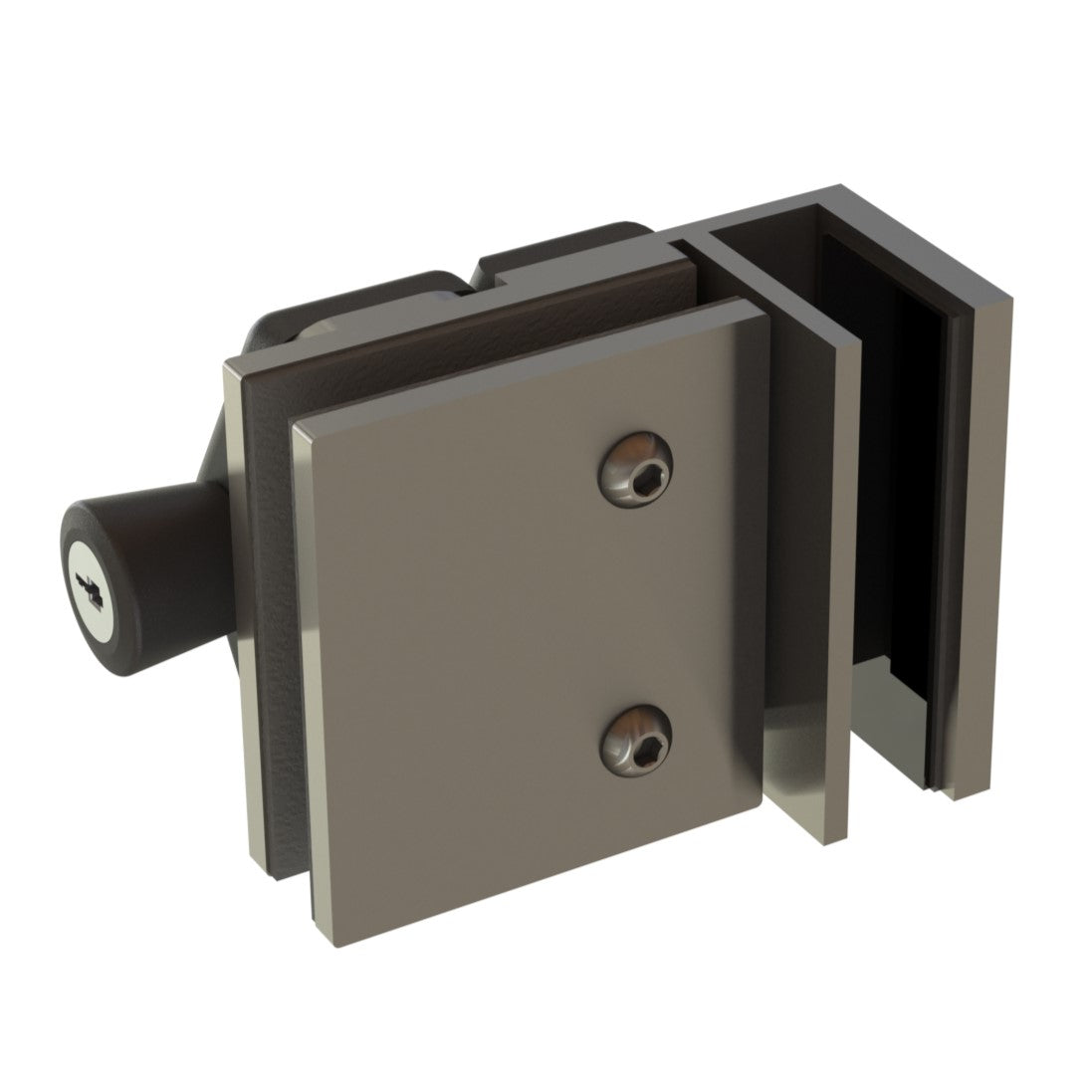

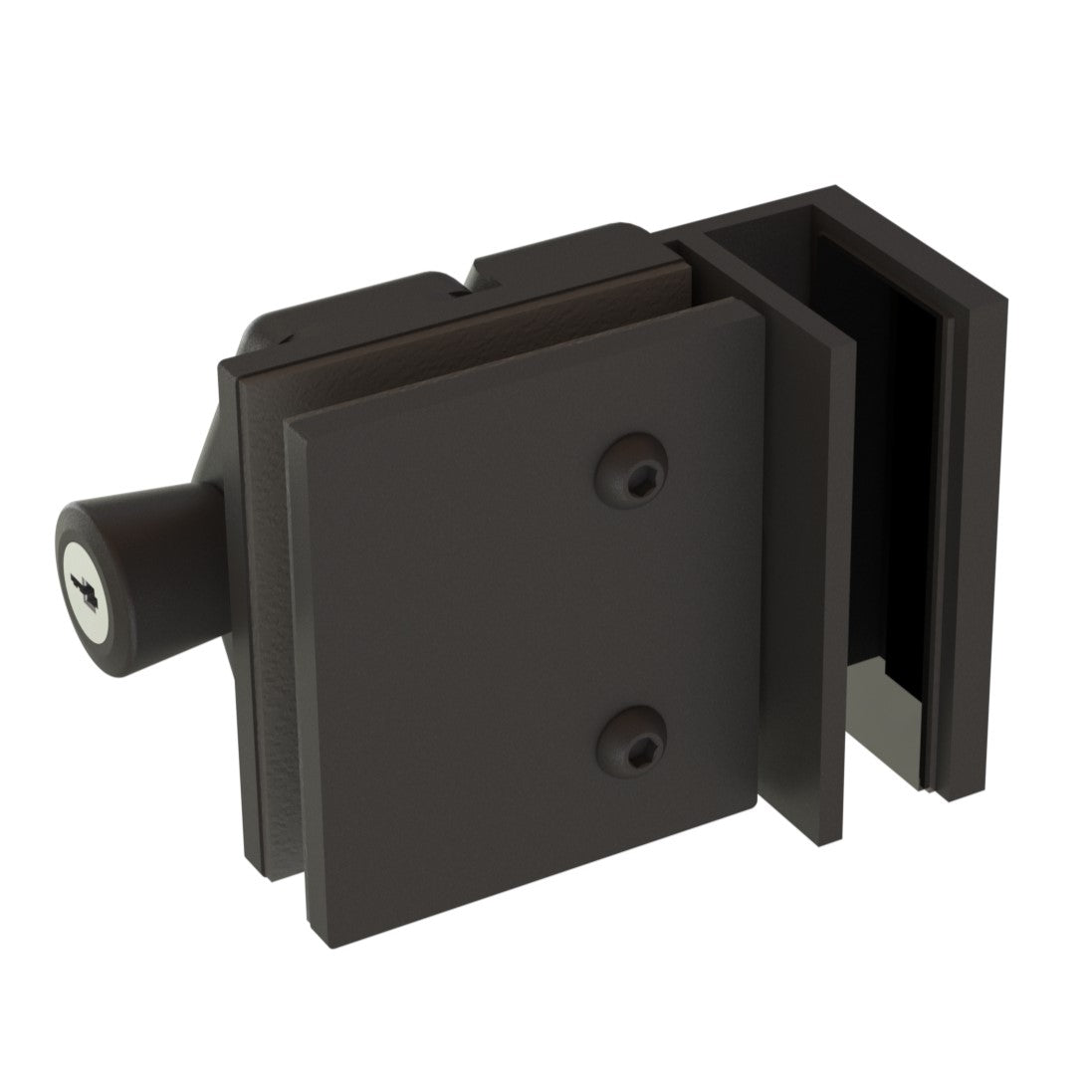

The DIVE Series 90° Glass-to-Glass Inswing Pool Fencing Latch with Lock is a high-quality, secure solution for pool fencing installations. Built with premium SS316 stainless steel, it ensures durability and corrosion resistance, making it ideal for indoor and outdoor use. This latch is compatible with various glass thicknesses and meets all pool fencing compliance standards, offering safety and a sleek aesthetic. Available in Brushed Stainless, Polished Stainless, and Matte Black finishes to match any design.

Material: 316 Stainless Steel

Product Length: 4-1/4" (108.00mm)
Product Width: 3" (76.20mm)
Product Height: 2-3/4" (68.77mm)

Glass Thickness Range: 5/16" to 1/2" (8mm to 12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: 3/8" (10mm) Hole

Gap Requirement: 1/2 inch (12.5 mm) between fixed and door panels.
Height Requirement: Please check your local building code for height requirements.

Includes: Keys
Gasket: Black Interior Gaskets
Gasket Material: EPDM
Gasket Thickness: 1/16" (1.5mm)

Mounting Fastener Size: M8 Threaded (Glass Mounting)

Mounting Type: Glass Mount

Maximum Glass Width: 40"
Maximum Weight Capacity: 45 kg (100 lbs)
