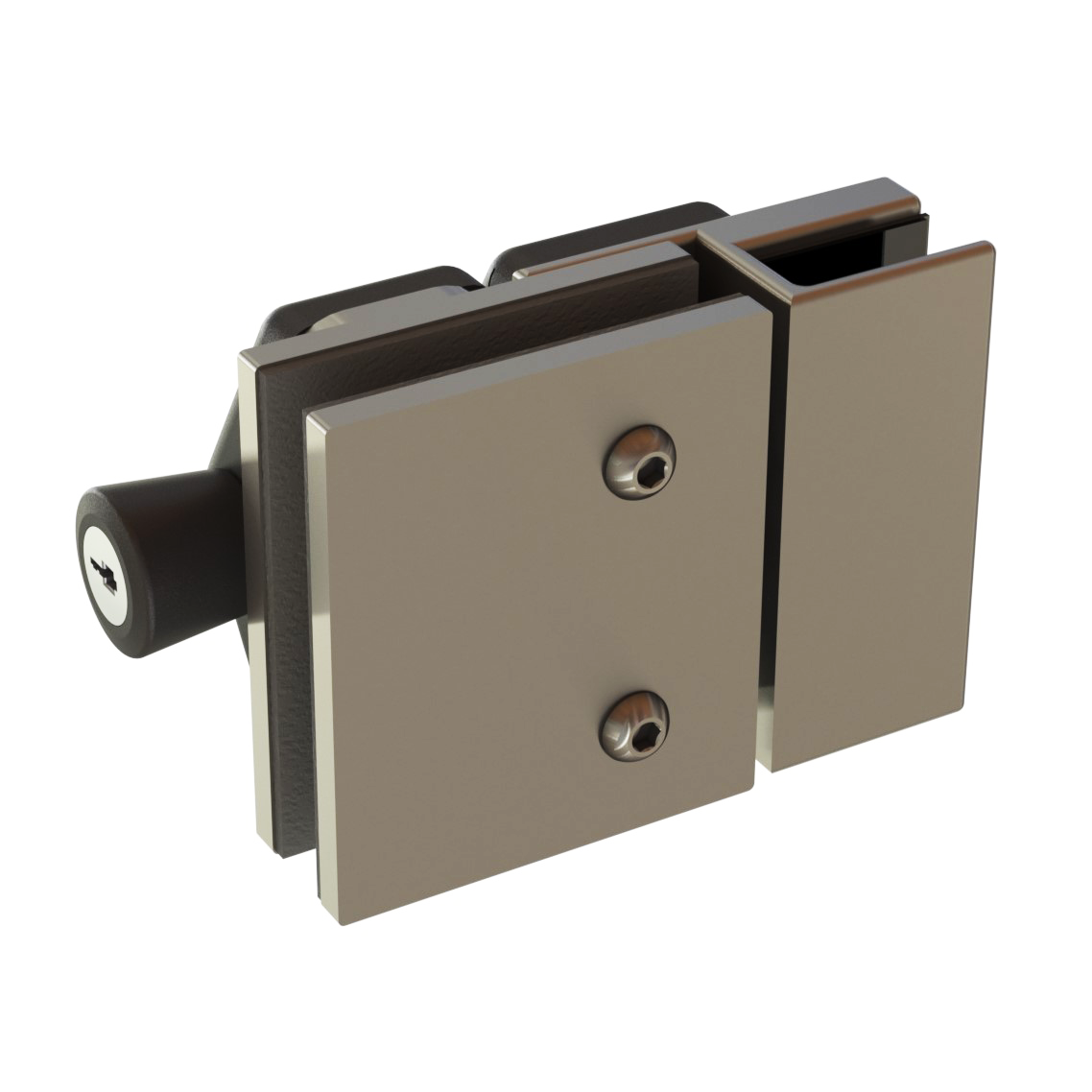

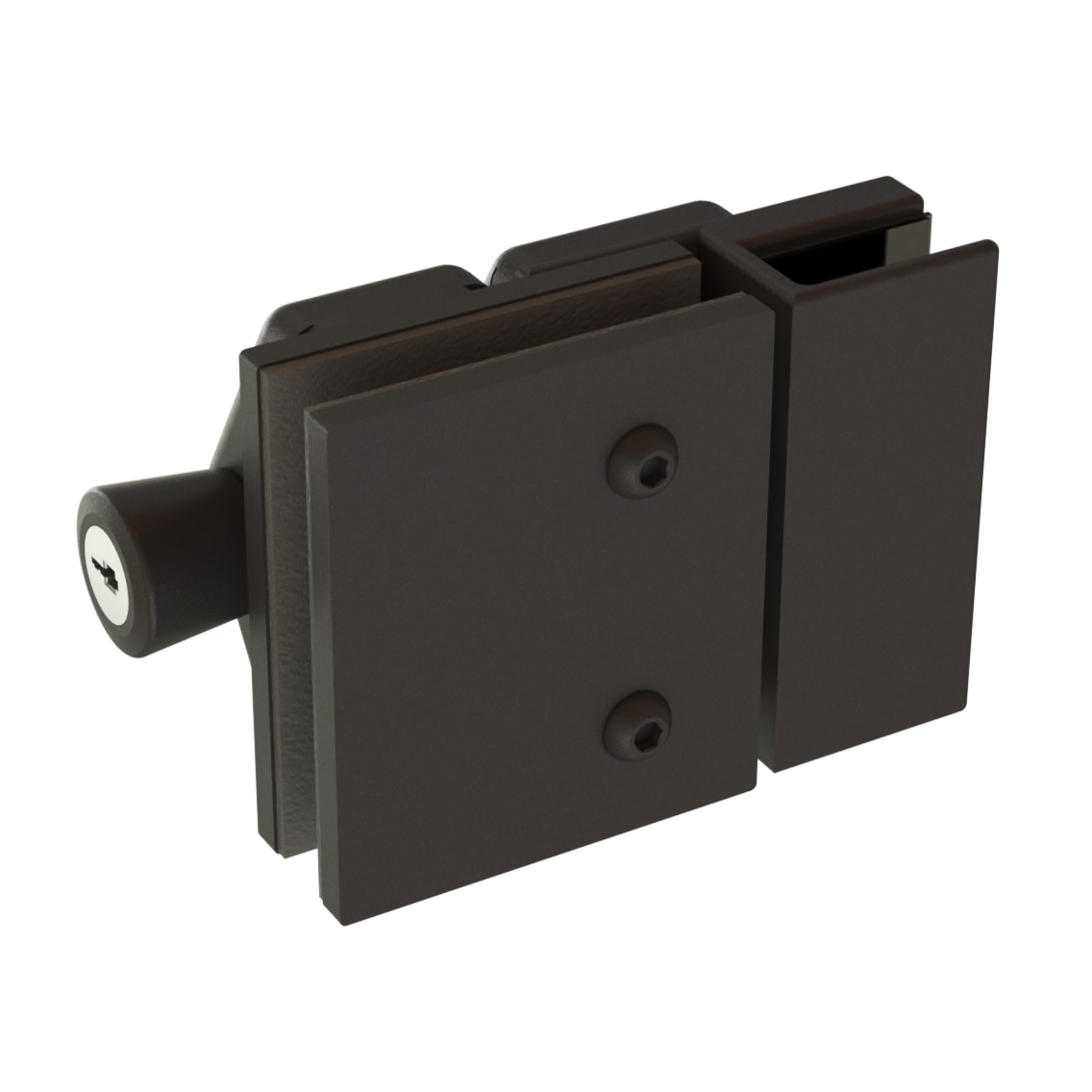

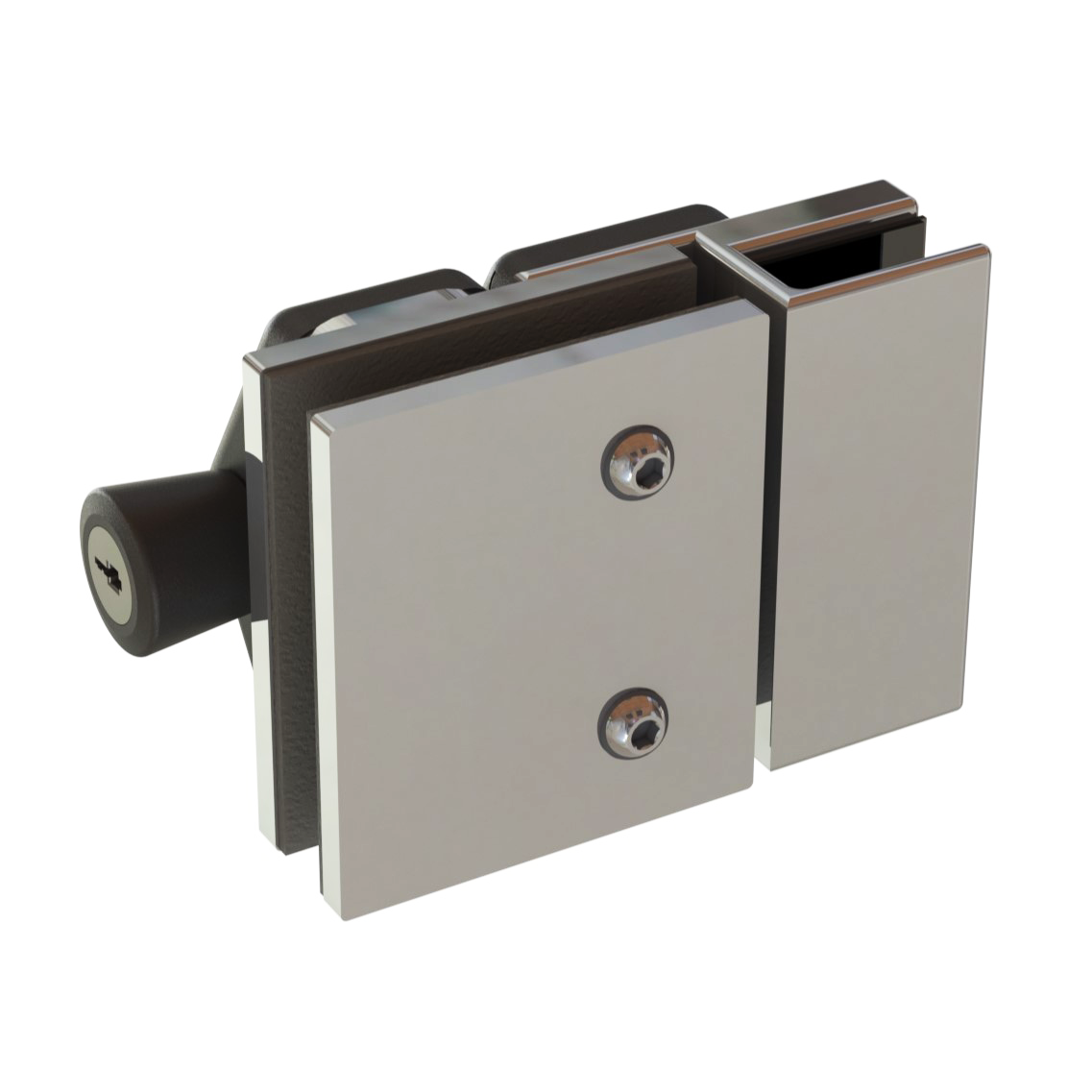

The DIVE Series 180° Glass-to-Glass Pool Fencing Latch with Lock offers the perfect combination of safety and elegance. Designed to meet pool fencing requirements, this latch is crafted from premium SS316 stainless steel for superior durability and resistance to corrosion, making it ideal for both indoor and outdoor use. Suitable for various glass thicknesses and featuring a sleek locking mechanism, this latch ensures security while enhancing the aesthetic of your pool area. Available in Brushed Stainless, Polished Stainless, and Matte Black finishes to complement any style.

Material: 316 Stainless Steel

Product Length: 4-5/8" (117.10mm)
Product Width: 3" (76.20mm)
Product Height: 2-1/4" (55.77mm)

Glass Thickness Range: 5/16" to 1/2" (8mm to 12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: 3/8" (10mm) Hole

Gap Requirement: 1/2 inch (12.5 mm) between fixed and door panels.
Height Requirement: Please check your local building code for height requirements.

Includes: Keys
Gasket: Black Interior Gaskets
Gasket Material: EPDM
Gasket Thickness: 1/16" (1.5mm)

Mounting Fastener Size: M8 Threaded (Glass Mounting)

Mounting Type: Glass Mount

Maximum Glass Width: 40"
Maximum Weight Capacity: 45 kg (100 lbs)
