Overview

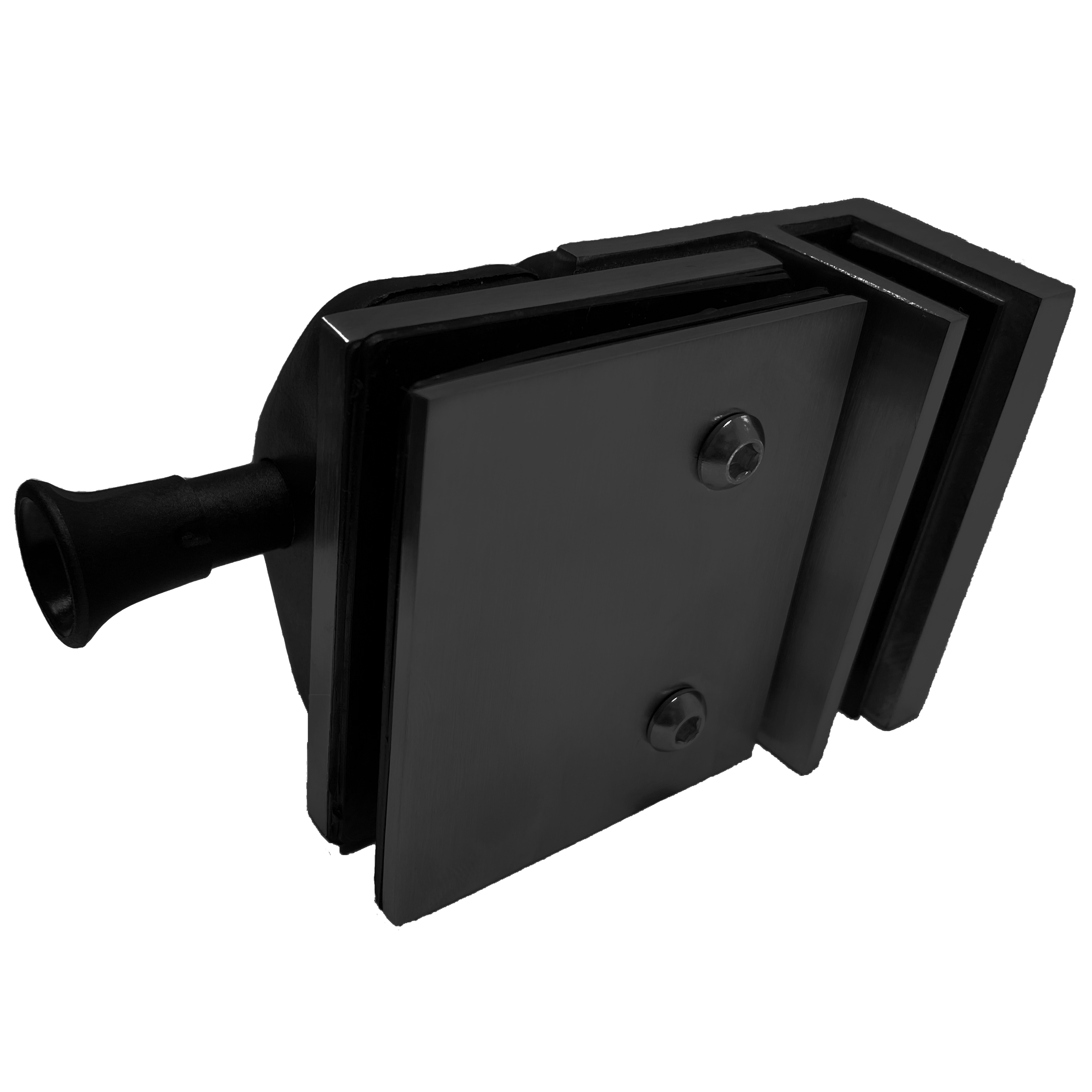

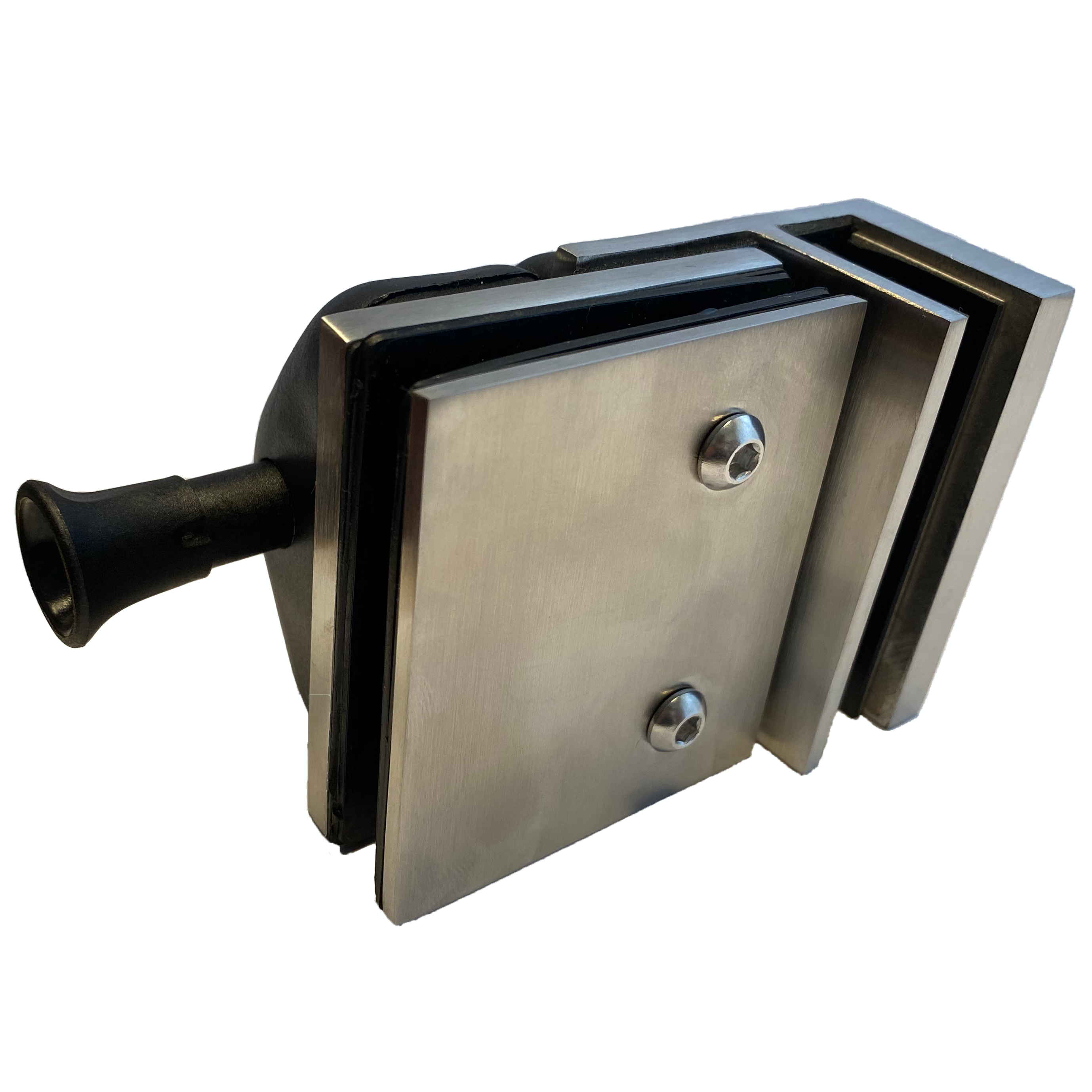

The Pool Fencing Latch is a high-quality stainless steel latch designed for 90° glass-to-glass corner applications. Crafted from SS316 stainless steel, it offers excellent corrosion resistance and durability, making it ideal for both indoor and outdoor pool fencing installations.
Material: 316 Stainless Steel
Product Length: 4-7/8" (123.00mm)
Product Width: 3" (76.20mm)
Product Height: 2-3/8" (60.77mm)
Glass Thickness Range: 5/16" to 1/2" (8mm to 12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: 3/8" (10mm) Hole
Glass Panel Gap: 1/2" (12.5mm) between fixed and door panel
Includes: Extra Glass Padding
Gasket: Black Interior Gaskets
Gasket Material: EPDM
Gasket Thickness: 1/16" (1.5mm)
Mounting Fastener Size: M8 Threaded (Glass Mounting)
Mounting Type: Glass Mount
Maximum Glass Width: 40"
Maximum Weight Capacity: 45 kg (100 lbs)
For technical inquiries: technical@ggh-usa.com
Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
| Length | 4-7/8 in. (123.00 mm) |
|---|---|
| Width | 3 in. (76.20 mm) |
| Height | 2-3/8 in. (60.77 mm) |
| Weight | 2.85 lbs. (1.2948 kg) |
