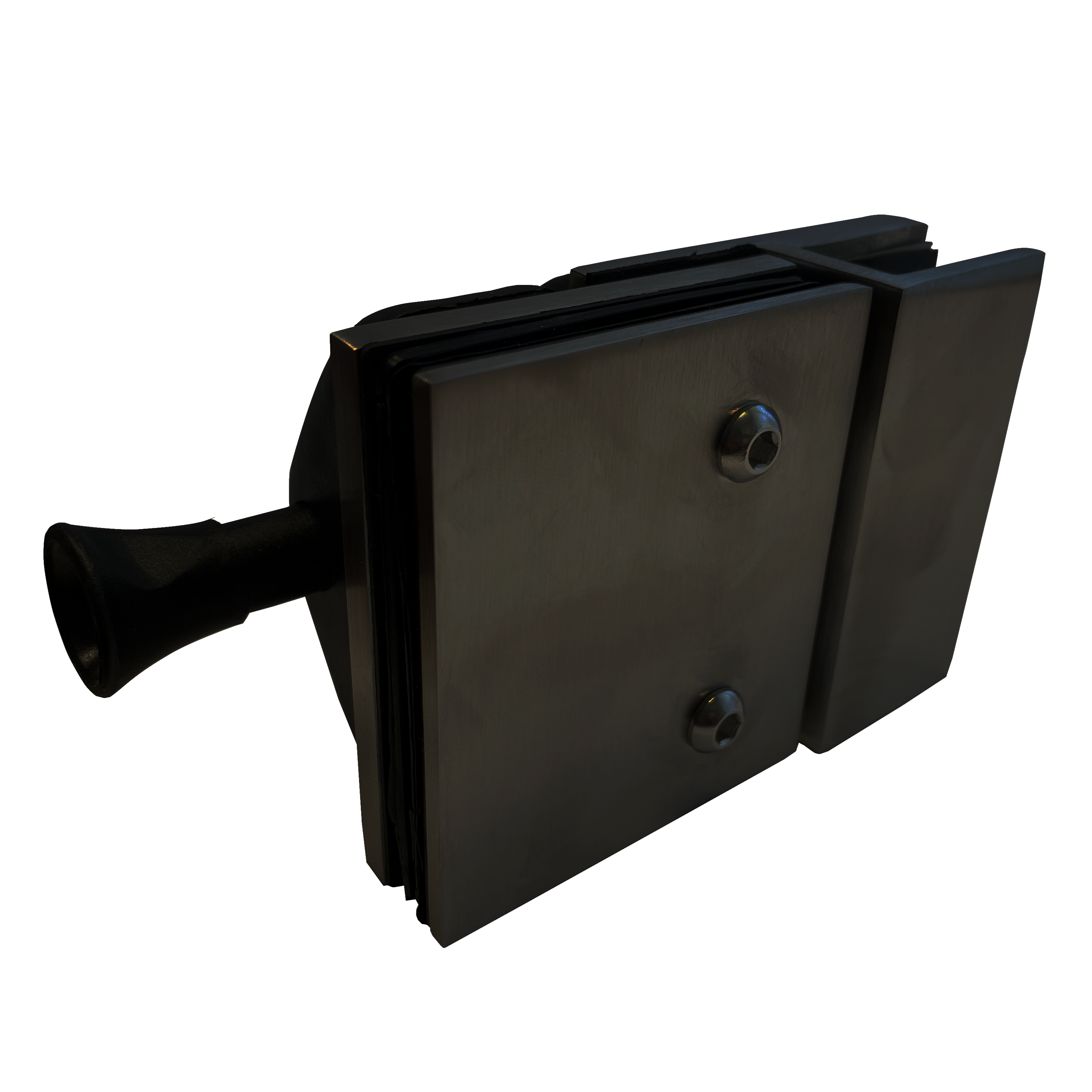

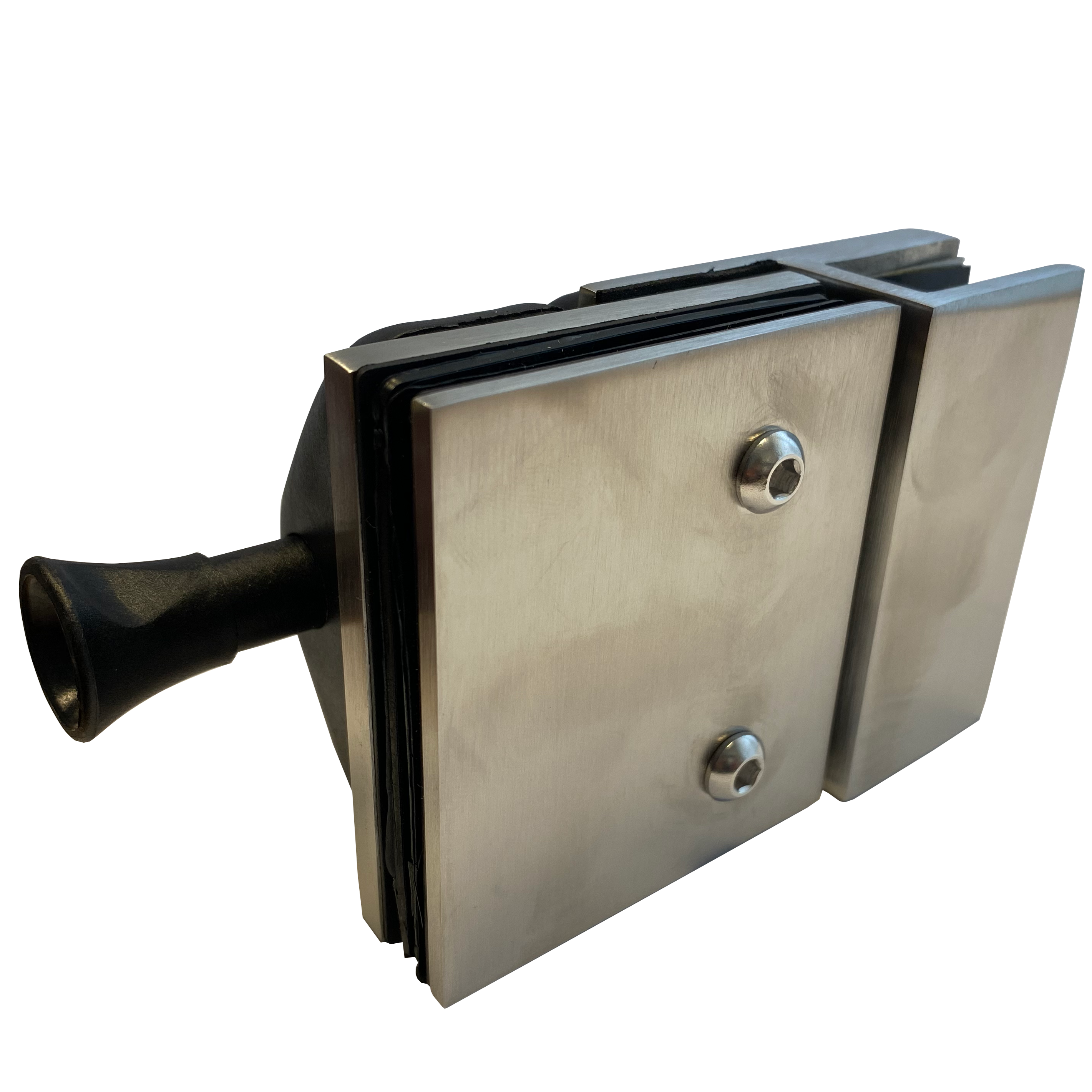

The Pool Fencing Latch is a premium magnetic latch system designed for inline glass-to-glass applications. Engineered from high-grade SS316 stainless steel, it provides superior corrosion resistance and durability, making it ideal for both indoor and outdoor pool fencing installations.

Material: 316 Stainless Steel

Product Length: 5-1/8" (130.00mm)
Product Width: 3" (76.20mm)
Product Height: 2-1/4" (56.77mm)

Glass Thickness Range: 5/16" to 1/2" (8mm to 12mm)
Glass Type: Monolithic Tempered Glass
Glass Fabrication: 3/8" (10mm) Hole
Glass Panel Gap: 1/2" (12.5mm) between fixed and door panel

Includes: Extra Glass Padding
Gasket: Black Interior Gaskets
Gasket Material: EPDM
Gasket Thickness: 1/16" (1.5mm)

Mounting Fastener Size: M8 Threaded (Glass Mounting)

Mounting Type: Glass Mount

Maximum Glass Width: 40"
Maximum Weight Capacity: 45 kg (100 lbs)

For technical inquiries: technical@ggh-usa.com

Product Warning: Always use appropriate safety equipment during installation. Improper installation may result in product failure or personal injury. Product images are for reference only; actual finish may vary.
