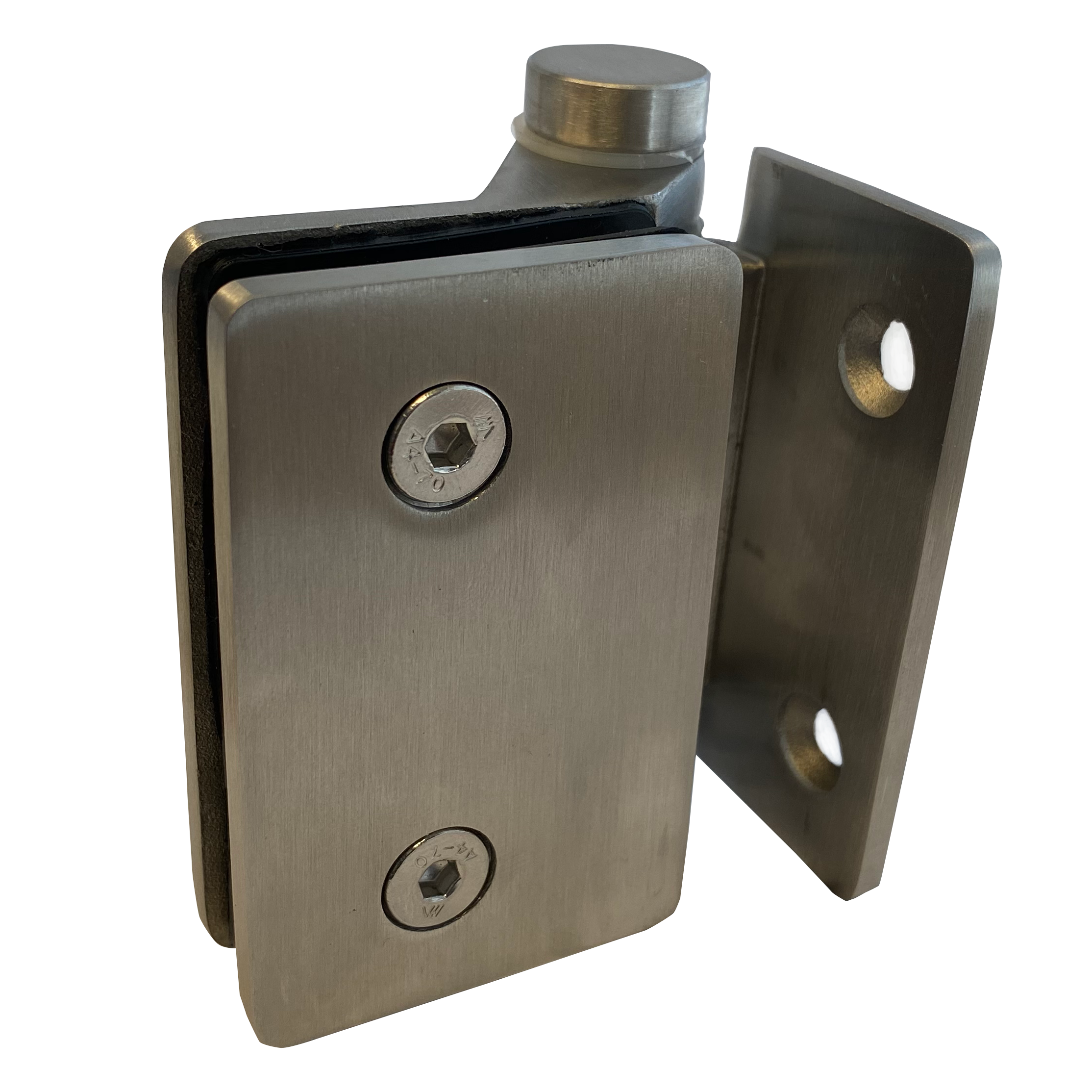

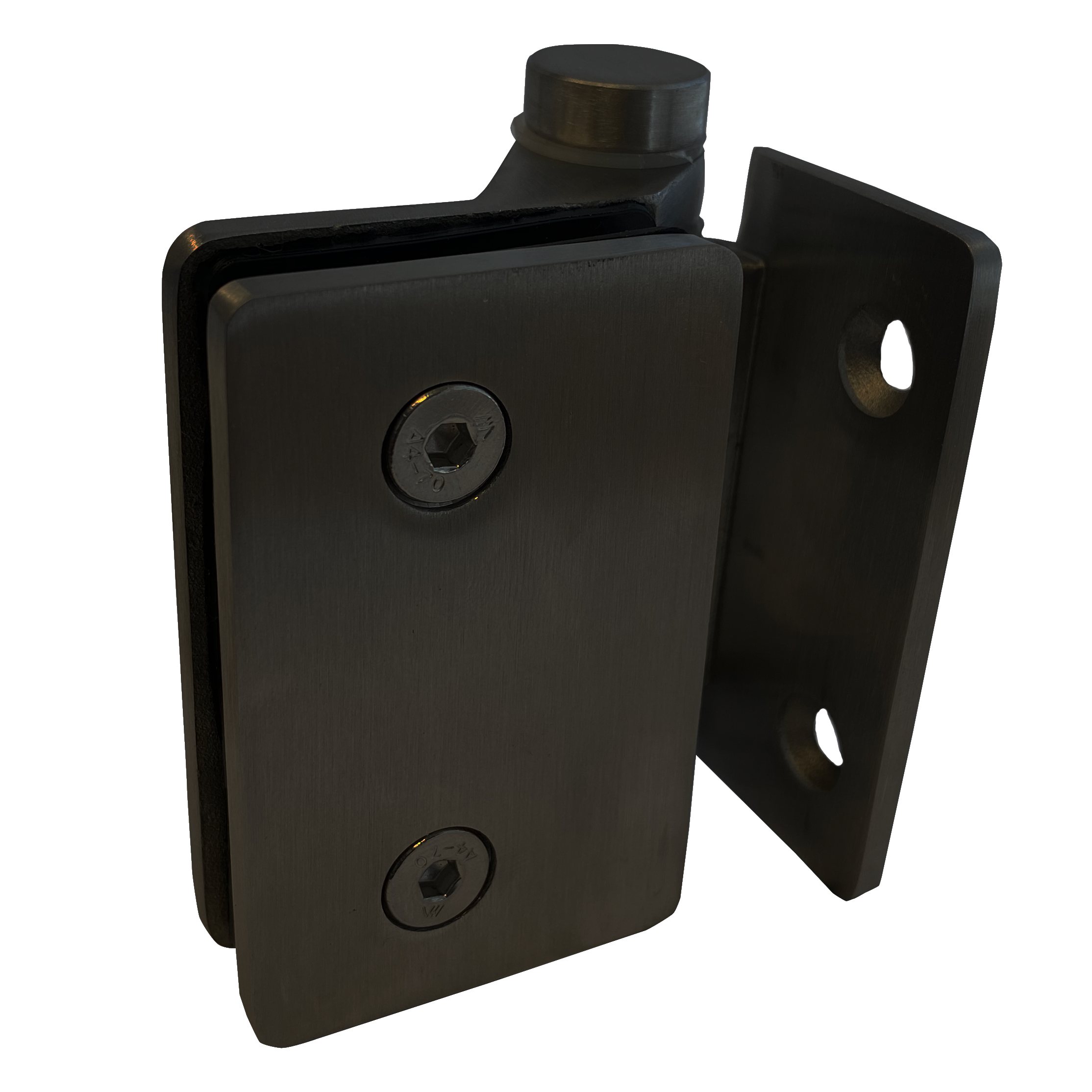

The DIVE Series Heavy-Duty Glass-to-Wall / Square Post Hinge is a high-performance, spring-loaded hinge designed for secure and durable pool fencing installations. Made from premium stainless steel, it ensures long-lasting performance in both residential and commercial environments.

Material: 316 Stainless Steel

Profile: Square
Product Length: 3-3/4" (94.2mm)
Product Width: 2-3/4" (71.32mm)
Product Height: 2" (52mm)

Glass Thickness Range: 5/16" to 1/2" (8mm to 12mm)
Glass Type: Tempered Glass

Includes: Screws, Gaskets
Gasket Material: EPDM (Black)
Gasket Thickness: 1/16" (1.5mm)

Mounting Fastener Size: 1/4" (6mm) Hole

Adjustability Type: Tilt (Angular)
Tilt Adjustment: 180°

Mounting Type: Glass Mount

Minimum Height Requirements:
Single Residential Property: 47.24" (1.2m)
Multiple Residential Property: 70.87" (1.8m)
Non-Residential Property: 70.87" (1.8m)
Maximum Glass Width: 48"
Maximum Weight Capacity: 50 kg (110 lbs)

Tension Adjustment Instructions

Remove the Cone and Grub Screw
Use an Allen key to unscrew and remove the grub screw located on the hinge side.
Adjust the Tension Pin
Turn the tension pin clockwise to the next hole in the tension plate.
If needed, turn anticlockwise to reveal the tension pin for adjustment.
Re-tighten the Grub Screw
After adjusting the tension pin, insert and tighten the grub screw securely with the Allen key.
Repeat as Needed
Repeat the adjustment process up to six times (360° in total).
